Product description: JustPi case for Raspberry Pi 5 with two fans - aluminum - black
Black housing from justPi , intended for Raspberry Pi 5. It is made of aluminum , thanks to which it dissipates the generated heat by acting as a heat sink . It has two built-in fans that additionally support air flow and simultaneously cool the entire system. The housing design protects the Raspberry Pi 5 against mechanical damage or accidental short circuits while ensuring an interesting and aesthetic appearance of the minicomputer. The casing is mounted with screws, so it can be dismantled multiple times without fear of damaging the structure. The set includes mounting screws, thermal tape and an Allen key.
The housing is dedicated to Raspberry Pi 5 , therefore it will not be compatible with previous versions of Raspberry Pi such as 4B, 3B+, 3B or 2.

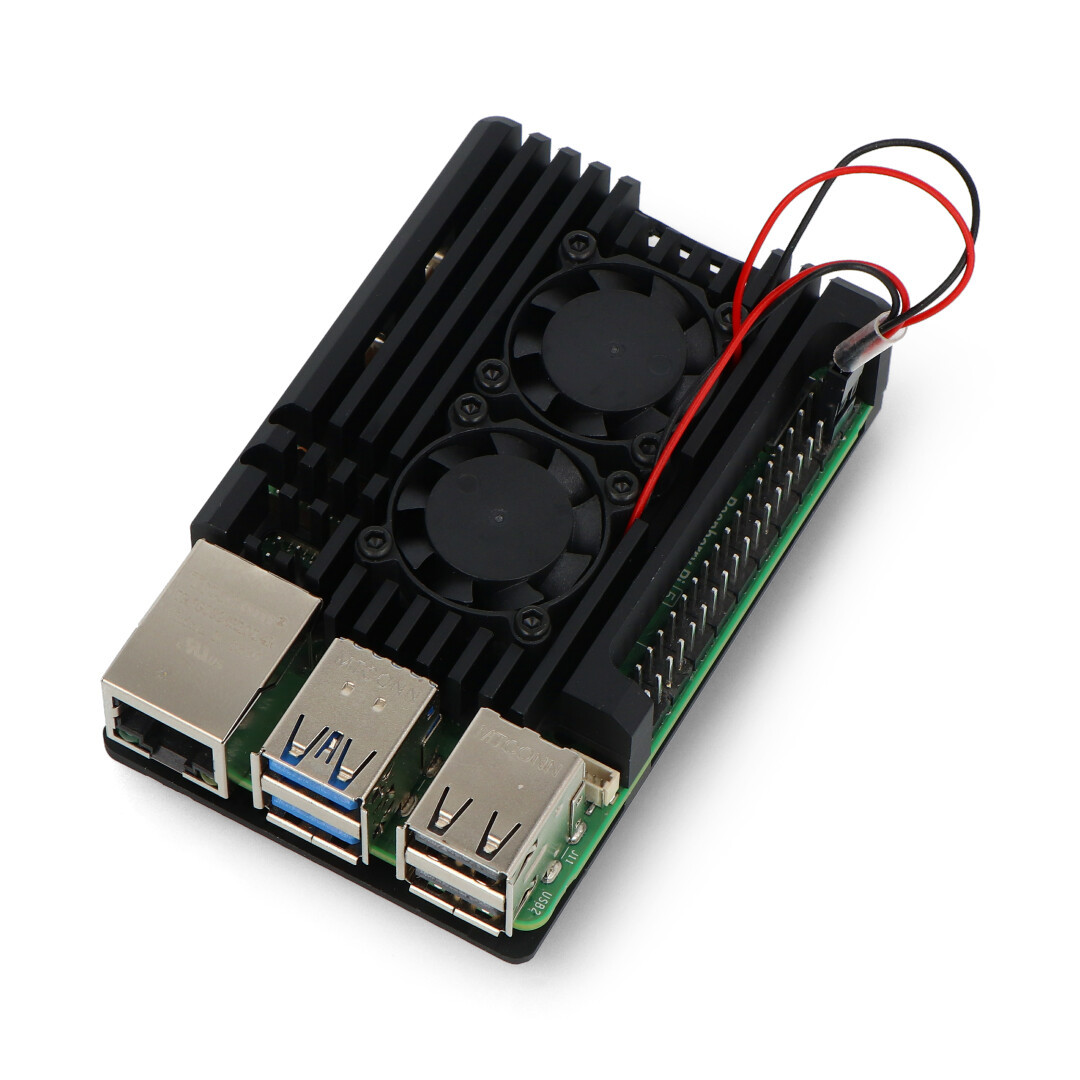

justPi case for Raspberry Pi 5 with two fans - aluminum - black.
Fan connection diagram.
Housing assembly
Before starting the assembly of the housing, it is necessary to glue the blue thermopads included in the set to the upper part of the housing. Then, the Raspberry Pi and the bottom case plate should be connected to the top using the included screws.
Fan connection
The fans have a two-pin cable that should be connected to the GPIO pins of the Raspberry Pi (5 V and GND). Installation does not require soldering, the cables are equipped with appropriate connectors. The correct connection method is shown in the diagram.
Attention!
There is a transparent foil on the thermopads, which must be removed before installation.
Main features of the case
- Compatible with Raspberry Pi 5
- The structure is entirely made of aluminum
- Protection of the most important elements of the board
- Effective cooling of the device thanks to fans
- Easy assembly and disassembly
- Black construction
The design of the housing allows for effective cooling and protection of the Raspberry Pi 5 against mechanical damage or accidental short circuits.
Installation does not require soldering, the cables are equipped with appropriate connectors.Technical Specifications
- Compatible with: Raspberry Pi 5
- Material: aluminum
- Black colour
- Two fans
- It acts as a heat sink
- External dimensions with Raspberry Pi 5 installed: 87 x 55 x 25 mm
Set contents
- Aluminum housing, black
- Thermopads
- Set of screws
- Allen key
