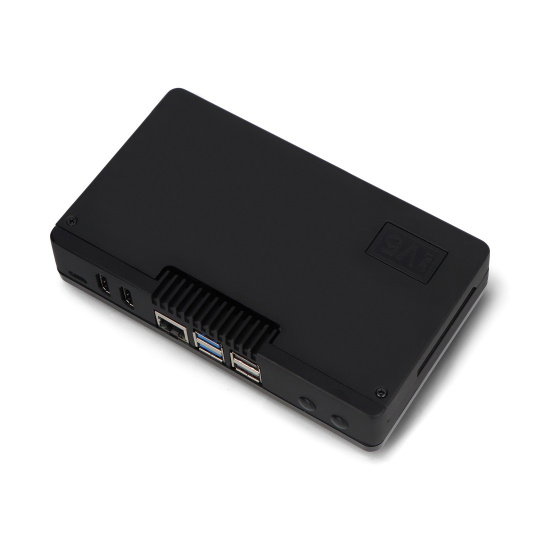

Product description: Argon ONE V5 - aluminum case for Raspberry Pi 5 with cooling and 2x NVMe

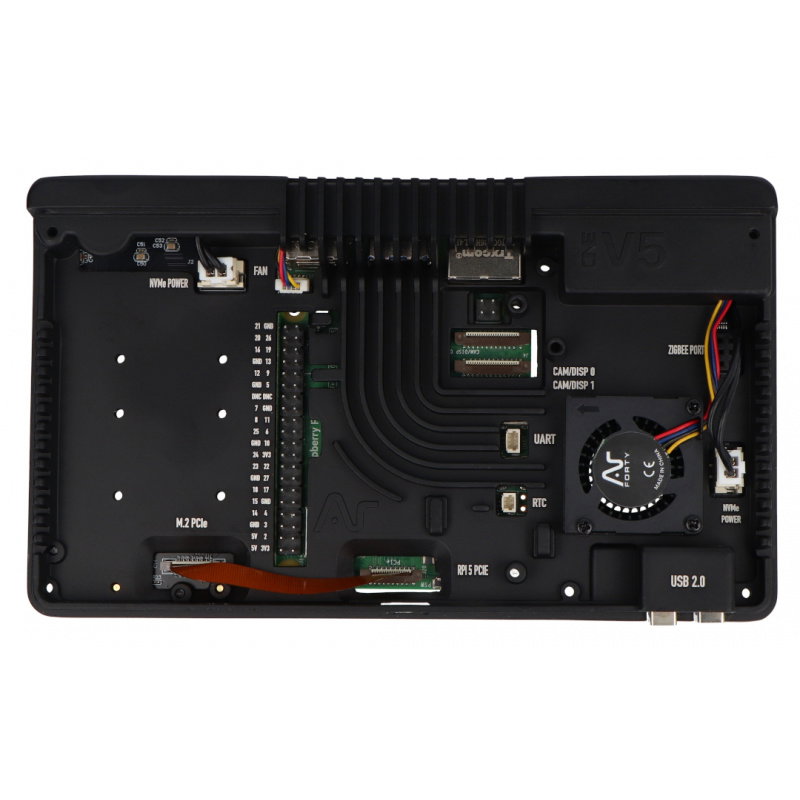

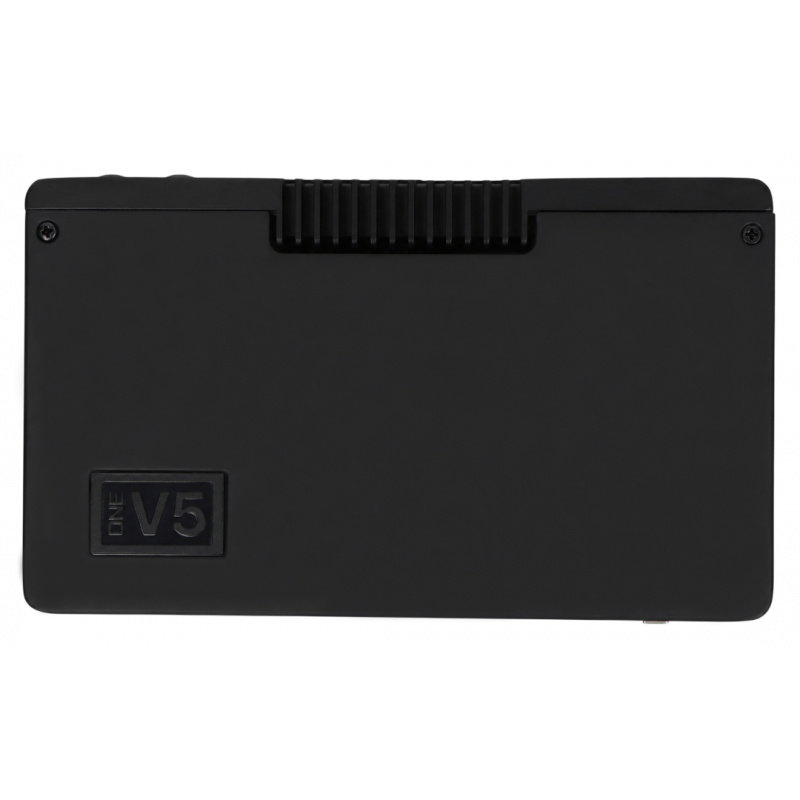

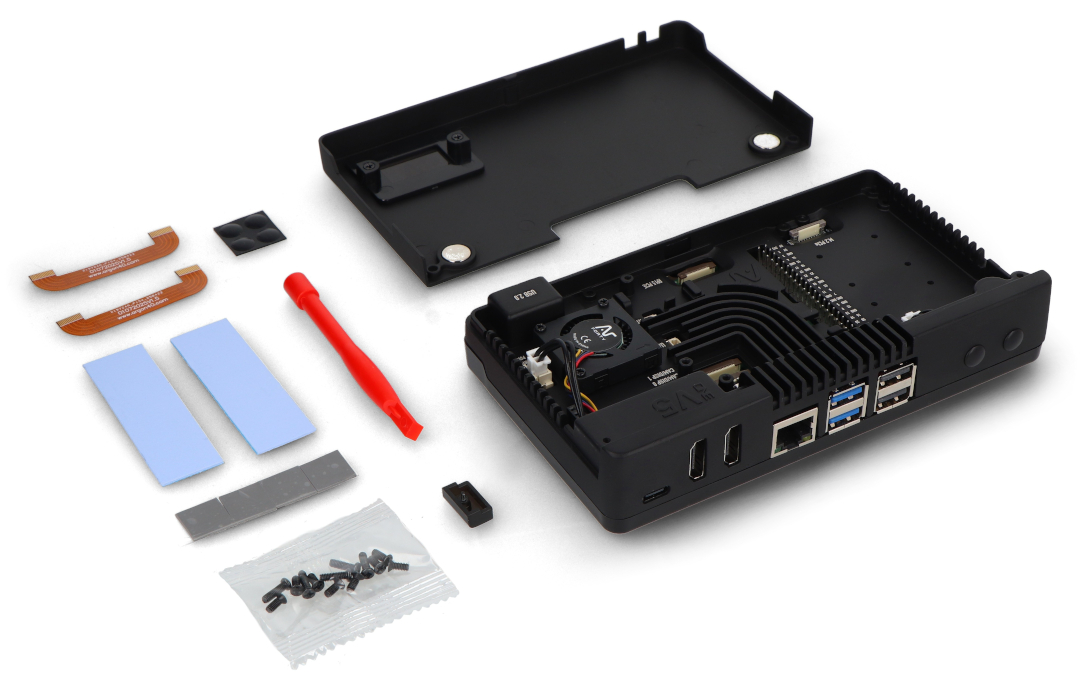

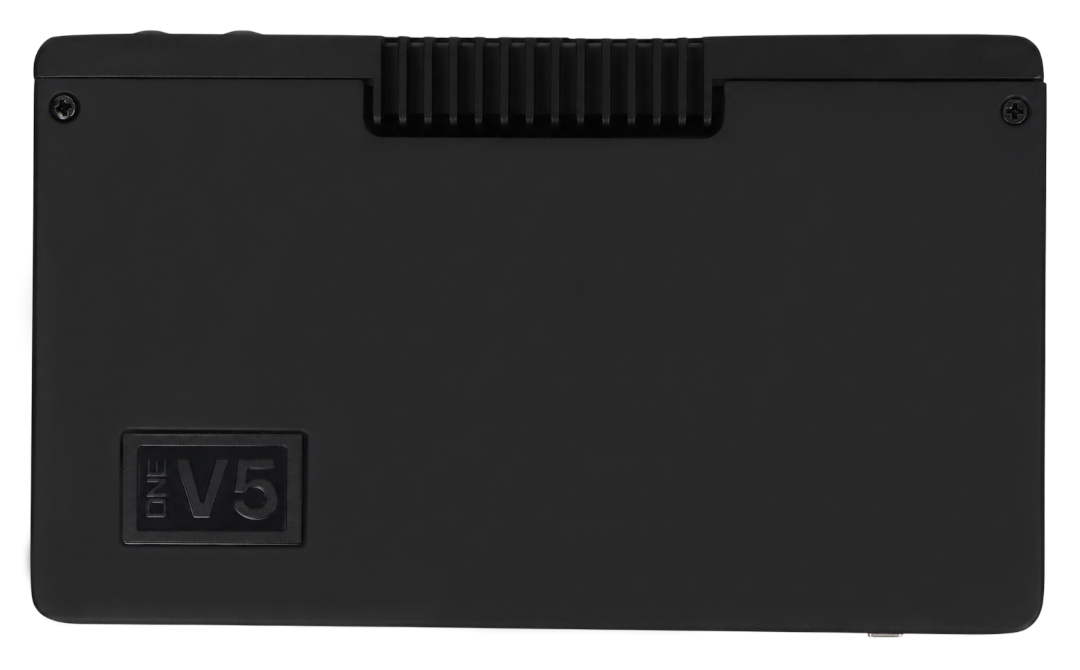

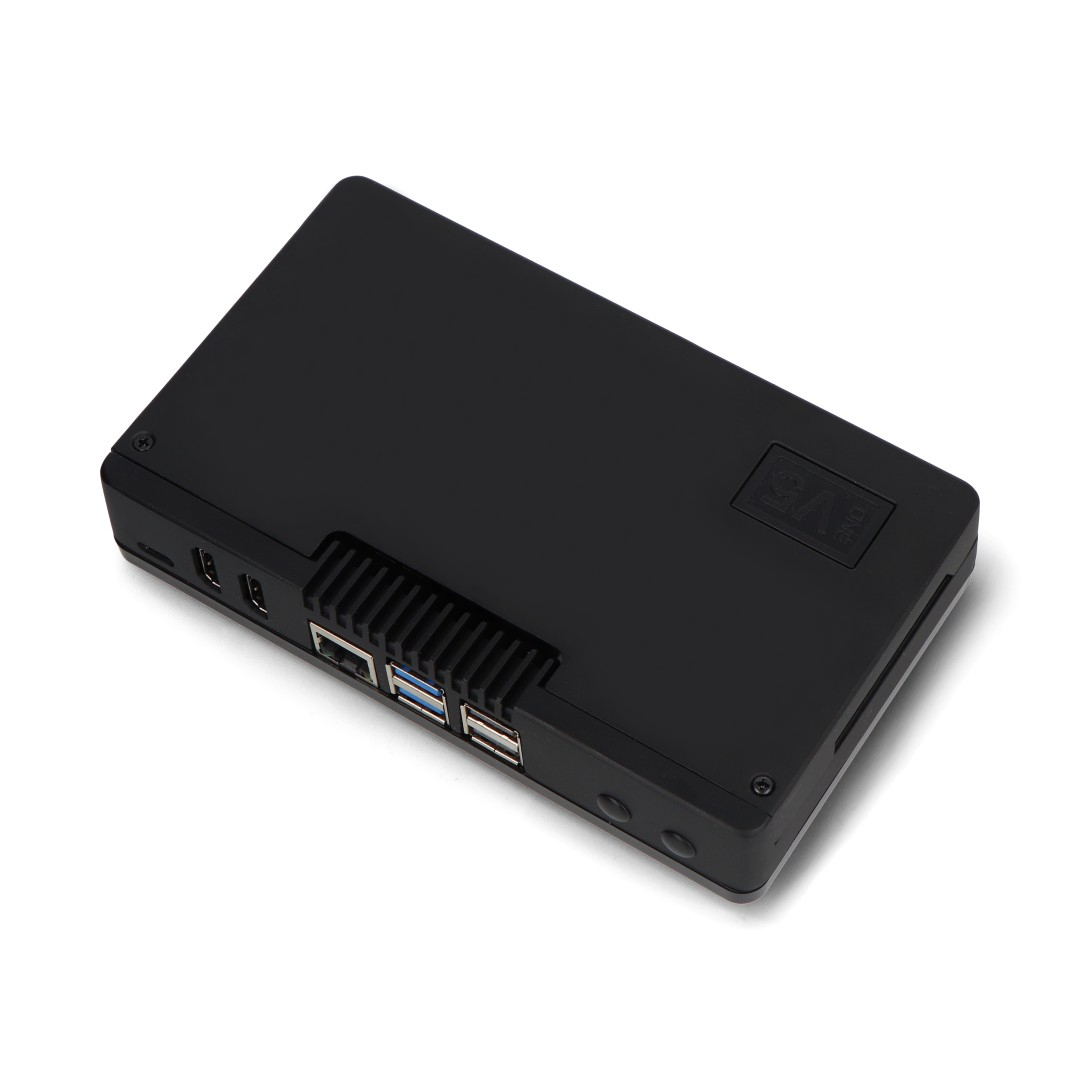

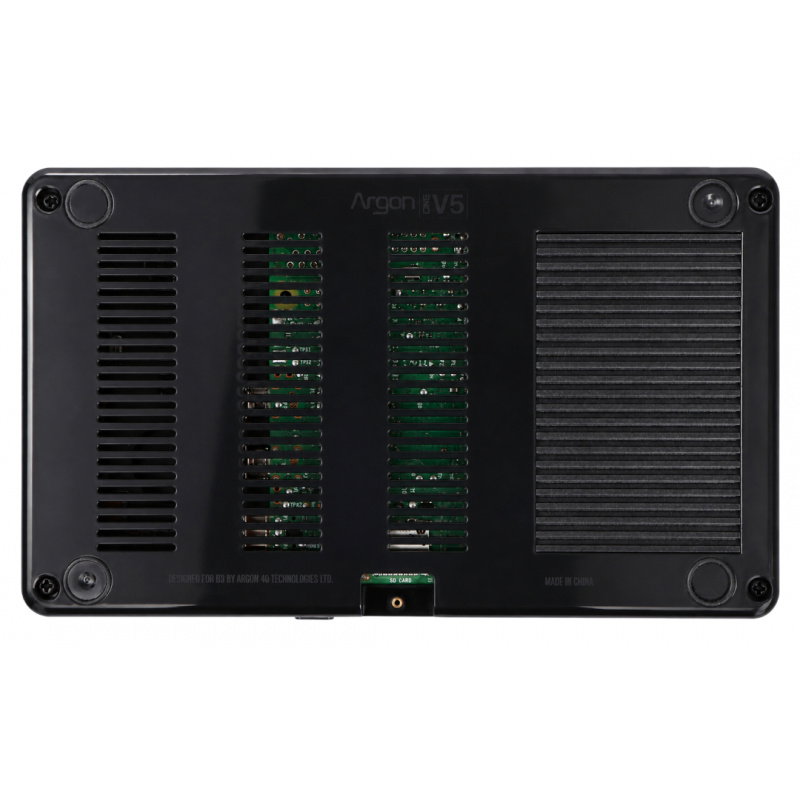

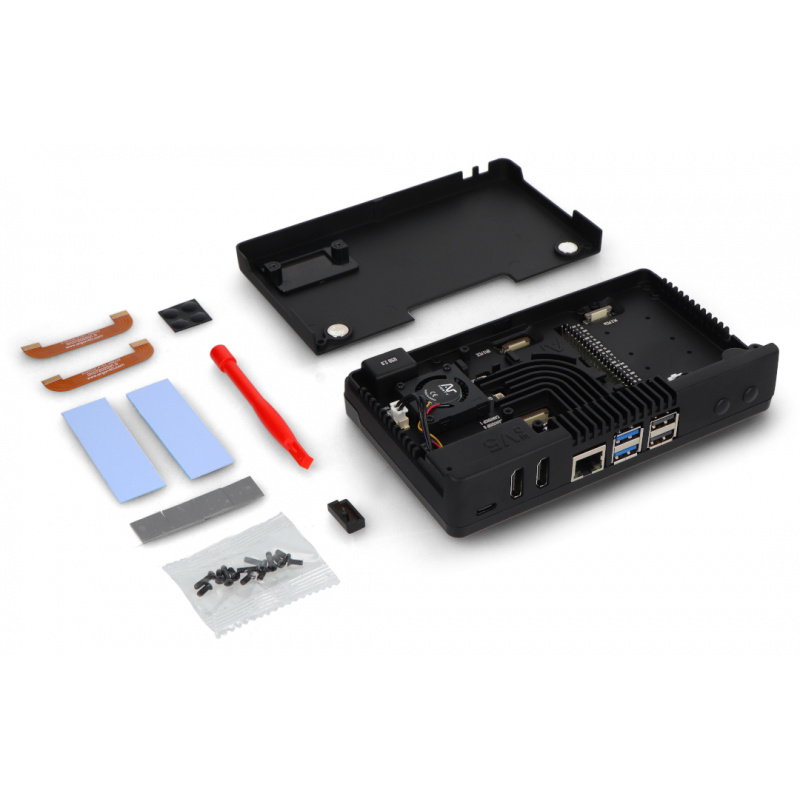

The Argon ONE V5 is an advanced case for the Raspberry Pi 5 , designed for efficient operation, storage expansion, and convenient interface access . The die-cast aluminum construction protects the minicomputer while also acting as a heatsink for passive heat dissipation . Additionally, the case is equipped with a 30mm PWM fan that supports active cooling during intensive work. The Argon ONE V5 expands the capabilities of the Raspberry Pi 5 with two M.2 NVMe PCIe slots, additional front-facing USB 2.0 ports, a built-in DAC with 3.5mm jacks for microphone and headphones, and an internal USB port for Zigbee modules. The case also supports two HDMI ports , allowing you to connect two monitors and conveniently use the Raspberry Pi 5 as a desktop computer, media center, home server, or smart home project unit.
Argon ONE V5 - aluminum case for Raspberry Pi 5 with cooling and 2x NVMe.
Argon ONE V5 is an advanced case for Raspberry Pi 5, designed for efficient operation, storage expansion and convenient access to interfaces.Special features
- Die-cast aluminum case: protects the Raspberry Pi 5 and acts as a heatsink for passive cooling
- 30mm PWM fan: Provides active cooling and better temperature control under heavy load
- Dual HDMI ports: Connect two screens for multitasking and multimedia
- Two front-facing USB 2.0 ports: Make it easy to quickly connect accessories and peripherals
- Built-in HS100B DAC: Provides headphone output and 3.5mm microphone input jacks

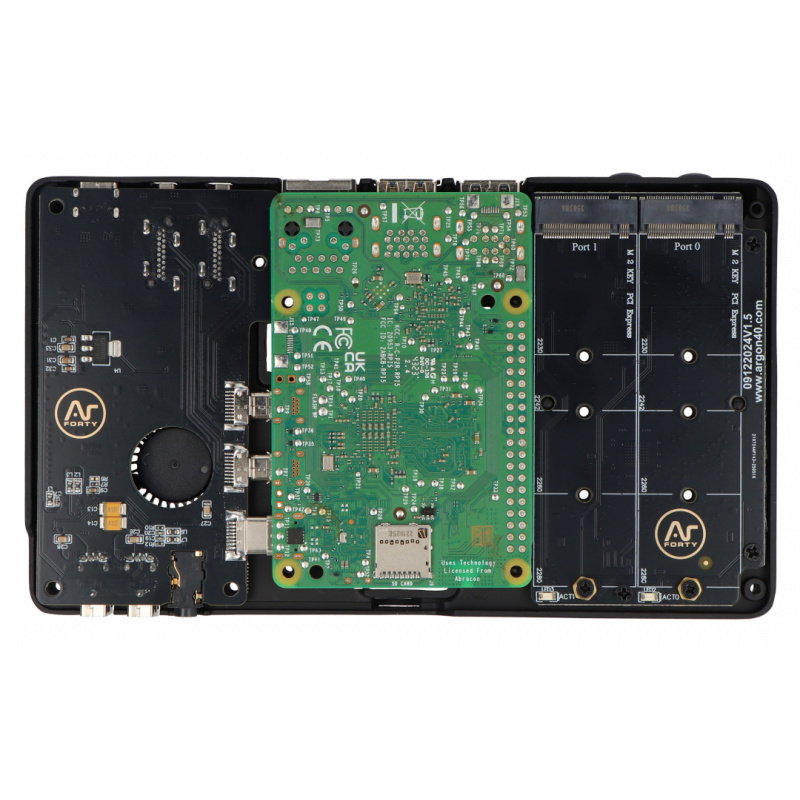

- Dual M.2 NVMe PCIe slots: lets you expand your Raspberry Pi 5 with fast SSD storage
- Internal USB port for Zigbee modules: facilitates integration with smart home systems, e.g. Home Assistant
- Raspberry Pi HAT Compatibility: The case supports standard HATs, increasing expandability
Technical specifications
- Compatibility: Raspberry Pi 5
- Housing material: cast aluminum
- Passive cooling: yes, the housing acts as a heat sink
- Active cooling: 30mm PWM fan
- HDMI ports: 2
- Front USB ports: 2x USB 2.0
- Audio: Built-in DAC HS100B
- Audio connectors: 3.5 mm jack - microphone input and headphone output
- Storage: 2x M.2 NVMe PCIe slots
- PCIe Speed: Limited to PCIe Gen 2.0, 500MB/s per lane
- Internal port: USB for Zigbee modules
- Shield Compatibility: Standard HAT for Raspberry Pi
- Color: black
Compatible M.2 NVMe drives
- Argon Dataterm M.2 NVMe Drive
- Official Raspberry Pi SSD
- Western Digital SN850 / SN740 / SN570 / SN530
- Western Digital Black SN750 SE
- WD Blue SN580 NVMe
- Samsung 980 Pro / Samsung 980
- Sabrent Rocket Nano/Rocket 4.0
- PNY CS1030
- Origin Inception TLC830 Pro NVMe
- Netac NV3000 / NV2000 NVMe SSD
- Lexar NM710 / NM620
- Kioxia Exceria / Exceria G2 NVMe SSD
- Kingston KC3000 / SNV2S NV2
- Inland PCIe NVMe SSD
- Crucial P2 M.2
- Axe Memory Generic Drive
- AData XPG SX8200 Pro
The case also supports two HDMI ports, allowing you to connect two monitors and conveniently use your Raspberry Pi 5.
