Product description: Argon ONE V5 - aluminum case with built-in fan for Raspberry Pi 5
The Argon ONE V5 is an advanced case for the Raspberry Pi 5 that combines robust minicomputer protection, effective cooling, and extensive expansion options . The die-cast aluminum body acts as a heatsink, supporting passive heat dissipation from the Raspberry Pi 5. Additionally, a built-in 30mm PWM fan provides active cooling for more demanding tasks, such as server work, IoT projects, home automation, or multimedia support.
The case is equipped with a single M.2 NVMe PCIe slot , allowing for a fast SSD and significantly improved storage performance over a traditional microSD card. The front panel features two additional USB 2.0 ports for easy accessory connections. The built-in HS100B DAC provides 3.5mm audio jacks for microphones and headphones, and the internal USB port allows for the installation of a Zigbee module, making the Argon ONE V5 ideal for Home Assistant and smart home projects.
The kit does not include a Raspberry Pi 5 or an M.2 NVMe drive. These components must be purchased separately, based on project requirements.
Argon ONE V5 Case - aluminum case for Raspberry Pi 5 with cooling, DAC and M.2 NVMe slot.

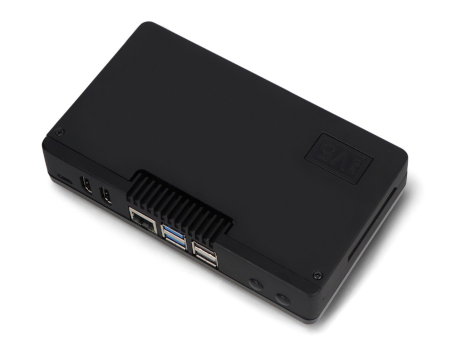

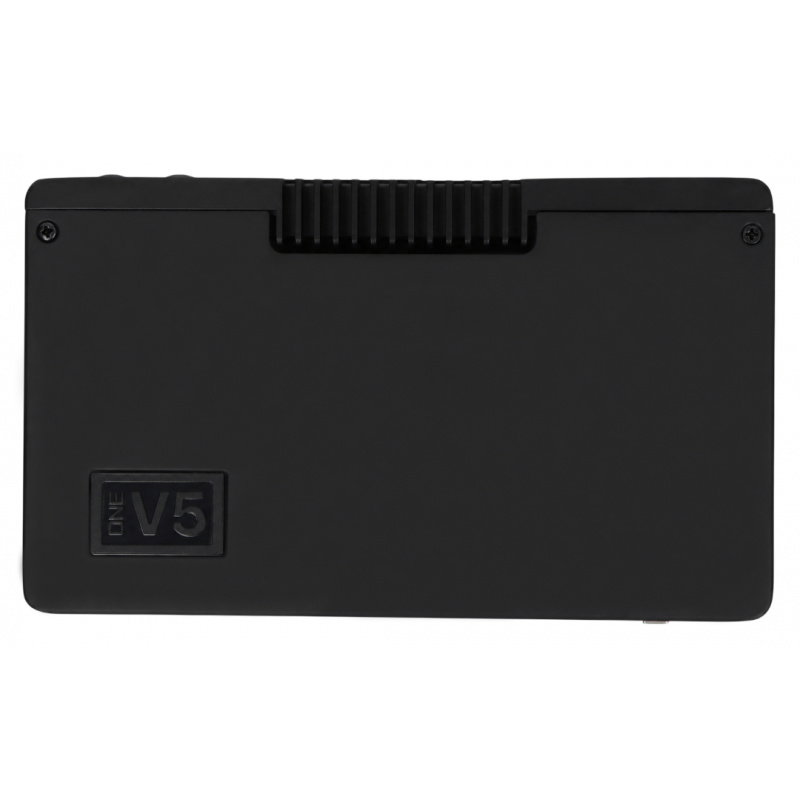

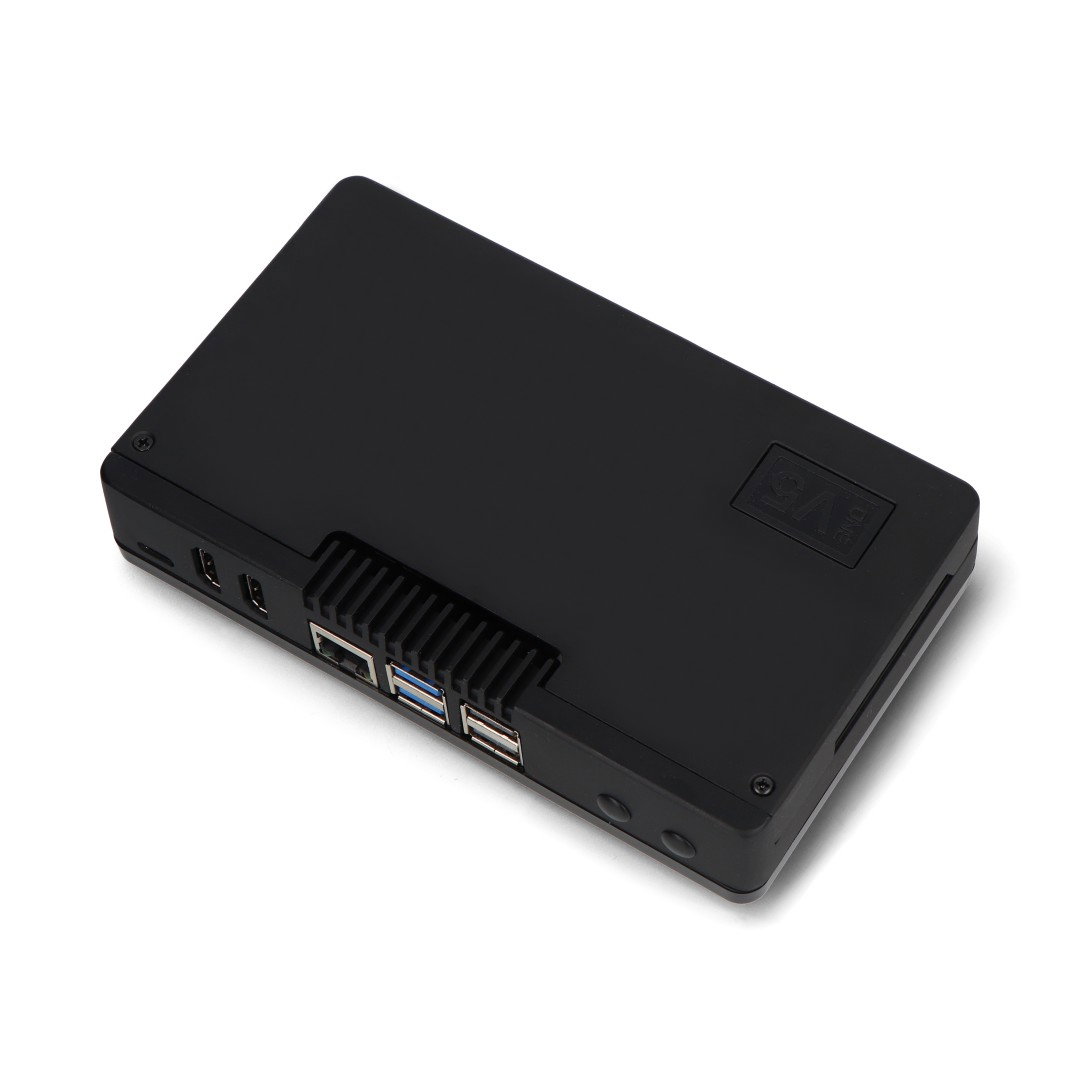

Argon ONE V5 case for Raspberry Pi 5.
Main features of the Argon ONE V5 case
- Compatibility with Raspberry Pi 5: the case is designed specifically for the Raspberry Pi 5 minicomputer
- Die-cast aluminum: Solid body protects the board and acts as a heatsink for passive cooling
- 30mm PWM fan: Active cooling helps maintain stable performance under heavier loads
- M.2 NVMe PCIe slot: connect a fast SSD and boost storage performance
- Dual HDMI ports: Dual monitor support for easy multitasking and multimedia use
- Two front USB 2.0 ports: Easier access to accessories, memory sticks, keyboard, mouse and receivers
- Built-in HS100B DAC: 3.5mm microphone and headphone jacks for more convenient audio work
- USB port for Zigbee module: possibility of integration with Home Assistant and smart home systems
- Raspberry Pi HAT support: the design allows you to expand the set with additional modules and interfaces
- Professional look: elegant aluminum design looks great on a desk, in a media center, or in technical installations
Technical specifications
- Compatibility: Raspberry Pi 5
- Housing material: cast aluminum
- Passive cooling: aluminum body acting as a heat sink
- Active cooling: 30mm PWM fan
- Storage: Single M.2 NVMe PCIe slot
- Supported drives: M.2 NVMe M-Key
- Video ports: 2x HDMI
- Additional USB ports: 2x USB 2.0 on the front of the case
- Audio: DAC HS100B, 3.5mm microphone input, 3.5mm headphone output
- Smart home expansion: internal USB port for Zigbee modules
- HAT Compatibility: Standard Raspberry Pi HATs
- Examples of compatible NVMe drives: Argon Dataterm, Official Raspberry Pi SSD, Western Digital SN850, SN740, SN570, SN530, WD Blue SN580 NVMe, Samsung 980 Pro, Samsung 980, Sabrent Rocket, PNY CS1030, Lexar NM710, Lexar NM620, Kioxia Exceria, Kingston KC3000, Crucial P2, AData XPG SX8200 Pro
Kit contents
- Argon ONE V5 housing

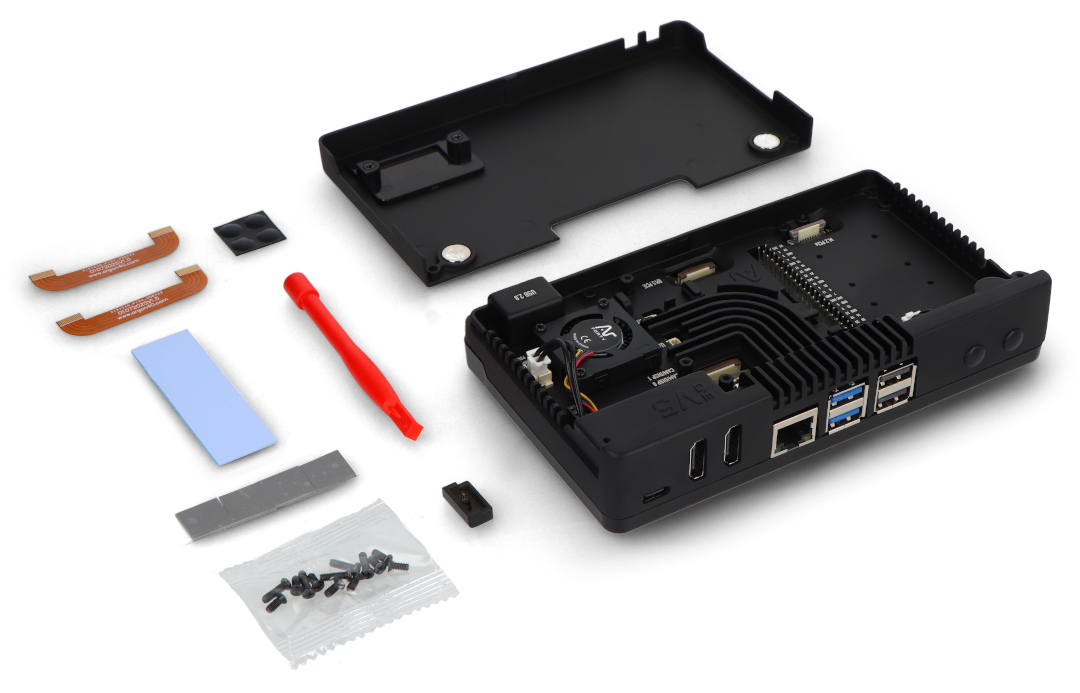

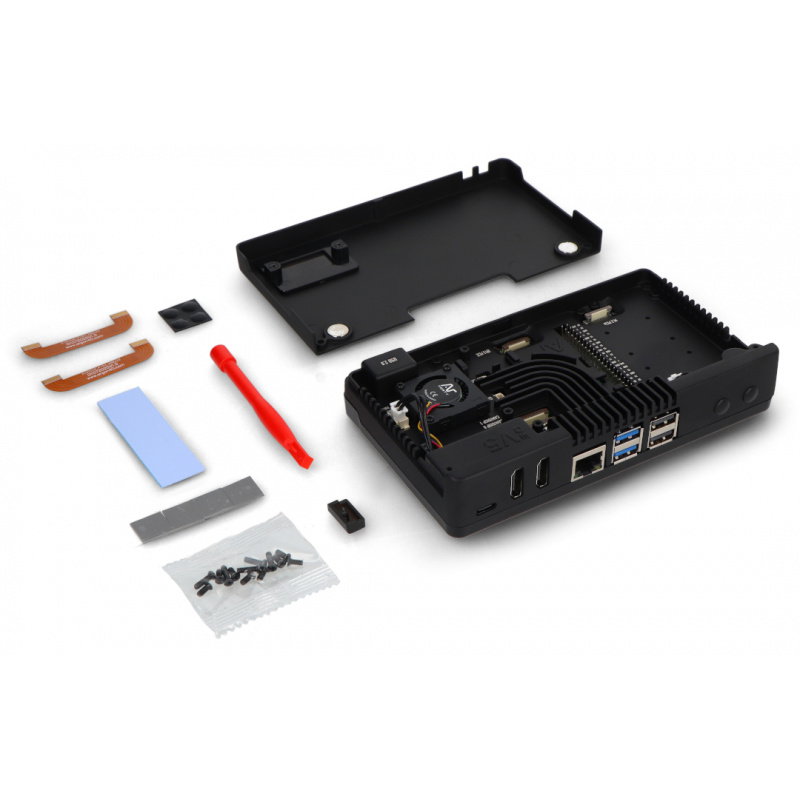

Argon ONE V5 kit contents.
