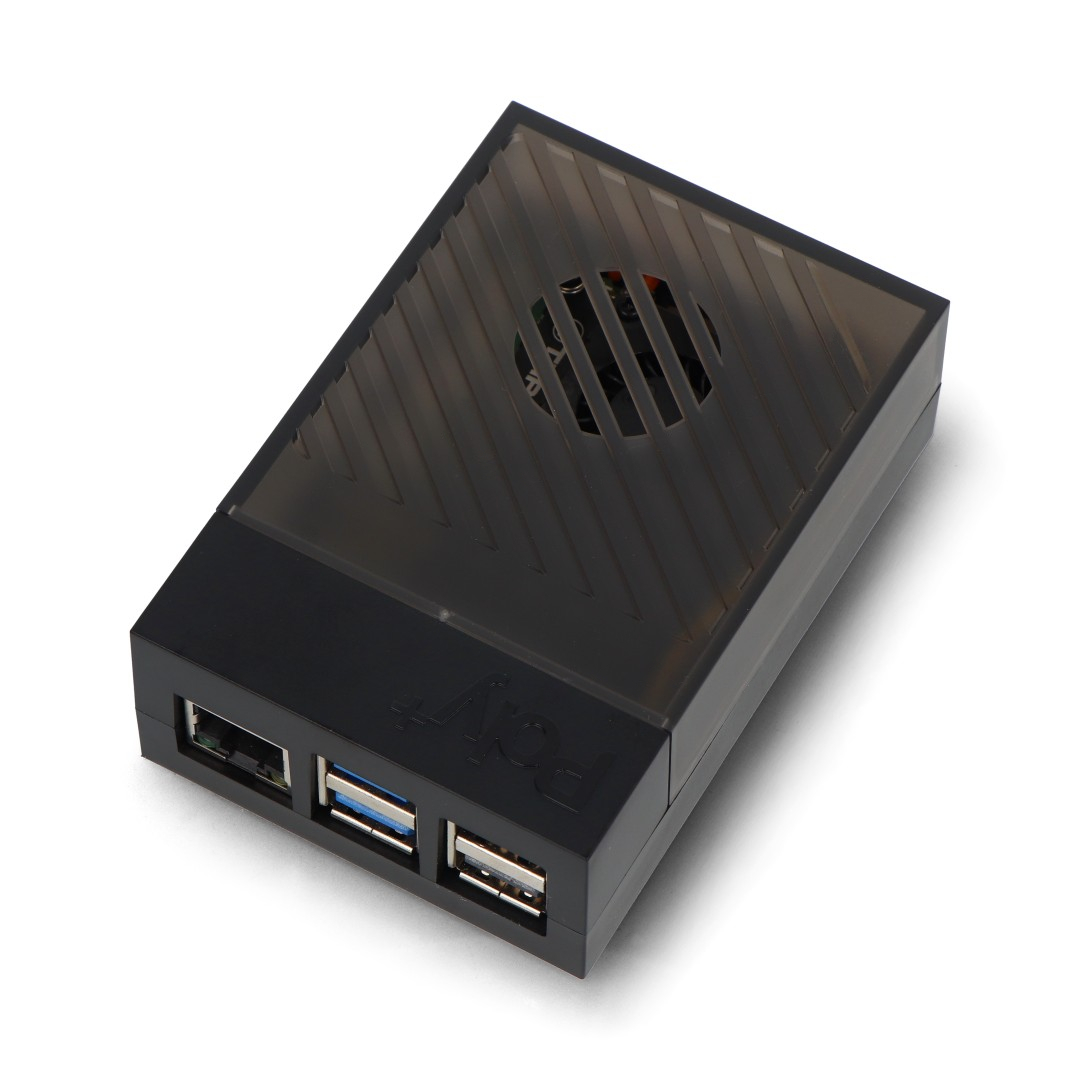

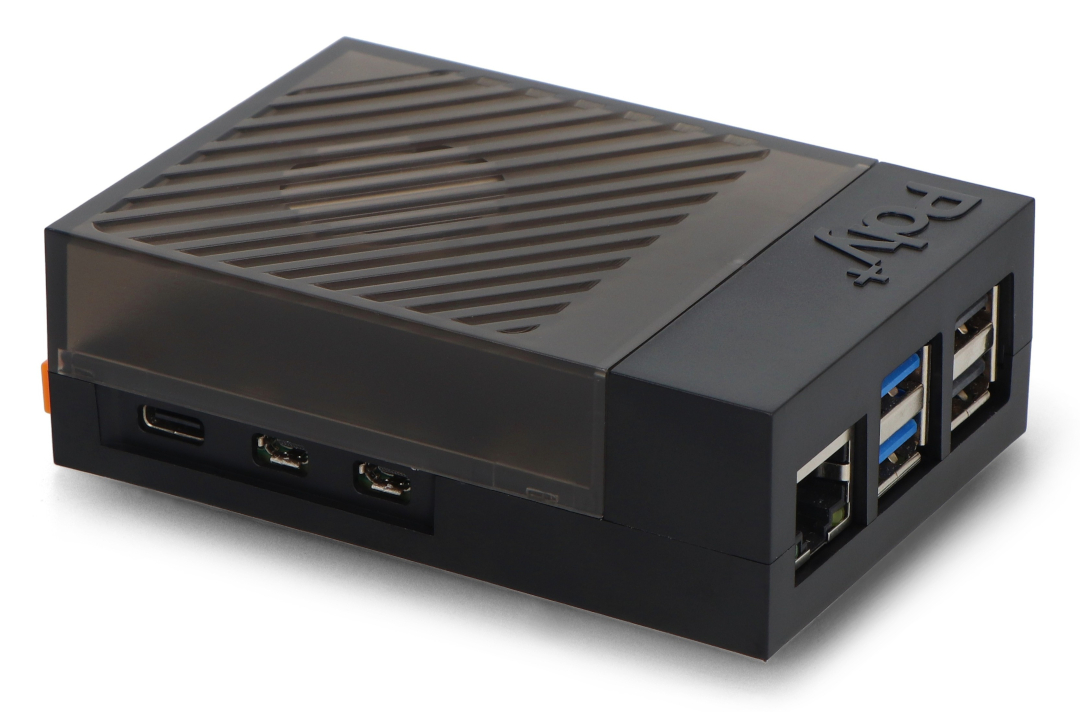

Product description: Argon Poly+ 5 - ABS case with active THRML cooling 30 mm for Raspberry Pi 5 - black
The Argon Poly+ 5 is a black enclosure designed for the Raspberry Pi 5 minicomputer. Made of ABS plastic , it helps protect the board from accidental mechanical damage, dust, and contact with workspace components. The enclosure has a simple, practical design and is well-suited for educational projects, prototyping, and everyday use of the Raspberry Pi 5.
This version features an active 30mm Argon THRML cooling system , which combines an aluminum heatsink with a PWM-controlled fan. This solution helps dissipate heat more efficiently from the Raspberry Pi 5 when operating under heavier loads, such as home servers, automation systems, media centers, and IoT projects. The case also provides space for a standard HAT, such as the Raspberry Pi M.2 HAT+ .
The THRML 30mm active cooling is powered by 5V DC from the Raspberry Pi 5 4-pin fan connector. It supports PWM control with a tachometer and the maximum fan speed is 8000 RPM +/- 15% .
Argon Poly+ 5 - ABS case with active THRML cooling 30 mm for Raspberry Pi 5 - black.
Argon Poly+ 5 is a black case designed for the Raspberry Pi 5 minicomputer.Special features
- Raspberry Pi 5 compatibility: the case is designed for the latest generation of the Raspberry Pi minicomputer
- 30mm THRML Active Cooling: Aluminum heatsink with fan supports efficient heat dissipation
- PWM Control: Fan supports speed control via the Raspberry Pi 5's 4-pin connector
- Space for a standard HAT: the design allows the use of a cover, e.g. Raspberry Pi M.2 HAT+
- ABS housing: the material protects the board from damage and dust during everyday use
- Snap-in assembly: no tools or screws required to assemble the case
- Black color: a universal look that suits desks, education, and design workstations
- Practical board protection: reduces the risk of accidental touching of electronics and short circuits during use
Technical specifications
- Product type: minicomputer case with active cooling
- Compatibility: Raspberry Pi 5
- Overlay support: standard HAT, e.g. Raspberry Pi M.2 HAT+
- Cooling element: Argon THRML 30 mm Active Cooler
- Cooling Power: 5V DC from Raspberry Pi 5 4-pin fan connector
- Fan control: PWM with tachometer
- Maximum airflow: 1.09 CFM
- Maximum fan speed: 8000 RPM +/- 15%
- Housing material: ABS
- Cooling material: aluminum
- Color: black
Contents of the set
- Argon Poly+ 5 Case for Raspberry Pi 5
- Active cooling Argon THRML 30 mm

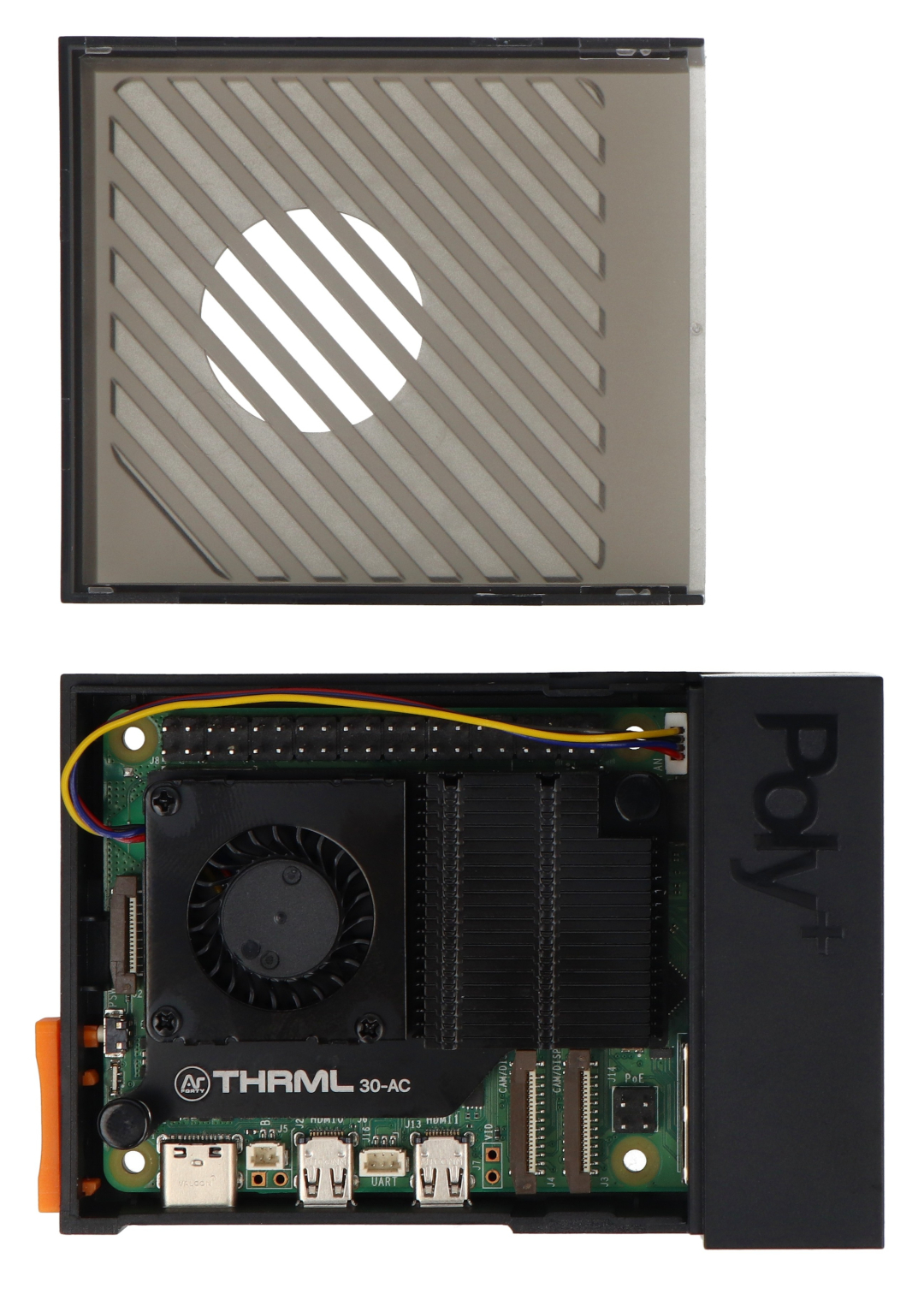

The version is equipped with active Argon THRML 30 mm cooling, which combines an aluminum radiator with a fan controlled by a PWM signal.
