Product description: Argon Neo 5 M.2 NVMe PCIe expansion board - for Raspberry Pi 5

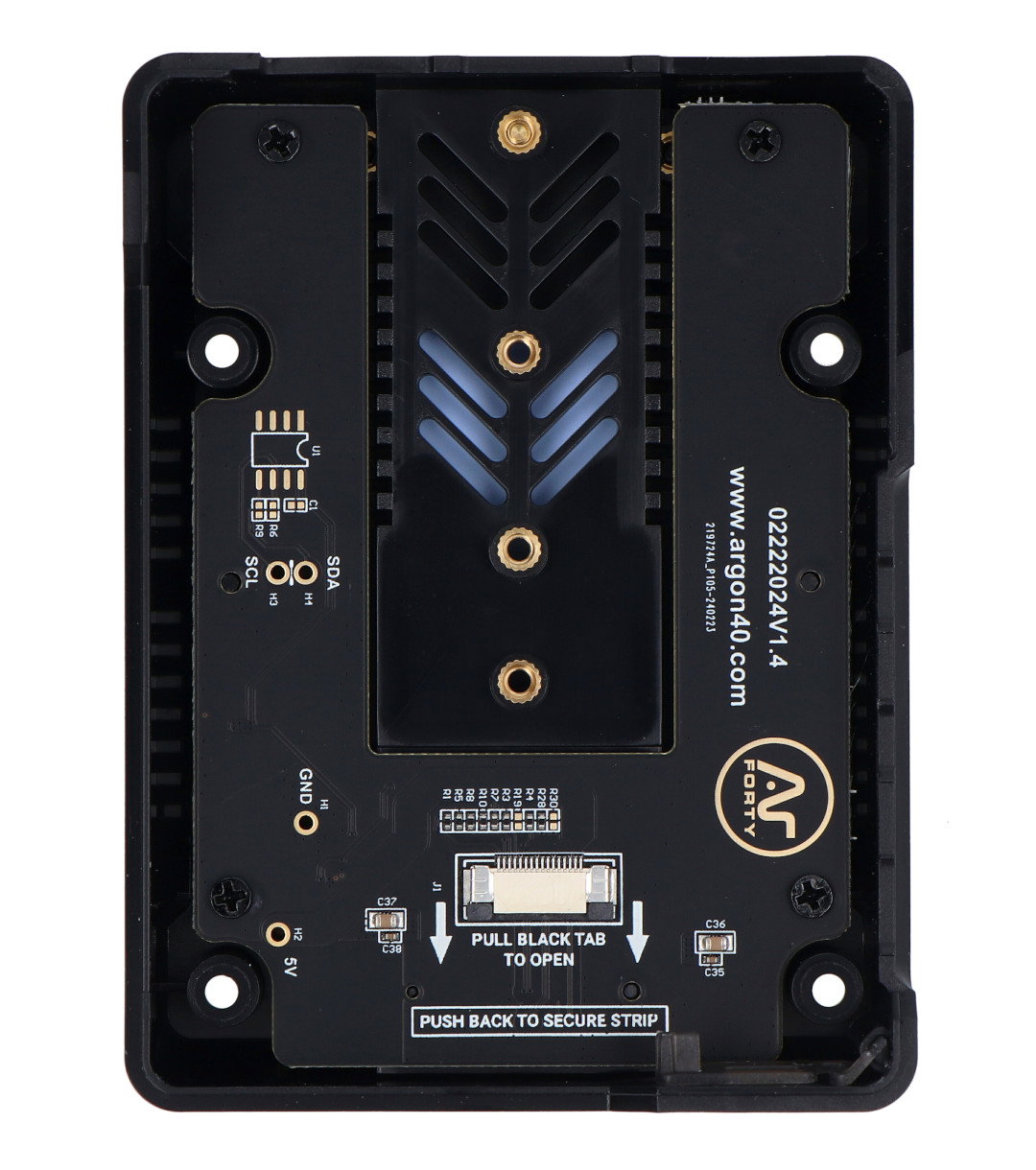

Argon Neo 5 M.2 NVMe PCIe is an innovative solution for owners of the Argon Neo 5 housing , which allows the use of M.2 NVMe drives. Simply replace the bottom of the Argon Neo 5 case with the expansion board. It allows you to run Raspberry Pi 5 directly from an NVMe M.2 drive, which translates into a significant improvement in data access speed and overall system performance. One of the key features of this board is the built-in heatsink that provides adequate cooling for the M.2 NVMe drive . Thanks to this solution, the disk works efficiently and reliably , and its service life is significantly extended. Additionally, the set also includes an FPC cable ensuring reliable and stable data transfer. In addition, the board offers support for various types of drives, which makes it extremely versatile and compatible. You can connect any M.2 NVMe drive with an M to 2280 key , expanding your storage options according to your needs. With Argon Neo 5 M.2 NVMe, you can fully exploit the potential of your Raspberry Pi 5 .
The Argon Neo 5 housing and the Raspberry Pi 5 minicomputer are not included in the set - they must be purchased separately.
To enjoy faster startup and greater capacity of the minicomputer, simply replace the lower part of the Argon Neo 5 housing with an expansion board.
Main features of the Argon Neo 5 M.2 NVMe expansion board
- It allows you to expand the capabilities of Raspberry Pi 5 by adding the function of supporting M.2 NVMe drives.
- Possibility to run Raspberry Pi 5 directly from an NVMe M.2 drive, which speeds up the system loading process.

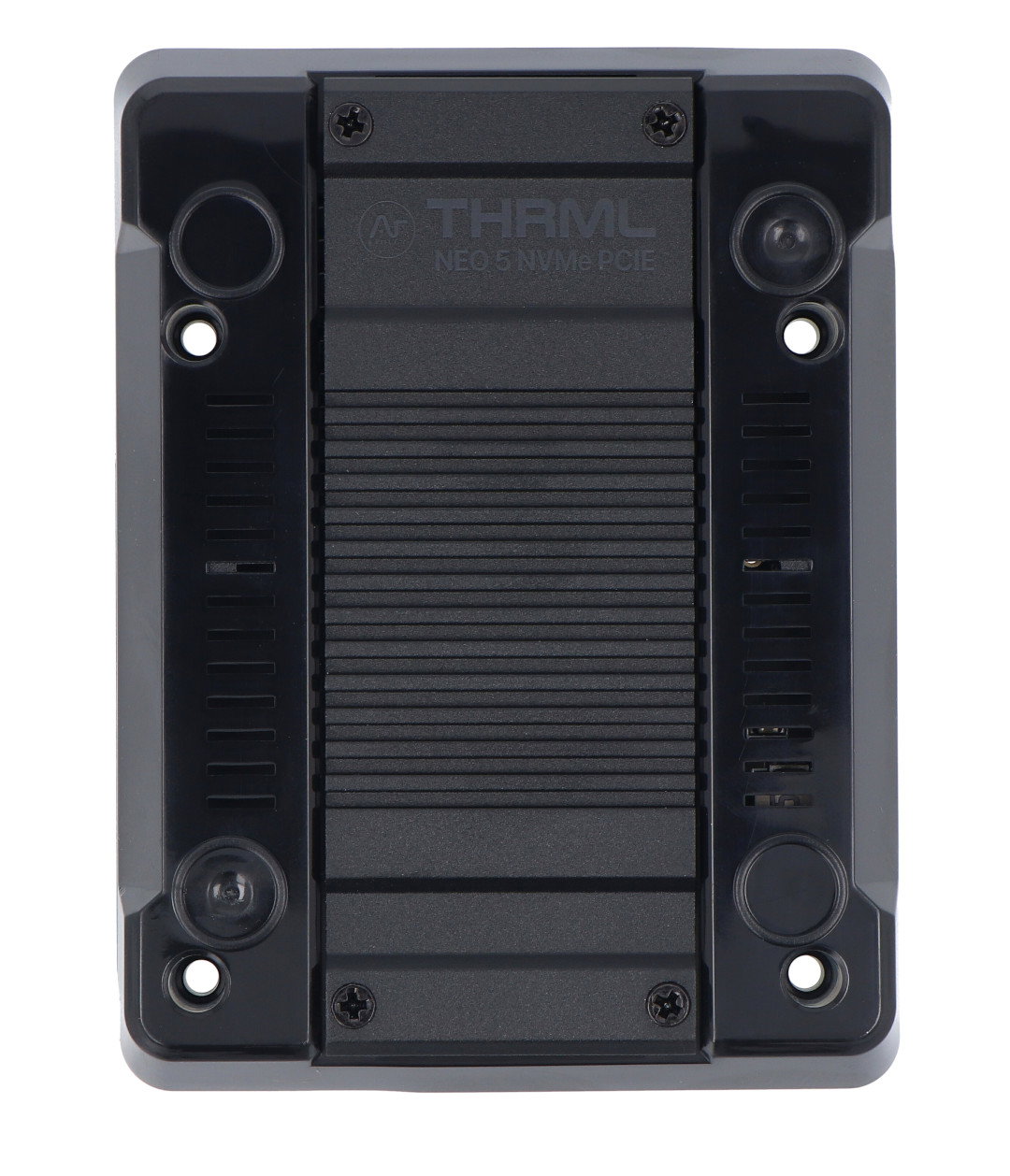

- The built-in heatsink provides effective cooling for the M.2 NVMe drive, which helps to increase performance.
- Compatible with various types of M.2 NVMe drives with M key up to 2280, which provides versatility in the selection of data storage device.
- High reliability and stability of data transfer thanks to the included FPC cable with controlled impedance.
- Easy installation and configuration, enabling quick use of the expansion board's capabilities.
Our offer includes many different accessories for Raspberry Pi 5 - check it out!
Technical specifications of the board
- Producer: Argon40
- Compatibility: Argon Neo 5 case for Raspberry Pi 5
- Communication protocol: UASP
- Passive cooling: radiator
- Supported drives: M.2 NVMe SSD with M key up to size 2280
Set contents
- Argon Neo 5 M.2 NVMe PCIe expansion board
- Fitting elements
- User manual

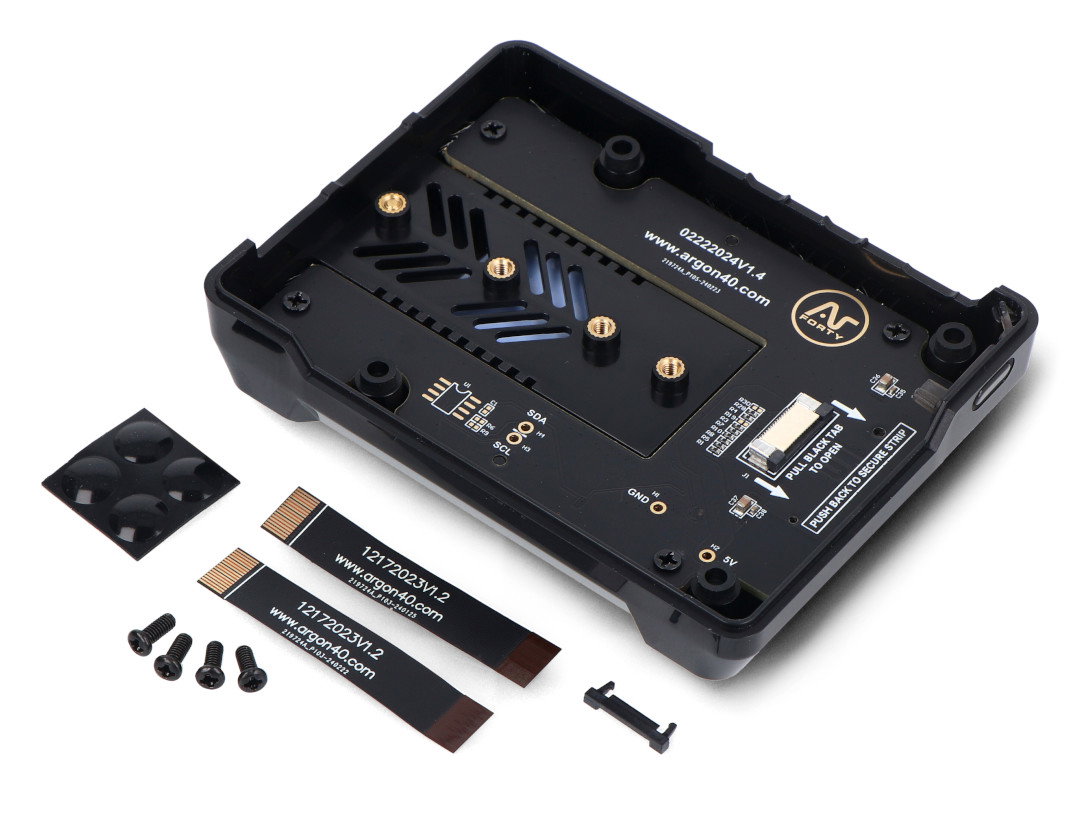

Elements included in the set.
