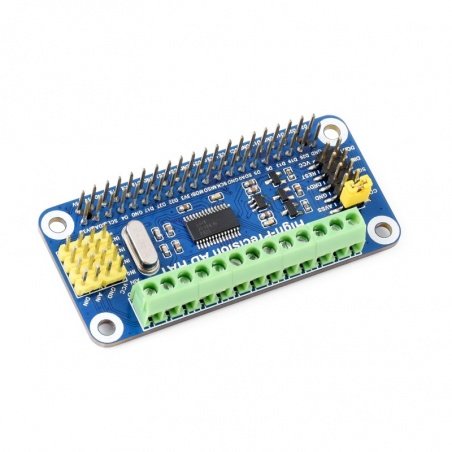

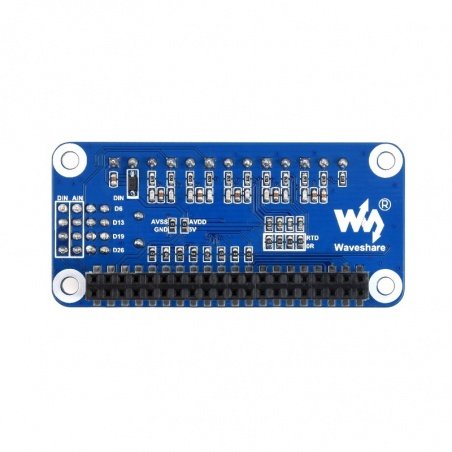

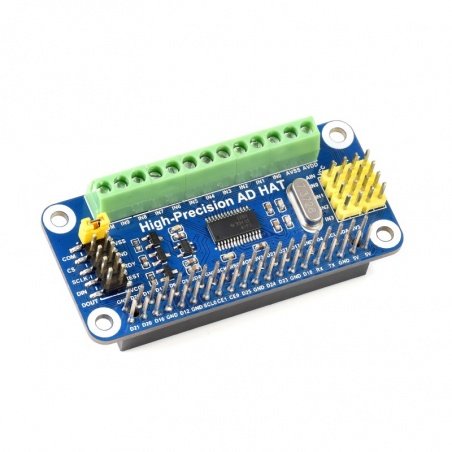

ADC ADS1263 converter 32-bit - 10-channel - overlay for Raspberry Pi - Waveshare 18983

Index: WSR-19042 EAN: 5904422371746
High precisionADC in form of Raspberry Pi minicomputer frontend, also compatible with Nvidia's Jetson Nano platform. A powerful ADS1263 chip is responsible for the operation of the Waveshare converter. The converter module has 10 input channels and its resolution is 32 bits. Maximum sampling frequency is 38 kSPS.
€45.54
€37.02 tax excl.
Delivery scheduled for 2022-02-01
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: ADS1263 32-bit ADC - 10-channel - overlay for Raspberry Pi - Waveshare 18983

High precisionADC conver ter in the form of overlay for Raspberry Pi minicomputer, also compatible with Nvidia's Jetson Nano platform. Waveshare's ADC is powered by a high performance ADS1263 chip. The converter module has 10 input channels and its resolution is 32 bits. The maximum sampling rate is 38 kSPS.

10-kanałowy przetwornik wyprodukowany przez firmę Waveshare.A 10-channel ADC manufactured by Waveshare.

The product iscompatible with Raspberry Pi
There is a Product Wiki Page available on the manufacturer's website. It contains a user guide as well as schematics and necessary software.

Rozmieszczenie elementów na płytce.

The layout of the components on the board.

Component layout

  1. GPIO connectors to connect to the Raspberry Pi
  2. Screw AD input, general purpose
  3. AD input, to connect peripheral devices and sensors
  4. Control input, allows control by other hosts
  5. Power configuration resistor
  6. RTD configuration resistor
  7. ADC ground configuration (COM-GND jumpers)
  8. Quartz crystal 7.3728 MHz
  9. Power section
  10. RTD section
  11. Input filtering
  12. ADS1263 chip

Pinout description

  • 3V3 - 3.3 V supply pin
  • 5V - 5V power supply pin
  • GND - chip ground pin
  • DRDY - ADS1263 data output pin (activated by low state)
  • RESET - RESET pin
  • CS - chip select (activated by low state)
  • DIN - SPI bus data input pin
  • DOUT - SPI bus data output pin
  • SCK - SPI bus clock output pin

Opis poszczególnych wyprowadzeń modułu.Description of individual pins of the module.

Maksymalna częstotliwość próbkowania jest równa 38 kSPS.

The maximum sampling rate is equal to 38 kSPS.

Technical specification of 10-channel ADC from Waveshare

  • Module: ADC converter
  • Chip: ADS1263
  • Resolution: 32 bits
  • Number of input channels: 10
  • Maximum sampling rate: 38 kSPS
  • Maximum PGA magnification: 32
  • Communication interface: SPI
  • Structure: Delta-Sigma
  • Input type: differential, single sided
  • Input voltage range:
    • maximum from 2.5 V to 5 V
    • minimum from -2.5 V to 0 V
  • External dimensions: 65 x 58 mm
