Product description: ProtoMate Universal Printed Circuit Board for Raspberry Pi 3B / 4B / 5 / Zero 2 - PiHut 106569

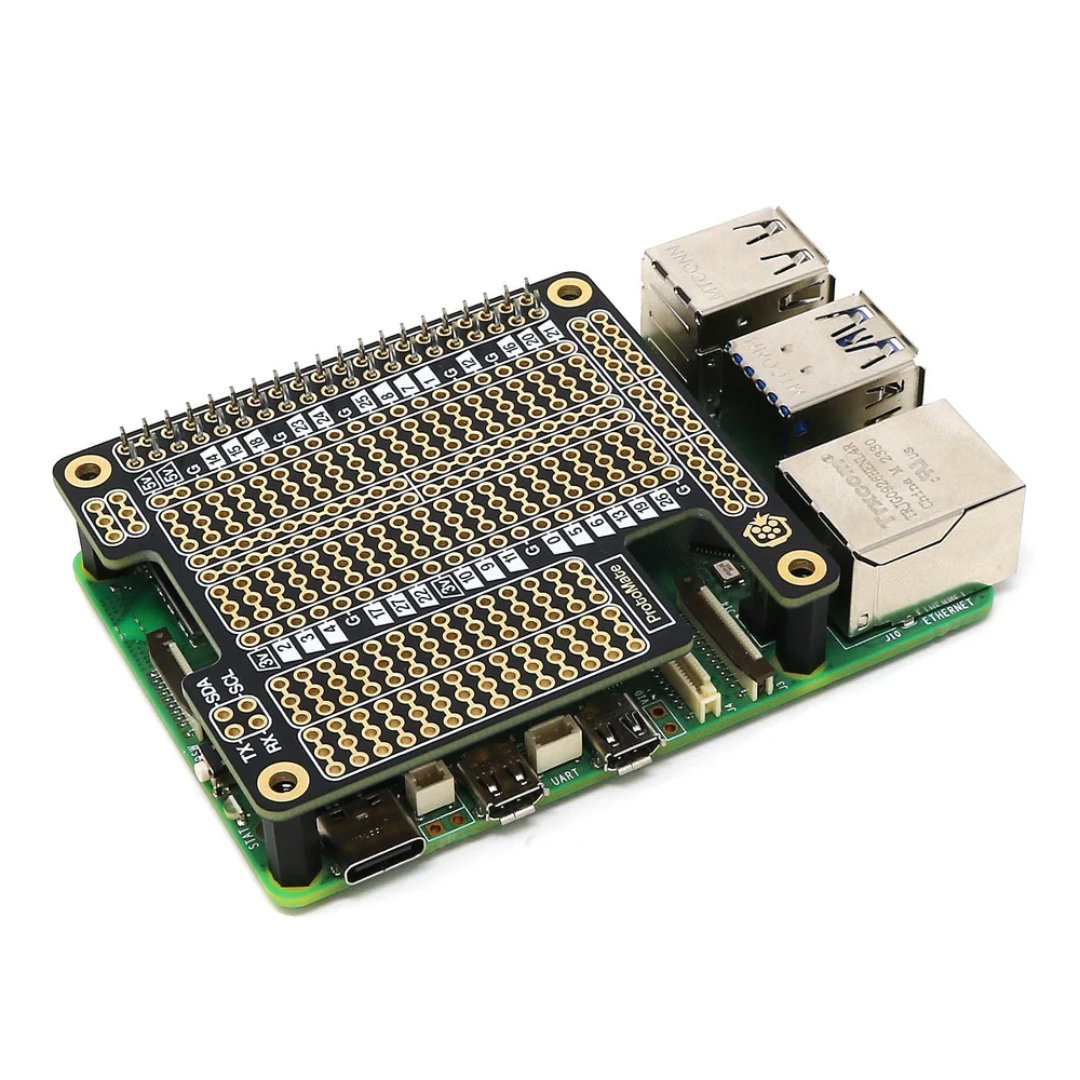

ProtoMate is an innovative prototyping board in a HAT format , designed for users who want to transition their designs from breadboard to a permanent, solderable design. The board features two solder pads— a larger 20 x 8 pad and a smaller 14 x 6 pad —allowing for flexible component placement and custom circuit design. The large pad has a central section divided into tracks that can be connected as needed, while the smaller pad is ideal for mounting integrated circuits like the MCP23017. Additionally, the board offers side rails for power and common pins, separate pads for I2C and serial, and traces that can be cut to disconnect sections.
ProtoMate Universal Printed Circuit Board for Raspberry Pi 3B / 4B / 5 / Zero 2 - PiHut 106569.
ProtoMate is an innovative HAT prototyping board designed for users who want to transition their designs from a breadboard to a permanent, solderable design.Special features
- Two soldering areas: 20 x 8 pads and 14 x 6 pads
- All GPIO pins are brought out: making it easy to connect components
- Side Rails: Allows you to create banks for power and frequently used pins (5V/GND)
- Solder tracks for cutting: individual tracks can be disconnected if necessary
- ENIG PCB: oxidation-resistant and durable gold coating
- Markings on the back: facilitate correct assembly and orientation
- M2.5 mounting holes: Raspberry Pi compatible
Practical applications
- Creating Durable, Solderable Projects with Raspberry Pi
- Transferring prototype designs from breadboard to HAT
- Integration of integrated circuits and peripheral modules
- Organization of connections to I2C, UART and power rails
- Perfect for education, prototyping, and professional electronics projects
Technical specifications of the board
- Format: HAT compatible with 40-pin Raspberry Pi
- Solder pad areas: 20 x 8 and 14 x 6
- Material: Gold-plated PCB (ENIG)
- Mounting holes: M2.5
- Dimensions: 65 x 56.5 mm
Contents of the set
- 1x ProtoMate board
- 1x GPIO strip

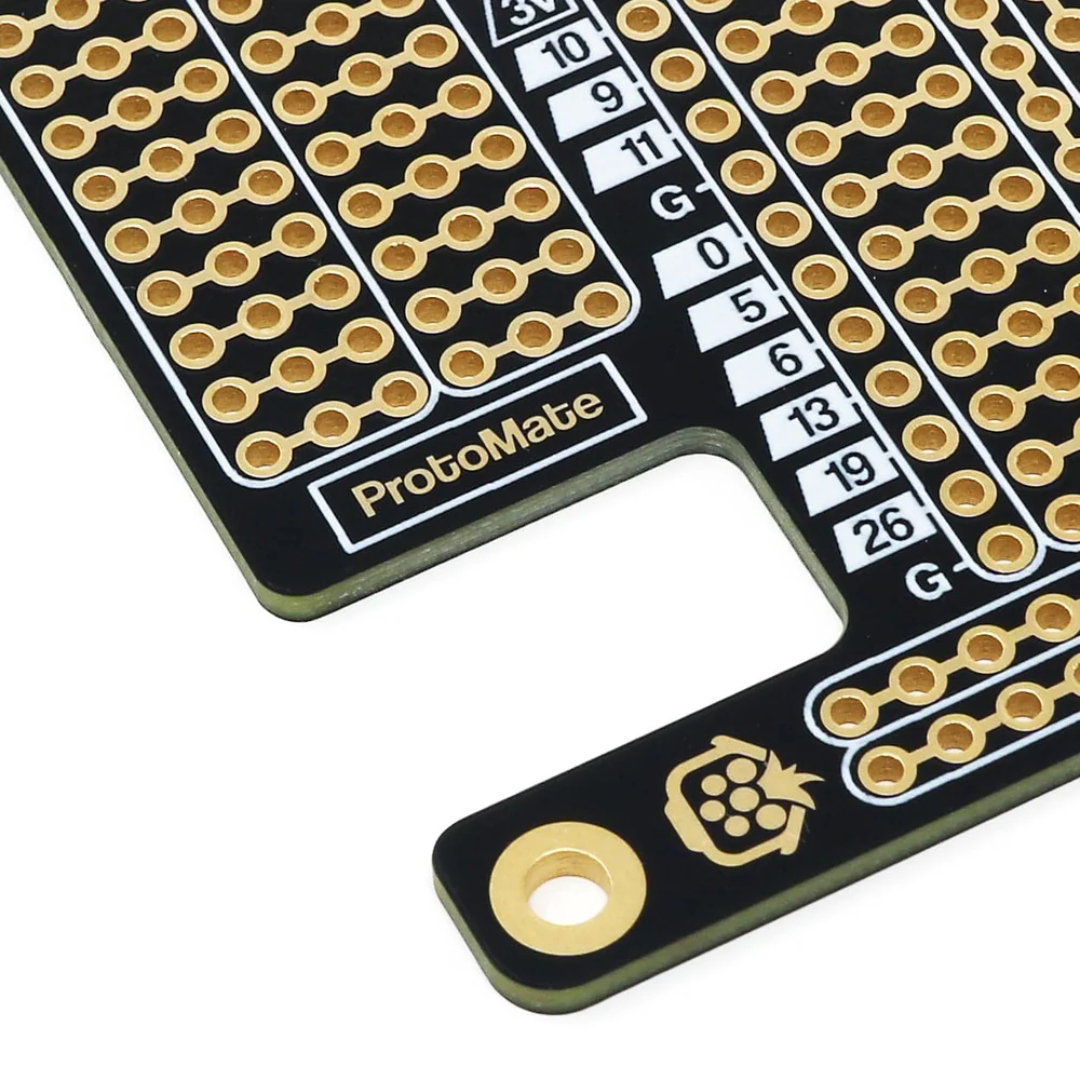

The board has two soldering areas - a larger one with 20 x 8 pads and a smaller one with 14 x 6 pads.
