Product description: PCIe Pipe flex cable 50 mm for NVMe Base and Raspberry Pi - Pimoroni PIM702
Flat cable designed for flexibility of installation and comfort of use. Thanks to the single-sided design with 16 pads on the Raspberry Pi 5 side and 18 pins on the NVMe Base side, it minimizes the risk of incorrect installation . It supports PCIe Gen 3 speeds and is also Gen 2 compatible, which guarantees fast and stable connections. The 50 mm length allows the NVMe Base to be freely placed next to the case or mounted on top of the Raspberry Pi 5, which gives more possibilities for mechanical settings.

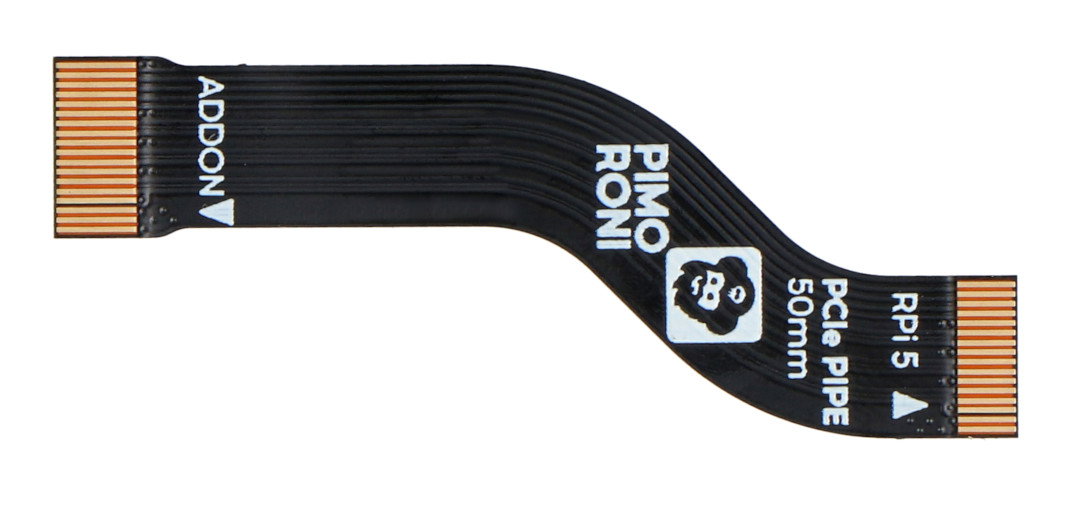

PCIe Pipe flex cable 50 mm for NVMe Base and Raspberry Pi - Pimoroni PIM702.
The cable supports PCIe Gen 3 speeds.
Special features of the cable
- Installation flexibility : 50 mm length allows for a variety of mechanical settings.
- Installation security : 'one way' design with 16 pads on the Raspberry Pi 5 side and 18 pins on the NVMe Base side prevents incorrect installation.
- Speed : PCIe Gen 3 support and full Gen 2 compatibility ensure fast and stable connections.
- Compatibility : Perfect for connecting NVMe Base to Raspberry Pi 5.
Fast PCIe Gen 3 interface
The PCIe Gen 3 interface offers significant improvements in data transfer speeds compared to previous generations. With maximum transfer speeds of up to 1 GB/s per lane, PCIe Gen 3 delivers exceptional performance and speed , which is crucial for modern bandwidth-hungry applications such as NVMe SSDs and graphics cards. This interface is widely used in modern computers and systems, providing stable and efficient connections for the latest technologies.
Technical specifications of the cable
- Connectors: 16 pads on the Raspberry Pi 5 side, 18 pins on the NVMe Base side
- Supported standards: PCIe Gen 3, PCIe Gen 2
- Cable length: 50 mm

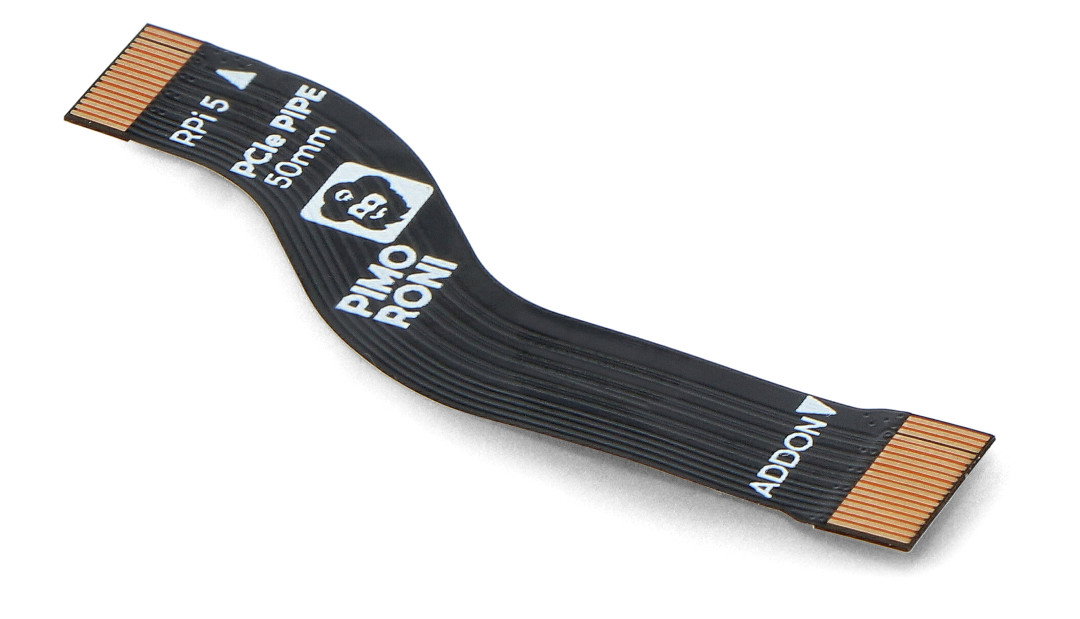

50 mm long cable.
