Simple Servo Trigger Servo Controller - SparkFun WIG-13118
Asimple controller allowing the servo to move from position A to B after changing the state on the IN input pin. The position can be adjusted with potentiometers. The system is controlled by ATiiny84 microcontroller, operating voltage is 5 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Simple servo controller - SparkFun Servo Trigger

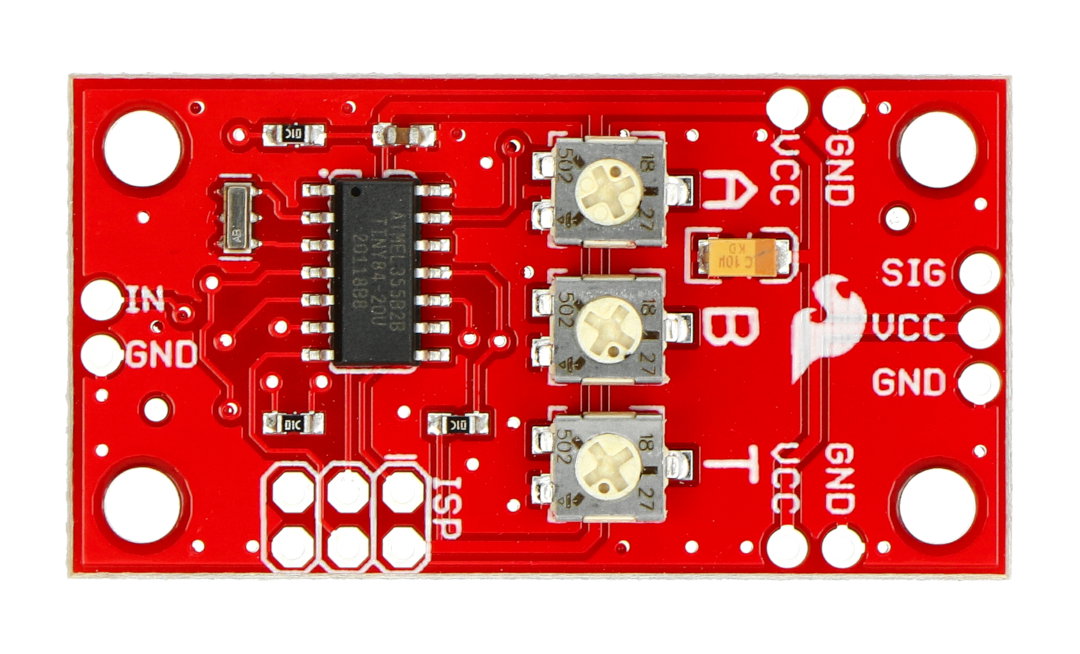

A simple controller allowing the servo to move from position A to B after changing the state on the IN input pin. The output and target position and the servo transition time can be adjusted with potentiometers. The system is controlled by an ATTiny84 microcontroller with software installed. The module operates at 5 V. The leads are holes for soldering goldpin connectors - 2.54 mm pitch (not included, to be purchased separately).
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.
Connection
| Pin | Description |
|---|---|
| VCC | Supply voltage 5 V. |
| GND | Ground. |
| IN | Digital input signal, shorting to ground causes the servo to move from position A to B. A switch can be used in this circuit. For example tact-switch connected to IN and GND pins. |
SIG VCC GND | Connector for servo, SIG is a control signal, VCC - power supply, GND - ground. |
SparkFun Servo Trigger Specifications
- Operating voltage: 5 V (max 5.5 V)
- Current consumption: approx. 5 mA
- Built-in microcontroller: AVR ATtiny84
- Compatible with: analog servos
- Controllable with 3 built-in potentiometers:
- A: allows you to set the servo position when the input is open (no short circuit to ground of IN pin)
- B: makes it possible to set the servo position when the input is closed (IN pin is shorted to ground)
- C: makes it possible to set the transition time from the A to B position
- Input polarity: can be configured
- Reprogrammable: via ICSP connector
- Four mounting holes: with 3 mm diameter
- Leads for soldering: goldpin connectors - 2.54 mm pitch (not included, to be purchased separately)
- Dimensions: 43 x 23 mm
