Cytron SC08A - 8-channel server driver - UART

Index: CTN-12396 EAN: 5904422319137

An 8-channel servo controller. It communicates via a UART serial interface with a microcontroller or with a computer via USB using a USB to UART converter. It has a resolution of 0.25 μS.

Cytron SC08A - 8-channel server driver - UART
€17.50
€14.23 tax excl.
Available
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Cytron
Compatibility: Arduino

Product description: Cytron SC08A - 8 channel servo controller - UART

8-channelservocontroller. It communicates via aUARTserial interface with a microcontroller or with a computer viaUSBusing aUSB to UART converter. It has a resolution of0.25 μS.

Cytron SC08A - sterownik serw 8-kanałowy

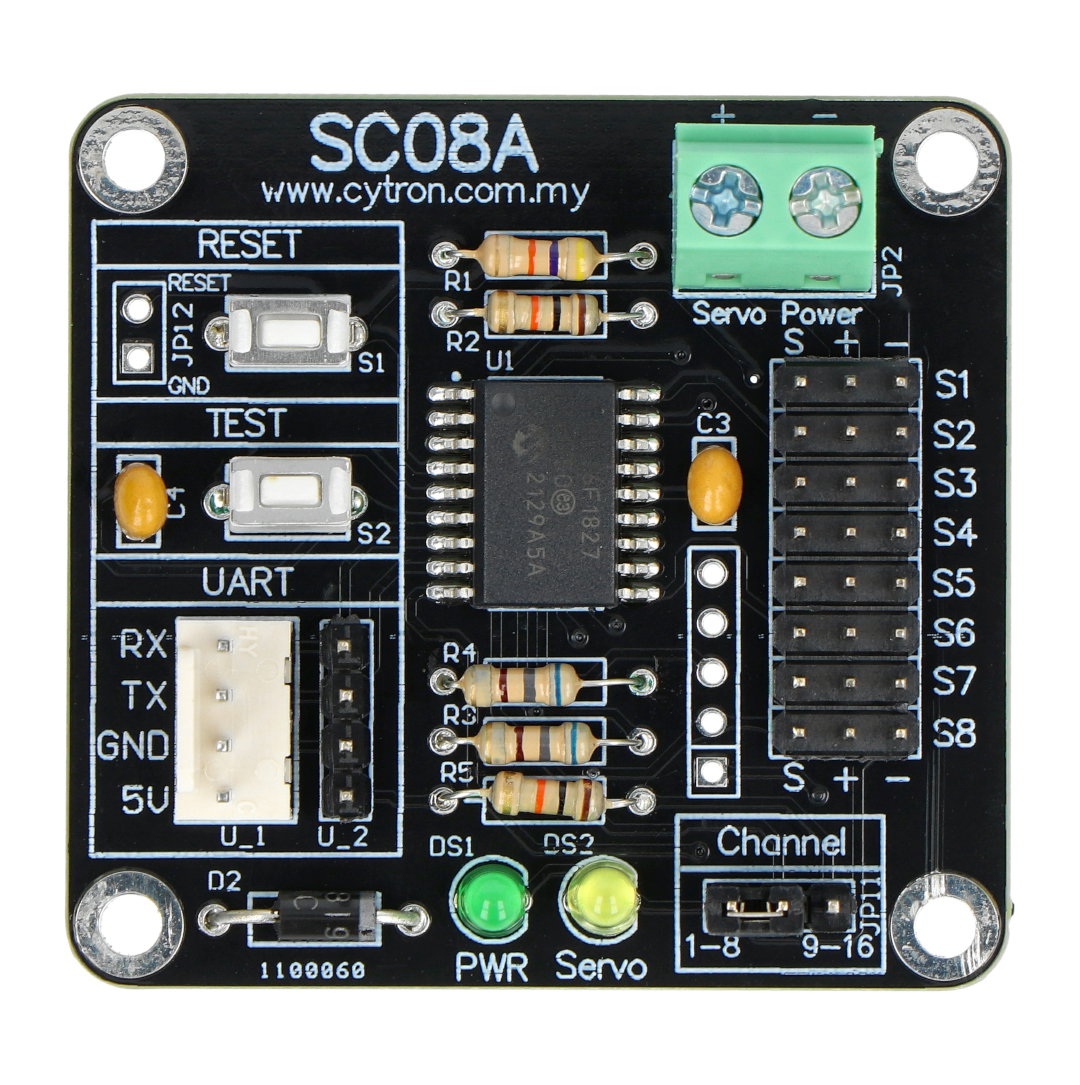

The board has soldered connectors to connectservosand power supply.The manufacturer has prepared a graphical application that allows you to easily control the servos.The application can be downloaded from GitHub.

Technical specification of the controller

  • Supply voltage: 5 V
  • Number of channels: 8
  • Servo supply voltage: 4.8 V to 6.0 V
  • Resolution: 0.25 μS - 8000 steps
  • Velocity resolution: 1uS/s - 0.09°/s
  • Servo pulse range: from 0.5 ms to 2.5 ms
  • Communication: UART interface (TX, RX)
  • UART communication speed: 9600 bps
  • Possibility to connect two controllers to control 16 servos
  • Board dimensions: 49 x 46 mm

Set contains

  • Cytron SC08A servo controller
  • 3-pin and 4-pin connectors and pins for the case
  • Plastic spacers

Voltage to 4.8
Voltage from 6.0 V
Current sources
Channels 8
Package width 8 cm
Package height 1 cm
Package depth 12 cm
Package weight 0 kg
