Product description: Mini Maestro USB 18 channel servo controller - Pololu 1354
The Maestro series are versatile servo controllers also capable of interpreting digital and analog signals. With a variety of control options, a wide range of supply voltages, and simple operation, the Maestro works well for many projects using servos. Depending on the number of servos used, the user can choose the appropriate version. There are 6, 12, 18 and 24 channel modules available.
Product compatible with Arduino
Mini Maestro USB 18 channel servo controller - Pololu 1354.
The user can customize the controller to meet the needs of their project by choosing from three different communication interfaces.
USB computer application - the device connects to a computer using a mini USB cable. An intuitive program is used to operate the controller, which enables, among others
- controlling the position of the orb
- setting the speed of servorotation
- reading data from analogue and digital inputs
- setting the logical values at the I/O outputs
Serial interface (UART) - the interface allows to connect Maestro to the central unit, which can be any microcontroller or runtime kit, e.g. Arduino, STM32Discovery or Rasbperry Pi. Servos are operated by sending special character commands. Examples along with a description of commands can be found in the manual.
Script - by selecting this option, the user can create and store in the Maestro memory a selected sequence of events, e.g. make the servo position dependent on the voltage level at the analog input, to which any analog sensor will be connected, e.g. a gyroscope, accelerometer or a rangefinder. A description of the script language and examples of its use can be found in the manual.
Computer application that allows to control the position and speed of servos, read and write I/O statuses via USB cable.

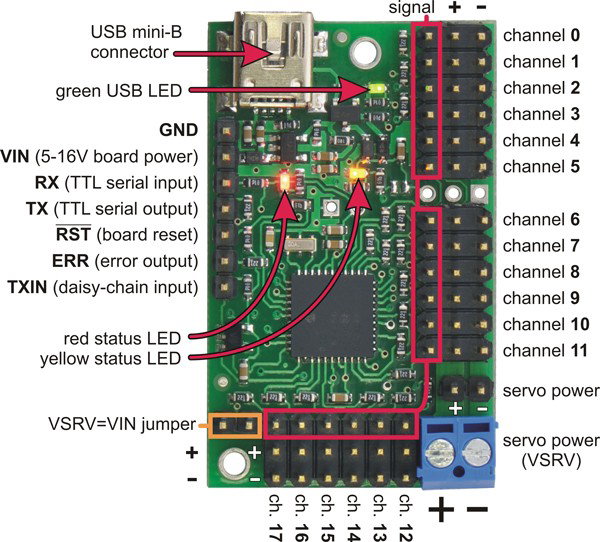

Leads of Pololu Mini Maestro
On the board there are:
- miniUSB connector used to connect the circuit to a PC
- 5V power bus connector for supplying power to other circuits
- connectors to connect the power supply for servos (+ and -)
- connectors for servomechanisms, the pin marked as signal can also be used as analog inputs and digital inputs / outputs working with voltages of 5 V
- status LEDs
- logic power supply connector (useful if the controller will not be permanently connected to the USB port)
- connectors for UART serial communication interface (RX, TX)
Product specification: Pololu Mini Maestro USB 18-channel servo controller
- Power supply: 5 V-16 V
- Current consumption: 40 mA*
- Number of channels: 18
- Transmission speed: 300-200000 bps**
- Control methods:
- USB - included PC program
- Serial interface (UART) - e.g. communication with a microcontroller
- scripts stored in the controller's memory
- Dimensions: 28 x 46 mm
* When the USB cable is connected, the device consumes 10 mA more
** Speed autodetection function in the range of 300 - 115200 bps
Examples of use
- projects using many servos e.g. manipulator
- walking robots e.g. Hexapods
- controlling servos with a computer(USB cable)
- use of channels as general purpose digital outputs
- use of analog input channels e.g. for reading information from sensors (e.g. Sharp 10-80cm) directly on a PC
- in versions 12, 18 and 24 one of the channels can work as PWM output, so you can operate the motor controller (e.g. TB6612FNG)
|Number of channels:||6||12||18||24|
|Number of analog inputs:||6||12||12||12|
|Number of digital inputs:||0||0||6||12|
|Pulse frequency:||33-100 Hz||1-333 Hz||1-333 Hz||1-333 Hz|
|Pulse range:||64-3280 μs||64-4080 μs||64-4080 μs||64-4080 μs|
|Script size:||1 KB||8 KB||8 KB||8 KB|
