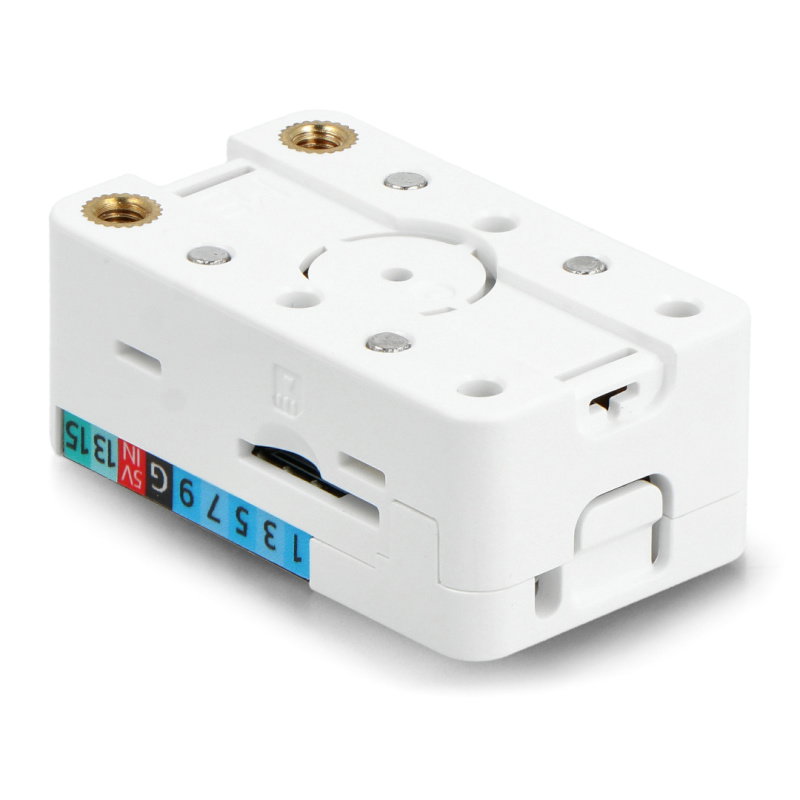

M5Capsule Kit - development board with M5Stamp S3A - M5Stack K129 v1.1
A versatile module based on the M5Stamp S3A controller. The board is equipped with a variety of sensors , allowing it to be used in a wide range of projects. It also includes a Grove socket , allowing you to further expand its capabilities.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: M5Capsule Kit - development board with M5Stamp S3A - M5Stack K129 v1.1
The M5Capsule is an advanced module for IoT and electronics enthusiasts, based on the M5Stamp S3A controller. Equipped with a BMI270 IMU sensor for precise motion and position tracking, an SPM1423 microphone , and an infrared sensor , it enables the creation of advanced projects such as voice control and smart home systems. The module includes a TF card slot for expanded data storage, as well as a built-in buzzer for audio interaction. It is powered by a 250 mAh battery. The device also includes an RTC8563 real-time clock module, providing precise date and time information and supporting a timed wake-up function. The built-in Grove socket allows for additional expansion of the module with additional sensors and extensions.

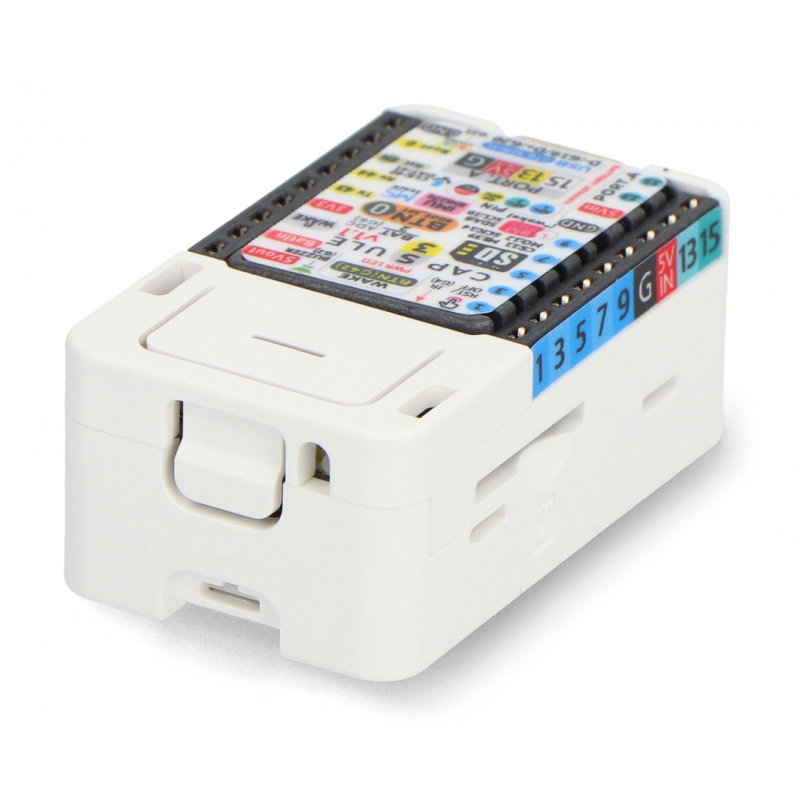

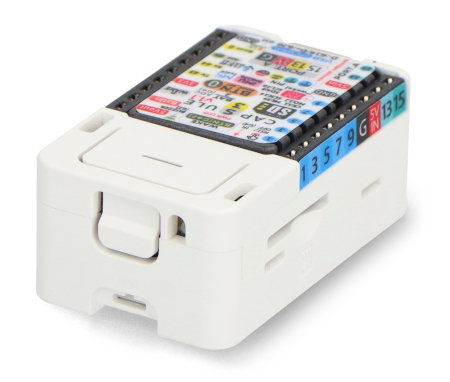

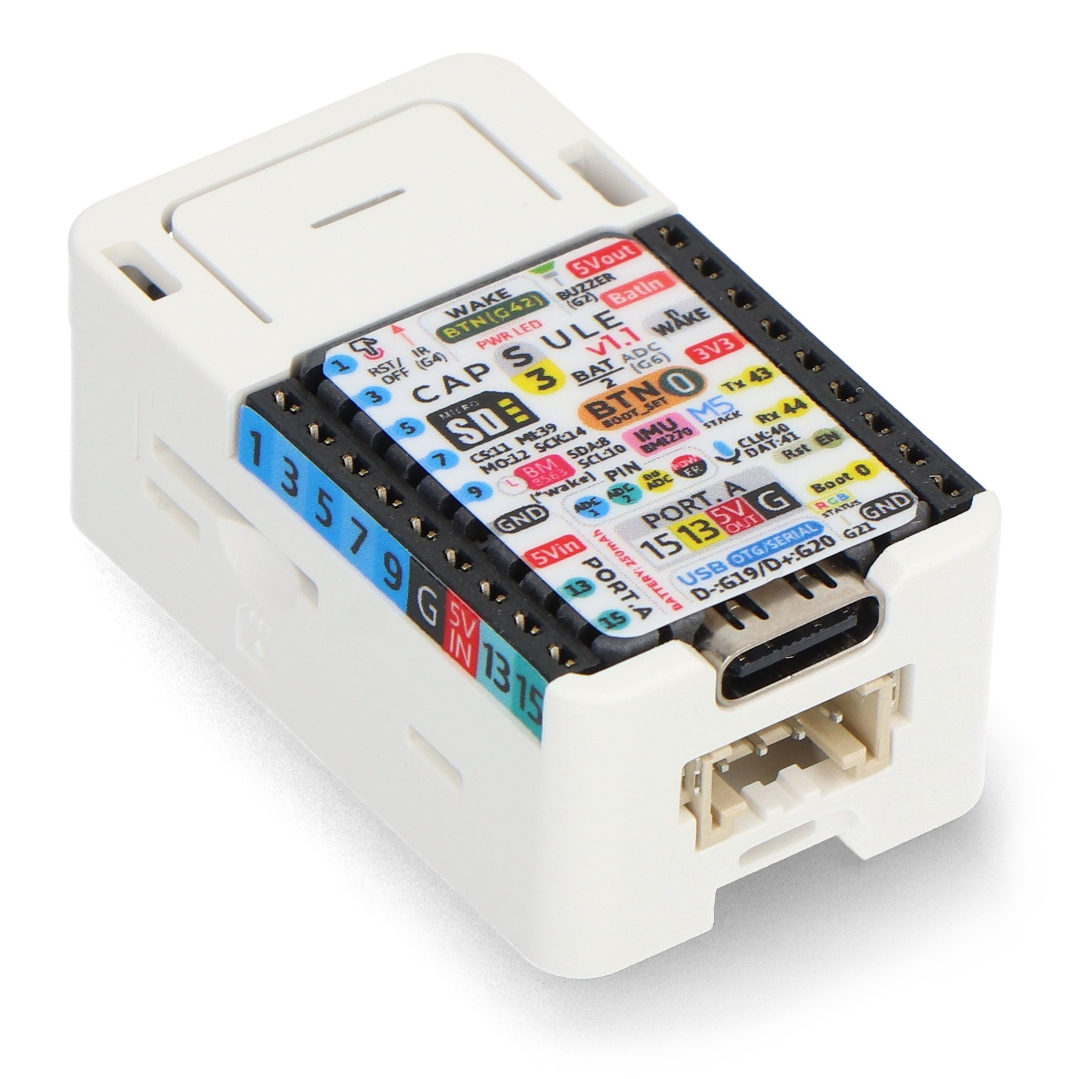

M5Capsule Kit - development board with M5Stamp S3A - M5Stack K129 v1.1.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.

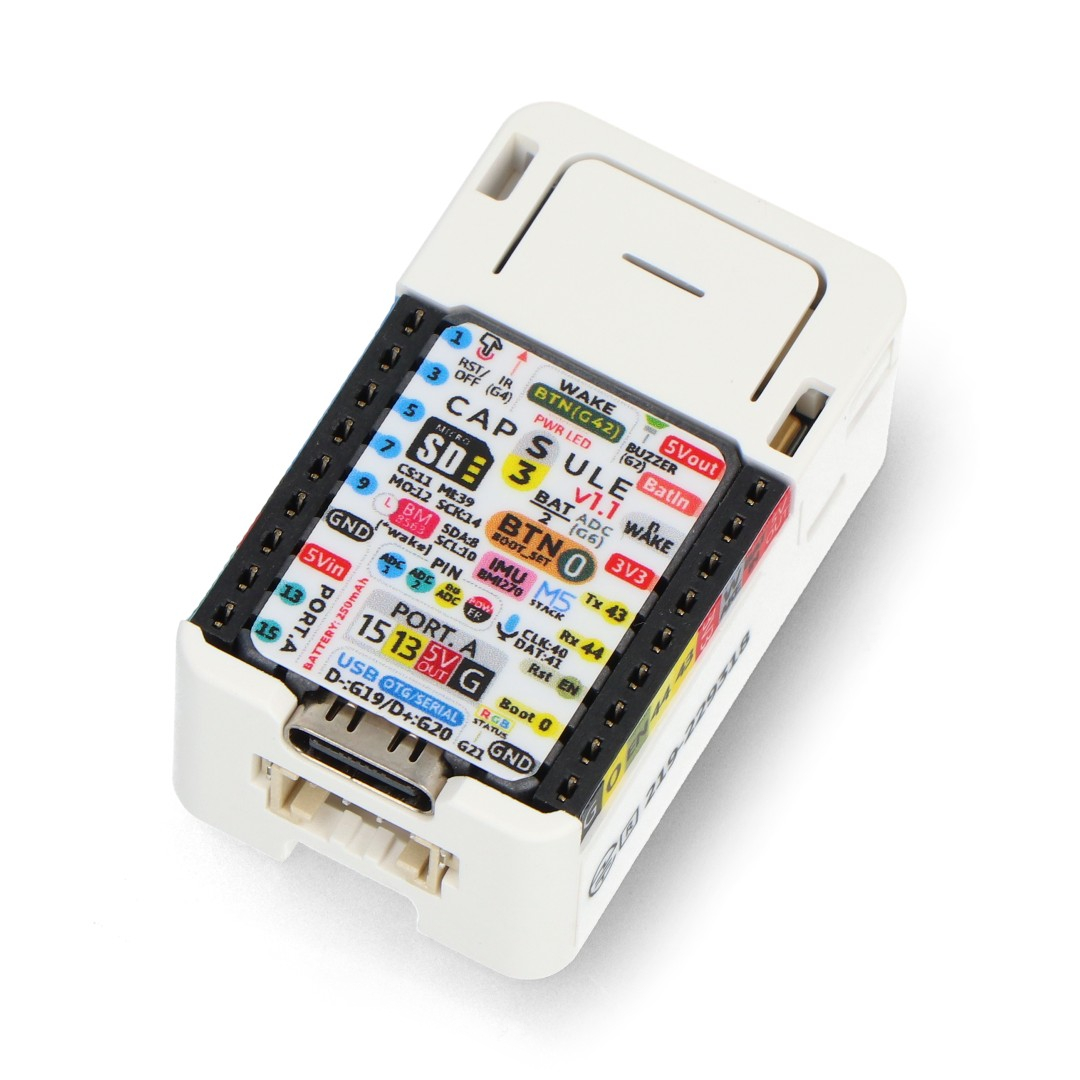

The board is powered by a 250 mAh battery.
Main features of the tile
- Controller with ESP32-S3FN8 chip - board based on the M5Stamp S3 controller
- Expandability - Grove socket allows expansion with additional sensors and extensions
- Motion and position tracking - The BMI270 IMU sensor provides precise control over the module's position, making it suitable for applications such as VR or game control
- Voice Recognition and Audio Processing - The SPM1423 microphone supports voice recognition and recording functions
- Precise date and time information - RTC8563 real-time clock module provides time information and also supports scheduled wake-up function, resulting in lower power consumption
- Data storage - thanks to the TF card slot, the module's memory can be increased
M5Stamp S3A
The M5Stamp S3 from M5Stack is an advanced controller based on the ESP32-S3FN8 chip, equipped with 8MB of Flash memory and enabling wireless Wi-Fi communication. Its dual-core Xtensa 32-bit LX7 processor provides impressive computing power. The module can be used in mobile projects, broad IoT applications, home automation projects, and individual embedded projects.

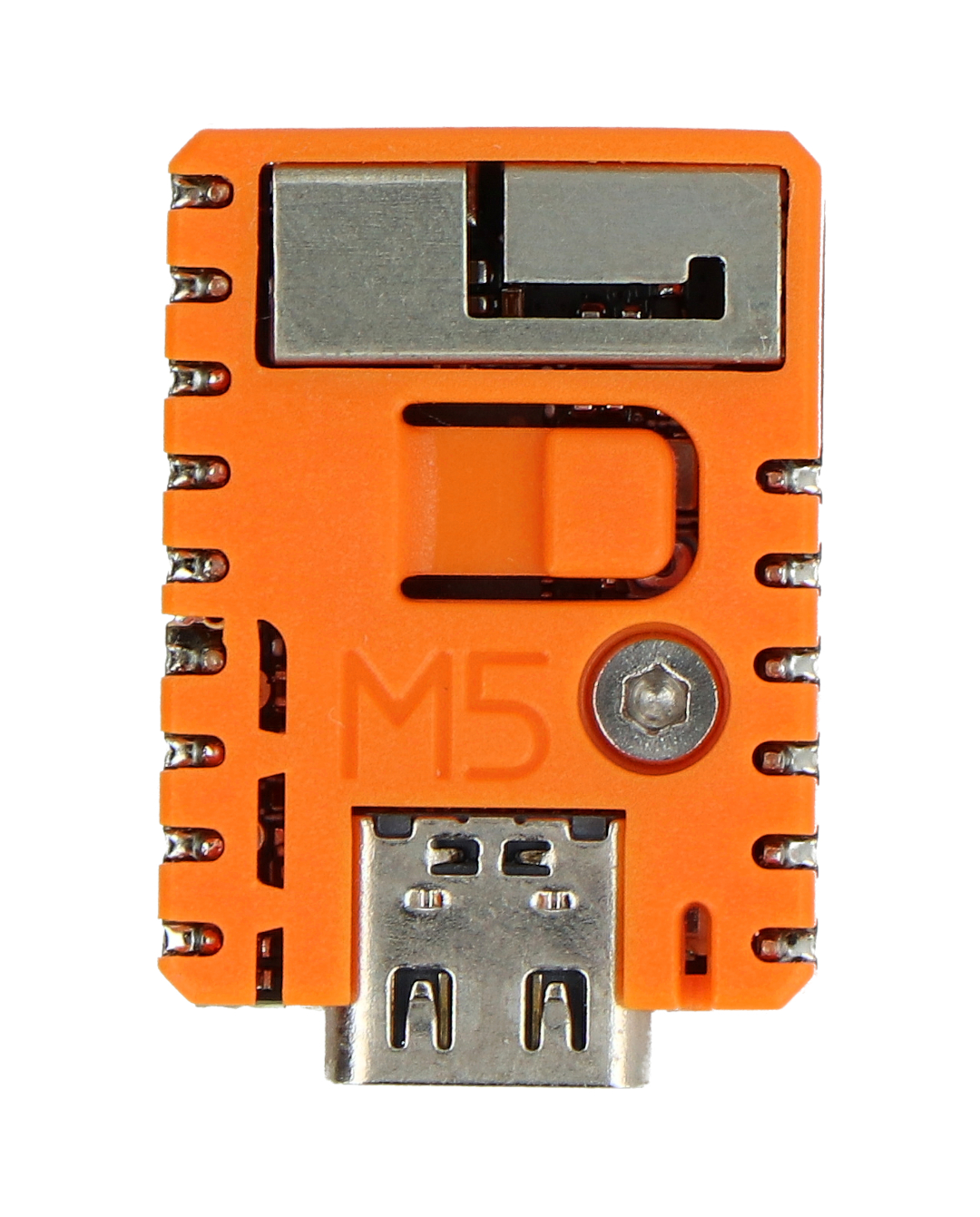

M5Stamp S3A development module.

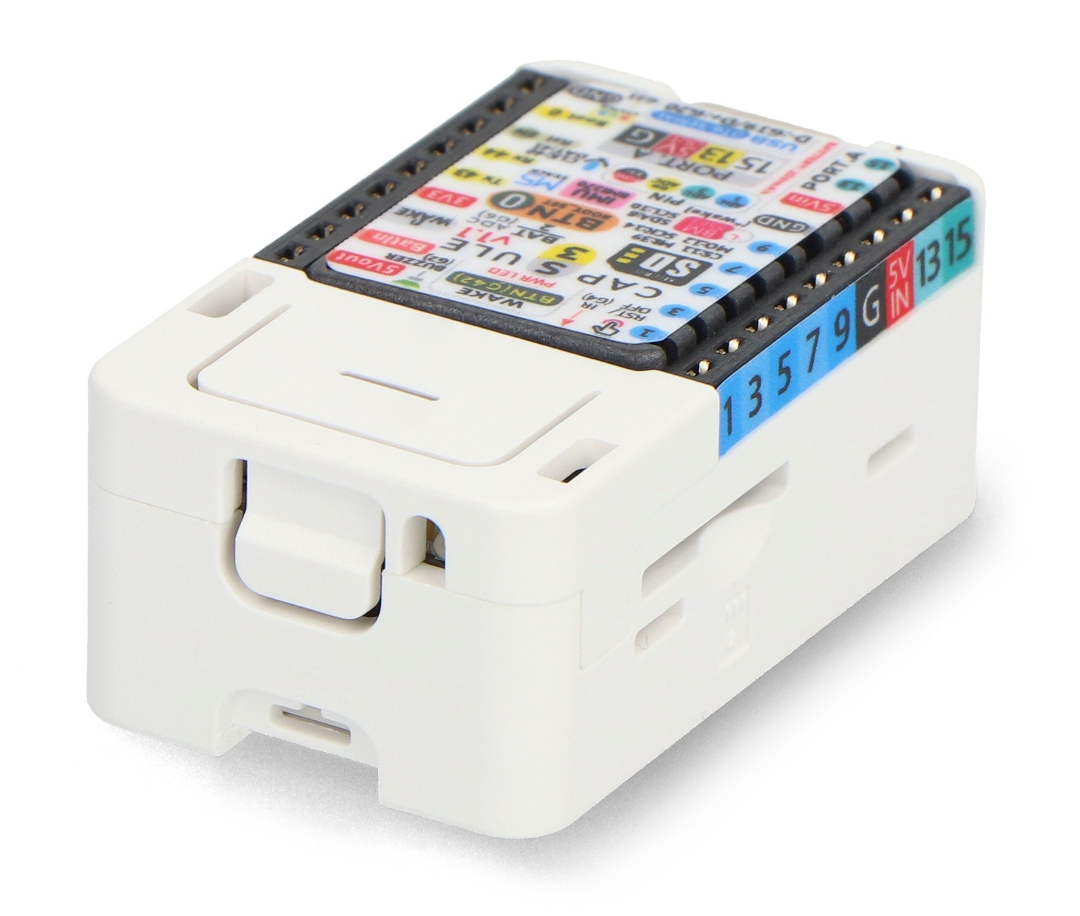

The module is based on the M5Stamp S3A controller.
Technical specifications of the board
- Model: M5Capsule
- Controller: M5Stamp S3
- SoC: ESP32-S3FN8
- Flash memory: 8 MB
- Position sensor: BMI270 IMU
- BMI270 I2C Address: 0x69
- Microphone: SPM1423
- Real-time clock chip: BM8563
- BM8563 I2C Address: 0x51
- Power supply: 250 mAh battery
- Supply voltage: 4.2 V
- Standby current consumption: 35 uA
- Operating current consumption: 144 mA
- Dimensions: 40 x 24 x 16.2 mm
- Weight: 18.7 g
Useful links
| Name | Value |
|---|---|
| Width | 6 cm |
| Height | 10 cm |
| Depth | 2 cm |
| Weight | 0.026 kg |
