Product description: M5Stamp PLC - IoT logic controller with M5StampS3 module - M5Stack K141
The M5Stamp PLC is a modern, programmable logic controller (PLC) for IoT applications, designed for industrial automation, remote monitoring, and smart factories. Based on the StampS3 module, the controller delivers high computing power and reliable wireless connectivity, enabling integration with a wide range of devices and sensors. It offers eight opto-isolated digital inputs and four relay outputs (supporting both AC and DC loads), making it suitable for complex control systems. Integrated PWR-CAN and PWR-485 communication ports allow the device to be easily integrated into industrial communication networks, allowing for centralized management and monitoring.
M5Stamp PLC - IoT logic controller with M5StampS3 module - M5Stack K141.

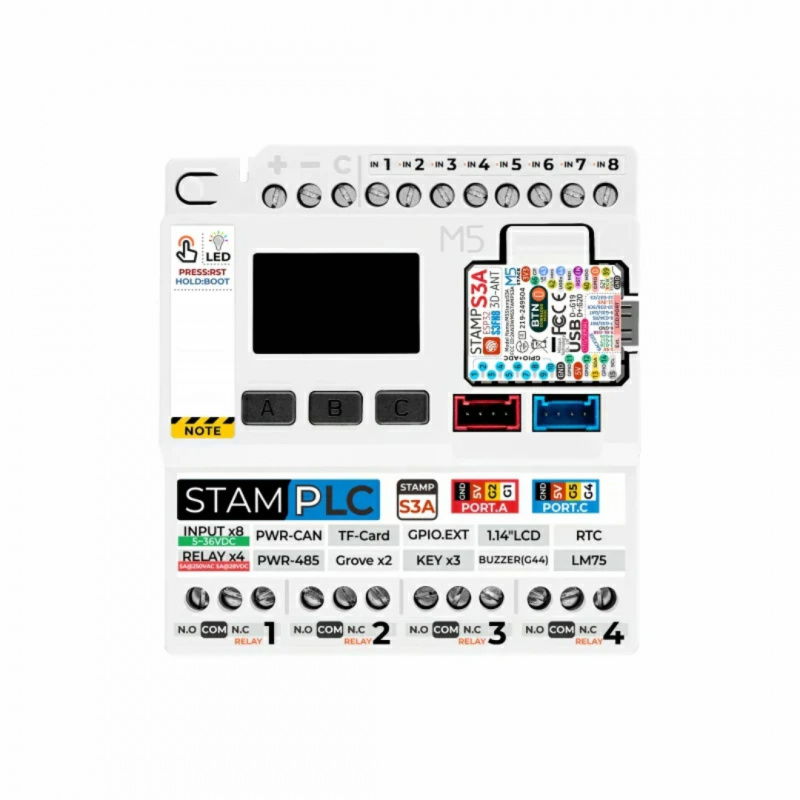

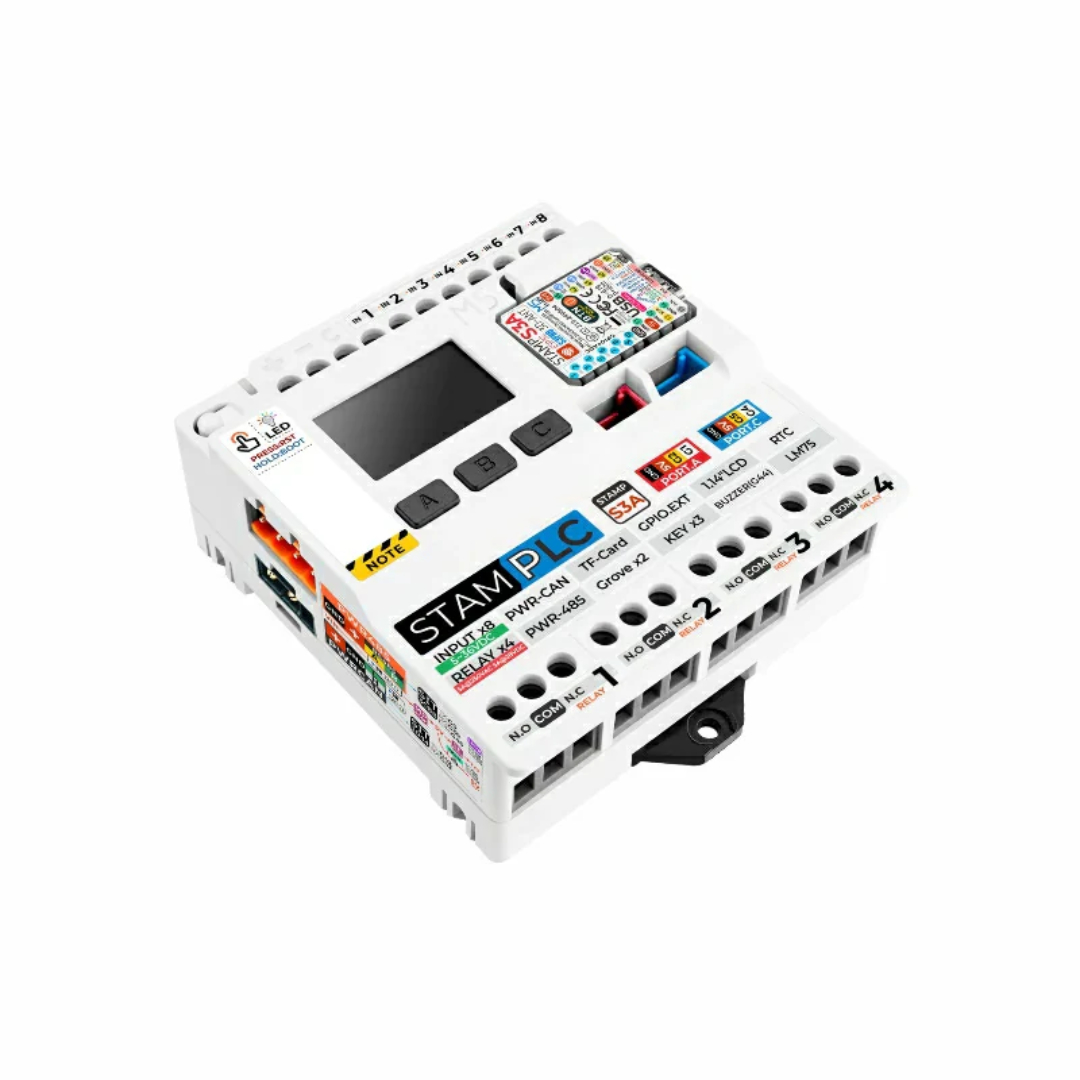

M5Stamp PLC is a modern, programmable IoT logic controller designed for applications in industrial automation, remote monitoring systems and smart factories.Main features
- StampS3A Control Module : based on ESP32-S3FN8 with 8MB Flash and 2.4GHz WiFi
- 8 opto-isolated digital inputs: input voltage from 5 V to 36 V DC
- 4 relay outputs: 5 A at 250 V AC and 5 A at 28 V DC
- Wide supply voltage range: DC 6 V to 36 V

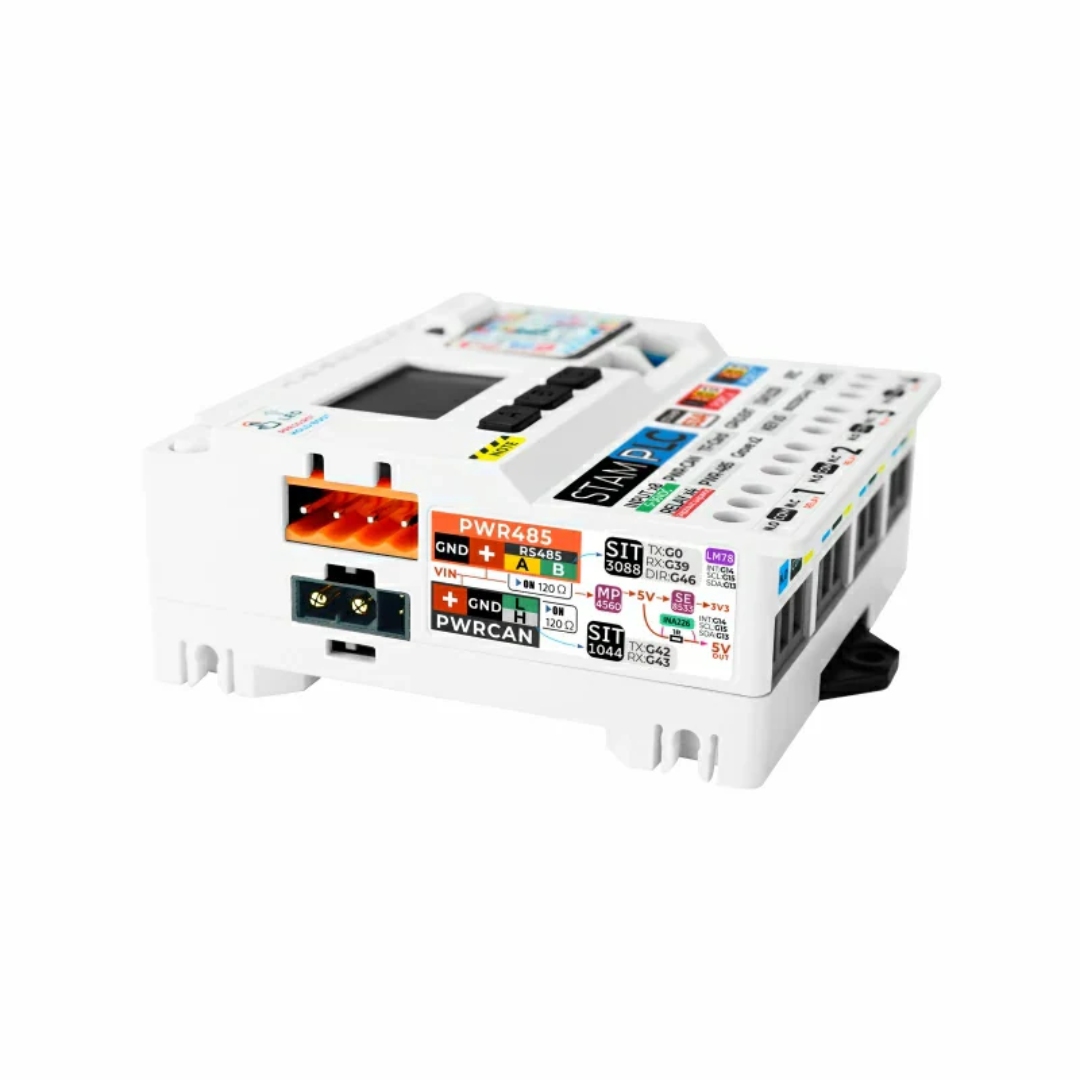

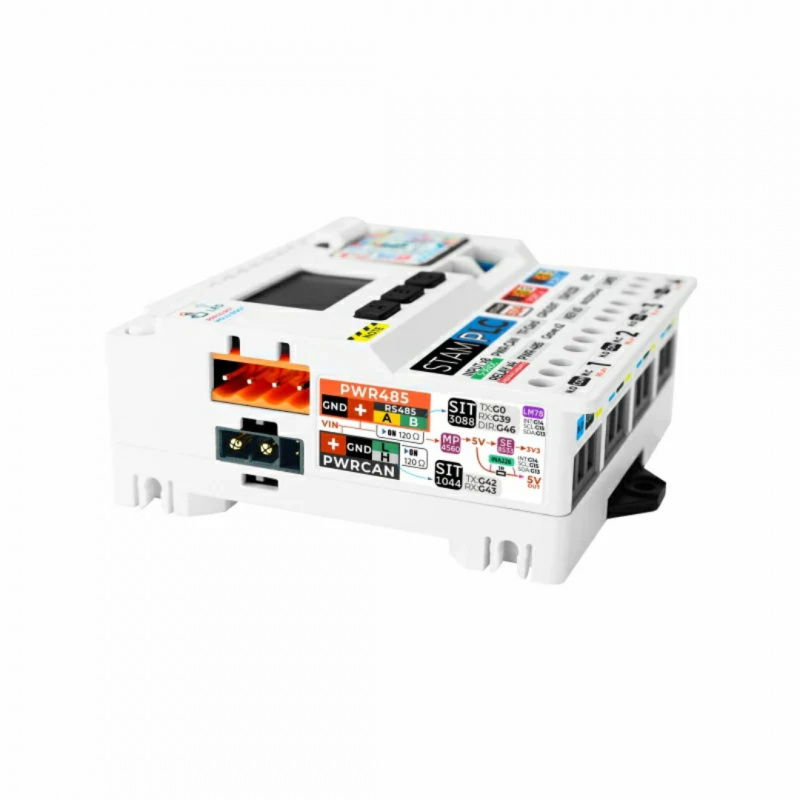

- PWR-CAN and PWR-485: ports for integration with industrial communication networks
- 1.14-inch color display: 135 x 240 px resolution (ST7789v2)

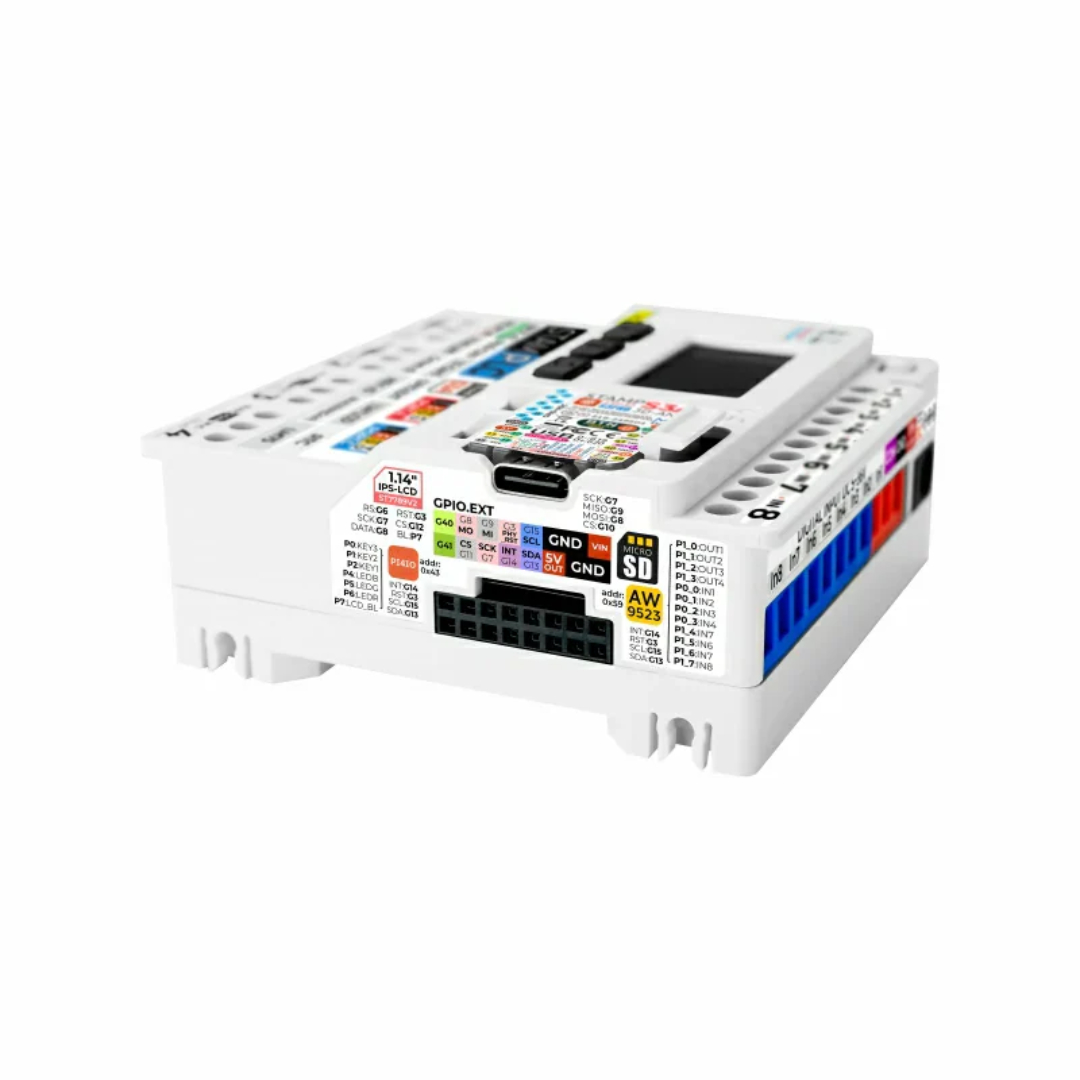

- Grove and GPIO.EXT: expansion ports for connecting sensors and external devices
- Sensors: built-in LM75 temperature sensor, INA226 voltage/current sensor, RX8130CE RTC module

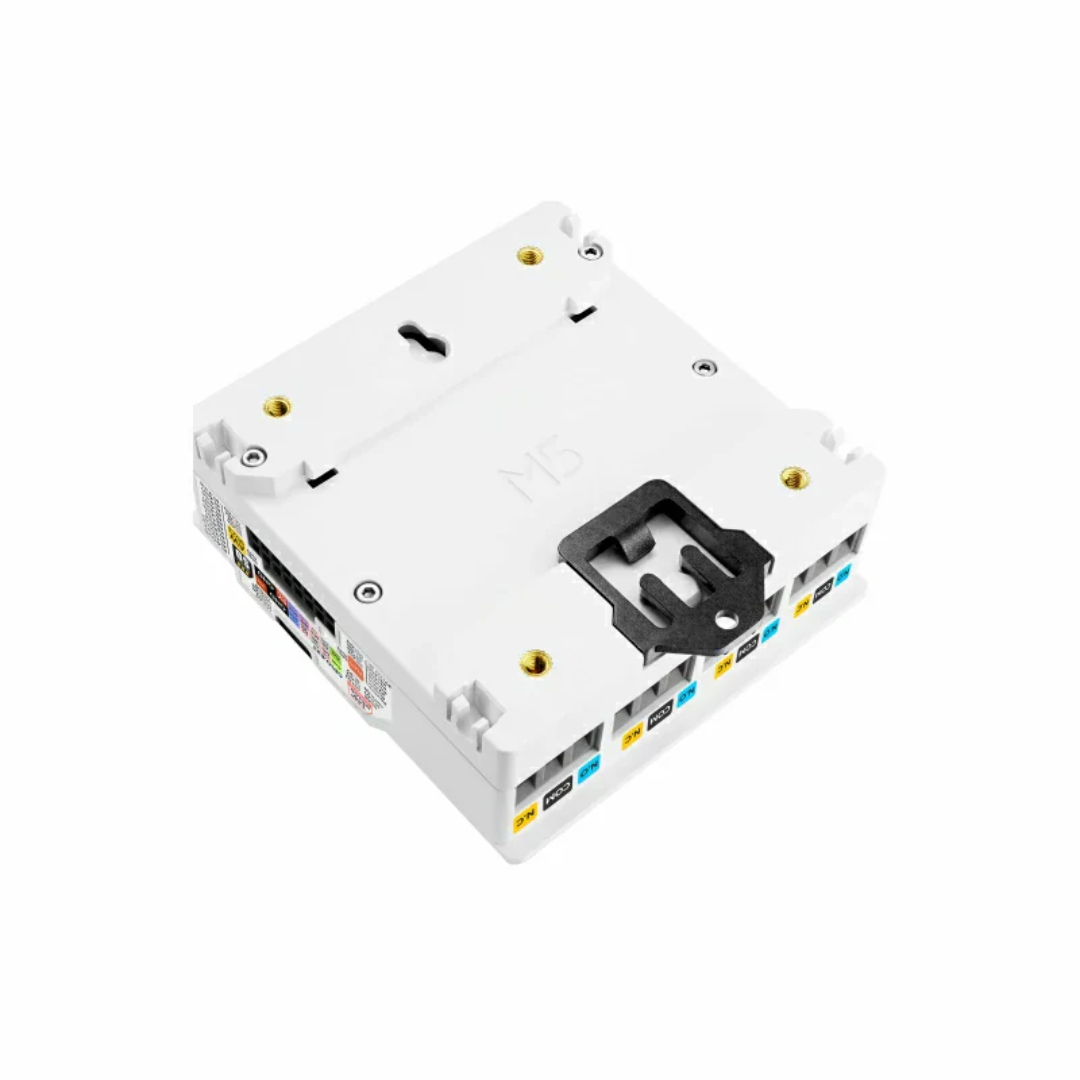

- DIN rail mounting: easy installation in control cabinets
- Micro SD: built-in slot for data storage and software updates
- Buzzer: Sound notifications about errors or events
Applications
The M5Stamp PLC is an ideal solution for applications in industrial automation, remote monitoring, energy management, and smart manufacturing. Its versatility allows it to be used in distributed control systems, production process management, and real-time monitoring and control systems. It can be integrated with other industrial devices, and its broad compatibility with various interfaces makes it an excellent choice for implementation in complex industrial and IoT applications.
The controller is based on the StampS3 module, which provides high computing power and reliable wireless connectivity, enabling integration with a wide range of devices and sensors.
Thanks to the integrated PWR-CAN and PWR-485 communication ports, the device can be easily incorporated into industrial communication networks.Technical specifications
- Control module: StampS3A, ESP32-S3FN8, 8MB Flash, 2.4GHz WiFi
- Flash memory: 8 MB
- Digital inputs: 8 opto-isolated inputs, voltage range: DC 5 V to 36 V
- Digital outputs: 4 relay outputs
- Power supply: DC 6 V to 36 V, 1 A
- Power connector: DC5521 (female, 5.5 x 2.1 mm)
- Expansion Ports: GPIO.EXT, 2 Grove Ports
- Communication interfaces: PWR-CAN and PWR-485
- Display: 1.14-inch color display (135 x 240 px), ST7789v2 chip
- Sensors: LM75 (temperature), INA226 (voltage/current), RTC (RX8130CE)
- Micro SD card slot
- Buzzer, buttons: 1 RESET/BOOT, 3 user buttons
- Operating temperature: 0°C to 40°C
- Dimensions: 72 x 80 x 33.4 mm
- Weight: 139.4 g
Contents of the set
- 1 x M5Stamp PLC
- 4 x mounting accessories
- 4 x mounting connectors
