Product description: M5Stamp ESP32S3 - development module with WiFi communication - M5Stack S007
M5Stamp ESP32S3 is a development module from M5Stack equipped with wireless WiFi communication . It uses the ESP32-S3FN8 chip, has 8 MB Flash memory and a high-performance 32-bit Xtensa 32-bit LX7 dual-core processor with a clock speed of up to 240 MHz. It has also been equipped with a MUN3CAD01-SC voltage converter, a status LED, a programmable button and 23 GPIO pins. Thanks to its compact dimensions, high performance and low energy consumption, it can be used in mobile projects, broadly defined IoT applications, home automation projects or individual embedded projects.
Also check the manufacturer's user guide .
Development module produced by M5Stack.

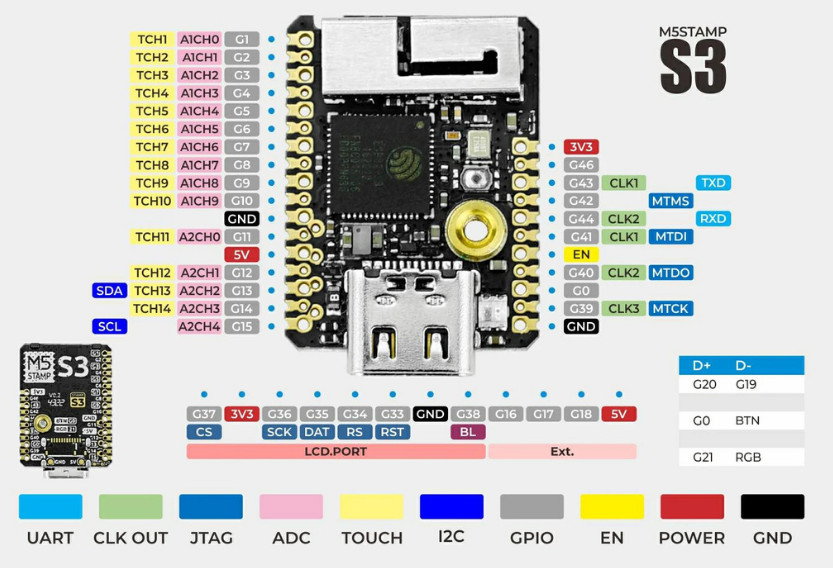

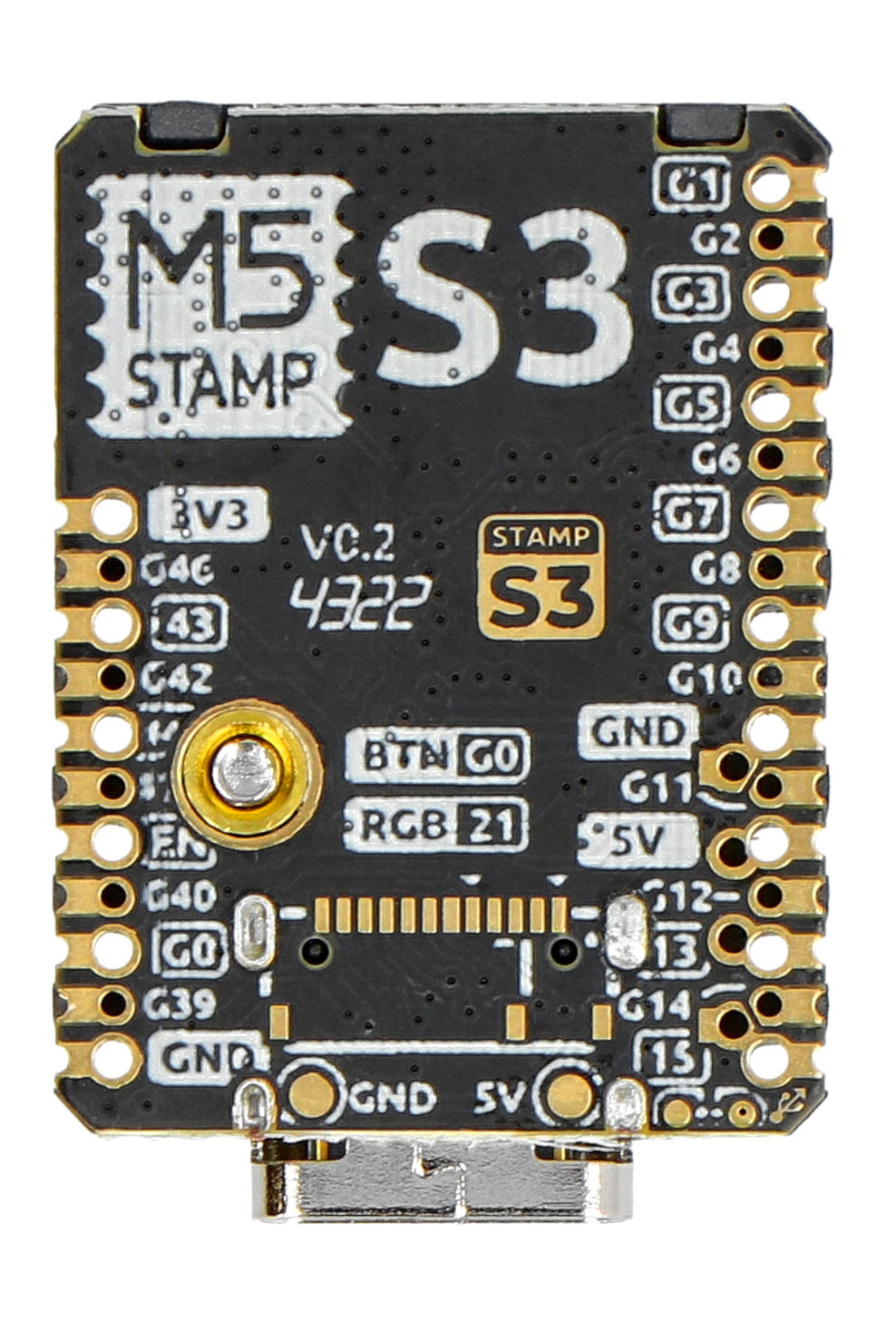

Pin placement.
Special features of the M5Stamp ESP32S3
- Onboard ESP32-S3FN8 chipset
- 2.4 GHz WiFi wireless communication
- Programming with the UIFlow graphical editor
- Multi-IO pinout, support multiple application forms (SMT, DIP, fly-by-wire)
- Integrated programmable RGB LEDs and utility button
- Compactness and miniature dimensions
Suggested use
- Smart home - the basis of IoT and Smart Home applications
- Smart clothes - executive element
- Prototypes of medical devices
Module technical specification
- Built-in chip: ESP32-S3FN8
- DC - DC Converter: Highly integrated MUN3CAD01-SC
- Flash memory: 8MB
- Wireless communication: WiFi 2.4 GHz
- Antenna: Built-in 2.4GHz 3D antenna
- Module interfaces: touch sensor, SD/SDIO/MMC master controller, SPI, SDIO/SPI slave controller, EMAC, PWM motor, LED PWM, UART, I2C, I2S, GPIO, pulse counter
- 23x IO pins: G0 / G1 / G2 / G3 / G4 / G5 / G6 / G7 / G8 / G9 / G10 / G11 / G12 / G13 / G14 / G15 / G39 / G40 / G41 / G42 / G43 / G44 / G46
- Pin pitch: from 1.27 mm to 2.54 mm
- Input voltage: 5V
- Usage interface:
- Programmable physical button - 1 piece
- Programmable LED (WS2812B-2020) - 1 piece
- Operating temperature: 0°C to 40°C
- Module dimensions: 26 x 18 x 5 mm
- Weight: 3.2g
M5Stamp ESP32S3 - development module with WiFi communication - M5Stack S007.
Components included in the set.
Kit contents

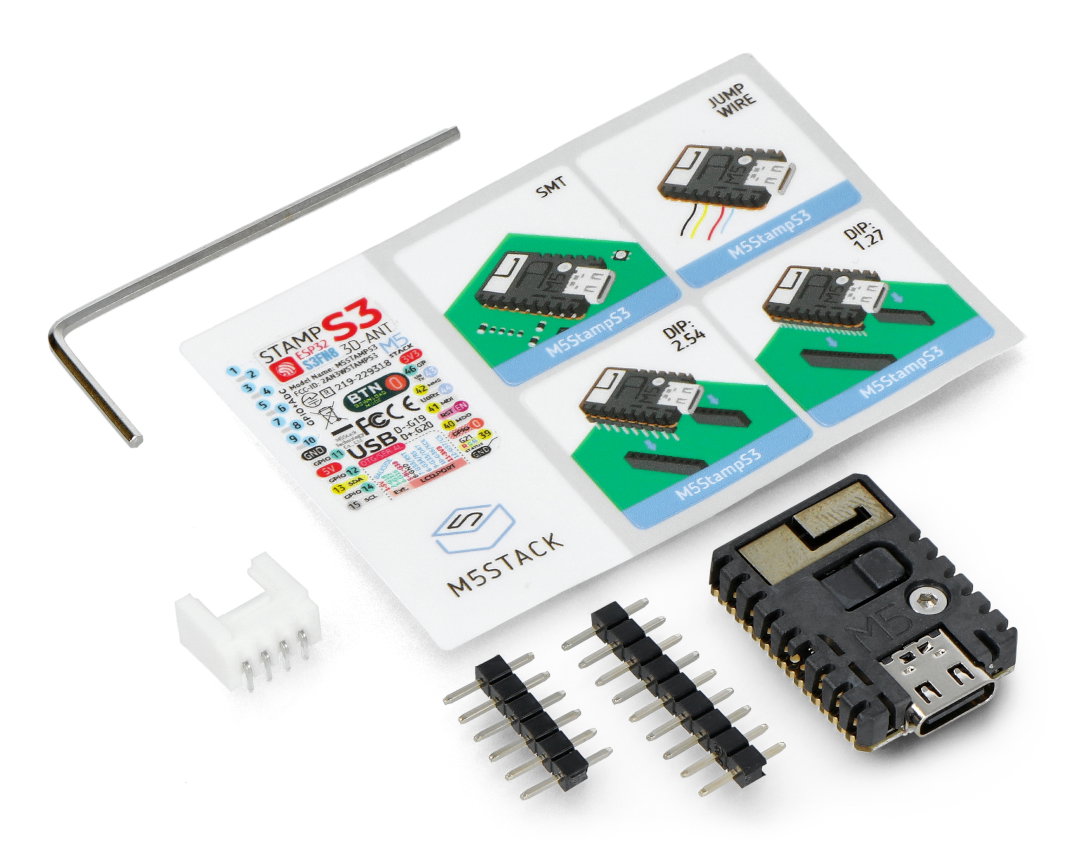

- M5Stamp ESP32S3 - development module with WiFi communication
- 1x4 pin connector - 2 mm raster - 1 piece
- Goldpin strip 1x6 pin - raster 2.54 mm - 1 piece
- Goldpin strip 1x9 pin - raster 2.54 mm - 1 piece
- Allen key
- Assembly guide
Check also other M5Stack modules available in our offer!
