Product description: Proto Kit - CapsuleProto prototyping board for M5Capsule - 62 holes - 5 pcs - M5Stack A141
The Proto Kit is a set of five perforated prototype boards designed specifically for the M5Capsule . Each plate has dimensions of 26 x 24 mm and contains 62 holes with a pitch of 2.54 mm . This arrangement of holes allows you to easily connect components and peripherals to the M5Capsule , allowing you to create custom circuits and expand the capabilities of the device. Prototype boards offer adequate space for soldering , wiring and mounting various electronic modules, sensors and actuators. With this board set you can quickly iterate and experiment with different configurations, making it the perfect tool for rapid prototyping and proof of concept development. The boards simplify the process of building functional prototypes based on M5Capsule, enabling the implementation of creative ideas in a more efficient and effective way. CapsuleProto boards are widely used in IoT projects, creating prototypes of smart devices , education and teaching.

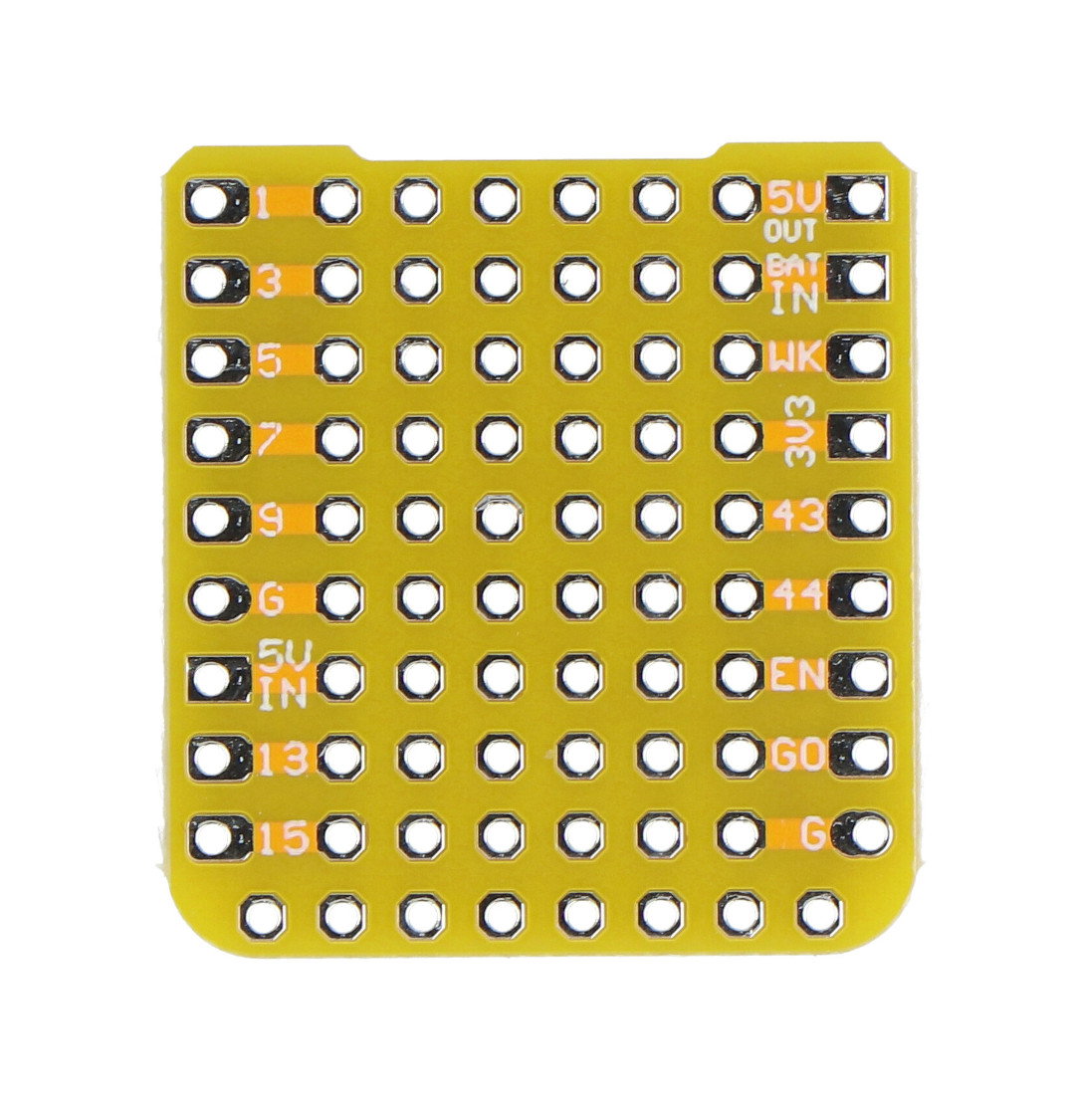

Proto Kit - CapsuleProto prototype board for M5Capsule - 62 holes - 5 pcs. - M5Stack A141.

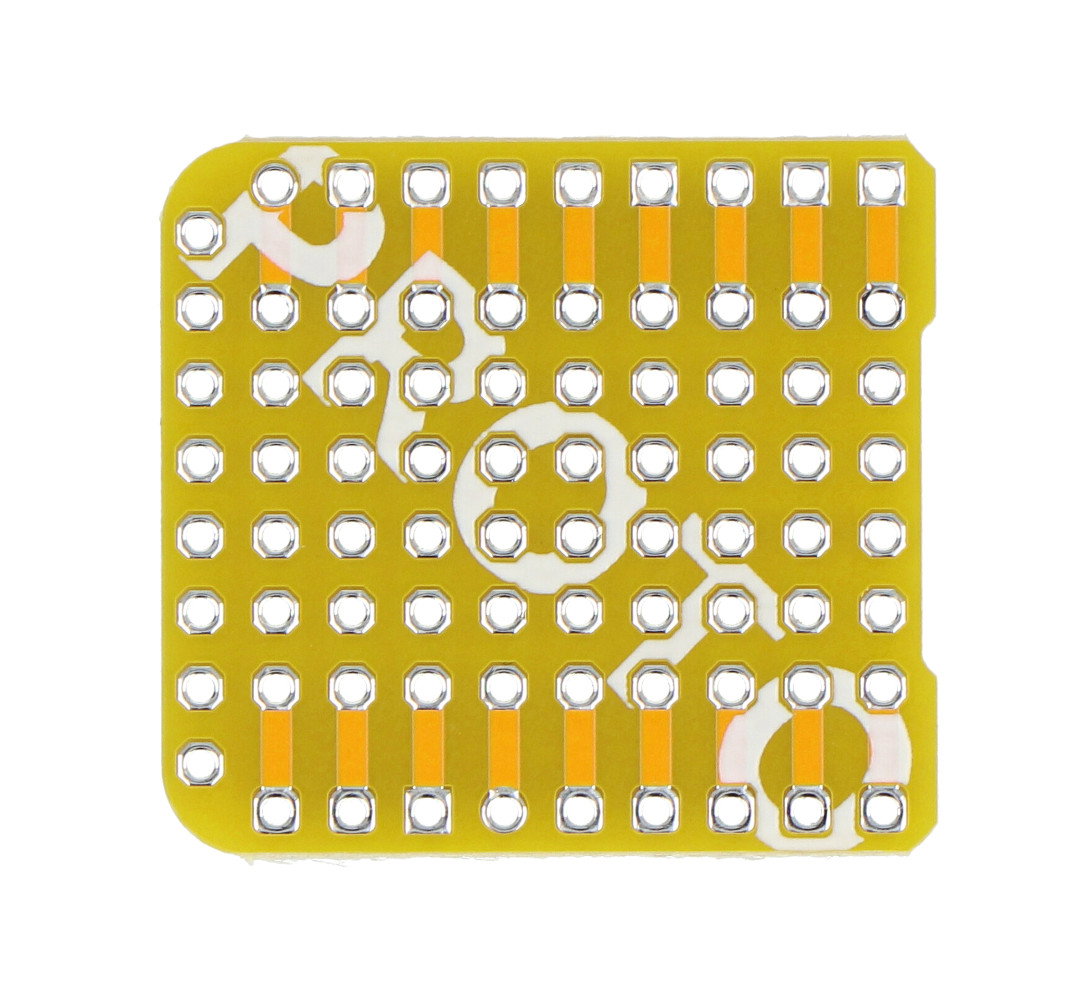

The board contains 62 holes with a pitch of 2.54 mm.
Special features of the tile set
- M5Capsule Compatibility : Set of five prototype boards fully compatible with M5Capsule.
- Multi-functional test area : boards enable experimentation and testing without interfering with the main prototyping area, increasing flexibility in the prototyping process.
- Wide Application : Suitable for IoT projects, smart device prototyping, education and science.
- Simple design: suitable for both professional developers and novice users.
- Effective Prototyping: Provide users with an effective platform to quickly create and test prototypes.
- Tile dimensions: each tile measures 26 x 24 mm.
- Hole grids: 62 holes with a pitch of 2.54 mm, enable easy connection of components and peripherals.
Also check out other M5Stack products available in our offer!
Proto Kit technical specifications
- Type: prototype board
- Compatible with M5Capsule modules
- Number of holes available: 62 holes (9 rows, 6 columns + 1 row, 8 holes)
- Hole pitch: 2.54 mm
- Dimensions of one plate: 26 x 24 x 1 mm
- Weight: 10 g
Set contents
- Proto Kit - CapsuleProto prototyping board for M5Capsule - 62 holes - 5 pcs - M5Stack A141
- Goldpin strip - 1 x 9 pin - 10 pcs.

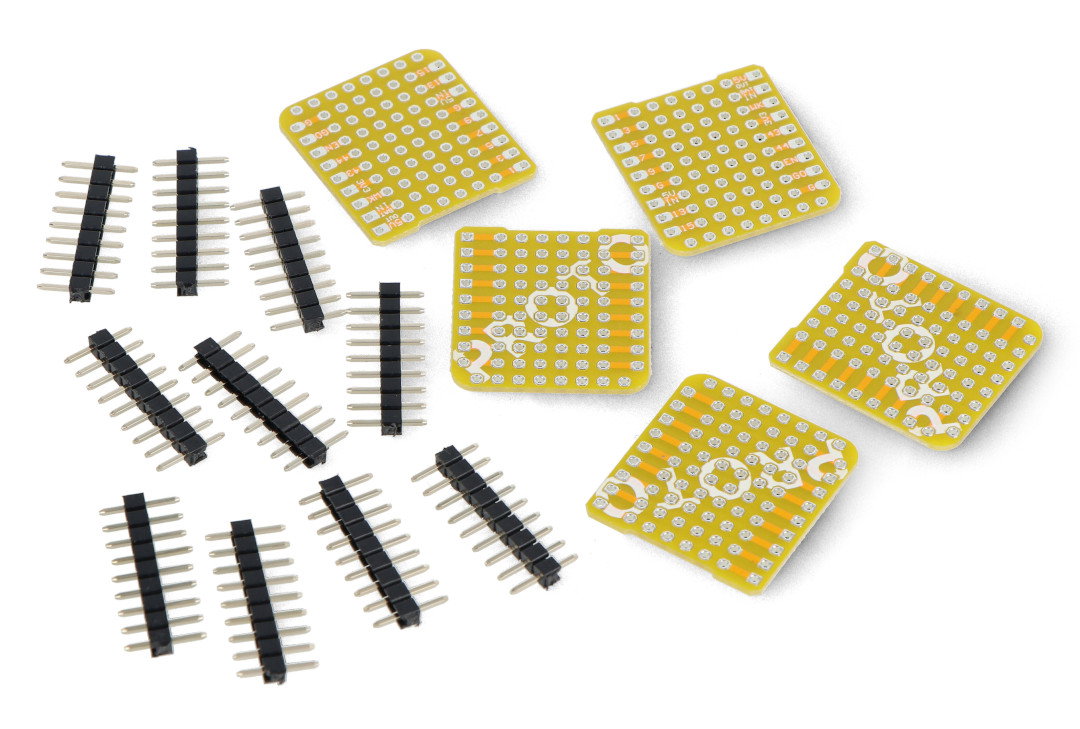

Elements included in the set.
