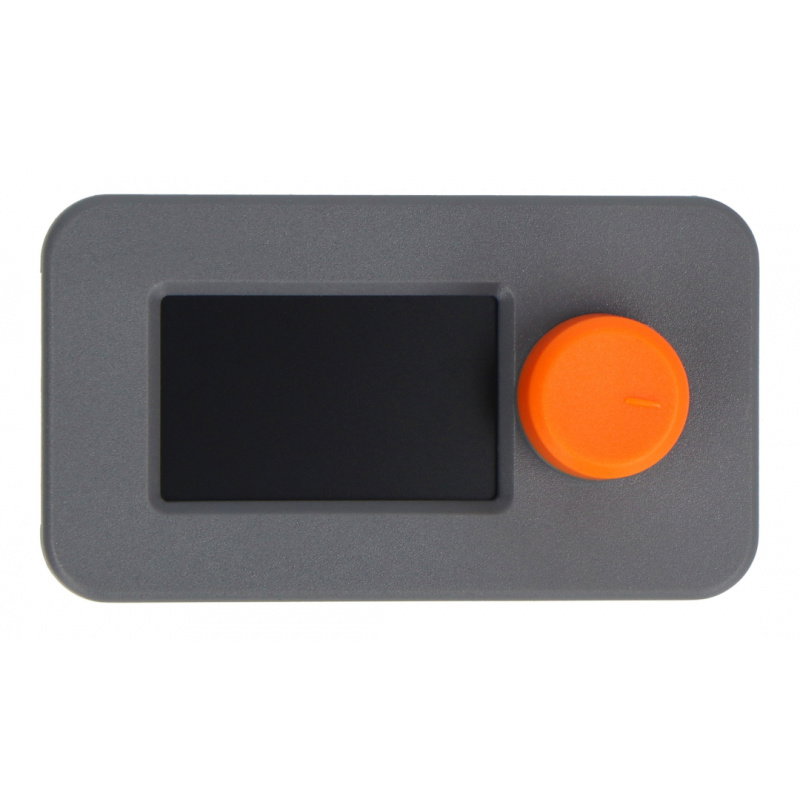

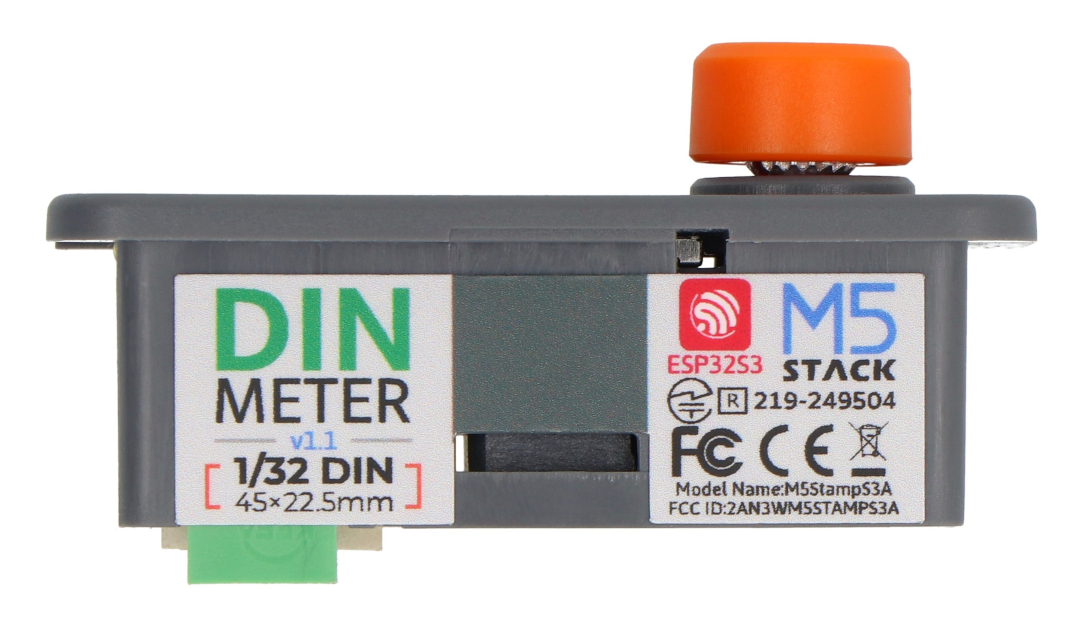

DinMeter v1.1 - development module in 1/32 DIN standard - M5Stamp S3 - M5Stack K134
M5Stack's DinMeter v1.1 is a 1/32 DIN standard development module equipped with a 1.14" ST7789v2 display and an M5StampS3 controller. It includes a rotary encoder, RTC, buzzer, and interaction buttons. It supports a wide input voltage range from 6V to 36V DC and also includes connectors for a lithium battery and charging system. The module is suitable for measurement, IoT, education, and smart home and access control projects.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: DinMeter v1.1 - development module in 1/32 DIN standard - M5Stamp S3 - M5Stack K134
The M5Stack DinMeter v1.1 is a compact development board compliant with the 1/32 DIN standard (45 x 22.5 mm), ideal for DIY projects and industrial applications. The module can be used standalone or combined with accessories and other M5Stack modules , such as the Core or Atom series, via I2C and GPIO ports. Equipped with the ESP32-S3-based M5StampS3 controller, it offers 8MB of Flash memory , WiFi, and OTG/CDC capabilities. The module features a 1.14" (135 x 240 px) display, rotary encoder, RTC circuit, buzzer, and under-screen buttons. It supports voltages from 6V to 36V DC and has interfaces for a lithium battery . Ideal for smart home applications, access control systems, and IoT projects.

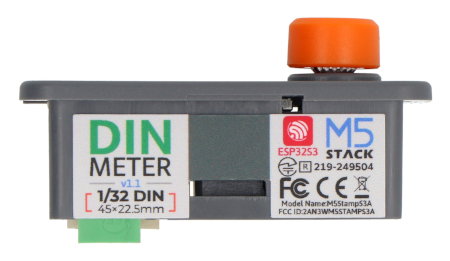

DinMeter v1.1 - development module in 1/32 DIN standard - M5Stamp S3 - M5Stack K134.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
The module can work with accessories and other M5Stack modules.
Special features of the module
- 1/32 DIN Standard: Compact size of 45 x 22.5 mm, compliant with the 1/32 DIN standard, allows easy integration into a variety of housings and systems.
- ST7789V2 Screen: 1.14-inch high-resolution display.
- M5StampS3 Controller: Based on the ESP32-S3 chip, programmable with Arduino and UIFlow, it features a powerful Xtensa 32-bit LX7 dual-core processor, operating at a core frequency of up to 240 MHz.
- Rotary encoder: allows for precise tracking of the knob position.
- Wide input voltage range: Supports 6V to 36V DC and is equipped with an interface for lithium battery operation and charging.

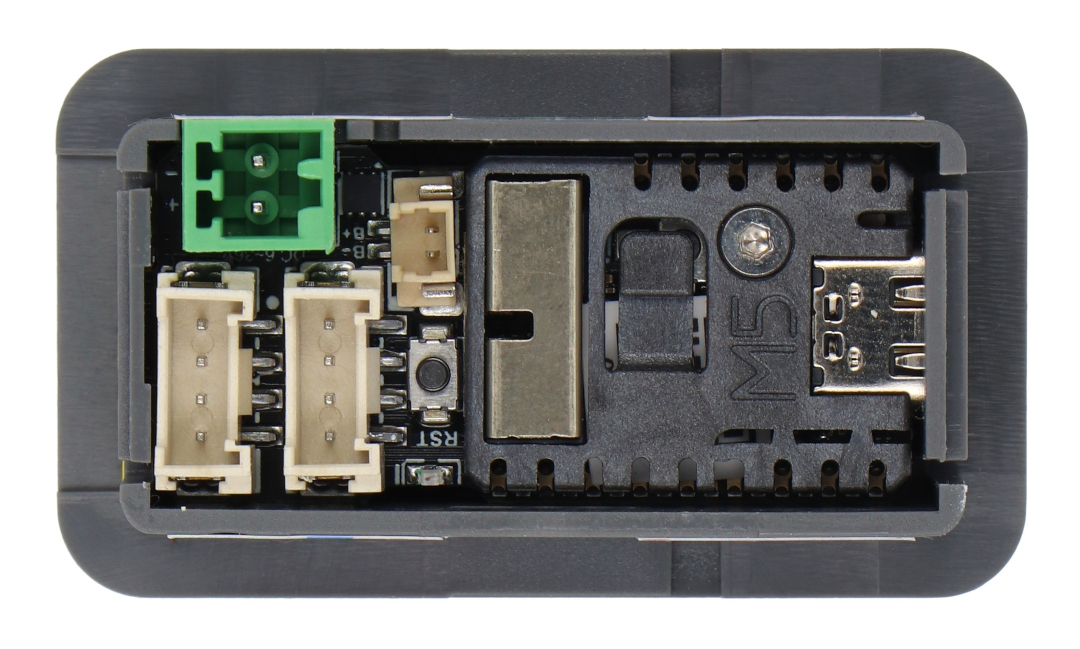

- PORTA and PORTB interfaces: provide expansion capability for I2C and GPIO devices.
Key Features of DinMeter v1.1
- Data collection: Thanks to built-in sensors such as a rotary encoder and RTC (real-time clock), DinMeter can collect data about the status of the devices it controls.
- Information display: The ST7789V2 color display with a resolution of 135 x 240 px allows you to display measurement results, system states and user interfaces.
- User interaction: Using the built-in buttons and buzzer, you can interact with the device, and it can generate sound notifications.
- Control and monitoring: The ability to program in Arduino and UIFlow environments allows you to create complex control algorithms that can be run on the device.
- Connectivity and expansion: PORTA and PORTB ports allow you to connect additional I2C and GPIO devices, extending the functionality of DinMeter.
The module has a rotary encoder.

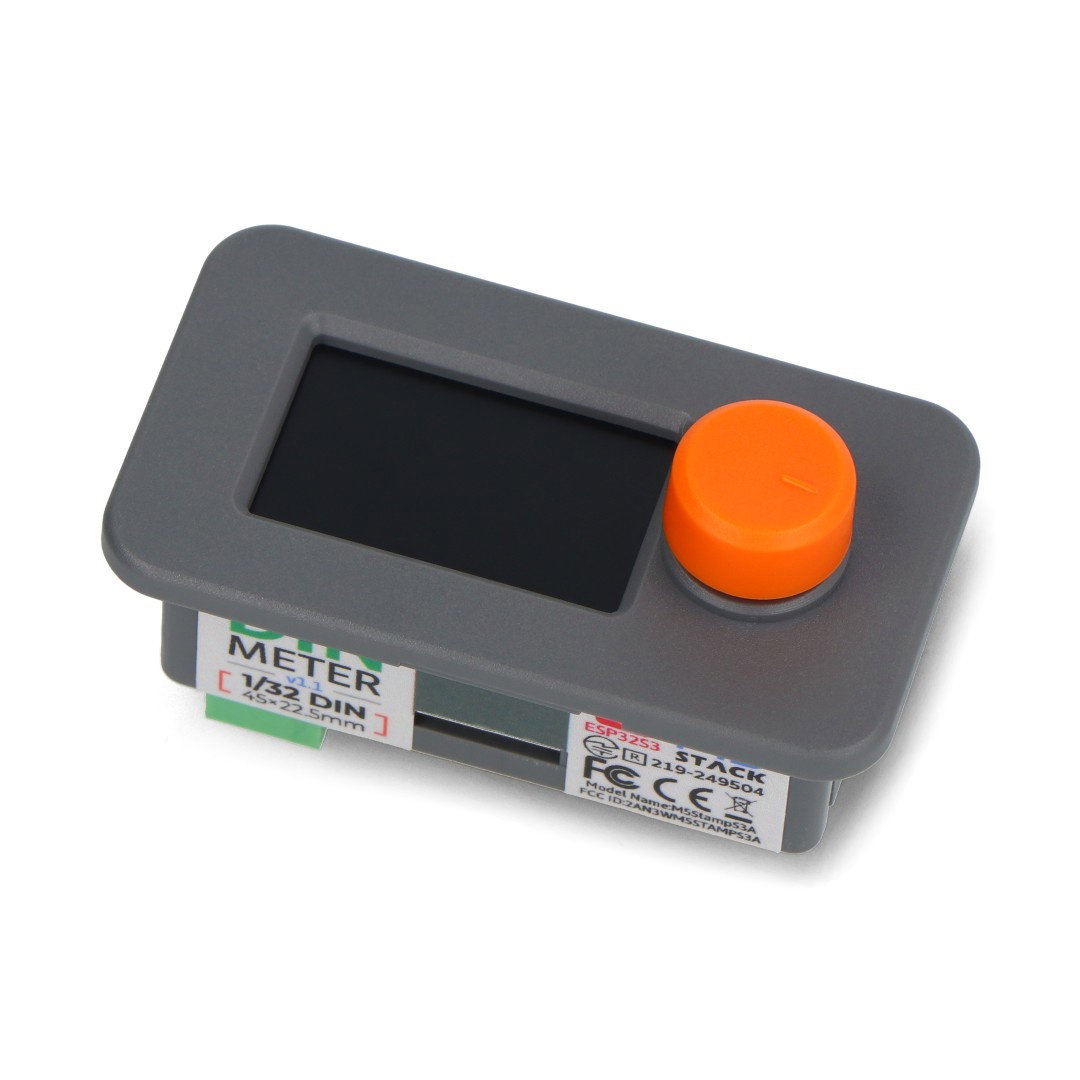

Development module compliant with the DIN 1/32 standard.
Technical specifications of the module
- Development board: M5Stamp S3
- Microcontroller: ESP32-S3
- Built-in system: Xtensa LX7 dual-core processor
- Flash memory: 8 MB
- Wireless communication: WiFi
- Input voltage: 6V to 36V DC
- Screen: ST7789V2, resolution 135 x 240 px
- Power supply mode: USB / DC power supply / battery
- Charging current: 100 mA
- Grove Maximum Load: PORTA and PORTB up to 220 mA at 5 V DC
- Standby power consumption (battery powered): 4.2 V DC / 38.4 uA
- Operating temperature: 0°C to 40°C
- Product dimensions: 53 x 32 x 30 mm
- Weight: 17.8 g

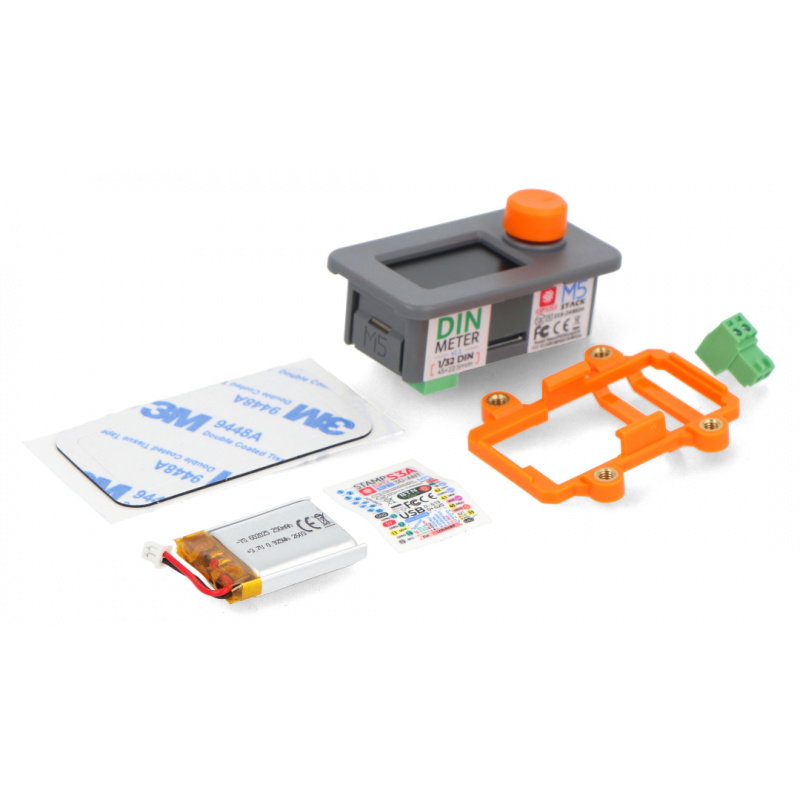

Contents of the set
- DinMeter v1.1 - 1/32 DIN standard development module - M5Stamp S3 - M5Stack K134
- Self-adhesive paper
- 250 mAh battery
- Marker
- DC-Jack terminal connector (6V to 36V)
- Bracket

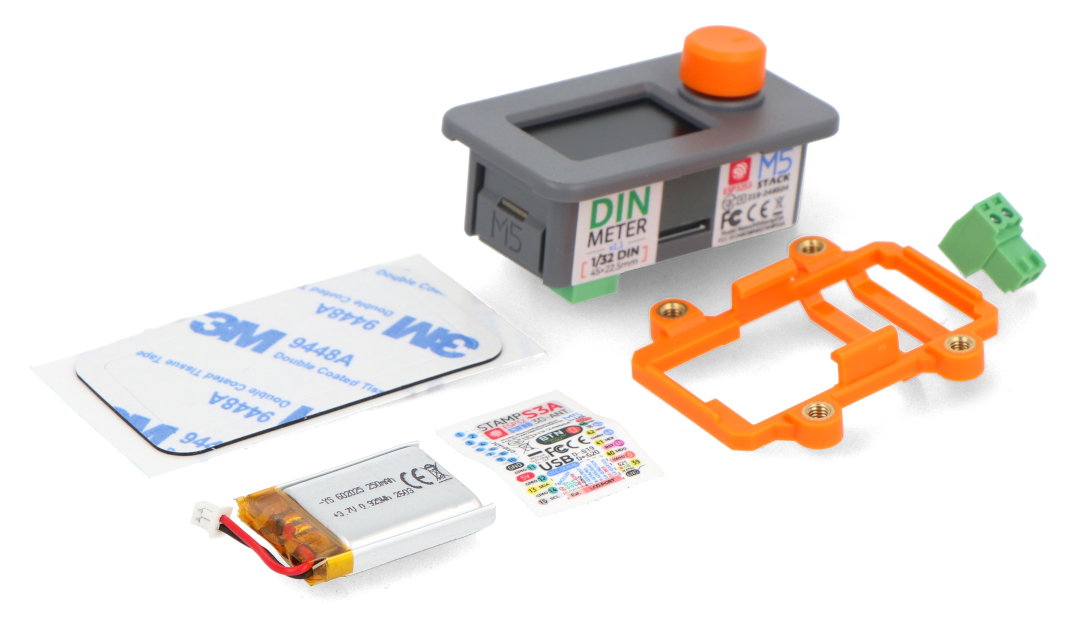

Elements included in the set.
