Product description: Air Quality Kit v1.1 - air quality measurement kit - M5StampS3A + SEN55 + SCD40 development module - M5Stack K131-V11
Air Quality Kit v1.1 is an advanced, energy-efficient device designed for monitoring air quality in various environments . Compared to the previous version, the new version utilizes the M5StampS3A controller , which offers energy optimizations and an improved WiFi antenna. The Air Quality Kit features a 1.54-inch e-ink display with a resolution of 200 x 200 px, allowing for clear, real-time monitoring results. Integrated SEN55 and SCD40 sensors enable monitoring parameters such as particulate matter (PM1.0, PM2.5, PM4, PM10), temperature, humidity, VOCs, and CO2 concentration, allowing for accurate air quality assessment in any room. A built-in 600 mAh battery and an RTC circuit with sleep and wake functions ensure long-lasting use with minimal power consumption . Built-in support for the EZDATA platform allows users to easily monitor data remotely.
Also check the user guide provided by the manufacturer.
Air Quality Kit v1.1 - air quality measurement kit - M5StampS3A + SEN55 + SCD40 development module - M5Stack K131-V11.

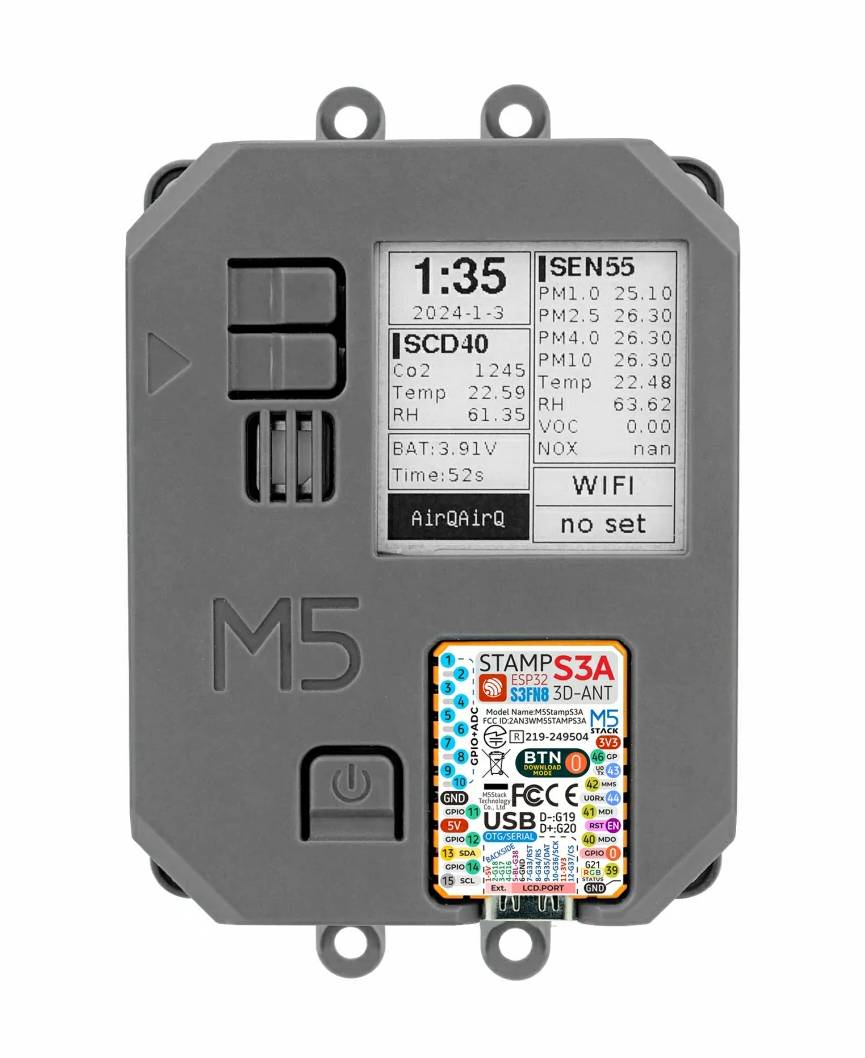

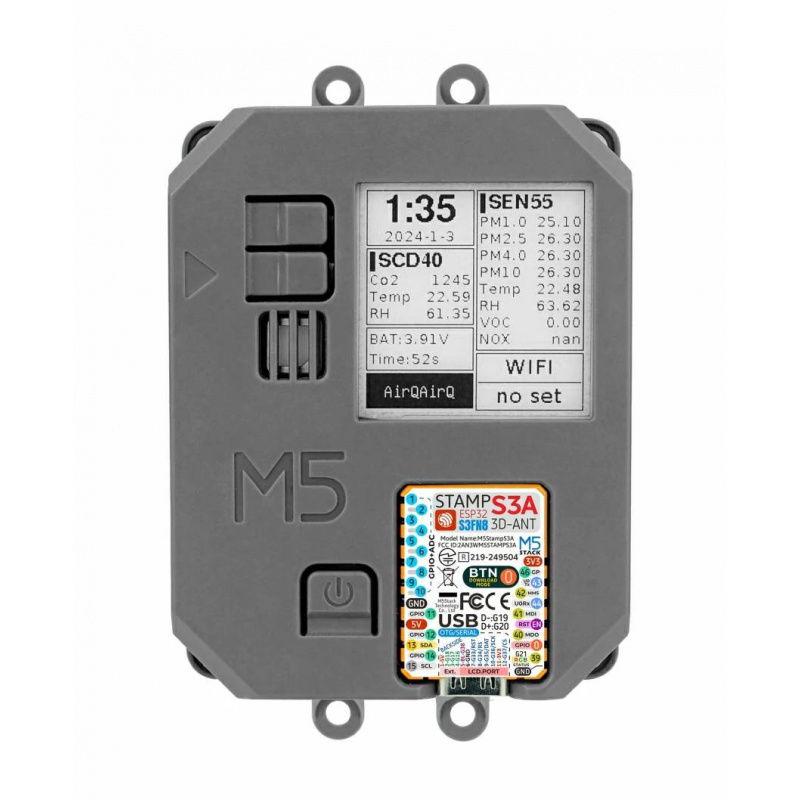

Air Quality Kit v1.1 monitors particulate matter, temperature, humidity, VOCs and CO2 levels.
Main features of Air Quality Kit v1.1
- Efficient M5StampS3A controller : ensures fast data processing and low power consumption
- Advanced air sensors : SEN55 and SCD40 enable measurement of PM1.0, PM2.5, PM4, PM10, temperature, humidity, VOC and CO2
- 1.54-inch e-ink display (200 x 200 px) : ensures clear display of monitoring results
- 600 mAh battery : long device operation time thanks to the sleep and wake-up function
- EZDATA Platform : enables remote transmission and viewing of air monitoring data
- LEGO compatible : LEGO compatible mounting holes and a magnetic base ensure easy installation in a variety of locations
SEN55 Sensor - Air Quality Monitoring
The SEN55 is an advanced environmental sensor that allows for accurate monitoring of air quality . With this sensor, The Air Quality Kit v1.1 can track particulate matter levels (PM1.0, PM2.5, PM4, PM10) and monitor variables such as humidity, temperature, and the presence of volatile organic compounds (VOCs) . The sensor is extremely accurate and reliable, making it ideal for professional applications.
SCD40 Sensor - Precise CO2 Measurements
The SCD40 sensor is responsible for accurately measuring carbon dioxide (CO2) concentration in the air . This allows the Air Quality Kit v1.1 device not only to monitor particulate matter and gaseous pollutants but also to continuously monitor CO2 levels, which is especially important in enclosed spaces . The SCD40 sensor ensures high measurement precision, which impacts the quality of the analyzed data.

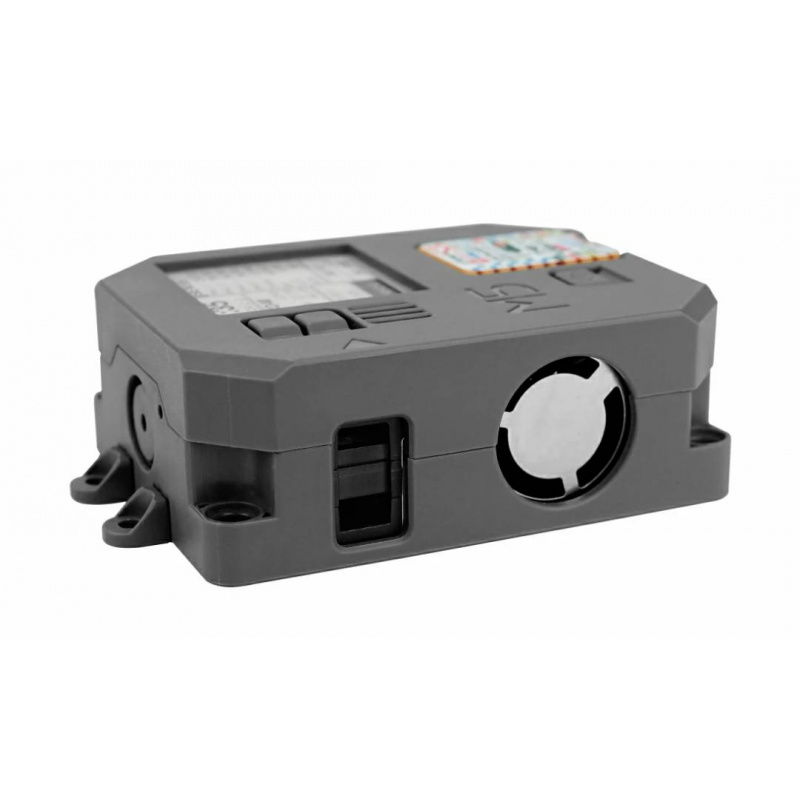

Air Quality v1.1 is equipped with SEN55 and SCD40 sensors.

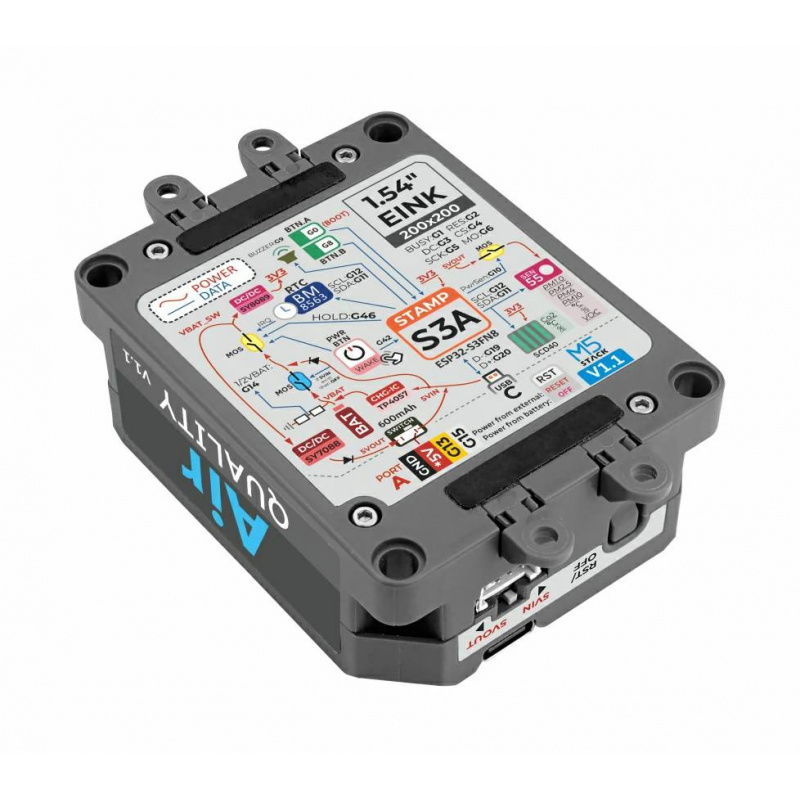

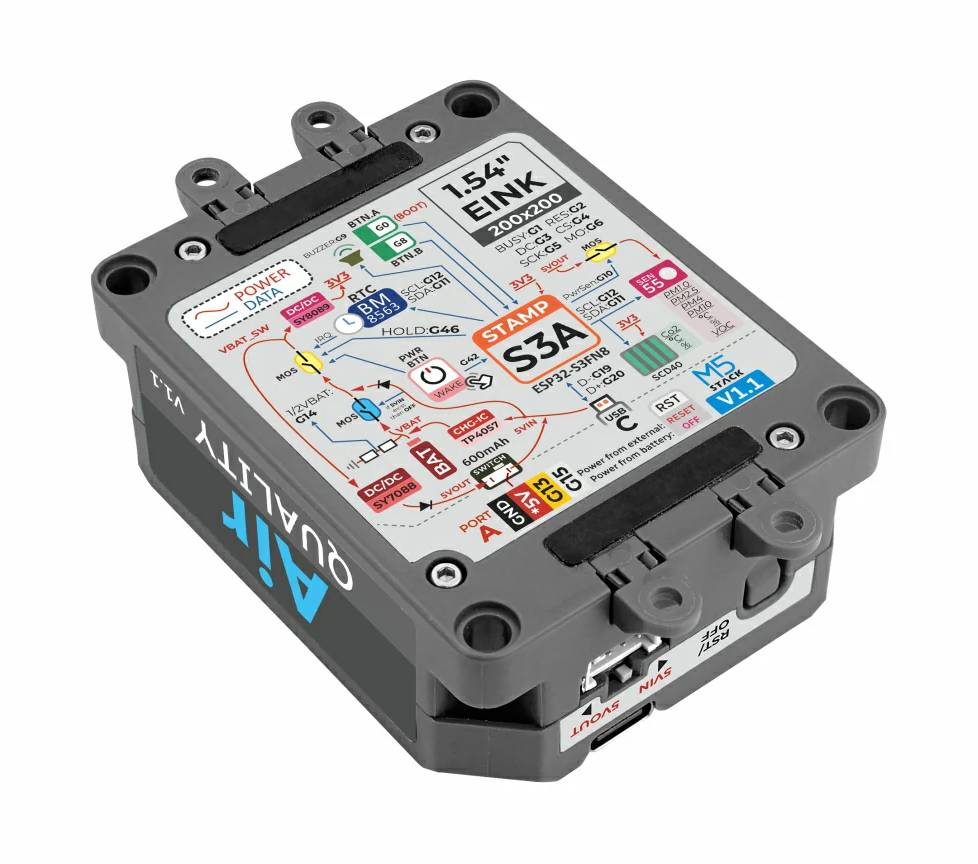

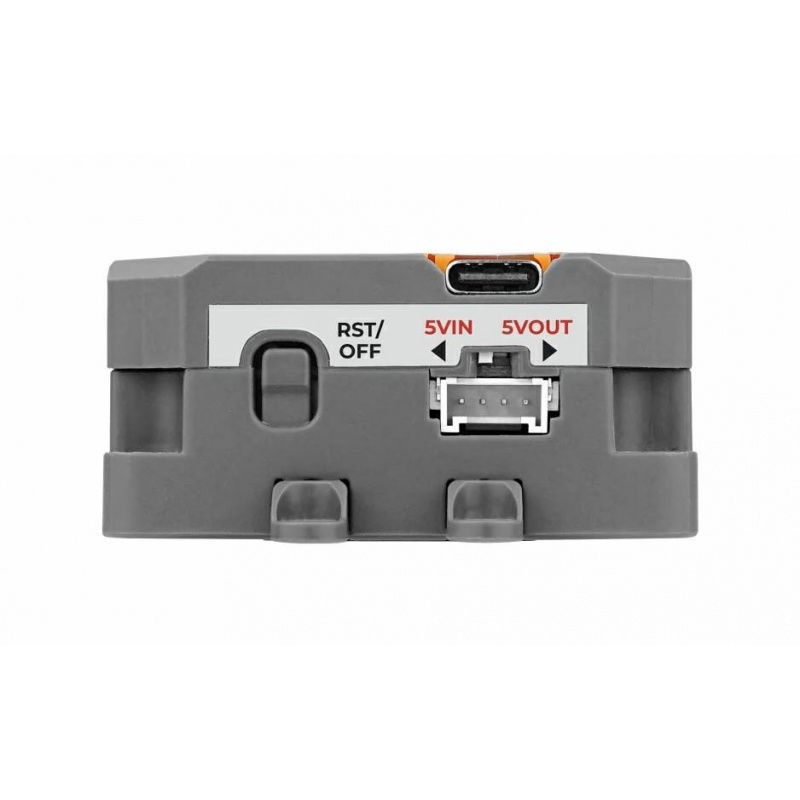

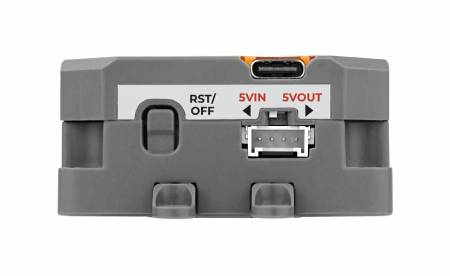

The module has a Grove interface.Programming and compatibility
Air Quality Kit v1.1 is fully compatible with popular programming environments such as Arduino IDE , UiFlow2 , ESP-IDF , and PlatformIO , allowing for flexible configuration and customization of the device to individual needs. Additionally, the device supports application development using the M5Unified and M5GFX libraries. Integration with the Home Assistant system opens the door to full automation and remote monitoring of air quality in various environments.
Air Quality Kit v1.1 Technical Specifications
- Processor (SoC): ESP32-S3FN8 (dual-core Xtensa LX7)
- Flash memory: 8 MB
- Display: GDEY0154D67 (1.54'', 200 x 200 px)
- Sensors: SEN55, SCD40
- Types of monitored pollutants: PM1.0, PM2.5, PM4, PM10, temperature, humidity, VOC, CO2
- RTC: RTC8563
- Battery: 600 mAh (3.7 V)
- Grove interface: 4-pin connector with 2 mm pitch
- Buzzer: built-in passive buzzer
- Assembly: LEGO compatible, magnetic base, 4 removable M3 brackets
- Operating temperature: 0°C to 40°C
- Dimensions: 72 x 56 x 26.5 mm
- Weight: 91.4 g
Contents of the set
- 1x Air Quality Kit v1.1
- 1x User Manual

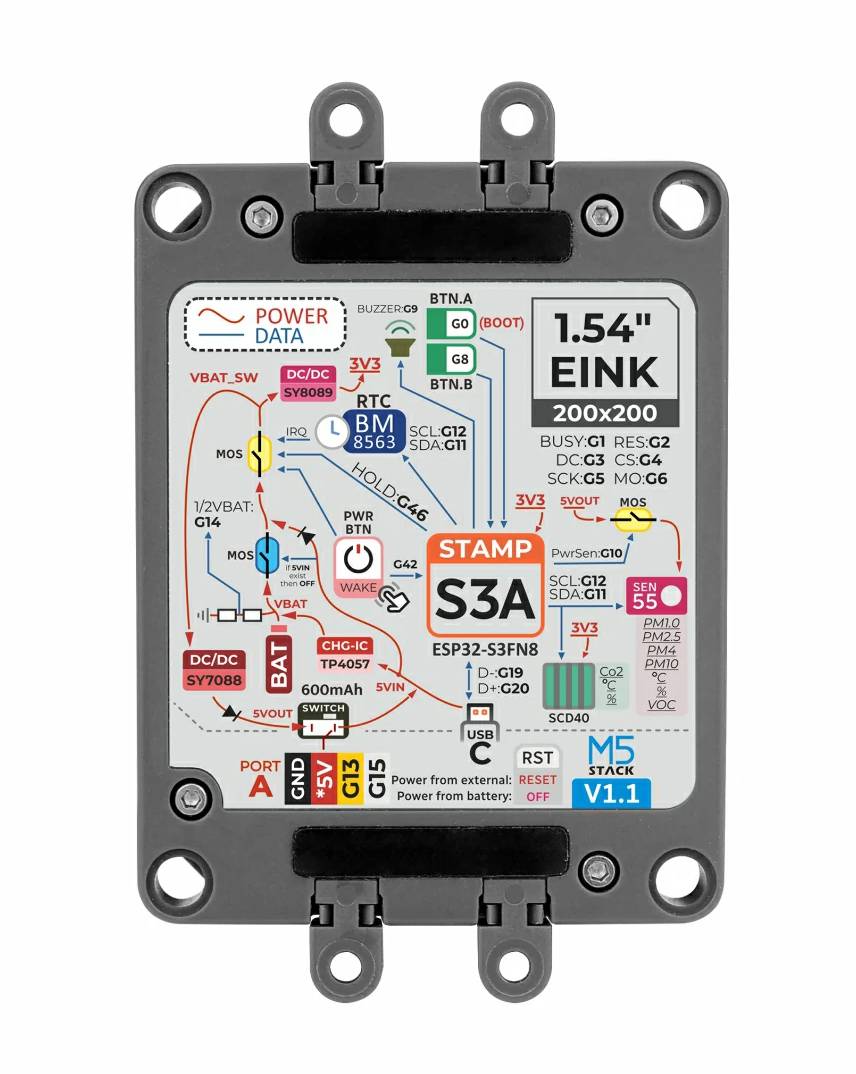

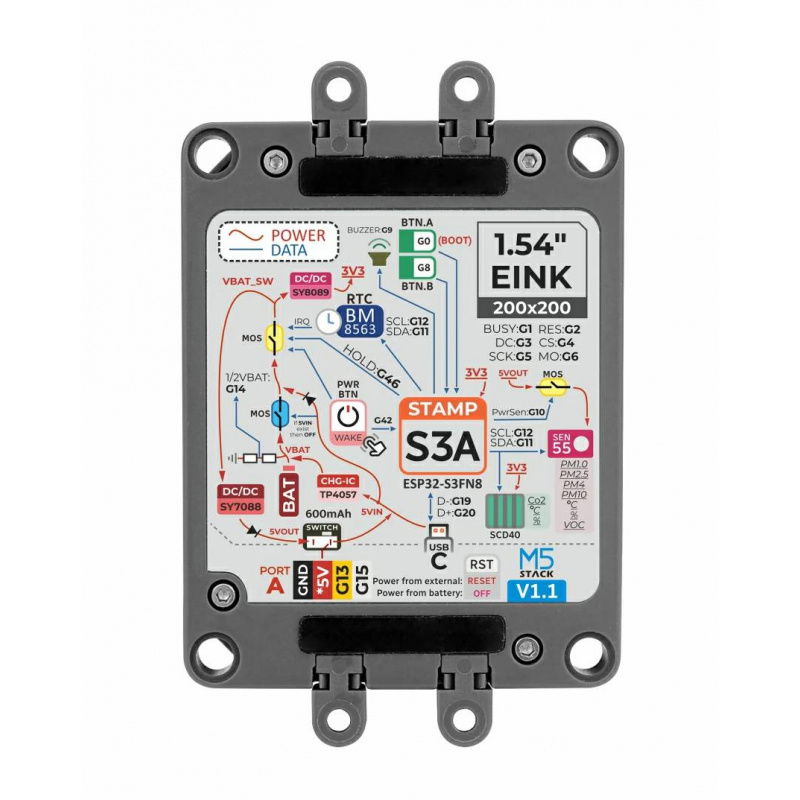

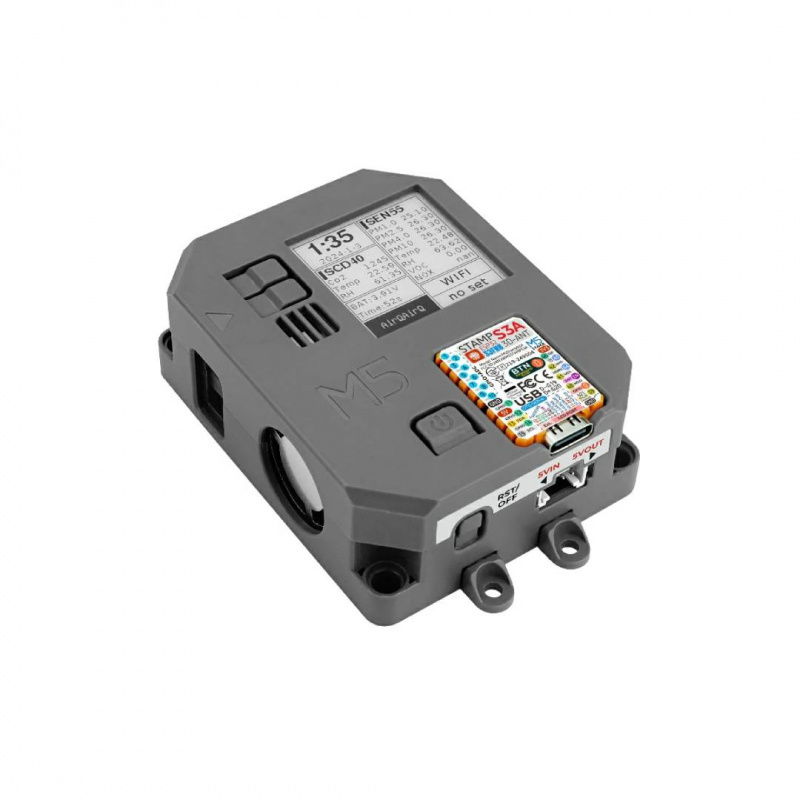

It has a built-in M5Stack StampS3A development module.
