M5Stamp C3U - with Espressif ESP32-C3 RISC-V microcontroller - WiFi - with pin headers - M5Stack K122

Index: MSS-20862 EAN: 6972934173423
M5Stamp C3U module from M5Stack in version with connectors. It was equipped with a high-class Espressif ESP32-C3 Risc-V microcontroller with WiFi wireless connectivity. M5Stamp C3U has a single-core 32-bit microcontroller clocked at 160 MHz . It has 400 KB of RAM and 4 MB of Flash memory . It is used in a wide range of IoT applications and scenarios.
M5Stamp C3U - with Espressif ESP32-C3 RISC-V microcontroller - WiFi - with pin headers - M5Stack...
€8.90
€7.24 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: M5Stack

Product description: M5Stamp C3U - with Espressif ESP32-C3 RISC-V microcontroller - WiFi - with connectors - M5Stack K122

M5Stamp C3U module from M5Stack in version with connectors. It was equipped with a high-class Espressif ESP32-C3 Risc-V microcontroller with WiFi wireless connectivity. M5Stamp C3U has a single-core 32-bit microcontroller clocked at 160 MHz . It has 400 KB of RAM and 4 MB of Flash memory . It is used in a wide range of IoT applications and scenarios.

The manufacturer also provides a user guide - check it out!

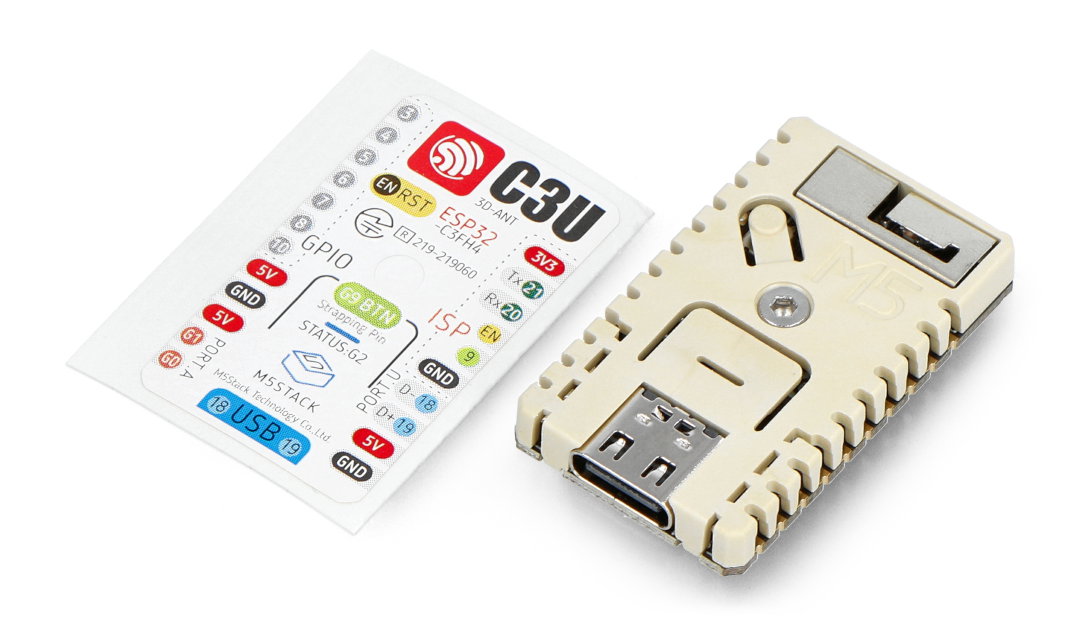

The set also includes a sticker with the arrangement of pins and a set of connectors.

The set also includes a sticker with the arrangement of pins and a set of connectors.

Special features of the M5Stamp C3U module

  • The Stamp C3 module has a built-in voltage converter from 5 V to 3.3 V, 14x GPIO pins, 1x programmable RGB LED, 1x Reset button
  • It is fully compatible with Arduino , ESP32-IDF and other popular development platforms
  • It has a USB Type-C connector with Download / JTAG / CDC Serial function
  • The kit also includes numerous connectors that are useful during prototyping and project development

Differences between M5Stamp C3U and M5Stamp C3

  • Number of inputs / outputs:
    • M5Stamp C3U: 14x
    • M5Stamp C3: 13x
  • IO button location:
    • M5Stamp C3U: G9
    • M5Stamp C3: G3
  • USB interface function:
    • M5Stamp C3U: Download / JTAG / CDC Serial
    • M5Stamp C3: Download / Serial

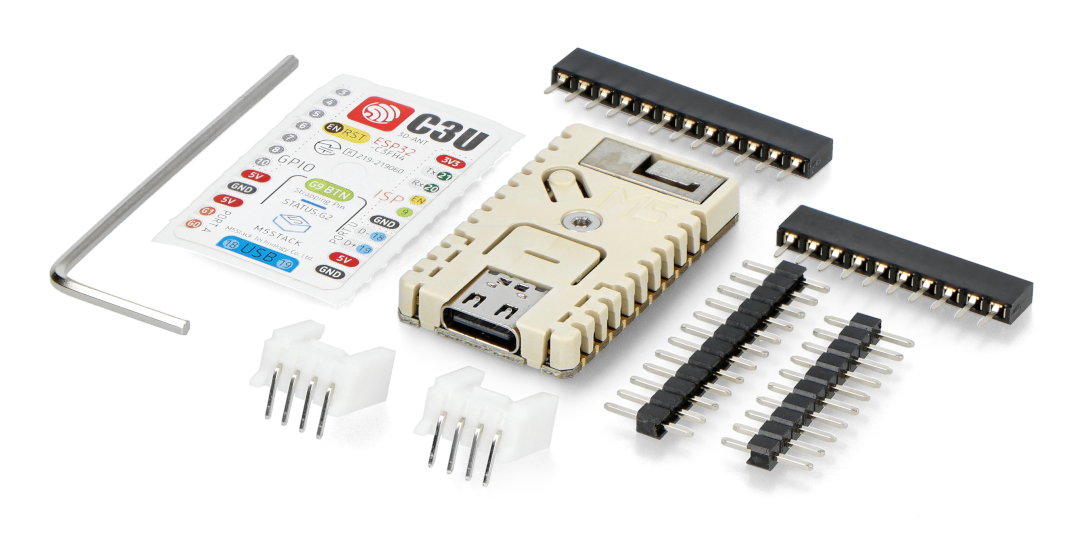

Kit contents

  • M5Stamp C3U - with Espressif ESP32-C3 RISC-V microcontroller - WiFi - 1 piece
  • Label with the description of the leads - 1 piece
  • 1x12 goldpin connector - 2.54 mm raster - 1 piece
  • 1x12 connector header - 2.54 mm pitch - 1 piece
  • Goldpin connector 1x10 - 2.54 mm raster - 1 piece
  • Header for 1x10 connector - 2.54 mm pitch - 1 piece
  • Grove connector - angular - 2 pieces
  • Allen key
The set also includes a sticker with the arrangement of the pins.

The set also includes a sticker with the arrangement of the pins.

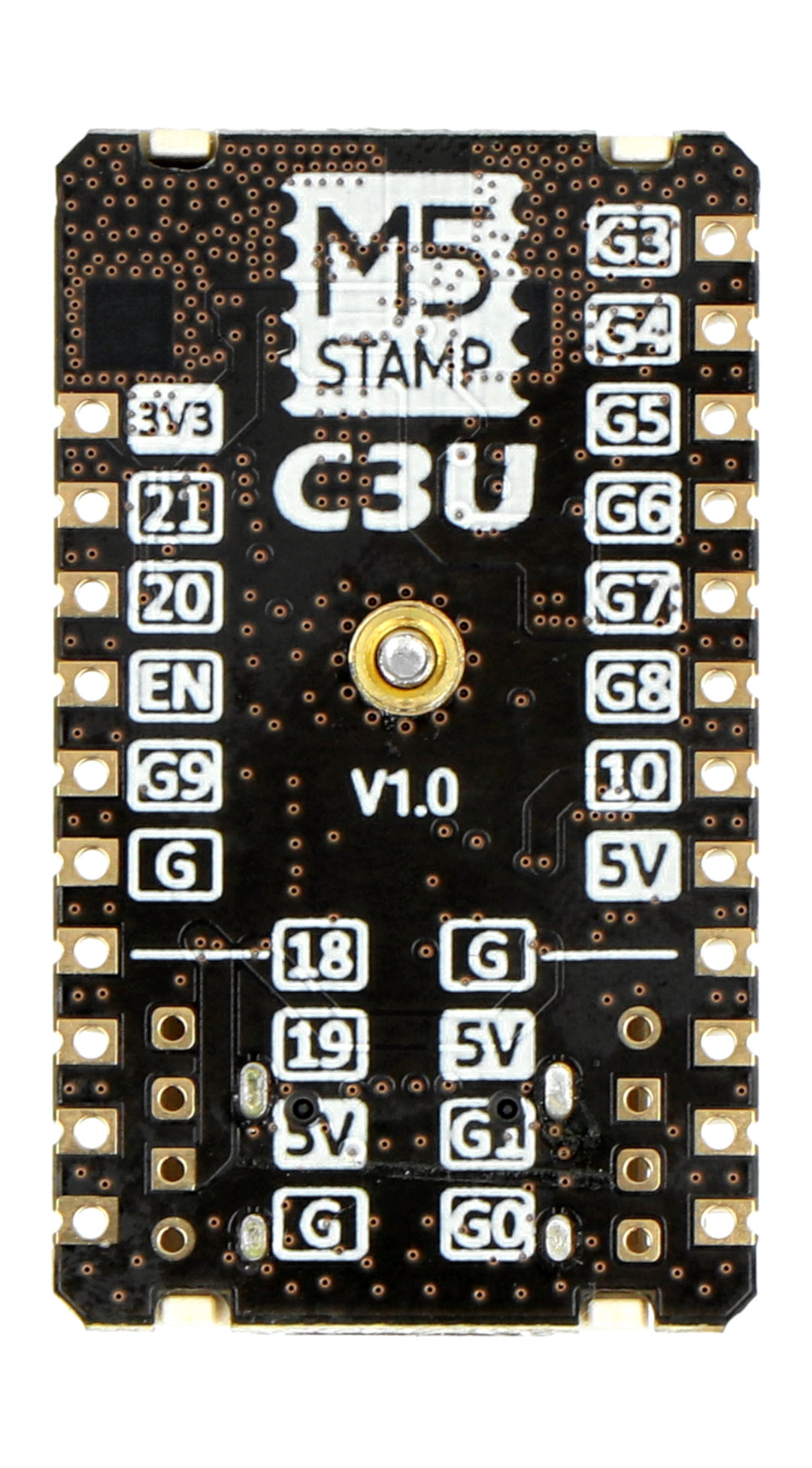

All module connectors have been described, which increases the comfort of use and facilitates prototyping.

All GPIO connectors of the module have been described, which increases the comfort of use and facilitates prototyping.

Suggested use of the module

  • Industrial automation
  • Smart home and IoT applications
  • Medical equipment
  • Consumer electronics
  • Widely understood prototyping of systems

Specification of the M5Stamp C3U set

  • ESP32-C3 microcontroller: RISC-V 32-bit single-core processor clocked at 160 MHz
  • Memory: 384 KB ROM, 400 KB SRAM, 8 KB RTC SRAM, 4 MB Flash
  • WiFi wireless communication: 2.4 GHz IEEE 802.11 b / g / n, maximum data transmission speed up to 150 Mb / s
  • Bluetooth wireless communication: LE 5, supported data transfer rate 125kbps, 500kbps, 1Mbps, 2Mbps
  • Input voltage: 5V / 500mA
  • 1x programmable utility button
  • 1x RESET button
  • 1x programmable RGB LED (SK6812)
  • 1 x USB Type-C interface (CH9102)
  • Antenna type: 2.4 GHz 3D antenna
  • Number of inputs / outputs: 14x
    • ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial, TWAI
  • Pitch of pins: 2.54 mm
  • Product dimensions: 34 x 20 x 4.6 mm
  • Weight: 3.8 g
Package width 9 cm
Package height 10 cm
Package depth 1 cm
Package weight 0.01 kg
