Product description: M5Stamp CAT-M - IoT module CAT-M / NB-IoT with antenna - SIM7080G - M5Stack S003
M5Stamp CAT-M is a communication module from M5Stack , enabling data transfer in Cat-M and NB-IoT standards. Based on the SIM7080G chip, it communicates via the UART interface using AT commands. It offers a fast connection with a maximum speed of 1119 kb/s in the uplink for Cat-M and 150 kb/s for NB-IoT. Supported protocols such as TCP, UDP, HTTP, HTTPS, TLS and others enable wide use in various types of data transmission, from simple pings to advanced cloud communication. The module has an IPEX antenna connector with the possibility of connecting an SMA antenna via the included cable. Thanks to the housing resistant to high temperatures (up to 230 ° C) and support for various soldering methods ( SMT, DIP, jumper wires ), M5Stamp CAT-M is distinguished by the flexibility of assembly and integration of the module in various projects, depending on the application needs.
M5Stamp CAT-M - CAT-M / NB-IoT IoT module with antenna - SIM7080G - M5Stack S003.
Module based on the SIM7080G chip.
Special features of the module
- Wireless GSM communication module SIM7080G.
- Supports global CAT-M and NB-IoT bands.
- Compatible with bands B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B14 / B18 / B19 / B20 / B25 / B26 / B27 / B28 / B66 / B85.
- Communication via UART interface, control via AT commands.
- microSIM card slot.
- Support for TCP, UDP, HTTP, HTTPS, TLS, DTLS, PING, LWM2M, COAP, MQTT protocols.
- IPEX antenna connector with the option of connecting an SMA antenna.
- Three soldering options available: SMT, DIP, jumper wires.
- Housing made of plastic resistant to temperatures up to 230°C.
- It has the following certificates: Softbank, Telec, RoHS, REACH, JATE, Docomo, KDDI, RCM, CE (RED), GCF, Deutsche Telekom, FCC, PTCRB, AT&T, Verizon, T-Mobile, US Cellular, IC.
- Supports programming platforms such as Arduino IDE, UIFlow.
Applications of the M5Stamp CAT-M module
The M5Stamp CAT-M is ideal for remote control, monitoring and data acquisition applications, as well as any IoT applications requiring low latency and low bandwidth. It can be used in solutions related to telemedicine, industrial automation and environmental monitoring.
In our offer you will also find other M5Stack modules - check them out!

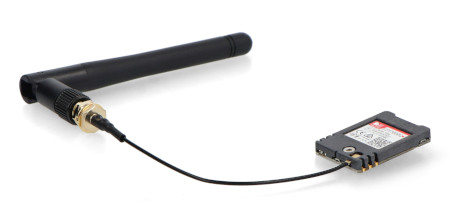

The module is equipped with an IPEX antenna connector, enabling the connection of an SMA antenna using the included cable.

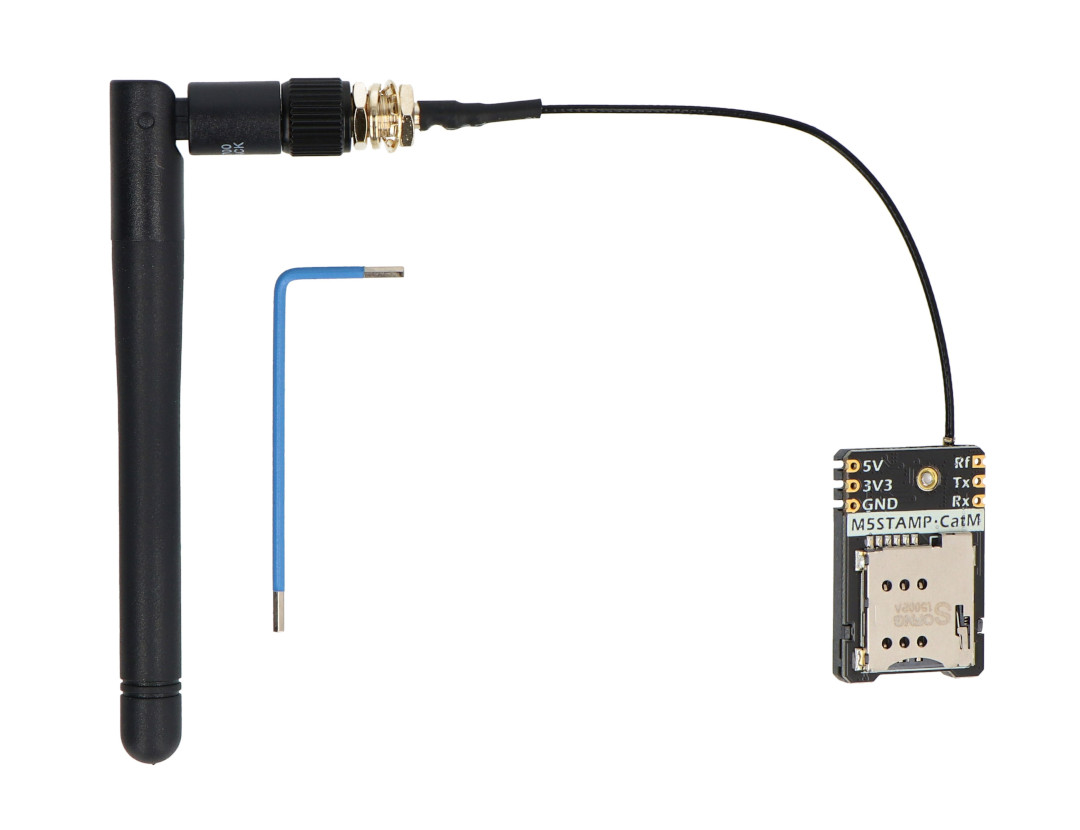

Items included in the set.
Technical specifications of the converter
- Model: M5Stamp CAT-M
- Communication module: SIM7080G, UART interface 115200 8N1
- Support CAT-M bands: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B14 / B18 / B19 / B20 / B25 / B26 / B27 / B28 / B66 / B85
- CAT-NB Bands Support: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
- CAT-M download and upload speed: upload up to 1119 kbps, download up to 589 kbps
- NB-IoT download and upload speed: Up to 150 kbps upload, up to 136 kbps download
- RF Power Class: Class 5 (21 dbm)
- SIM card slot: microSIM
- Supported protocols: TCP / UDP / HTTP / HTTPS / TLS / DTLS / PING / LWM2M / COAP / MQTT
- Standby operating current: 5 V / 46 mA
- Mains current: 5V/71mA
- Dimensions: 30.1 x 20.1 x 5.5 mm
- Weight: 4.5 g
Contents of the set
- 1 x IoT CAT-M module
- 1x SMA antenna
- 1x SMA to IPEX cable
- 1x Allen key 1.5mm
