Product description: M5Stamp Pico - development module with ESP32-PICO-D4 - 5 pieces - M5Stack
M5Stamp Pico manufactured by M5Stack with ESP32-PICO-D4 microcontroller, 2.4 GHz WiFi / Bluetooth wireless communication, 600 DMIPS, 520 kB SRAM and 4 MB Flash memory. It can be programmed using the UIFlow graphical editor. It is ideal for any application that is implemented in limited space or battery powered. It works well in projects related to home automation, smart sensors and other IoT devices. The kit includes 5 M5Stamp Pico modules.

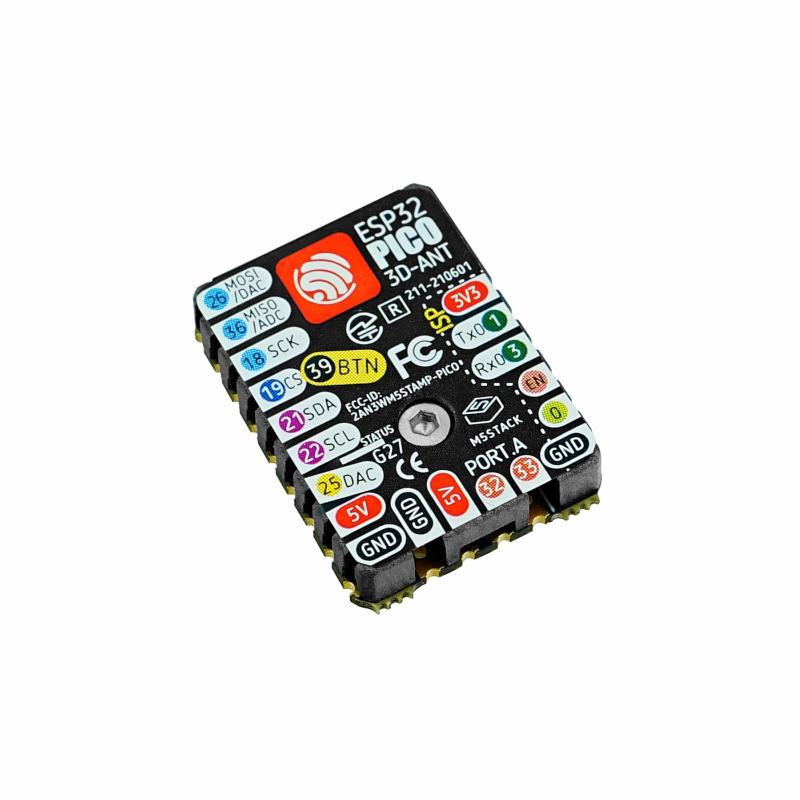

M5Stamp Pico - development module with ESP32-PICO-D4 - M5Stack.
Special features of M5Stamp Pico
- Chipset: ESP32-PICO-D4 (dual band 2.4 GHz Wi-Fi and Bluetooth)
- Programmable with UIFlow graphical editor
- Multi-IO pinout, support for multiple forms of application (SMT, DIP, fly-by-wire)
- Integrated programmable RGB LEDs and buttons
- Compactness - miniature module

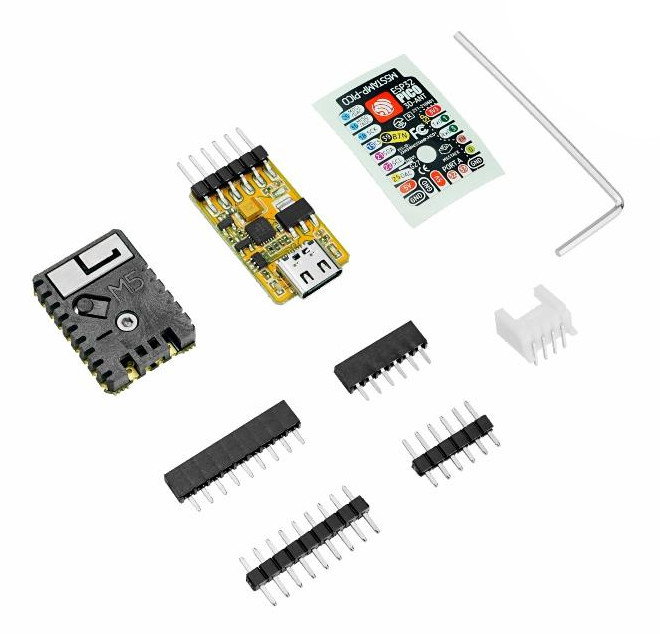

Set contents
- M5Stamp Pico - 5 pcs.
- Sticker with description of leads - 5 pcs.
Technical specification M5Stamp Pico
- Microcontroller: ESP32-PICO-D4 2.4 GHz WiFi / Bluetooth, 600 DMIPS, 520 kB SRAM
- Flash memory: 4 MB
- Input voltage: 5 V / 500 mA
- Power consumption:
- Standby mode: 5 V / 29 mA
- WiFi STA mode: 5 V / 60 mA
- Bluetooth mode: 5 V / 84 mA
- deep sleep mode: 5 V / 0.35 mA
- Wireless communication:
- AP mode: 16 m
- Bluetooth mode: 110 m
- Class Bluetooth mode: 90 m
- Utility interface: programmable button and RGB led
- Antenna: 3D 2.4 GHz
- WiFi: 802.11 b/g/n (up to 150 Mbps for 802.11n), 2.4 GHz to 2.5 GHz
- Bluetooth: V4.2 BR/EDR and BLE standard, NZIF receiver, sensitivity to -97 dBm
- Pinouts: ADC and DAC, touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, PWM, LED PWM, UART, I2C, I2S, IR, GPIO
- Number of pieces included: 5 pieces

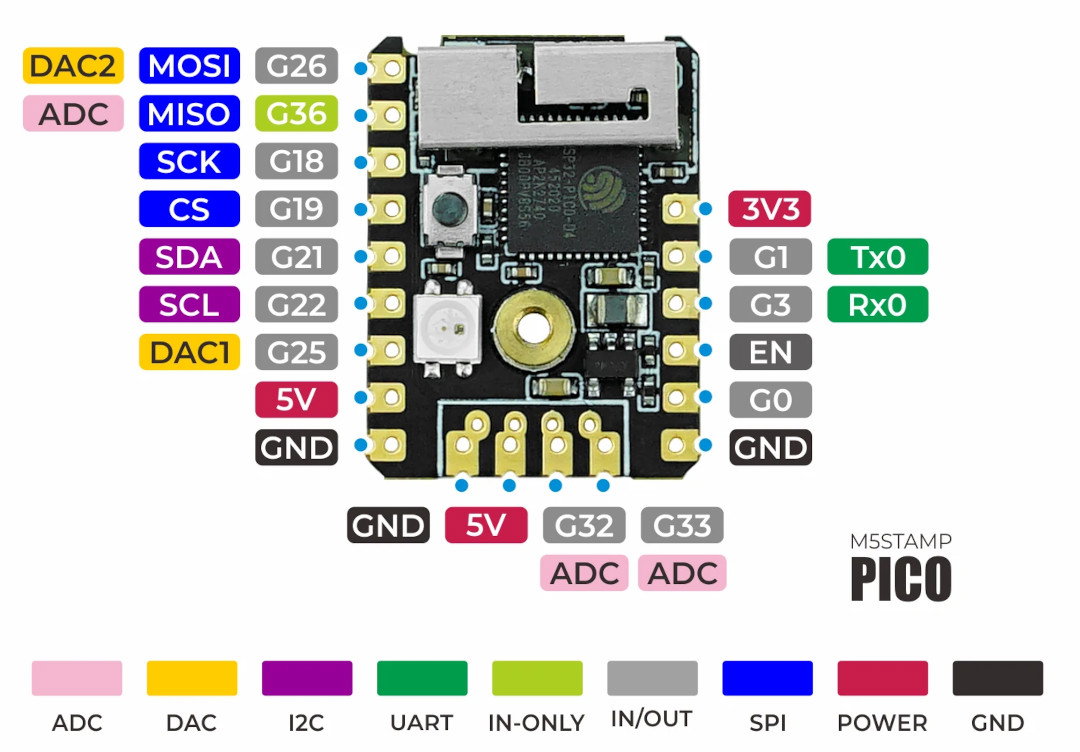

Description of individual leads of M5Stamp Pico.
