Product description: Air Quality Kit - air quality measurement kit - M5StampS3 + SEN55 + SCD40 development module - M5Stack K131
Air Quality is an advanced air quality monitoring device that combines high measurement precision with energy efficiency. Equipped with SEN55 and SCD40 sensors, it monitors particulate matter (PM1, PM2.5, PM4, PM10), temperature, humidity, VOC and CO2 levels. With the built-in StampS3 development module (ESP32S3), it provides smooth data processing and storage. It has a 1.54'' e-ink display , a 450 mAh battery and an RTC power management system, which allows for long operating time. Air Quality is easy to install and factory -configured to synchronize with the EZDATA cloud , allowing remote access to measurement results.
Also check the user guide prepared by the manufacturer.
Air Quality Kit - air quality measurement kit - M5StampS3 development module + SEN55 + SCD40 - M5Stack K131.

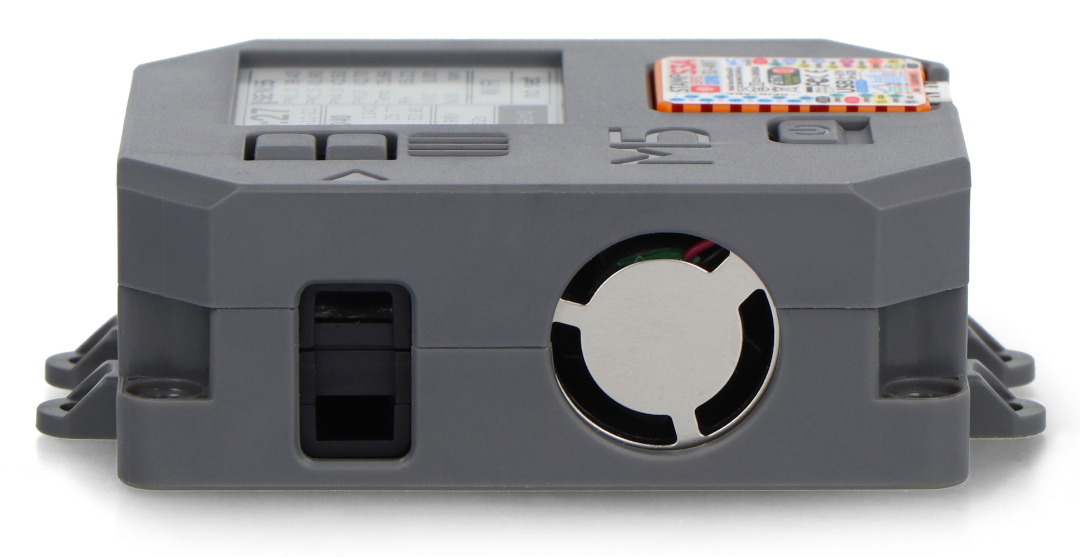

Air Quality is equipped with SEN55 and SCD40 sensors.
Special features of the Air Quality Kit
- Advanced air quality monitoring: measure particulate matter, temperature, humidity, volatile organic compounds and carbon dioxide levels with SEN55 and SCD40 sensors.
- High precision measurements: precise data processing thanks to the StampS3 microcontroller (ESP32S3) and 8 MB Flash memory.
- Clear display: 1.54'' e-ink screen with 200 x 200 px resolution, ensuring data readability even when the power is disconnected.
- Energy efficiency: built-in 450 mAh battery and RTC power management system allow for extended operating time by periodically switching to sleep mode.
- Remote data access: automatic synchronization with the EZDATA cloud allows you to monitor measurement results from anywhere.
- Easy to install: mounts using LEGO-compatible holes, magnetic mounts and detachable brackets, allowing for flexible use in a variety of environments.
SEN55 system
SEN55 is an air quality sensor capable of simultaneously measuring various environmental parameters such as particulate matter (PM1, PM2.5, PM4, PM10), temperature, humidity and volatile organic compounds (VOC). Thanks to the integrated measurement technology, SEN55 offers high precision and accuracy, making it an ideal solution for applications where full control of air quality is important.
SCD40 system
The SCD40 is a miniature carbon dioxide (CO2) sensor , which is distinguished by its compact design and low power consumption. It enables precise measurement of CO2 concentration, which is crucial in applications requiring air quality monitoring, such as ventilation systems, building automation and IoT devices. SCD40 ensures accuracy and stability of measurements, which translates into reliable monitoring over a long period of use.

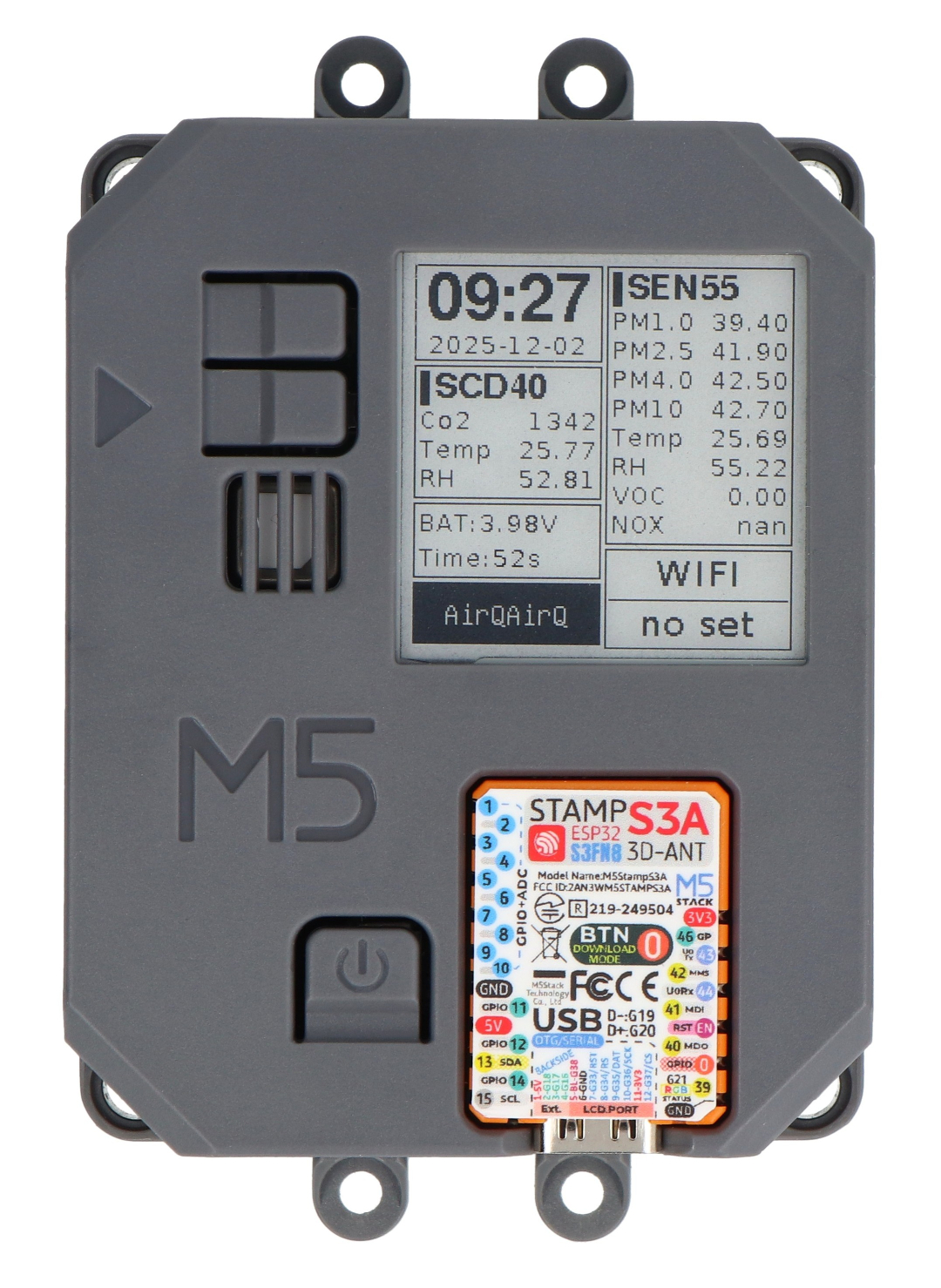

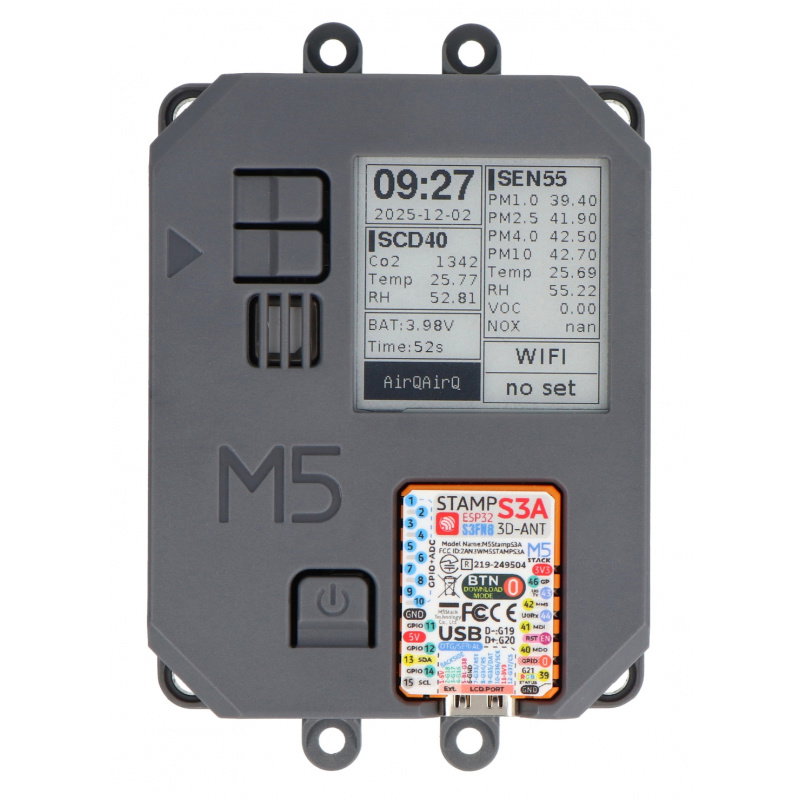

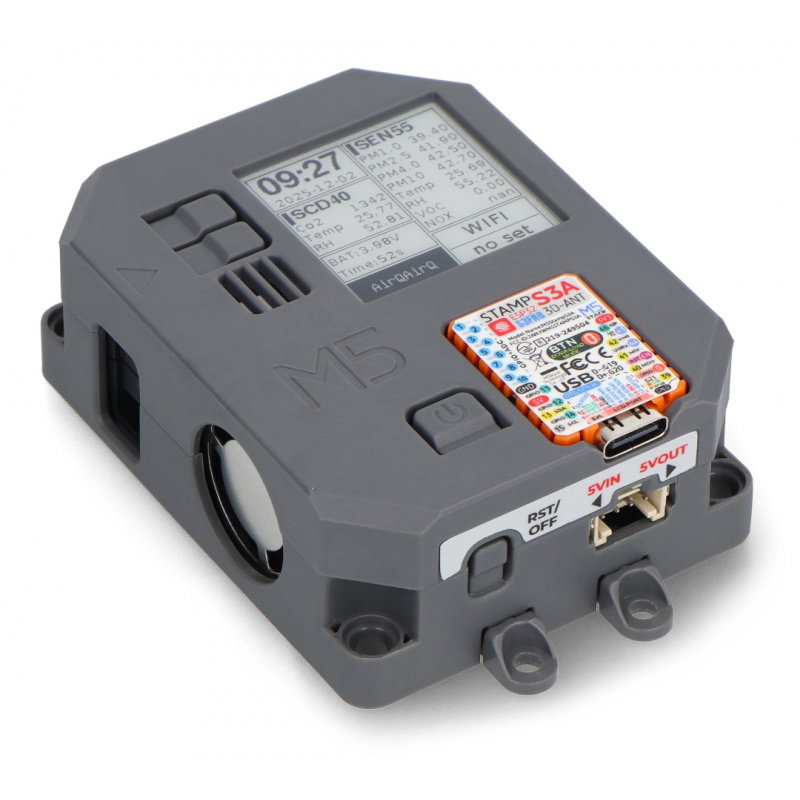

Air Quality Kit monitors particulate matter, temperature, humidity, VOCs and CO2 levels.

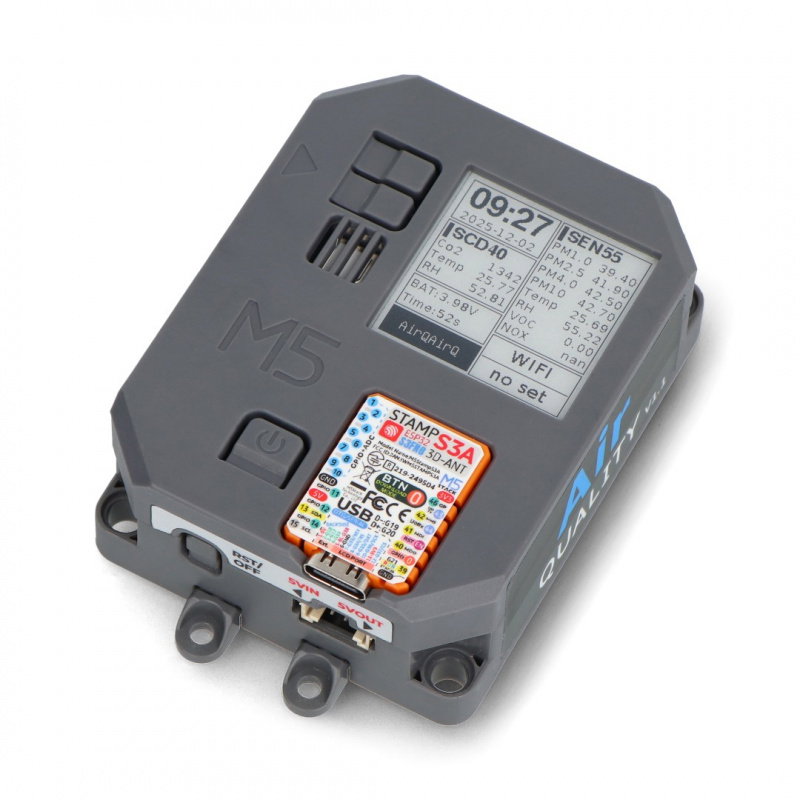

It has a built-in M5Stack StampS3 development module.
Applications
- Home Environment Monitoring
- Automation in industry
- Monitoring air quality in medical facilities
- Laboratory tests
- Remote monitoring applications
- Optimization of air conditioning systems
- Air quality control on construction sites
Technical specification of the set
- MCU: StampS3 (ESP32S3FN8, 240 MHz, 2.4 GHz WiFi, 8 MB Flash)
- Display: 1.54'' e-ink, 200 x 200 px
- Sensors: SEN55 (PM1, PM2.5, PM4, PM10, temperature, humidity, VOC), SCD40 (CO2)
- RTC: RTC8563
- Battery: 450mAh @ 3.7V
- Grove interface: 4-pin connector with 2 mm pitch
- Buzzer: built-in
- Mounting options: LEGO holes, magnets, 4 M3 brackets
- Operating temperature: 0°C to 40°C
- Dimensions: 72 x 56 x 24.1 mm
- Weight: 91.1 g
Kit Contents
- 1x Air Quality Kit - air quality measurement kit - M5StampS3 + SEN55 + SCD40 development module - M5Stack K131
- 1x User Manual

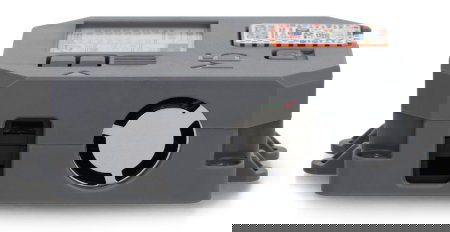

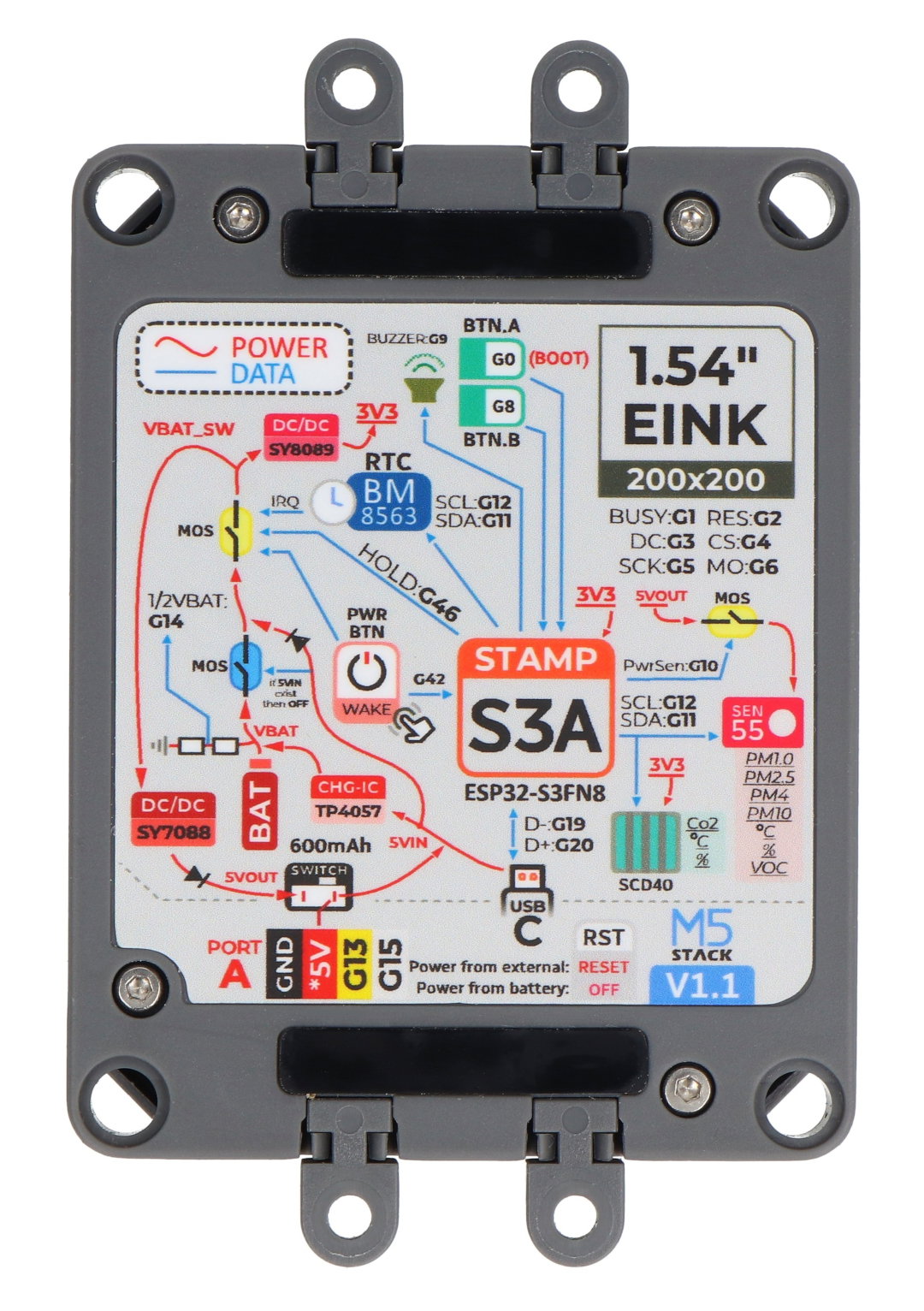

The module has a Grove interface.
