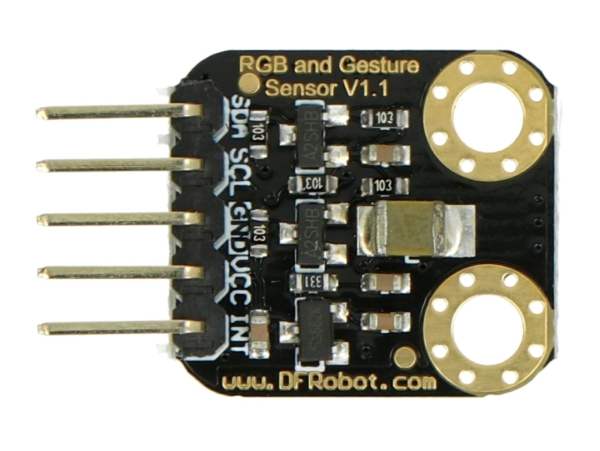

Gesture and RGB color sensor I2C - APDS-9960 - DFRobot SEN0187
The module based on the APDS-9960 chip allows you to detect gestures made by hand movement and colors from the RGB color palette, as well as ambient light. The module is compatible with Arduino. It communicates through the I2C interface. Powered from 3.3 V to 5 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: RGB I2C gesture and color sensor - APDS-9960 - DFRobot SEN0187.
The module based on theAPDS-9960chip allows you to detect gestures made byhandmovementandcolors from the RGB color palette,aswell asambientlight. Built-in infraredLEDhelps in taking measurements after dark. The integratedUV-IRfilter allows detection of ambient light and color temperature.Arduinocompatible module. It communicates throughthe I2C interface.Poweredfrom 3.3 V to 5 V.
Arduinocompatible product The manufacturer provides auser guideand libraryforArduino users. |
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
Sensor outputs of APDS-9960
The APDS-9960 sensor module communicates with the microcontroller via I2C interface. The board is powered from 3.3 V to 5 V and is fully compatible withArduinomodule.
Sensor outputs of APDS-9960.
| Name . | Description |
|---|---|
| SDA | I2C bus data line. |
| SCL | I2C bus data line. |
| GND | The weight of the system. |
| VCC | Power supply from 3.3 V to 5 V. |
| INT | External interruption. |
Gesture and color sensor specifications APDS-9960
- Supply voltage: 3.3 V to 5 V
- Interface: 1 pin I2C and 1 pin external interrupt
- Detection range: 100 mm
- Dimensions: 18.3 x 16.4 mm
Useful links
| Name | Value |
|---|---|
| Voltage to | 3.3 V |
| Voltage from | 5.0 V |
| Interface | I2C |
| Width | 6.3 cm |
| Height | 2.5 cm |
| Depth | 5.5 cm |
| Weight | 0.008 kg |
