Product description: Feetech FT90R-C002 servo - micro - continuous operation - 360°.
ServotypemicroPerfectly suited for constructions that need a lightweight yet powerful mechanism. An additional advantage of this servo mechanismisthe 360° rotation angle.The operating voltage of the device isfrom 3 V to 5.5 VA set of ploughsand screws formounting is included with the servo.In our shop's offer you will also find drivers for servos.

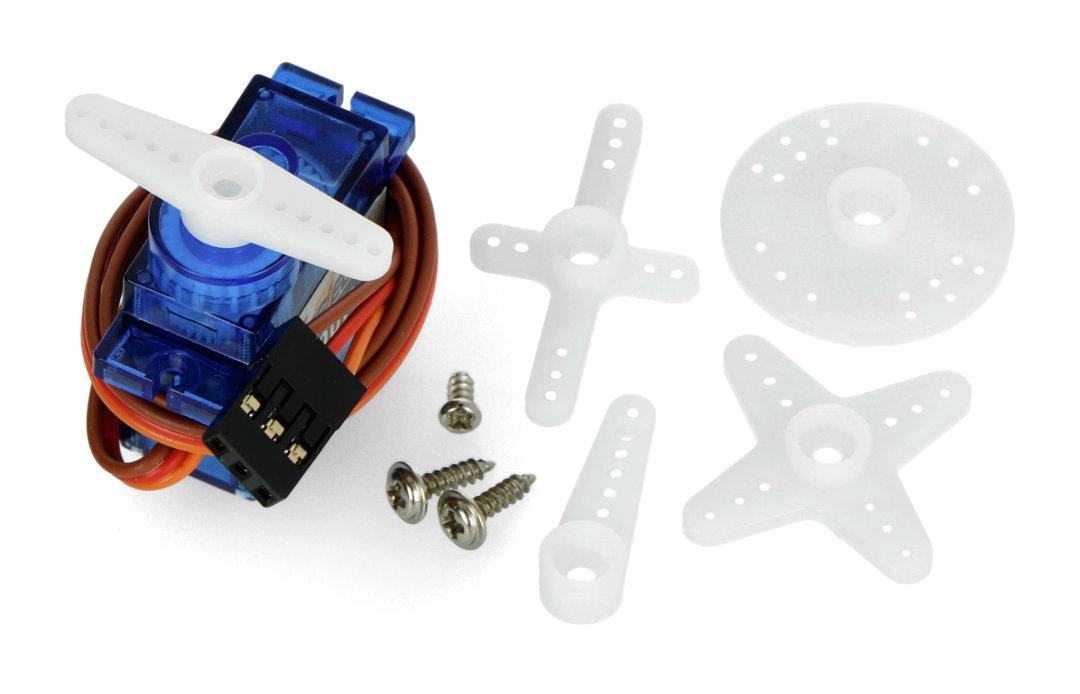

Micro type servo with attached mounting elements.
Technical specification
- Manufacturer: Feetech
- Servo type: digital
- Operating voltage: 3 V to 5.5 V
- Angle of rotation: 360°
- Operating temperature: -30°C to 60°C
- Interface type: compatible with JR interface
- Length of the cheese cable: 25 cm
- Maximum current consumption: 800 mA
- Speed at 6 V: 0.12s/60°
- Torque at 6 V: 1.5 kg*cm
- Dimensions: 22.9x 12.1 x 26.5 mm
- Weight: 9 g
Servomechanism control
The control signal frequency is common for 50 Hz model servo systems with a 1.5 ms filling range. In the mid-range there is a filling at which the servo stops. If a value is given above the set threshold, the servomechanism moves in one direction at a speed proportional to the given filling, if a lower value is given, it will move in the other direction.
In our offer we also havecables andservo controllers.
The set includes
- Feetech Servo FT90R-C002
- Orchids
- Mounting screws
