Product description: DFRobot servo SER0049 - micro - 9 g 180°
Manufactured by the companyDFRobotmicroservo with a total weight of only9 g,but with high strength and speed. They are characterized by high torque, stable operation, precise working angle and easy installation. The operating voltage rangesfrom 4.8 to 6 V. With 6 V supply, the torque of the servo is 1.2 kg*cm. . The center of the mechanism does not contain any limited switches, so it can be rotated 360° smoothlyby hand. Meanwhile, the servo can run smoothly with minimal power and can be powered by ordinary battery or USB. In addition, users can directly control the servo using servo libraries in Arduino IDE and let it reach a maximum rotation angle of 180° within a pulse range of 500 to 2500 μsec.
We also offercablesandservo controllers.
The servo can be controlled by a microcontroller e.g.Arduino.

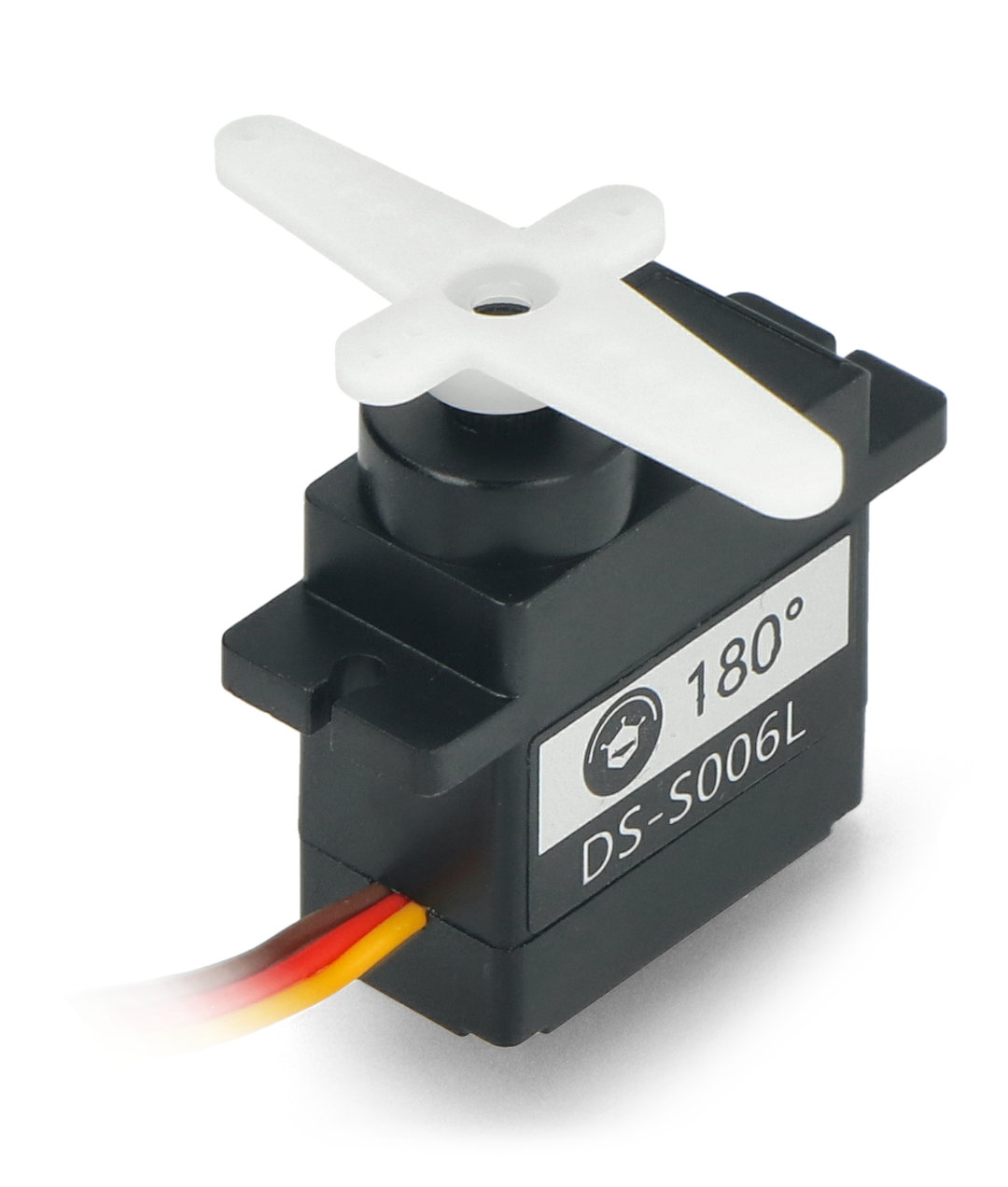

DFRobot servo SER0049 - micro - 9 g 180°
The photo shows the kit contents.
Technical specification of the product
- Operating voltage: from 4.8 V to 6 V DC
- Nominal current consumption: up to 8 mA at 6.0 V
- No-load current consumption:
- ≤50 mA at 4.8 V
- ≤60 mA at 6.0 V
- Current consumption when shaft is stopped:
- ≤550 mA at 4.8 V
- ≤650 mA at 6.0 V
- Rated torque:
- ≥0.32 kg*cm at 4.8 V
- ≤0.4 kg*cm at 6.0 V
- Torque at stopped shaft:
- ≥1.0 kg*cm at 4.8 V
- ≤1.2 kg*cm at 6.0 V
- Operating angle: 180° ± 10°
- Communication mode: PWM
- Pulse width range: 500 μs to 2500 μs
- Dimensions: 32.5 x 12 x 27.3 mm
Kit includes:
- 9g 180° servo x1
- Servo plate and accessories x1 (set of screws and orbs)
