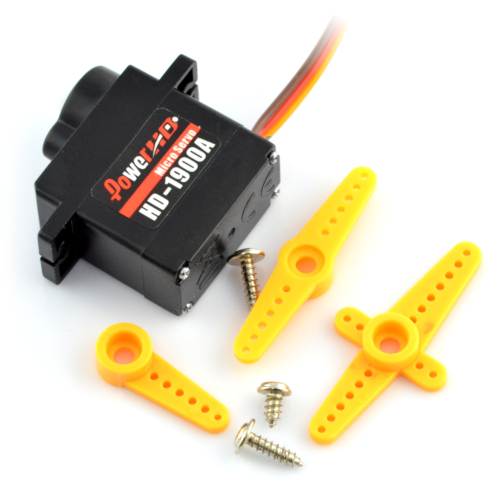

Description: Servo PowerHD HD-1900A - micro
Small servo type micro. Supply voltage: 4,8 - 6,0 V.
Specification of PowerHD Servo HD-1900A - micro
- Supply voltage: from 4.8 V to 6.0 V
- Range of motion: from 0°to 180°
- Type: analog
- Working temperature: - 20 °C to 60°C
- Control: 1520 µs/ 50 Hz
- Connector: standard JR connector
- Cable length: approx. 150 mm
- Dimensions:22,9 x to 12.0 x 27.3 mm
- Weight: 9 g
Settings for 4.8 V:
- Torque: 1.2 kg*cm (0.11 Nm)
- Speed: 0,11 sec/60°
- Current consumption at rest: 4 mA
- Current consumption without load: 130 mA
- Current consumption maximum: 670 has
Settings for 6.0 V:
- Torque: 1.5 kg*cm (0,14 Nm)
- Speed: 0,08 sec/60°
- Current consumption in idle state: 5 mA
- Current consumption without load: 140 mA
- Current consumption maximum: 830
- Complete set of servo horns, washers, and screws.
