Product description: Servo DFRobot SER0056 - Standard - 2 kg 300°
Thisservomanufactured by the companyDFRobotis characterized by features such as high torque, stable operation, accurate operating angle and easy installation. For this model, the operating voltage rangesfrom4.8 V to 6 V. With 6 V supply, the torque of the servo is2 kg*cm. Inside this unit, you will not find any mechanisms to limit its movement, which makes itmanuallyrotate 360°. Meanwhile, the servo can run smoothly with minimal power, and it can be powered by batteries. In addition, users can directly control the servo using the servo libraries in Arduino IDE and let it reach a maximum rotation angleof300°within a pulse range of500 to 2500 μsec.
We also offercablesand servocontrollers.
The servo can be controlled by a microcontroller e.g. .Arduino.

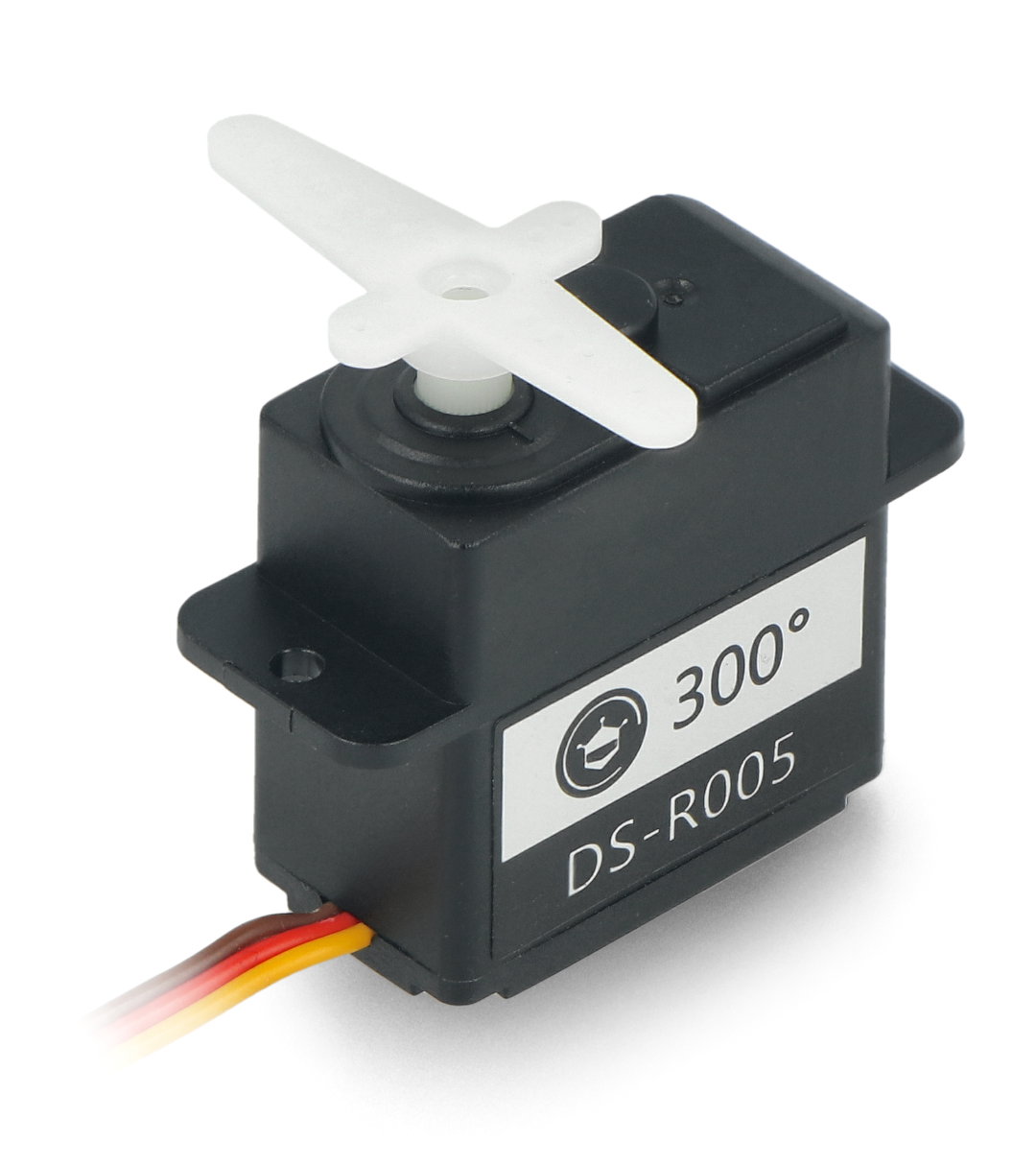

The DFRobot servo SER0056 - standard - 2 kg 300°.

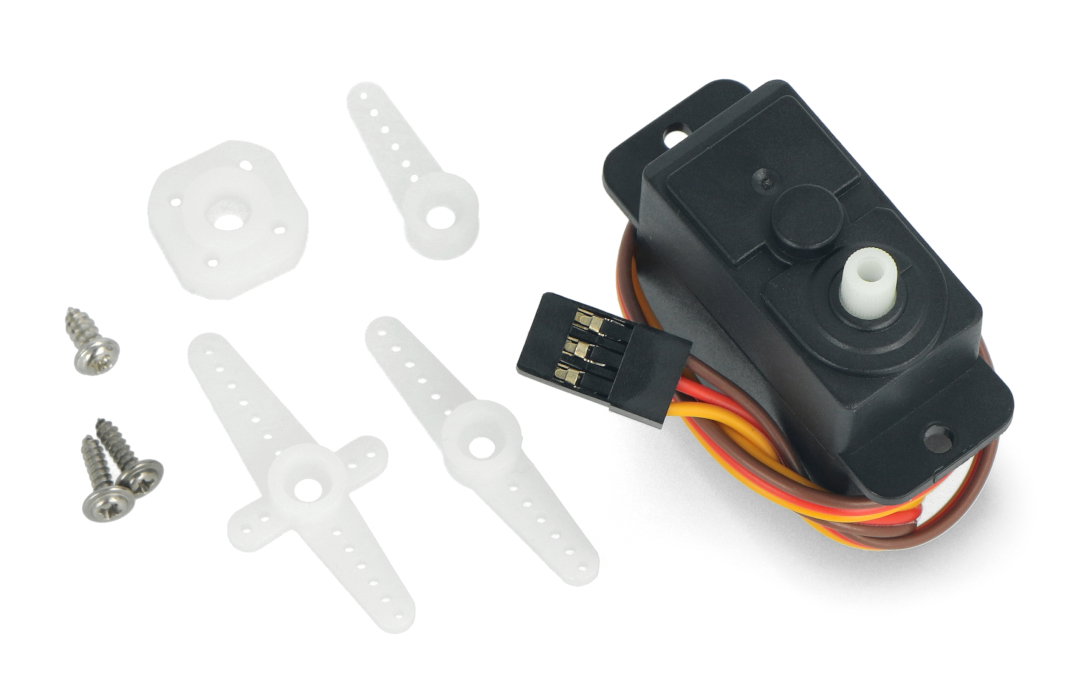

The photo shows the composition of the kit.
DFRobot servo SER0056 specifications
- Operating voltage: from 4.8 V to 6 V
- No motion limiter
- Nominal current consumption: ≤8 mA at 6.0 V
- No-load current consumption:
- ≤110 mA at 4.8 V
- ≤120 mA at 6.0 V
- Current consumption when shaft is stopped:
- ≤700 mA at 4.8 V
- ≤800 mA at 6.0 V
- Rated torque:
- ≥0.45 kg*cm at 4.8 V
- ≥0.55 kg*cm at 6.0 V
- Torque:
- ≥1.6 kg*cm at 4.8 V
- ≥2.0 kg*cm at 6.0 V
- Working angle: 300° ± 10°
- Communication mode: PWM
- Pulse width range: 500 to 2500 μs
- Dimensions: 42.4 x 16.6 x 31.5 mm
Kit includes:
- 2 kg 300° servo x1
- servo plate and accessories x1 set (set of o-rings, washers and screws)
