Servo PowerHD DSM44 - micro

Index: MOT-02853 EAN: 6939570720152
4.9
(16)
Ask a question

Small, very fast servo type micro. Supply voltage: 4,8 - 6,0 V.

Speed: 0,07 sec/60°.

Torque: 1,6 kg*cm.

Dimensions: 20,2 x 27 x 8.7 mm.

Weight: 6 gr.

Servo PowerHD DSM44 - micro
€11.90
€9.67 tax excl.
Notify me when available
Check quantity
Delivery 60 pcs scheduled for 2024-05-10
Waiting for delivery
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: PowerHD

Description: Servo PowerHD DSM44 - micro

Small servo type micro. Supply voltage: 4,8 - 6,0 V.

Serwo PowerHD DSM44 - micro

Specification of Servo PowerHD DSM44 - micro

  • Supply voltage: 4,8 V - 6,0 V
  • Type: digital
  • Range of motion: 0 ° to 140 °
  • Working temperature: from - 20 °C to 50°C
  • Sainterowanie: 1520 µs/ 333 Hz
  • Connector: standard JR connector
  • Cable length: approx. 160 mm
  • Dimensions:20,2 x 27 x 8.7 mm
  • Weight: 6 g


Settings for 4.8 V:

    • Torque: 1.2 kg*cm (0.11 Nm)
    • Speed: 0,09 sec/60°


Parameters for 6.0 V:

    • Torque: 1.6 kg*cm (0,15 Nm)
    • Speed: 0,07 sec/60°

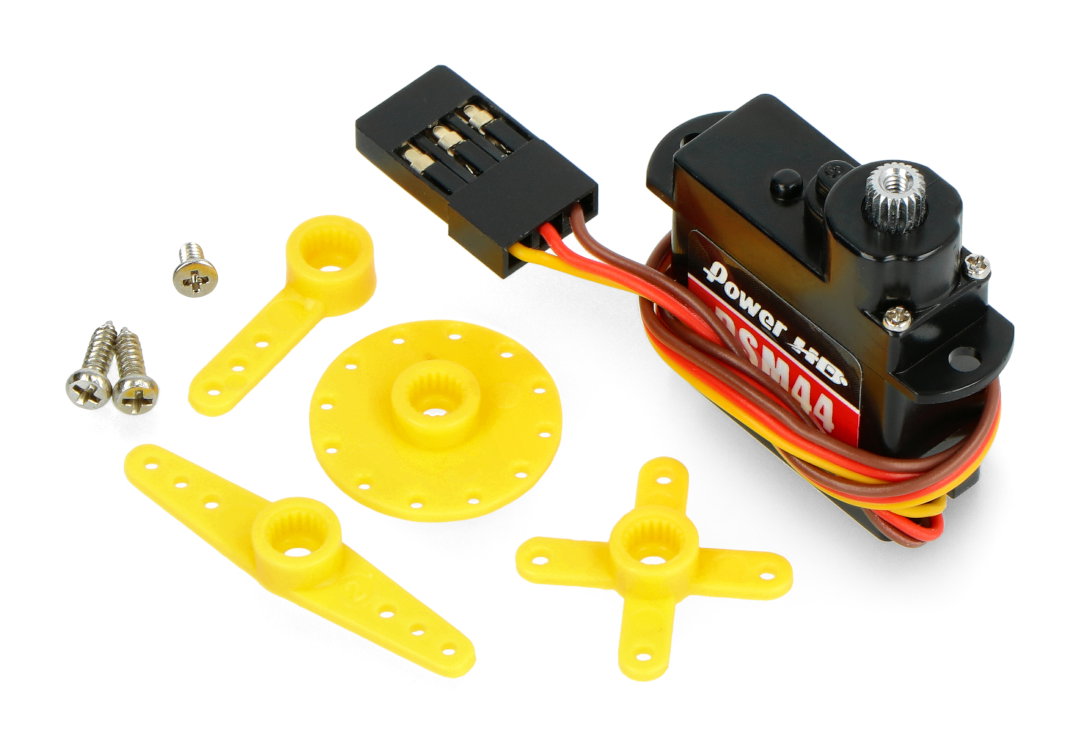

  • Complete set of servo horns, washers, and screws.





In our offer we also have wires and servo drivers.

Length 20 mm
Width 9 mm
Height 27 mm
Voltage to 4.8
Voltage from 6.0 V
Torque 1,6 kg*cm
Mass 6 g
Servo - Range 140 °
Servo - Size micro
Servo - Speed 0,07 s/60°
Servo - Type digital
Package width 4.5 cm
Package height 4 cm
Package depth 3 cm
Package weight 0.015 kg
