Servo PowerHD WH-40KG - standard waterproof

Index: PHD-18541 EAN: 6929130040400
Digital servo standard type PowerHD WH-40KG placed in an aluminum, waterproof housing. Made of high quality materials. The servo has a double ball bearing and a gear made of titanium and steel. The rotation angle of PowerHD WH-40KG is 90° and the torque of the device is 40 kg*cm for 8.4V supply voltage. The module is supplied with voltage from 6 V to 8.4 V. The set also includes orbs, screws and necessary accessories needed for the proper work of the servo.
Servo PowerHD WH-40KG - standard waterproof
€69.50
€56.50 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: PowerHD

Product description: Servo PowerHD WH-40KG - standard waterproof

Digital servostandard typePowerHD WH-40KGplaced in an aluminum,waterproof housing. Made of high quality materials. The servo has a double ball bearing and a gear made oftitaniumandsteel. The rotation angle of PowerHD WH-40KG is90°and the torque of the device is40 kg*cmfor 8.4V supply voltage. The module is supplied with voltagefrom 6 V to 8.4 V. The kit also includesorbs, screws and necessary accessories needed for proper operation of the servo.

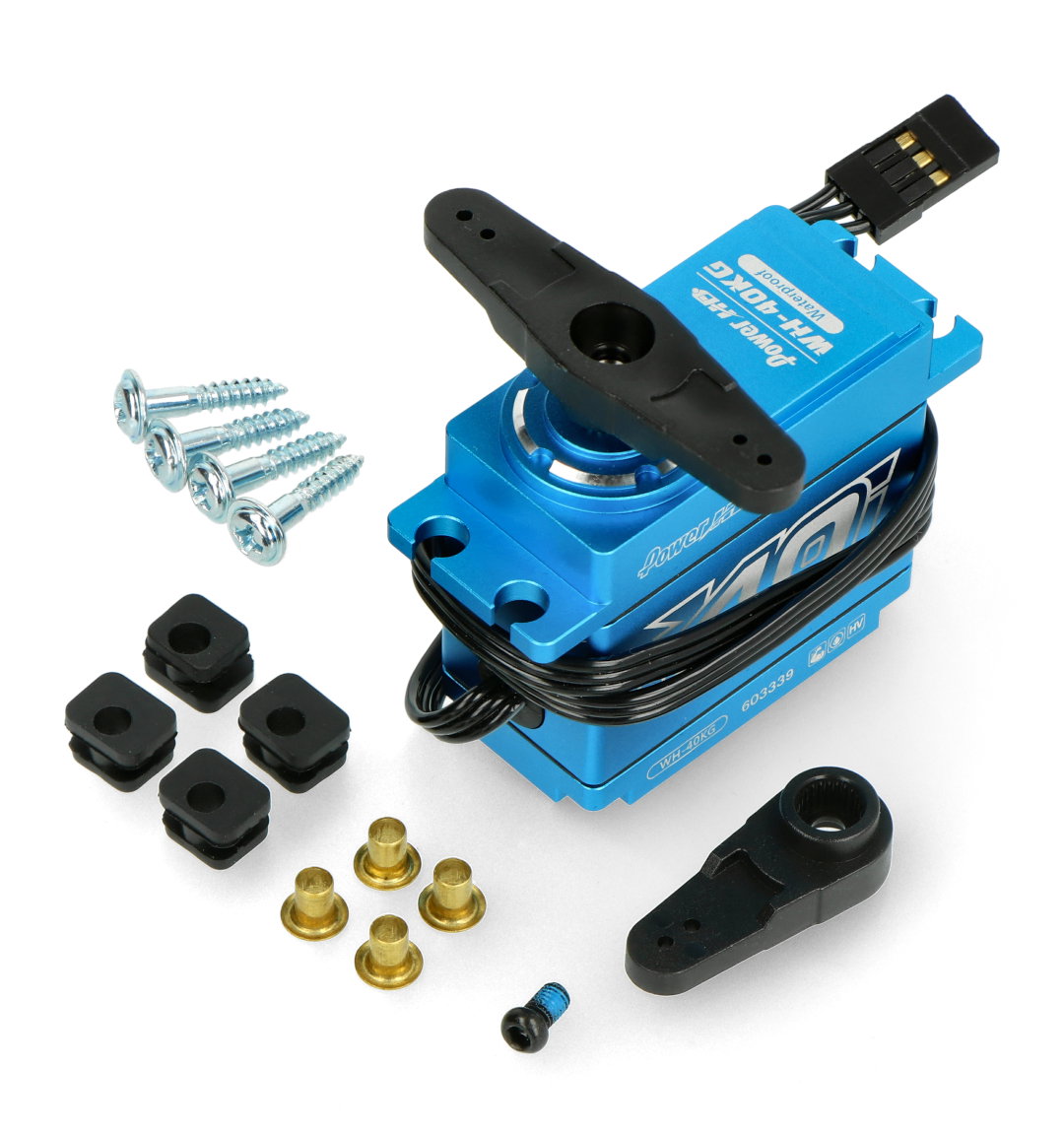

W skład zestawu wchodzą niezbędne elementy montażowe.

The kit includes the necessary mounting elements.

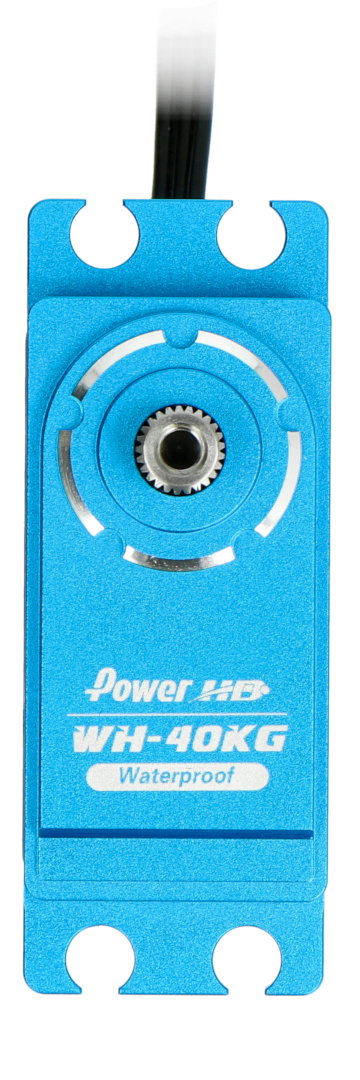

Serwo PowerHD WH-40KG - w wodoodpornej obudowie.

PowerHD servo WH-40KG - in a waterproof housing.

WH-40KG servo specification

  • Supply voltage: from 6.0 V to 8.4 V
  • Type: digital
  • Housing: aluminum, waterproof
  • Operating temperature: from -20°C to 60°C
  • Operating frequency: 1520 μs / 333 Hz
  • Rotation angle: 90°
  • Parameters for 6.0 V:
    • Torque: 29 kg*cm (2.84 Nm)
    • Speed: 0.20 s/60°
  • Parameters for 7.4 V:
    • Torque: 35 kg*cm (3.43 Nm)
    • Speed: 0.18 s/60°.
  • Parameters for 8.4 V:
    • Torque: 40 kg*cm (3.92 Nm)
    • Speed: 0.17 s/60°.
  • Two ball bearings
  • Gear made of steel and titanium
  • Dimensions: 40.7 x 20.5 x 38.5 mm
  • Weight: 82 g
      Voltage to 6.0 V
      Voltage from 8.4 V
      Servo - Range 90 °
      Servo - Size standard
      Servo - Speed 0,17 s/60°
      Servo - Type digital
      Package width 11.2 cm
      Package height 3.2 cm
      Package depth 7.6 cm
      Package weight 0.158 kg
