Product description: PowerHD WH-65KG servo - standard
The WH-65KG PowerHD servo is a digital standard servo with twoball bearings. The product is powered by direct current from6.0to8.4 Vand has a gear made of copper and steel. Operating temperature of the servo is from- 20°Cto60°C. The maximum torque is65 kg*cm. The angle of rotation of the servo is 180°.

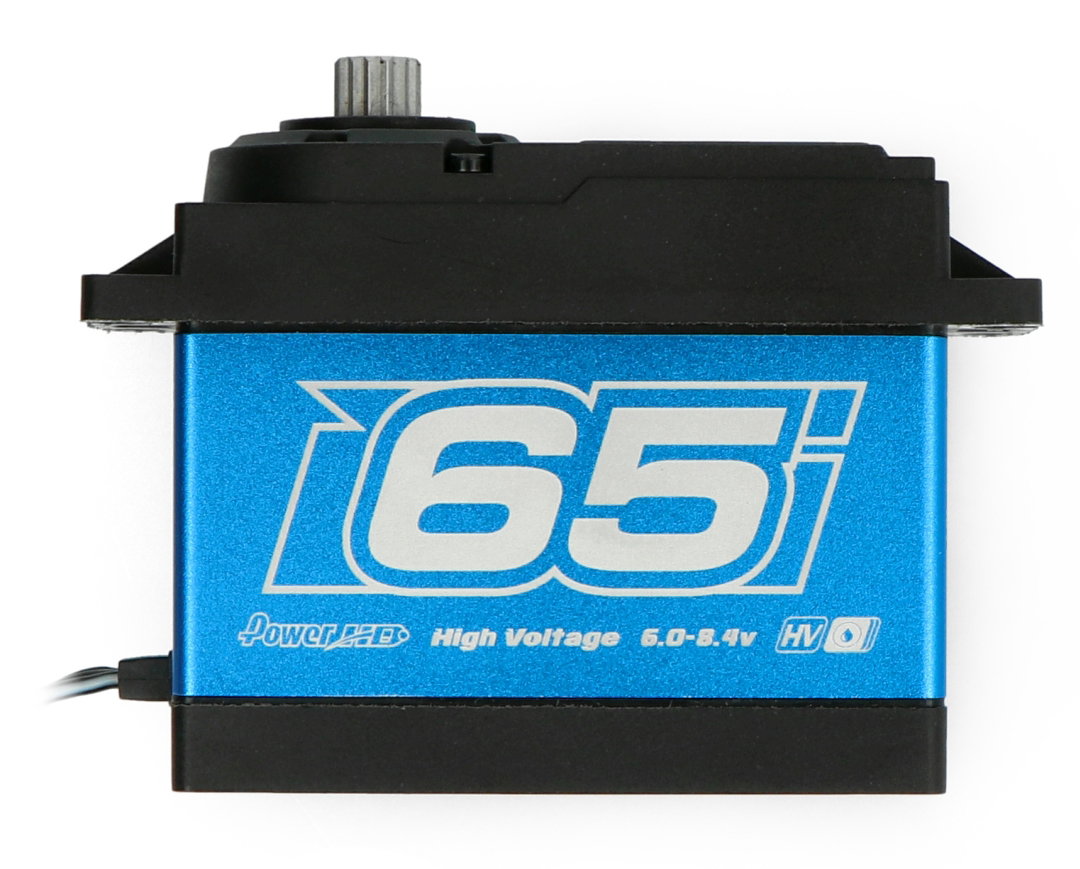

PowerHD WH-65KG servo.
Servo specification
- Supply voltage: 6.0 V to 8.4 V
- Type: digital
- It has a waterproof housing
- Operating temperature: - 20°C to 60°C
- Frequency of operation:1520 μs / 333 hz
- Cable length: 300 mm
- Angle of rotation:180°
- Two ball bearings
- Dimensions:65.8 x 30.0 x 55.6mm
- Weight:200g
- Parameters for 6.0 V:
- Wait a minute:55.0kg*cm (5.39 Nm)
- Speed: 0.19 s/60°
- Parameters for 7.4 V:
- Wait a minute:60.0kg*cm (5.88 Nm)
- Speed: 0.17 s/60°
- Parameters for 8.4 V:
- Wait a minute:65.0kg*cm (6.37Nm)
- Speed: 0.15 s/60°
In our offer we also havecablesandservo controllers.

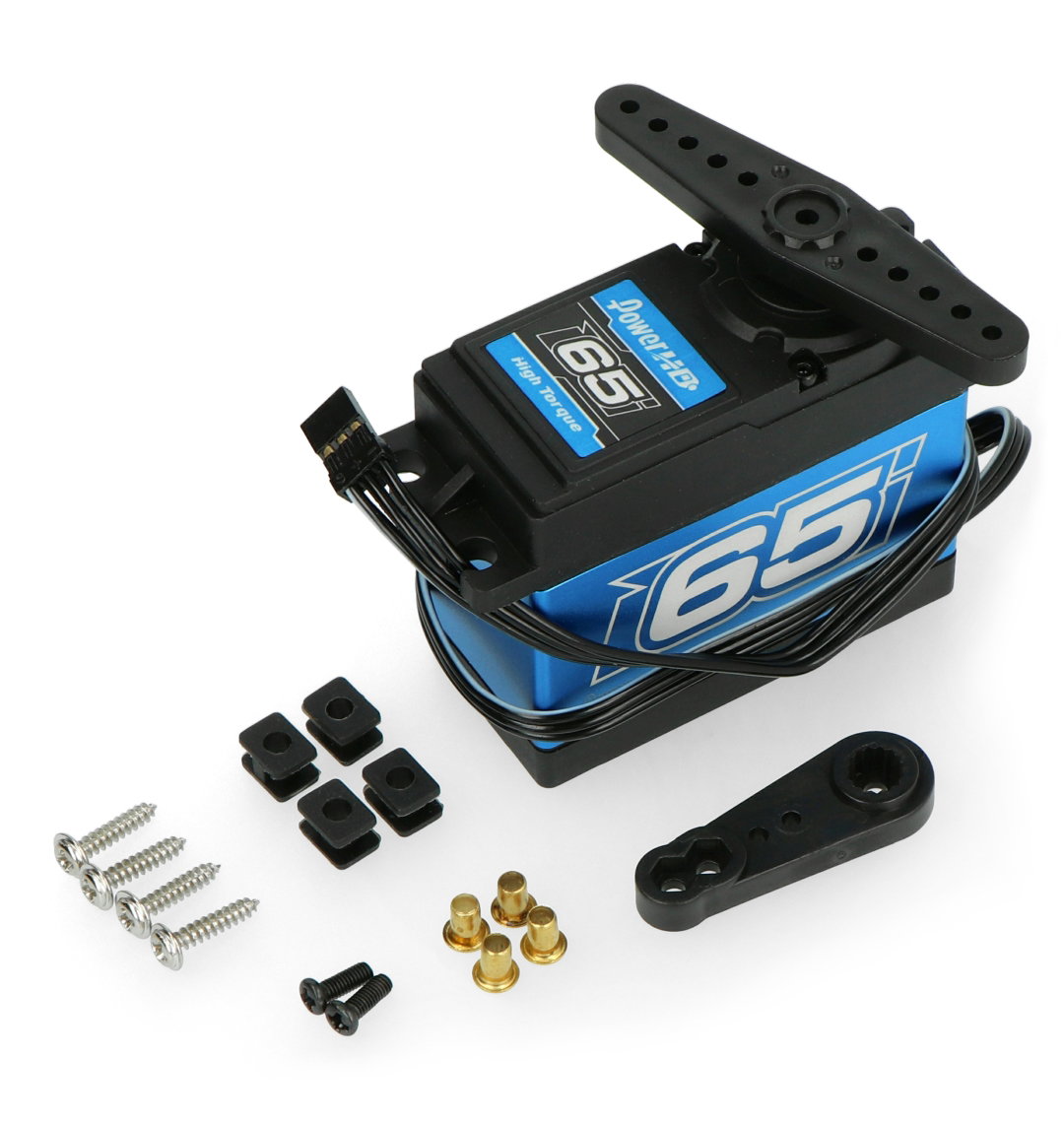

The set includes
- PowerHD WH-65KGservo
- Orchids
- Washers
- Screws
