Description: Okystar SG-90 Servo - micro - 180°.
Thelightweight Okystar servo is the perfect choice for designers looking for a small, efficient mechanism for their projects. The operating voltage of the deviceis from 3.5 V to 6 V. The angle of rotation is 180°. A set of ploughs and screws for mounting is included. Wealso offerservocontrollers.

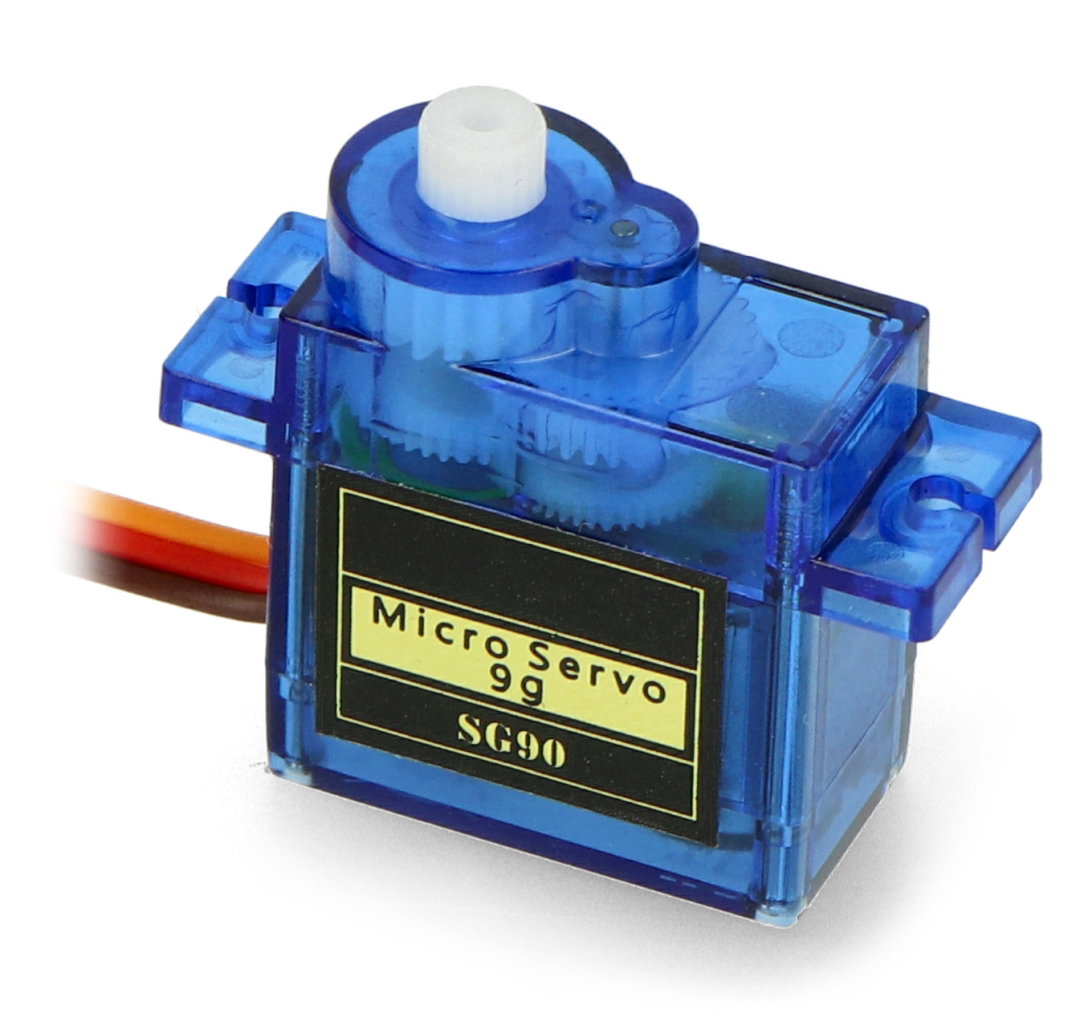

Okystar SG-90 - micro - 180° servo.
Application of the SG-90 - micro servo
The SG-90 - micro - 180° servo can be used in many devices, e.g. in toys:
- Helicopters with remote control
- Microrobots
- Robot arms
- Boats
Servo specification SG-90
- Manufacturer: Okystar
- Operating voltage: 3.5 V to 6 V
- Speed without load: 0.12s/60° at 4.8 V
- Angle of rotation: 180°
- Storage temperature: -30°C to 60°C
- Interface type: compatible with JR interface
- Length of the cheese cable: 25 cm
- Dimensions: 23 x 12.2 x 29 mm
- Weight: 9 g

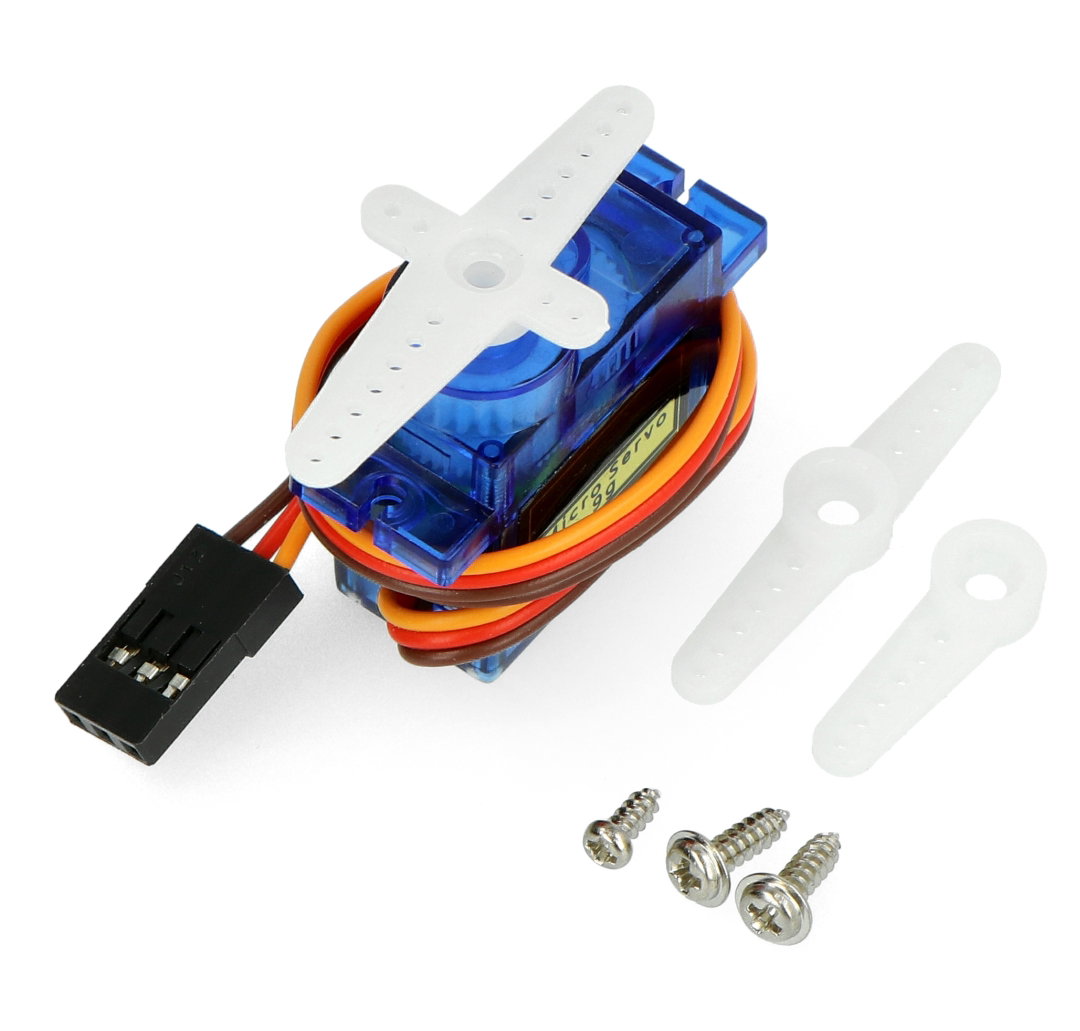

Okystar SG-90 servo - micro - 180° and accessories.
Set contents
- Okystar Servo SG-90 - micro - 180°
- Orchids
- Mounting screws
