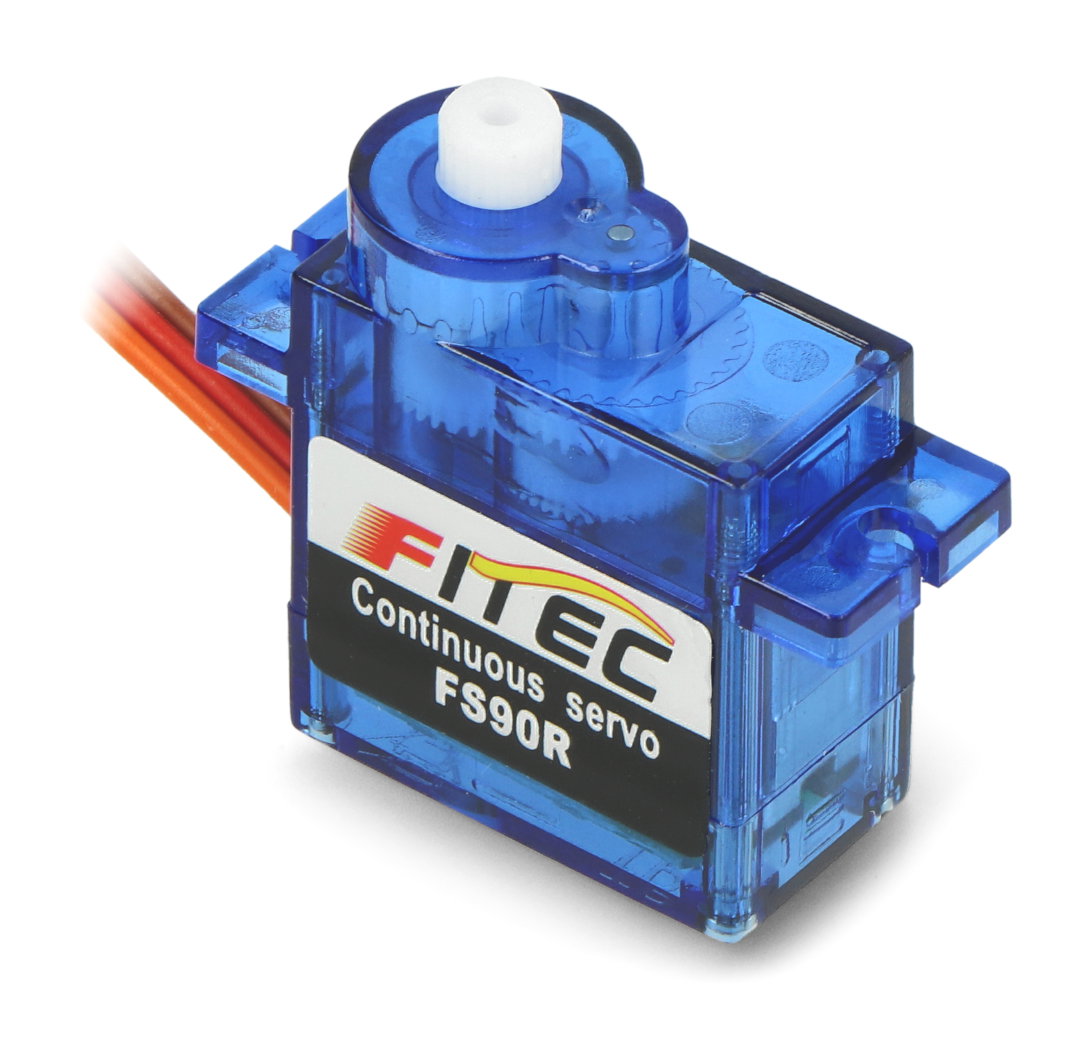

Servo Feetech FS90R - micro - continuous work 360 degrees

Index: FTC-04689 EAN: 5904422305888
Ask a question

Feetech FS90R v2 micro servo. Operates as a variable speed motor. Powered from 4.8 V.

Speed: 0.07 s/60°.

Torque: 1.5 kg*cm.

Dimensions: 30.5 x 12 x 22 mm.

Weight: 9 g.

Servo Feetech FS90R - micro - continuous work 360 degrees
€4.90
€3.98 tax excl.
Notify me when available
Check quantity
Delivery 50 pcs scheduled for 2023-10-27
Waiting for delivery
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: Feetech

Product description: Feetech FS90R servo - micro - 360 degree continuous operation

The lightweight, 9-gram Feetech FS90R v2 servo is a great choice for builders looking for a small, powerful mechanism for their projects. It works as a variable speed motor. Powered from 4.8 volts.

Serwo Feetech FS90R Feetech FS90R servo.

Feetech FS90R - mikro - 360 stupňů nepřetržitý provoz Feetech FS90R - micro - 360 degree continuous operation.

Feetech FS90R servo specification

  • Supply voltage: from 4.8 V to 6.0 V
  • Continuous operation: 360 °.
  • Total product dimensions: 30.5 x 12.5 x 22 mm
  • Overall housing height: 27.64 mm
  • Overall height of servo: 30.5 mm
  • Width of housing including handles: 32 mm
  • Weight: 9 g

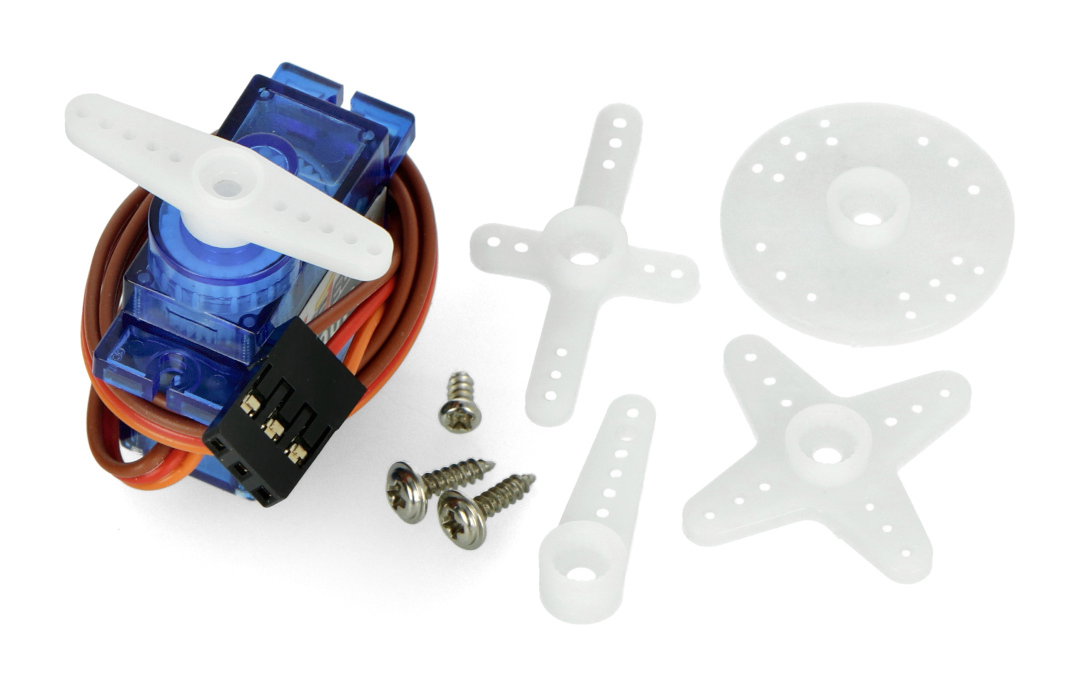

  • Includes a set of pliers and screws
  • Parameters for 4.8 V voltage:
    • Torque: 1.3 kg*cm (0.12 Nm)
    • Speed: 0.09 s/60°.
  • Parameters for 6 V voltage:
    • Torque: 1.5 kg*cm (0.14 Nm)
    • Speed: 0.07 s/60°

We also offer cables and servo controllers.

Length 23 mm
Width 13 mm
Height 22 mm
Voltage to 4.8
Voltage from 6.0 V
Torque 1,5 kg*cm
Mass 9 g
Servo - Range 360 °
Servo - Size micro
Servo - Speed 0,07 s/60°
Servo - Type analog
Package width 8 cm
Package height 1.2 cm
Package depth 12 cm
Package weight 0.015 kg
