SC15 17kg Serial Bus Servo - UART servo - Waveshare 21568

Index: WSR-21965 EAN: 5904422385347
SC15 17 kg Serial Bus Servo is a programmable high torque 17 kg * cm servo. It has a 180 ° rotation range in servo mode and a full 360 ° rotation range in motor mode. Any angle can be taken as the center of the position, which increases the design possibilities. The input voltage ranges from 4.8 V to 8.4 V , and the torque is 17 kg * cm / 8.4 V , 15 kg * cm / 6 V and 14 kg * cm / 4.8 V.
SC15 17kg Serial Bus Servo - UART servo - Waveshare 21568
€20.50
€16.67 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Waveshare

Product description: SC15 17 kg Serial Bus Servo - UART servo - Waveshare 21568

SC15 17 kg Serial Bus Servo is a programmable high torque 17 kg * cm servo . It has a 180 ° rotation range in servo mode and a full 360 ° rotation range in motor mode. Any angle can be taken as the center of the position, which increases the design possibilities. The input voltage ranges from 4.8 V to 8.4 V , and the torque is 17 kg * cm / 8.4 V , 15 kg * cm / 6 V and 14 kg * cm / 4.8 V.

The manufacturer has also prepared a detailed user guide , which makes working with the servo much easier.

SC15 17kg Serial Bus Servo

SC15 17 kg Serial Bus Servo - UART servo - Waveshare 21568.

SC15 17kg Serial Bus Servo by Waveshare.

SC15 17 kg Serial Bus Servo from Waveshare.

Special features

  • High torque of 14 kg * cm at a voltage of 8.4 V, which allows the implementation of advanced projects of walking robots.
  • The servo housing is made of nylon and fiberglass , which increases resistance to high temperatures, stiffness and mechanical performance.
  • High-strength drag bars made of T6061 aluminum alloy, which has good corrosion resistance.
  • High precision gears made of copper and steel, which generate a lower noise level during operation, are characterized by better stability and mechanical performance.
  • A universal center of position that can be positioned at any angle, which increases comfort during assembly.
  • Serial bus support that allows you to connect up to 253 servos in series.

Suggested use

  • By means of servos, you can get bi-directional feedback - current position, speed, torque lock, operating mode (servo mode, motor mode, etc.) for advanced projects requiring automatic closed-loop control.
  • SC15 17kg Serial Bus Servo is the perfect choice of an executive module for building four-legged walking robots, robotic arms and other projects that require moving elements.

Kit contents

  • SC15 17kg Serial Bus Servo - UART servo - Waveshare
  • Round metal drag lifts
  • Connection cable
  • Mounting screws

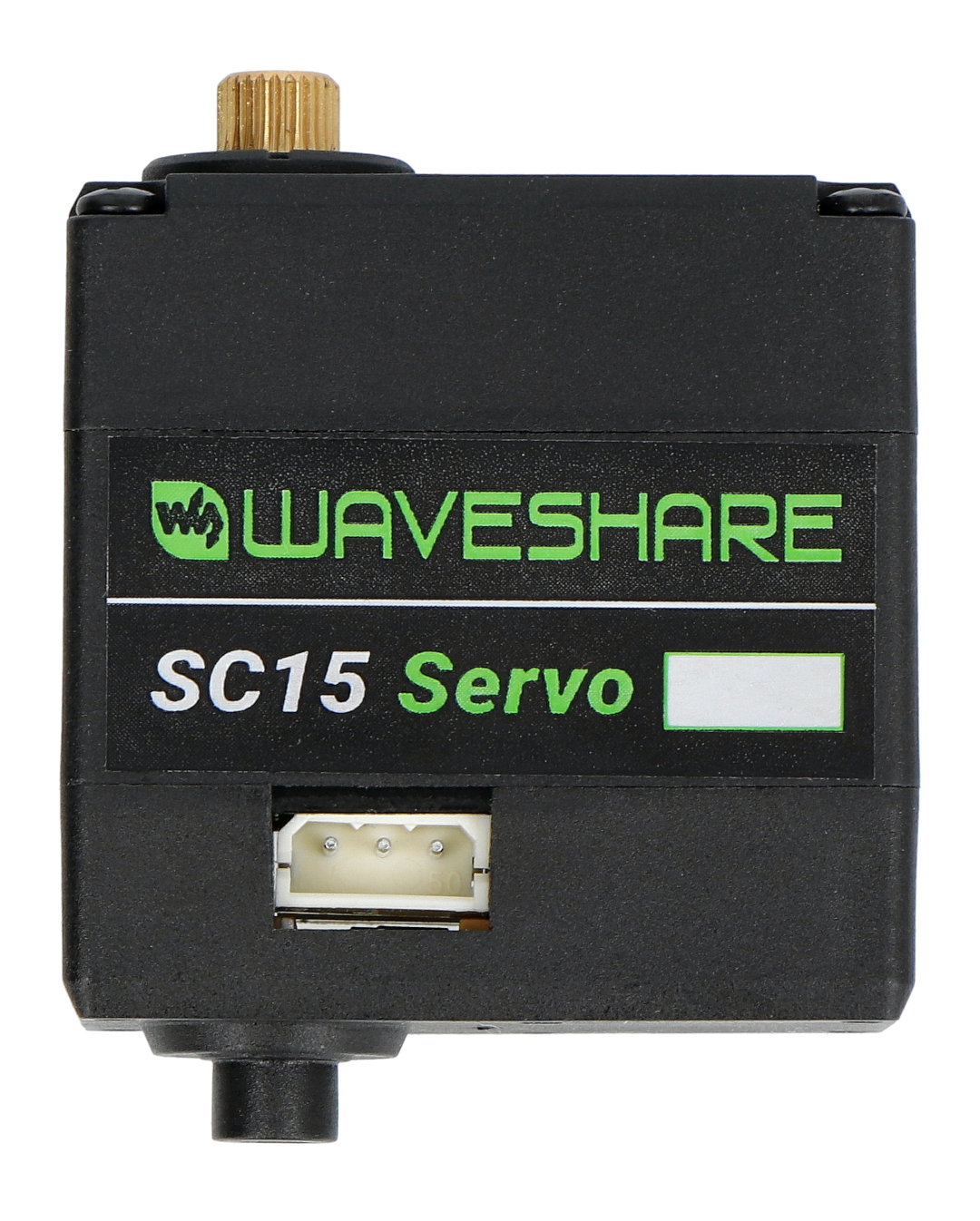

Servomechanism with a torque of 17 kg * cm.

Servomechanism with a torque of 17 kg * cm.

Elements included in the kit.

Elements included in the kit.

Technical Specifications

  • Device type: SC15 servo
  • Communication: UART serial bus
  • Control: TTL
  • ID range: 0 to 253
  • Supply voltage: 4.8 V to 8.4 V
  • Rotation range: 180 ° in servo mode, 360 ° in motor mode
  • Step resolution: 1024
  • No-load speed: 0.16 sec / 60 °
  • Torque: 17 kg * cm / 8.4 V, 15 kg * cm / 6 V, 14 kg * cm / 4.8 V
  • Torque with a stopped shaft: 15 kg * cm / 12 V
  • Current consumption without load: 200 mA
  • Current consumption with a stopped shaft: 1.5 A
  • Feedback: position, load, speed, input voltage
  • Dimensions: 40 x 40.5 x 20 mm
Servo - Range 180 °
Servo - Size standard
Servo - Speed 0,16 s/60°
Package width 8 cm
Package height 12 cm
Package depth 2.5 cm
Package weight 0.07 kg
