Product description: Feetech Servo FS90-FB - micro - angle measurement.
The Feetech FS-90-FB is aspecially modified version ofthe FS-90 analogservo, which provides access to the built-inpotentiometervia an additional fourth cable. This solution enables direct measurement of the output angle. The operating angle rangesfrom 0° to 120°within a pulse range of 900 µs to 2100 µs.

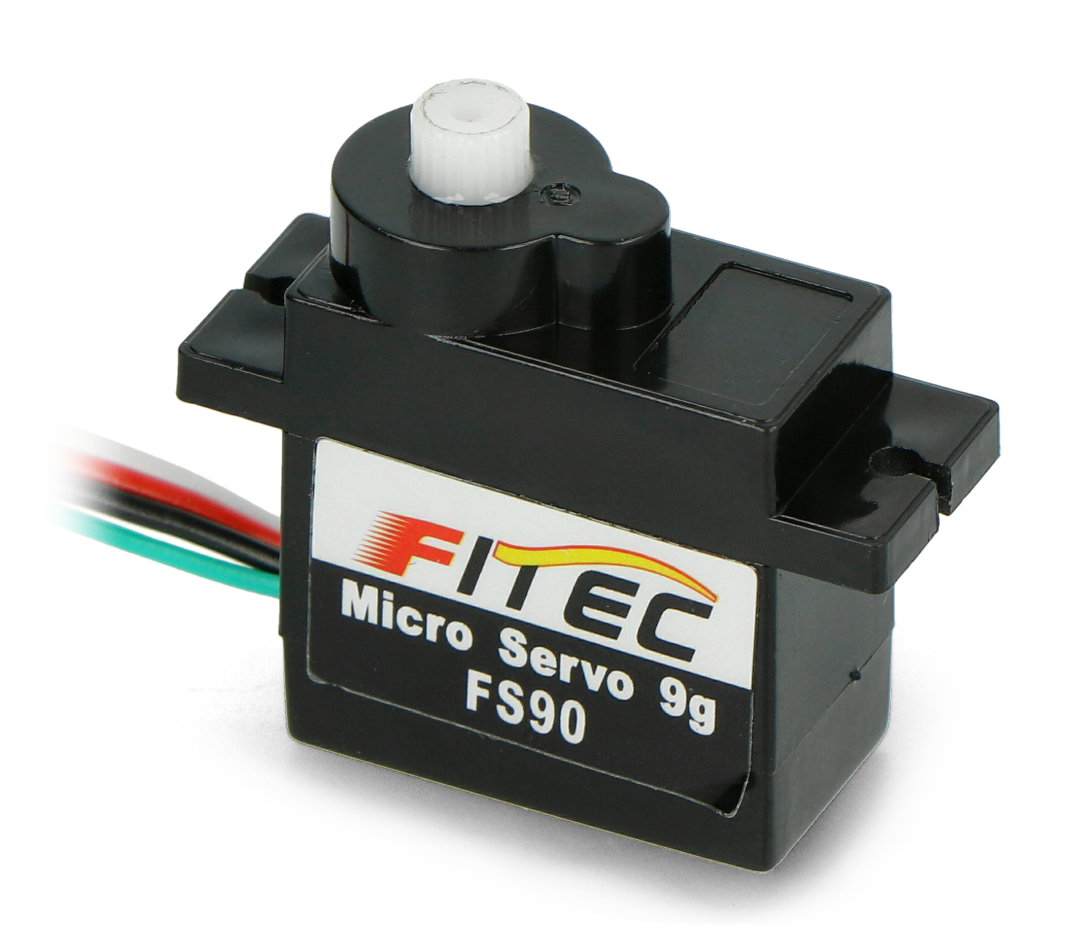

FS90-FB servo.
Communication of the servo
The servo is equipped with a standard3-pin JR connectoron a 38 cm cable. The signal from the potentiometer determining the position of the servo is available on an additional green wire separated from the beam.
The set includes:
- Servo .
- 5 x tongue
- 4 x mounting screws
Specification
- Supply voltage: 4.8 V to 6 V
- Range of movement: From 0° to 120°
- Type: analogue
- Speed at 4.8 V: 0.12 s / 60°
- Wait a minute: 1.3 kg*cm
- Speed at 6 V: 0.10 s/60°
- Wait a minute: 1.5 kg*cm
- Dimensions: 23 x 13 x 22 mm
- Weight: 13 g
