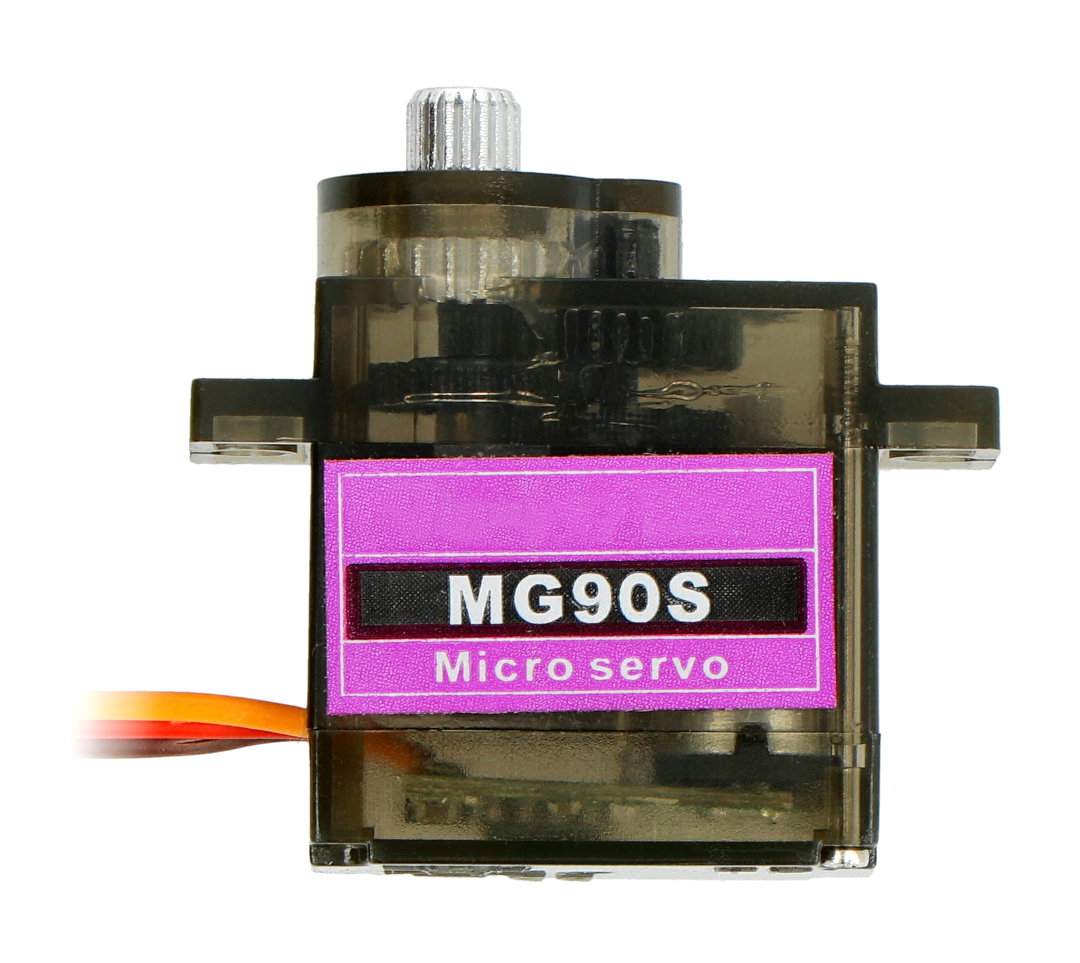

Servo MG-90S - micro - 180 degrees - plastic gear
Micro type servo with MG-90S designation. It has a gear made of plastic elements. The product is characterized by high stability and precision of operation. Supply voltage is from 4.8 V to 6 V. With a power supply of 6 V the torque is 2.2 kg*cm. Dimensions of MG-90S are 22,8 x 12,2 x 28,5 mm. The cable ends with a plug and is about 25 cm long. The weight of the servo is approx. 10 g.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Servo MG-90S - micro - 180 degrees - plastic gear
Servo micro type with designation MG-90S. It has a gear made of plastic components. The product is characterized by high stability and precision. Supply voltage is from 4.8 V to 6 V. With a power supply of 6 V the torque is 2.2 kg*cm. Dimensions of MG-90S are 22,8 x 12,2 x 28,5 mm. The cable with the plug is approx. 25 cm. Weight of the product is about 10 g. Servos are very often used in modelling and robotics.
Servo MG-90S - micro - 180 degrees - plastic gearbox.

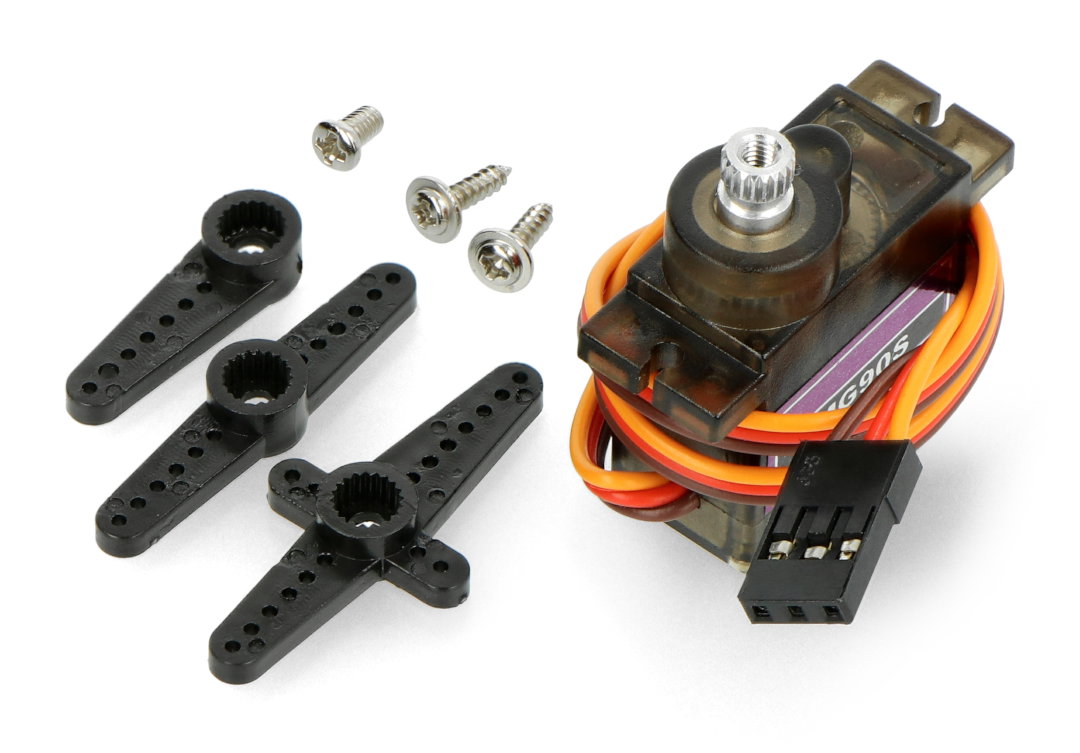

Components included.
Servo specifications
- Model: MG-90S
- Housing material: plastic
- Gear material: plastic
- Servo type: micro
- Supply voltage: from 4.8 V to 6.0 V
- Parameters for 4.8 V:
- Torque: 1.8 kg*cm (0.2 Nm)
- Speed: 0.1 s/60°.
- Parameters for 6.0 V:
- Torque: 2.2 kg*cm (0.23 Nm)
- Speed: 0.08 s/60°
- Range of motion: 0° to 180°
- Cable length: approx. 25 cm
- Dimensions: 22.8 x 12.2 x 28.5 mm
- Weight: approx. 10 g
| Name | Value |
|---|---|
| Voltage to | 4.8 |
| Voltage from | 6.0 V |
| Torque | 2,2 kg*cm |
| Servo - Range | 180 ° |
| Servo - Size | micro |
| Width | 8 cm |
| Height | 10.5 cm |
| Depth | 1 cm |
| Weight | 0.015 kg |
