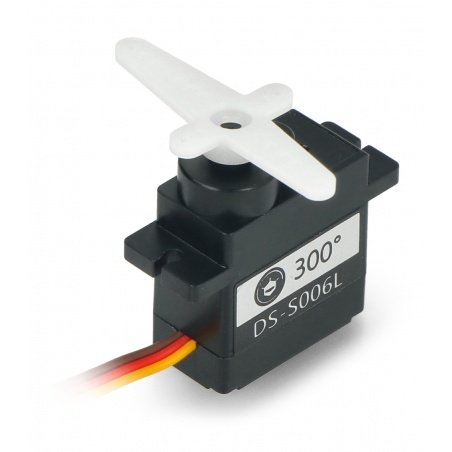

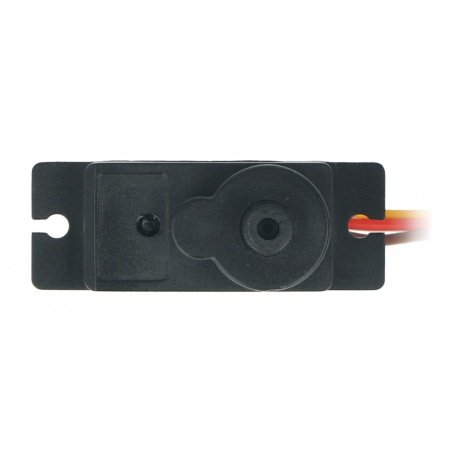

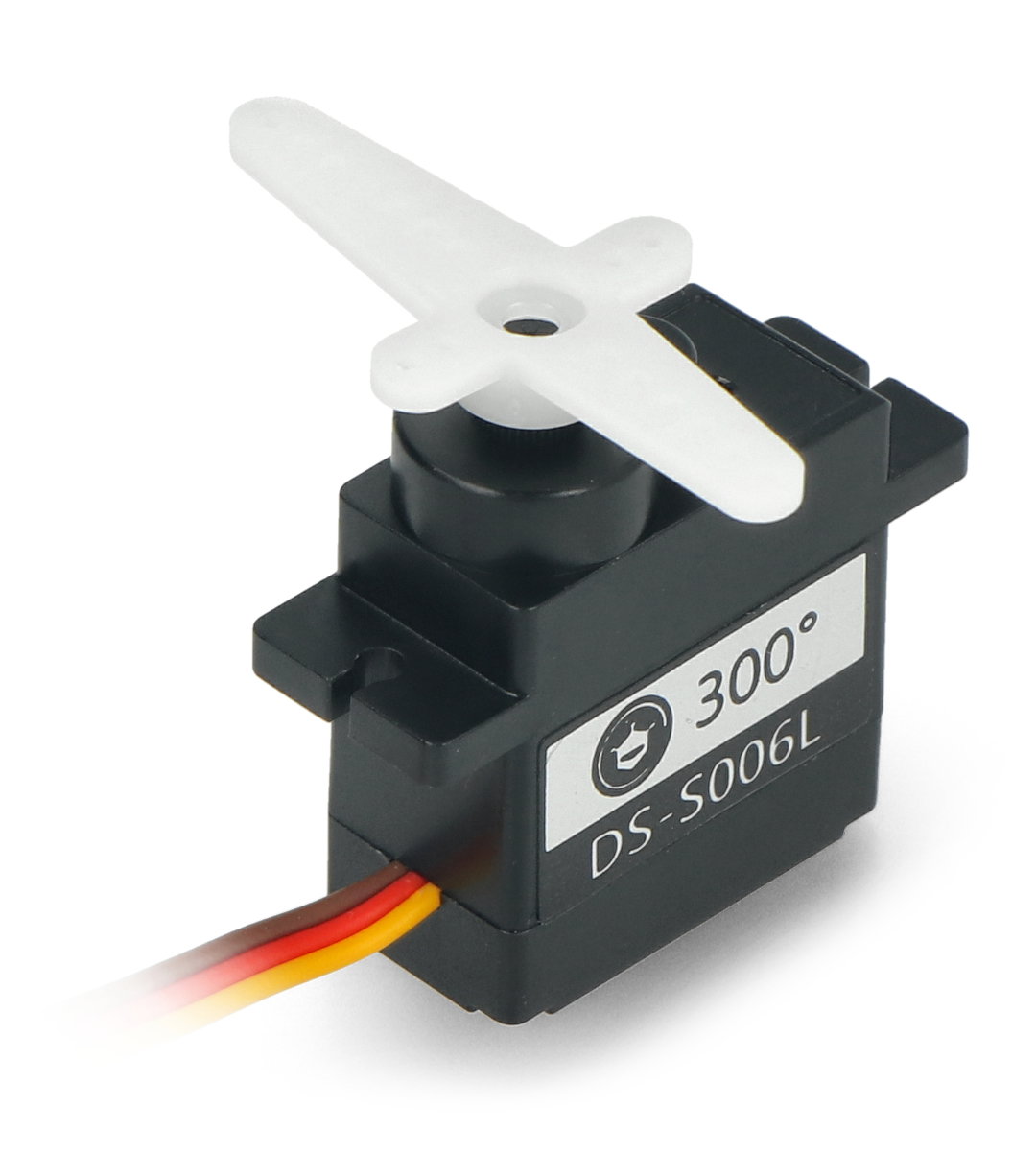

Product description: DFRobot servo SER0053 - micro - 9 g 300°
MicroservoDFRobotHigh power and speed. They are characterized by high torque, stable operation, accurate operating angle and easy installation. The operating voltage rangesfrom 4.8 V to 6 V. With 6 V supply, the torque of the servo is 1.2 kg*cm. The center of the mechanism does not contain any limited switches, so it can be rotated 360° smoothlyby hand. Meanwhile, the servo can run smoothly with minimal power and can be powered by a regular battery or USB. The servo can be controlled directly using the user-accessible servo libraries in theArduinoIDE and let it reach a maximum rotation angle of 300° within a pulse range of 500 to 2500 μsec.
We also offercablesandservo controllers.
The servo can be controlled by a microcontroller e.g.Arduino.
DFRobot servo SER0053 - micro - 9 g 300°
Specifications for the DFRobot SER0053 servo
- Operating voltage: 4.8 V to 6 V
- Nominal current consumption : ≤8 mA at 6.0 V
- No-load current consumption:
- ≤50 mA at 4.8 V
- ≤60 mA at 6.0 V
- Current consumption when shaft is stopped:
- ≤550 mA at 4.8 V
- ≤650 mA at 6.0 V
- Rated torque:
- ≥0.32 kg*cm at 4.8 V
- ≤0.4 kg*cm at 6.0 V
- Torque at stopped shaft:
- ≥1.0 kg*cm at 4.8 V
- ≤1.2 kg*cm at 6.0 V
- Operating angle: 300° ± 10°
- Communication mode: PWM
- Pulse width range: 500 μs to 2500 μs
- Dimensions: 32.5 x 12 x 27.3 mm

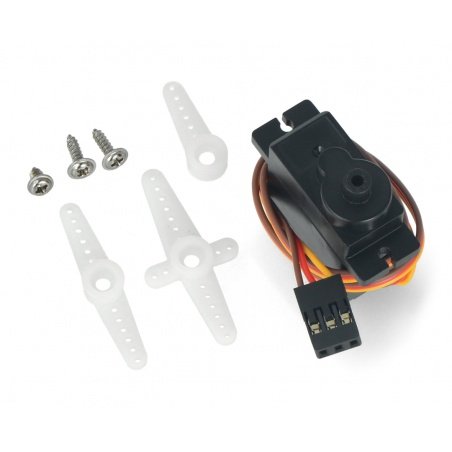

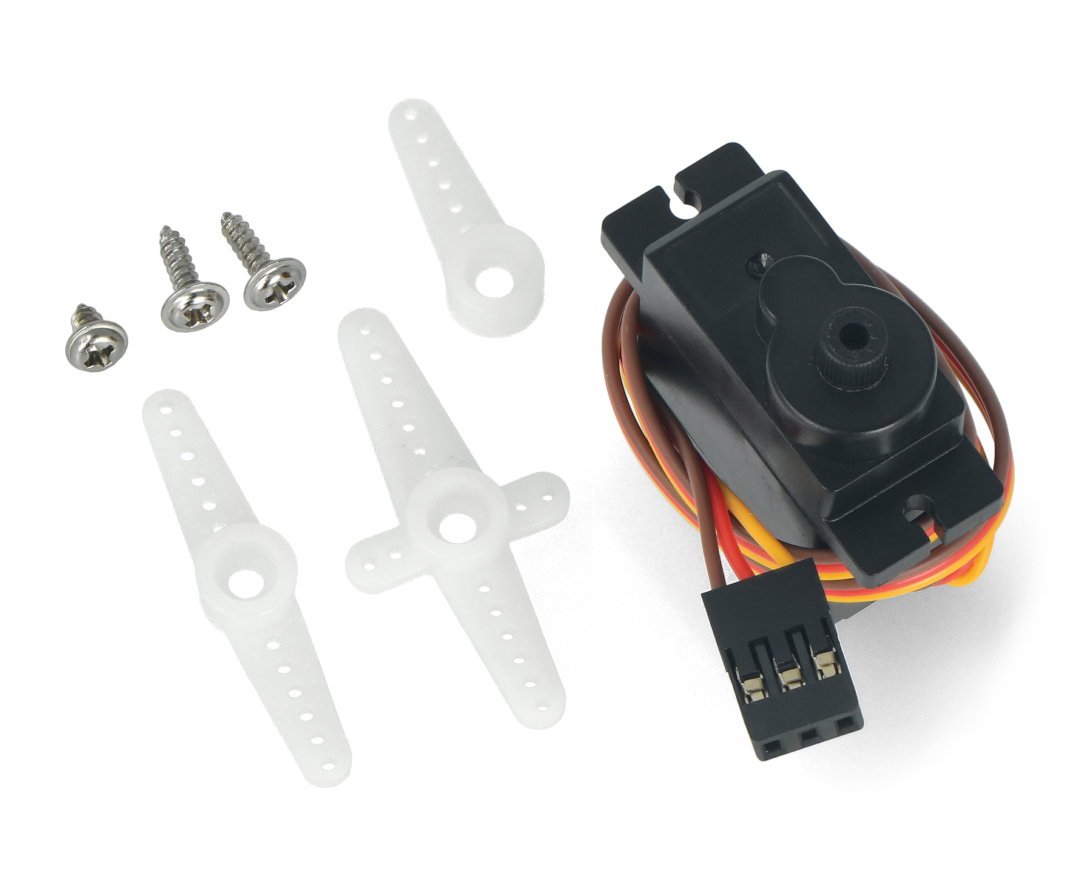

Kit includes:
- 9 g 300° servo x1
- Servo plate and accessories x1 (set of screws and orbs)
