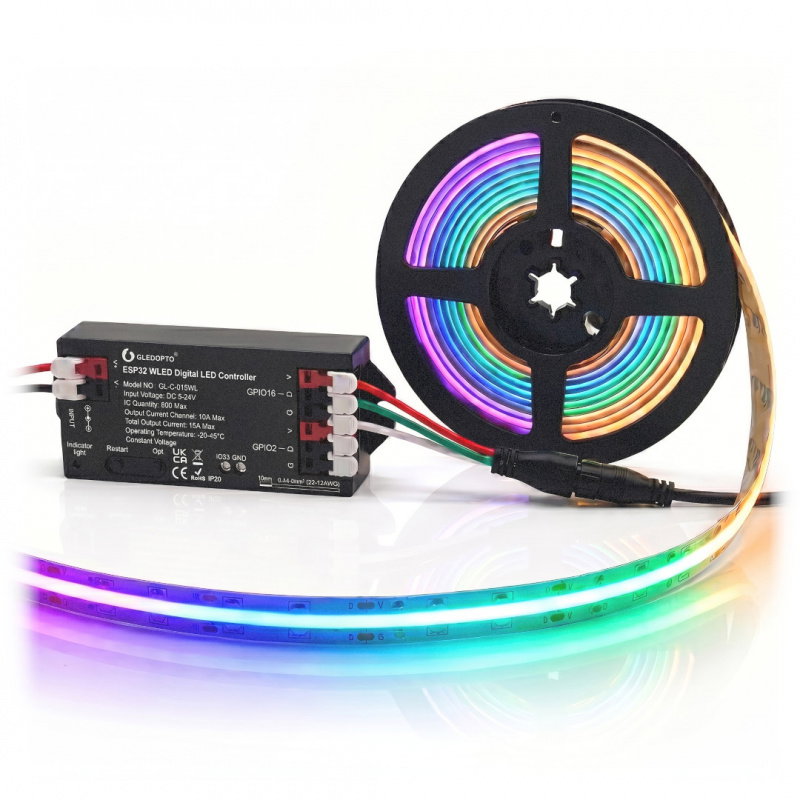

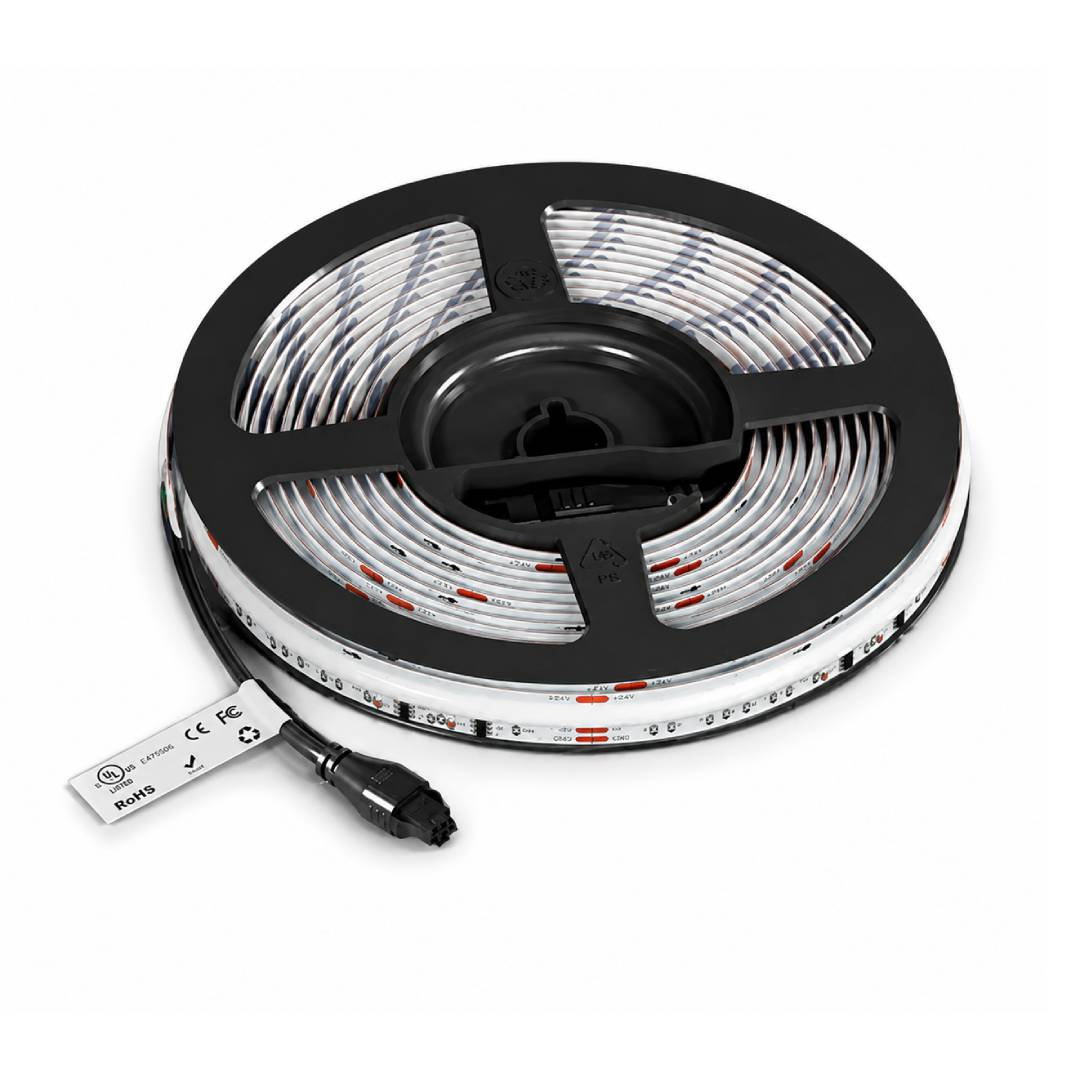

Product description: FCOB SPI RGBCCT LED strip IC WS2811 - digital, addressable - IP66 840 LED/m, 23 W/m, 24 V - 3 m
This LED strip utilizes Flip Chip-On-Board technology, which provides a uniform line of light without visible LED dots. The strip is equipped with 840 LEDs/m and a WS2811 IC control chip, enabling digital control of strip segments and the creation of advanced animations, transition effects, and dynamic lighting scenes. Support for RGB colors and two shades of white—warm 3000K and cool 6000K —allows you to customize the lighting to suit various applications and moods. This 3-meter -long, 10-mm- wide LED strip operates on 24V DC , reducing voltage drops and improving operational stability over longer distances. 23W/m of power ensures high brightness and vibrant colors. The flexible FPC backing with a self-adhesive layer facilitates installation on ceilings, stairs, furniture, display cases, gaming stations, and Smart Home installations. The IP66 version is additionally protected by a dust- and splash-resistant protective cover, making it suitable for use in areas exposed to high humidity.
Technical specifications of the LED strip
- Diode type: FCOB WS2811 IC RGBCCT Flip Chip On Board
- Supply voltage: 24 V DC
- Power: 23 W/m
- LED density: 840 LED/m
- Number of ICs: 28 IC/m
- Lighting colors: RGB + CCT
- Warm white: 2700K to 3200K
- Cool white: 5600K to 6300K
- Beam angle: 180°
- CRI: Ra＞90
- PCB Material: Double-sided FPC
- Protection class: IP66
- Minimum cutting distance: every 60 LEDs or 71 mm
- Operating temperature range: -20°C to +45°C
- Connection cables: 3-pin, +V / DAT / GND
- Installation: self-adhesive tape
- Width: 10 mm
- Length: 3 m
Contents of the set
- 1x LED strip
