Product description: Wio Tracker L1 Pro - LoRa MeshCore Development Module with GPS - Seeedstudio 100030144
The Wio Tracker L1 Pro from Seeedstudio is a portable device designed for building mesh communication networks using LoRa transmission. At the heart of the design is the energy-efficient Nordic nRF52840 ARM Cortex-M4 processor with FPU , working with the Wio-SX1262 radio module operating in the 862 MHz to 930 MHz range. The L76K module, which supports GPS , BeiDou, GLONASS, and QZSS , is responsible for location, and information about the device's operation is presented on a 1.3" OLED screen with a resolution of 128 x 64 px. The L1 Pro version comes in a housing with a built-in 2000 mAh battery and a LoRa antenna , so it requires no additional assembly. Charging is via USB Type-C , and a solar input allows for expanded power supply options during field work.

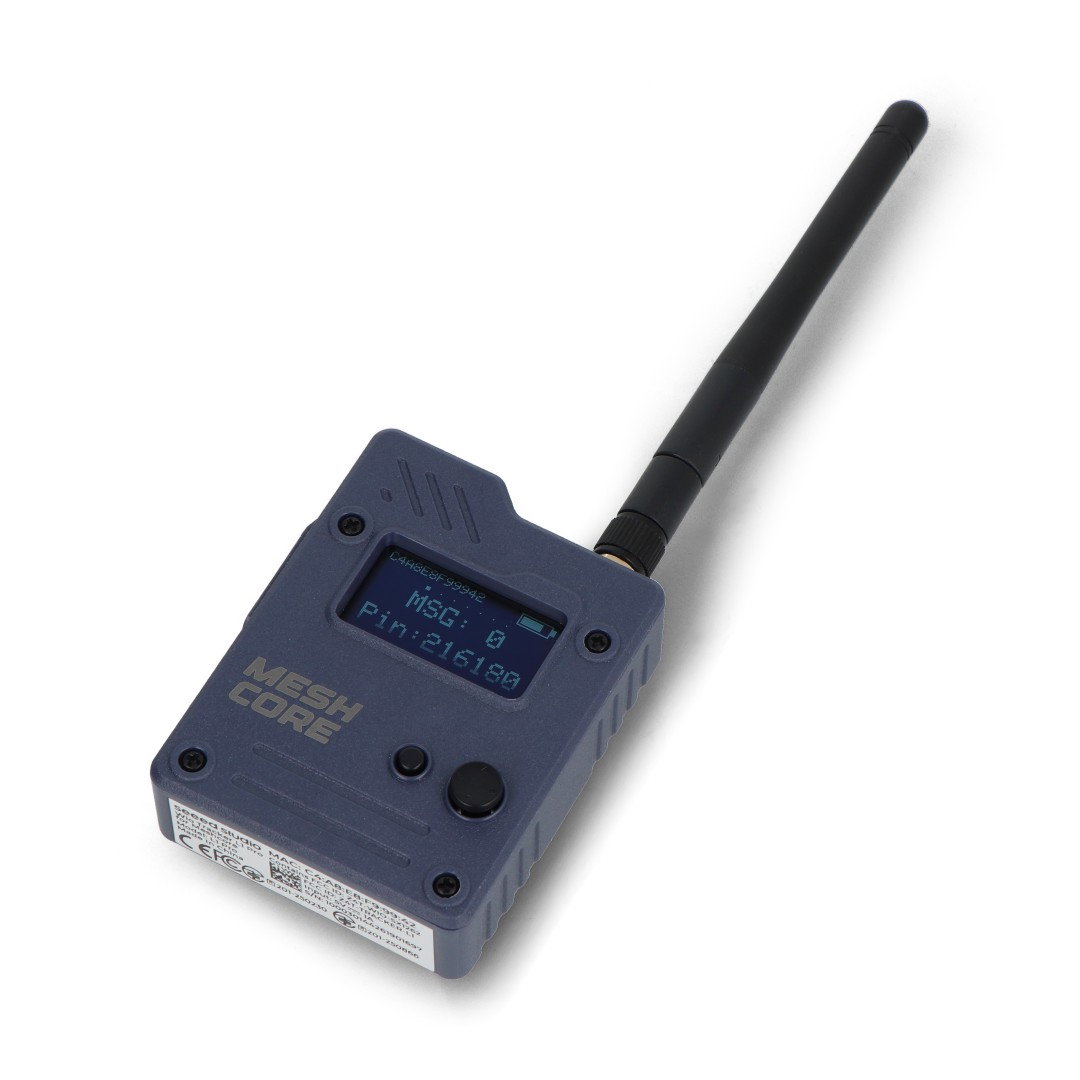

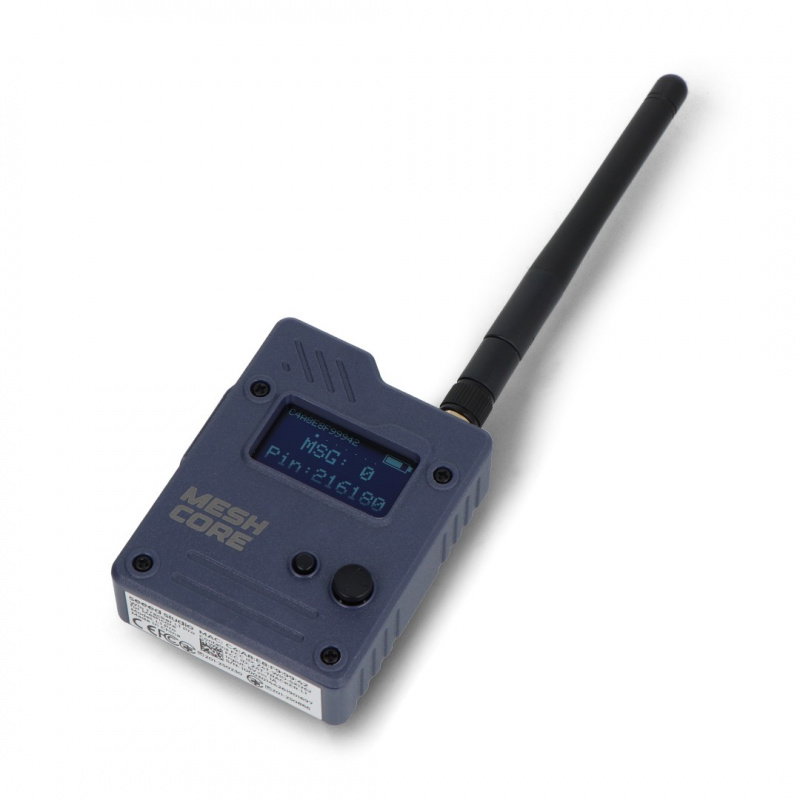

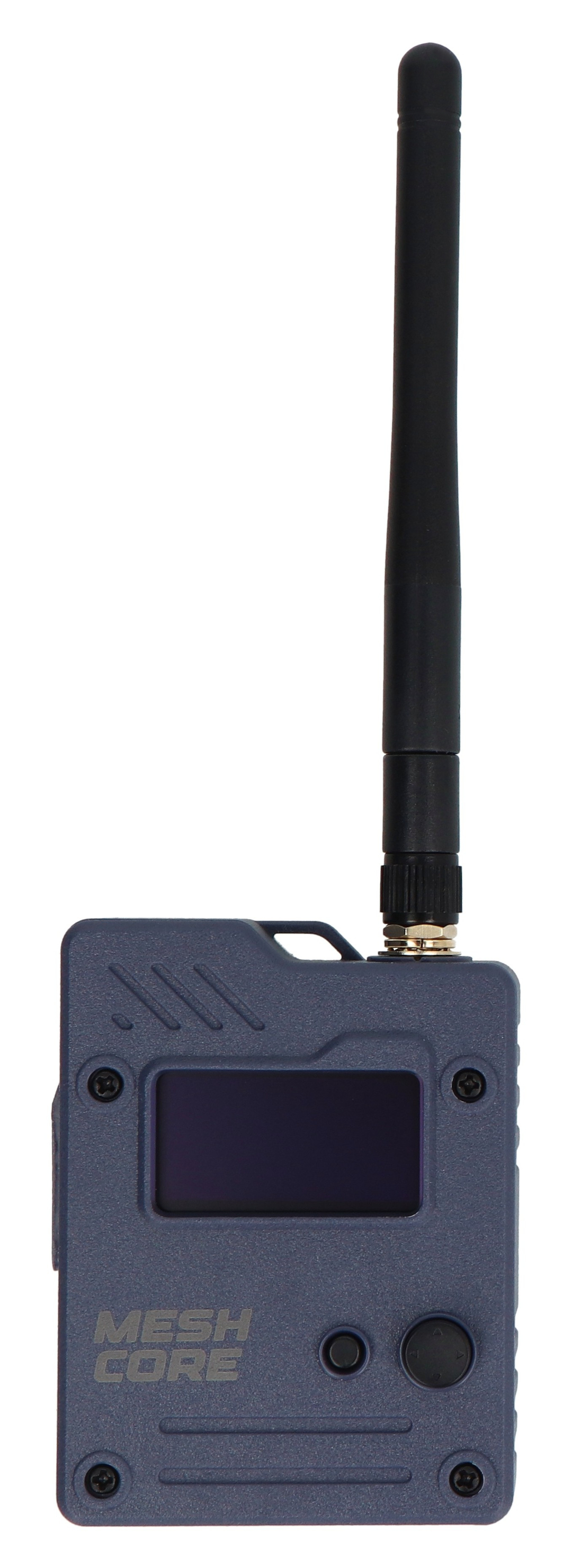

Wio Tracker L1 Pro - LoRa MeshCore development module with GPS - Seeedstudio 100030144.

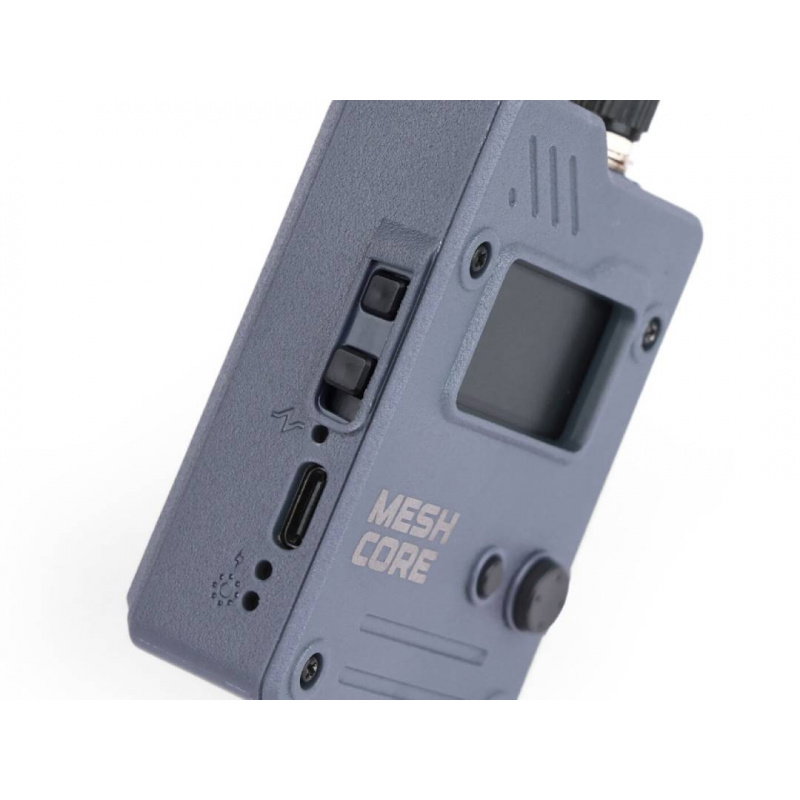

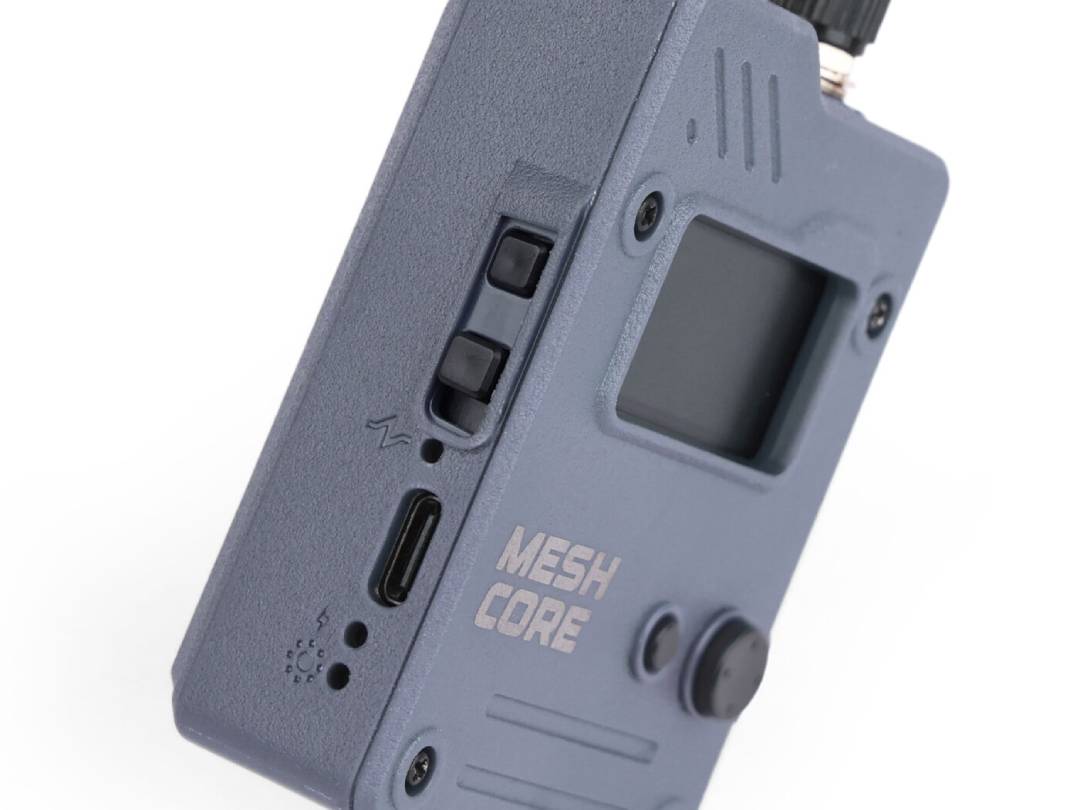

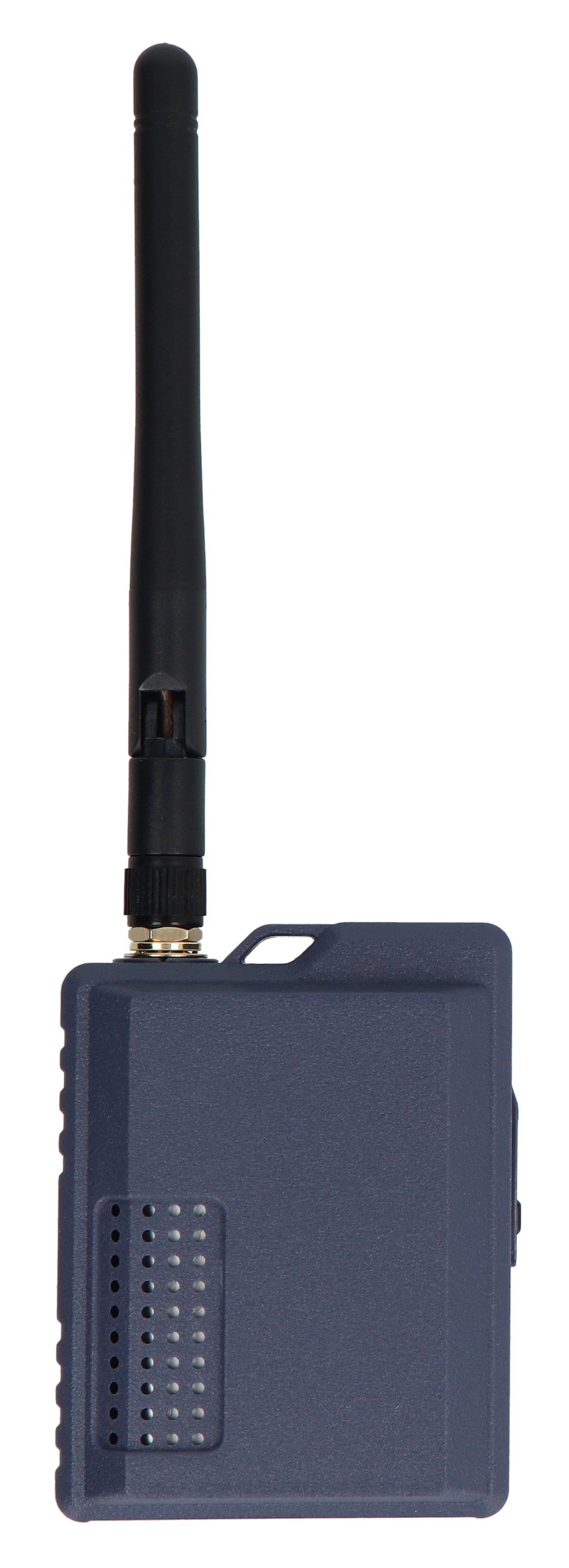

The housing allows for convenient use of the module in the field.
Main features of the Wio Tracker L1 Pro
- Pre-installed MeshCore Bluetooth Companion : the device is ready to connect to the MeshCore app via Bluetooth and can be started without any programming
- LoRa from 862 MHz to 930 MHz : the Wio-SX1262 module enables long-range communication with low power consumption
- Nordic nRF52840 : 32-bit ARM Cortex-M4 core with FPU running at up to 64 MHz
- 1 MB Flash memory and 256 kB RAM : microcontroller resources provide adequate space for firmware and device function support
- 2MB QSPI Additional Memory : External Flash memory increases data storage capacity
- GNSS L76K : support for GPS, BeiDou, GLONASS and QZSS systems allows you to determine the device's position
- Bluetooth 5.0 : enables communication with your smartphone and the MeshCore app
- OLED 1.3" : display with a resolution of 128 x 64 px allows you to control the device status and settings
- 2000 mAh battery : integrated power source enables mobile work, and the manufacturer declares up to 5 days of operation depending on configuration and conditions of use
- Three power supply options : built-in battery, USB Type-C 5V/1A and solar panel input 5V/1A

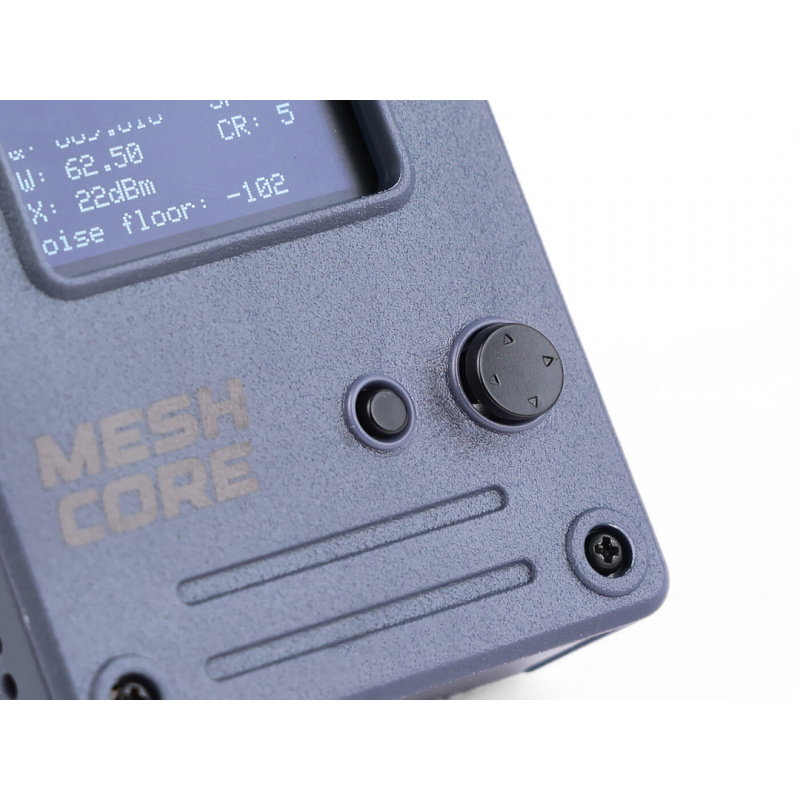

- Four-way joystick : allows you to conveniently navigate the device's functions without using additional controls
- LED indication and buzzer : makes it easier to control the charging status, solar power supply and mesh network operation
- Grove interface : UART, I2C and GPIO allow you to expand the device with additional modules and sensors
- Ready-to-Go Housing : Lightweight, off-road design eliminates the need to prepare the housing yourself

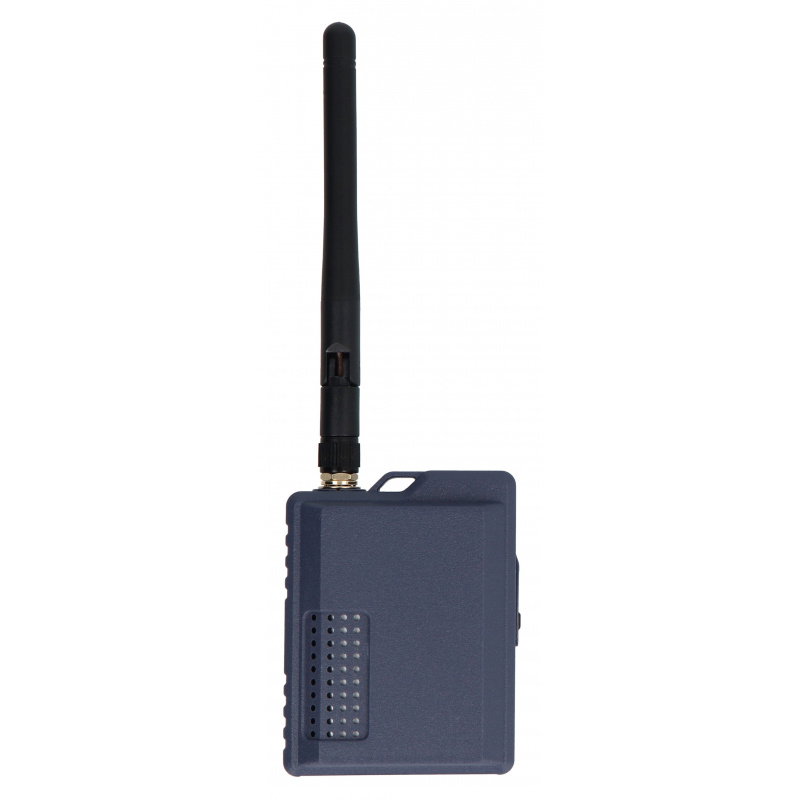

- LoRa 3 dBi Antenna : External antenna is included in the kit
MeshCore - LoRa communication without internet

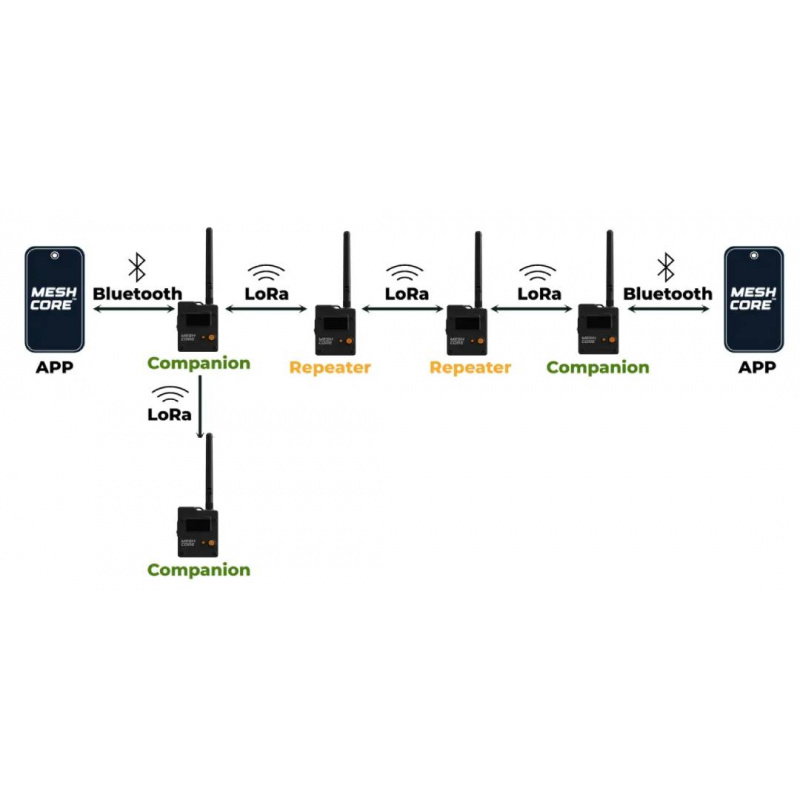

MeshCore is an open-source mesh communication system that uses LoRa technology to transmit messages without the need for Wi-Fi, cellular, or internet access. The Wio Tracker L1 Pro comes with Bluetooth Companion firmware , allowing it to function as a communication node connected via Bluetooth to a smartphone or device supporting the MeshCore app . The network can be expanded with dedicated repeaters that relay packets between users and increase the communication range. MeshCore supports public and private channels, as well as encrypted communication , making it suitable for both field applications and building your own LoRa communication infrastructure. The Wio Tracker L1 Pro also allows for the expansion of the project with Grove sensors .

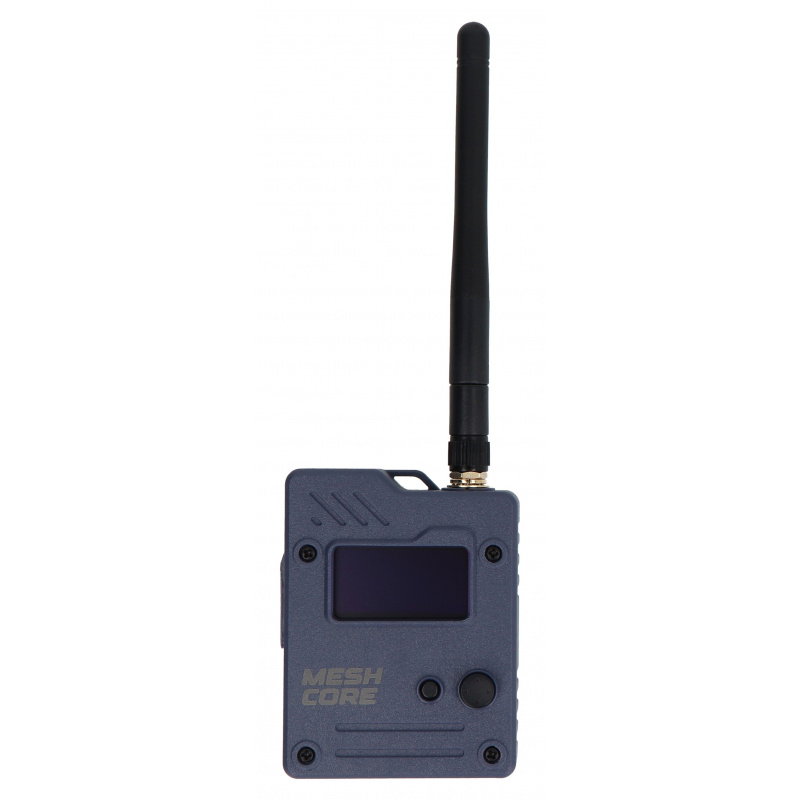

The Wio Tracker L1 Pro comes pre-loaded with MeshCore Bluetooth Companion software.
Comparison of Wio Tracker L1 series models
The Wio Tracker L1 series utilizes a common hardware platform based on the nRF52840, LoRa, and L76K GNSS receiver. Individual models differ primarily in display, power supply, and ready-to-use capabilities. This comparison is based on hardware variants. The type of pre-installed software may vary depending on the specific device version.
| Parameter | Wio Tracker L1 Lite | Wio Tracker L1 | Wio Tracker L1 Pro | Wio Tracker L1 E-Ink |
|---|---|---|---|---|
| LoRa | Yes | Yes | Yes | Yes |
| GNSS / GPS | Yes | Yes | Yes | Yes |
| Display | Lack | OLED 1.3" | OLED 1.3" | E-Ink 2.13" |
| Resolution | - | 128 x 64 px | 128 x 64 px | 122 x 250 px |
| Solar power connector | Yes | Yes | Yes | Yes |
| Battery powered | Battery connector | Battery connector | Built-in 2000 mAh battery | Battery connector |
| Case included | NO | NO | Yes | NO |
| The nature of the structure | tile for self-installation | board with OLED screen | ready-made portable device | board with E-Ink screen |

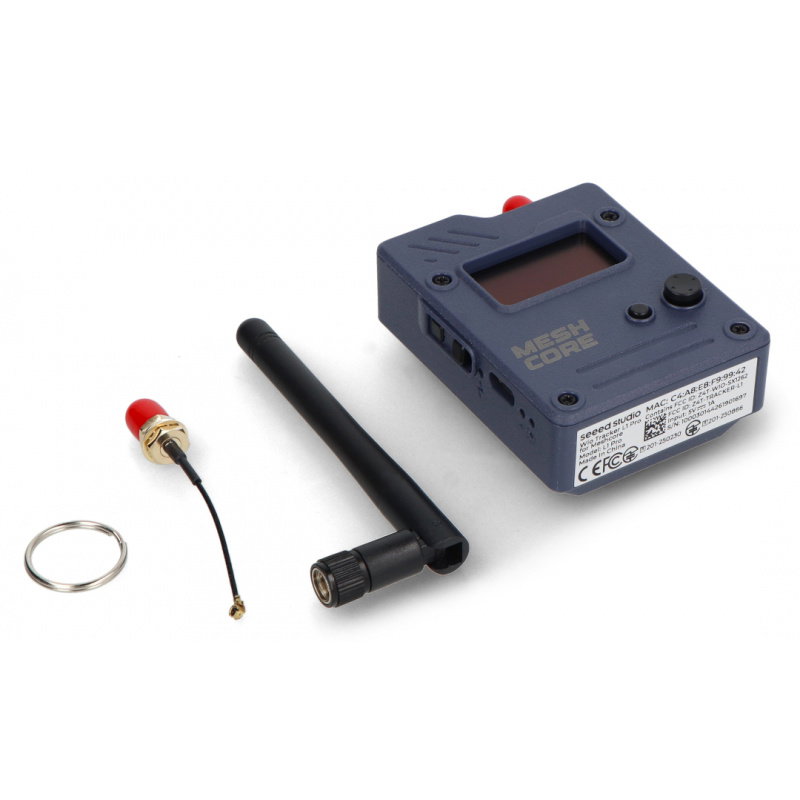

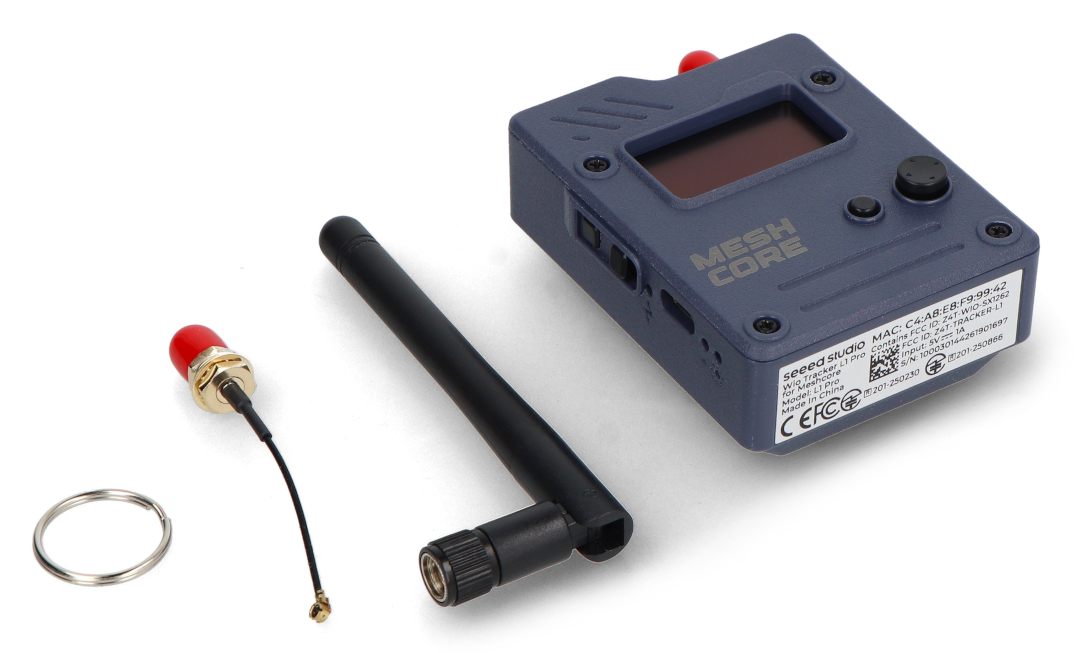

Elements included in the set.
Practical applications
The Wio Tracker L1 Pro can be used to create independent text communications outside the reach of telecommunications infrastructure . It is perfect for off-road trips, camping, Outdoor events or teamwork across a wide area. GNSS enables the device to be used to transmit location information , and the Grove port allows the project to be expanded with environmental sensors and automation components . The design is also suitable for IoT experiments, building MeshCore infrastructure, and prototyping your own devices communicating via LoRa.
Typical applications include:
- text communication outside the range of the mobile network
- hiking, cycling and off-road trips
- communication during outdoor events
- construction of local MeshCore networks
- transmitting GNSS positioning information
- IoT projects and environmental monitoring
- Grove sensor integration
- prototyping LoRa systems and mesh networks
Wio Tracker L1 Pro Technical Specifications
- Factory firmware: MeshCore Bluetooth Companion
- Microcontroller: Nordic nRF52840
- Core: ARM Cortex-M4 with FPU
- Maximum clock speed: 64 MHz
- Flash memory: 1 MB
- RAM: 256 kB
- Additional memory: QSPI Flash 2 MB
- LoRa module: Wio-SX1262 / SX1262
- LoRa frequency range: 862 MHz to 930 MHz
- LoRa antenna: 3 dBi
- Bluetooth: 5.0
- GNSS module: L76K
- Supported navigation systems: GPS, BeiDou, GLONASS, QZSS
- Display: OLED 1.3"
- Display resolution: 128 x 64 px
- Active display area: 34.5 x 23 mm
- Controls: Four-way joystick, Menu/Reset button, Power switch
- Signaling: LED diodes
- Sound signaling: passive buzzer
- Grove Interface: UART / I2C / GPIO
- Programming and debugging interface: SWD
- Communication and power connector: USB Type-C
- USB Type-C Power Supply: 5V/1A
- Solar input: 5V/1A
- Maximum solar input voltage: 5 V
- Battery: built-in, rechargeable
- Battery capacity: 2000 mAh
- Declared operating time: up to 5 days, depending on configuration and operating conditions

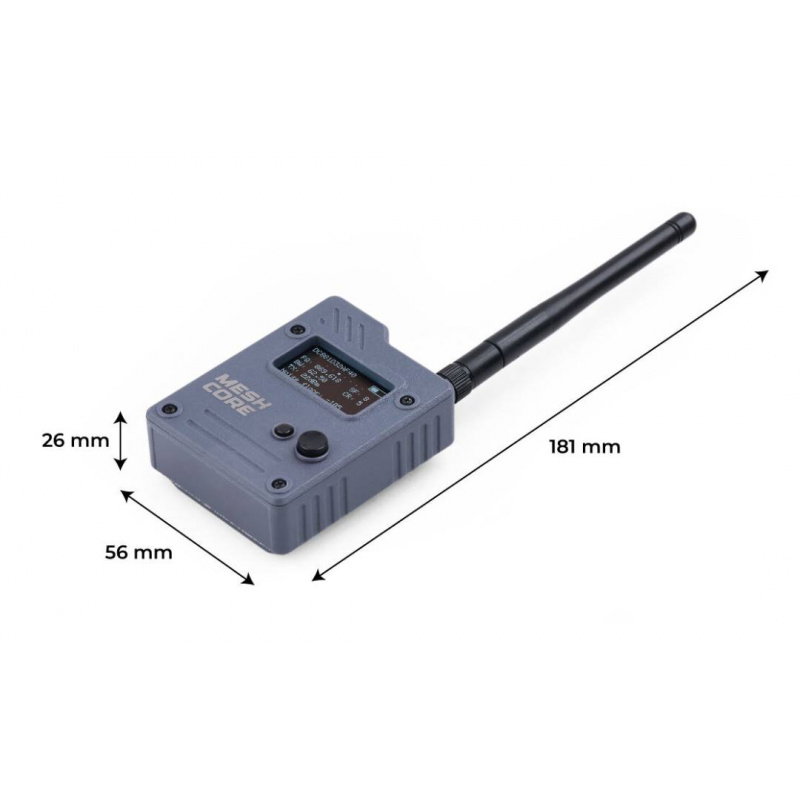

- Dimensions: 56 x 181 x 26 mm with housing and antenna
Contents of the set
- 1x Wio Tracker L1 Pro with 1.3" OLED display, case and built-in battery
- 1x LoRa Antenna
The built-in battery and solar power support enable versatile use of the Wio Tracker L1 Pro in various projects.
