Product description: WisMesh Tag - GPS tracker - Meshtastic LoRa - RAK Wireless B05046

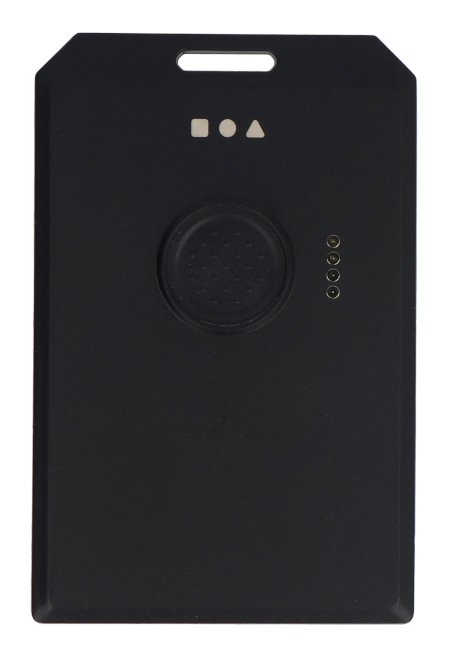

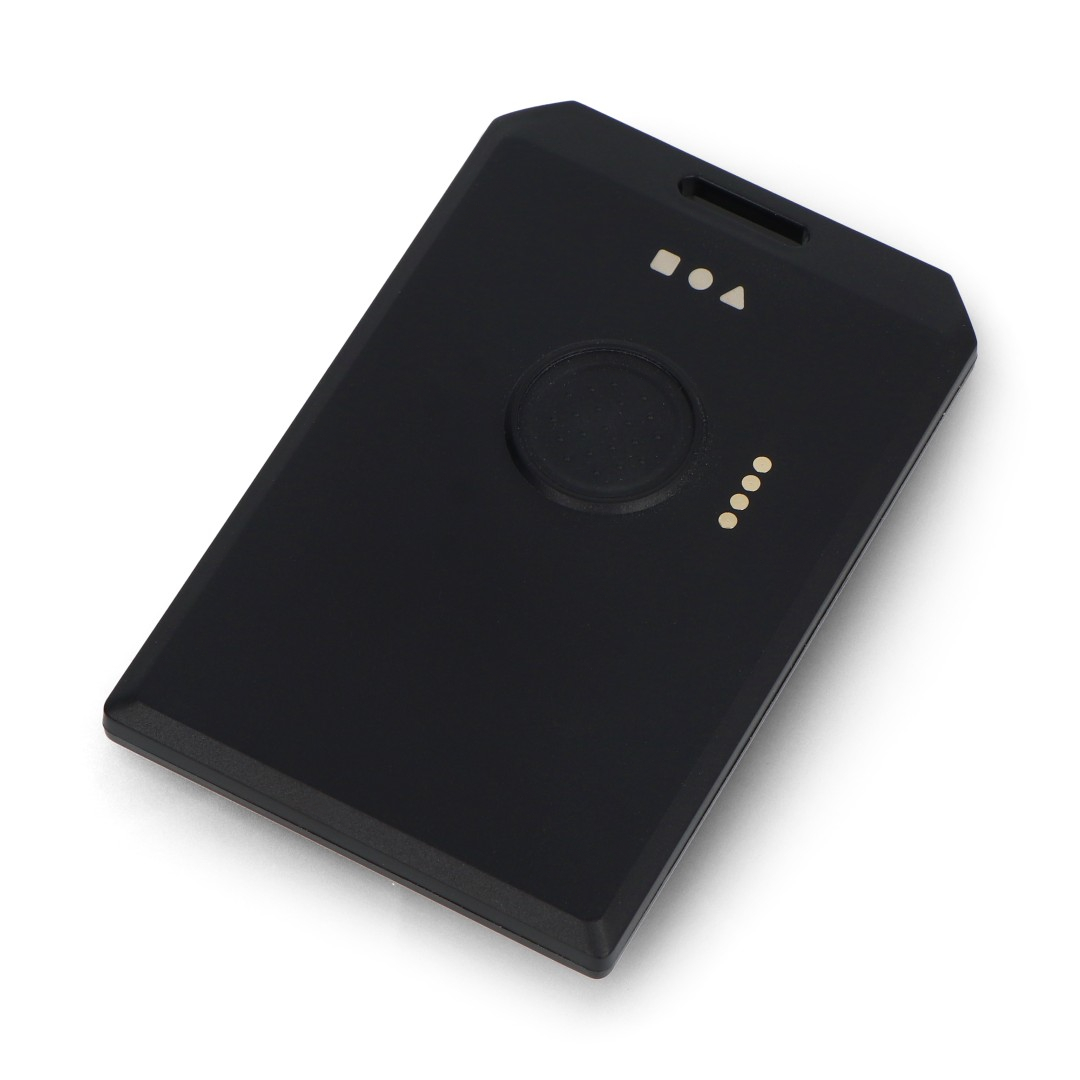

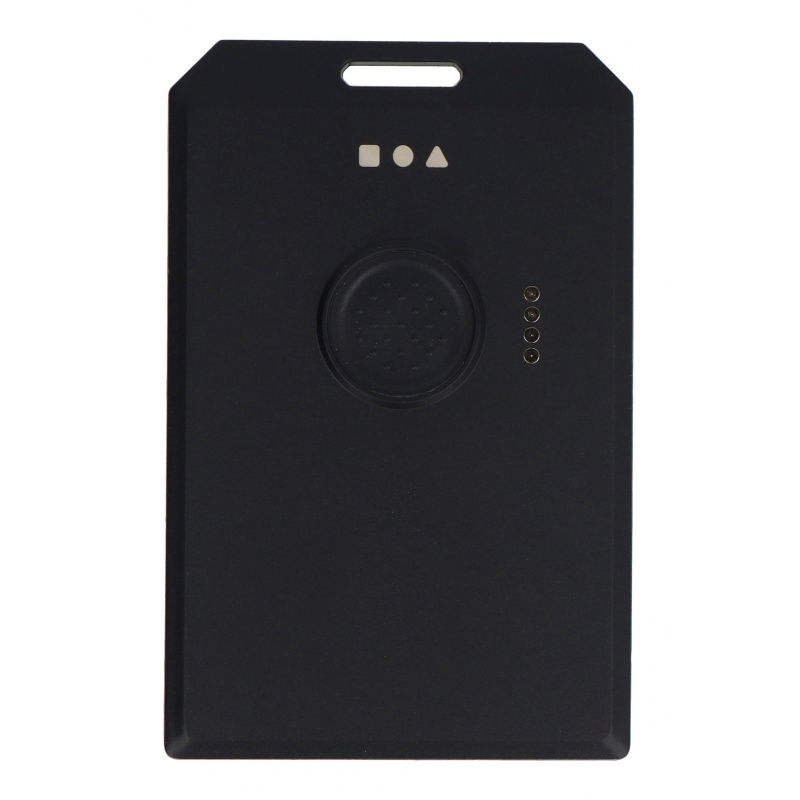

The WisMesh Tag is a compact, ready-to-use GPS tracker with Meshtastic support and LoRa communication , designed for users operating outside cellular coverage. With a built-in AT6558R GNSS module, LoRa/BLE/GPS antennas, a 1000mAh battery, and an IP66 dust- and waterproof housing , the device is suitable for any outdoor situation – from mountain expeditions to professional applications in logistics and team coordination . The device offers intuitive operation with a user button and LED indicators, and supports fast charging via a magnetic charging port. The WisMesh Tag works right out of the box – simply pair it with the Meshtastic app and start communicating on a self-contained mesh network, without the need for configuration or soldering.
WisMesh Tag - GPS tracker - Meshtastic LoRa - RAK Wireless B05046.
WisMesh Tag is a compact, ready-to-use GPS tracker with Meshtastic network support and LoRa communication.Detailed features
- Ready to work with Meshtastic - the device has pre-installed software, no configuration required
- Long operating time - 1000 mAh battery provides 2-3 days of operation with GPS active
- Fast location - built-in AT6558R GNSS module ensures quick position acquisition
- Compact size - about the size of a credit card, easy to carry in a pocket, backpack or on a lanyard
- Integrated antennas - for LoRa, BLE and GPS
- Easy charging - magnetic charging port and included USB cable
- Simple operation - convenient user button and a dedicated button for reset and bootloader mode
- LED Indicators - Show BLE, charging and activity status
- IP66 waterproof - resistant to dust, splashes and harsh weather conditions
Practical applications
- Field Location - Whether hiking, camping, cycling, or working in remote locations, WisMesh Tag allows you to share your location and send messages without the need for GSM or internet
- Coordinate teams and equipment - thanks to its compact and durable design, the device is perfect for tracking tools, vehicles, or team members on construction sites, in logistics, or during outdoor events
WisMesh Tag Technical Specifications
- Main module: nRF52840, 32-bit,
- Flash memory: 1 MB
- SRAM memory: 256 kB
- Connectivity: LoRa (SX1262), Bluetooth Low Energy
- GNSS: AT6558R
- Antennas: Built-in LoRa, BLE and GPS antennas
- Battery: 1000 mAh (working time 2 to 3 days)
- Charging port: magnetic
- Buttons: 1x user, 1x reset/bootloader
- LED indicators: BLE, charging, operation
- Protection class: IP66
- Operating temperature: -20°C to 60°C
- Dimensions: 59 x 92 x 7.5 mm

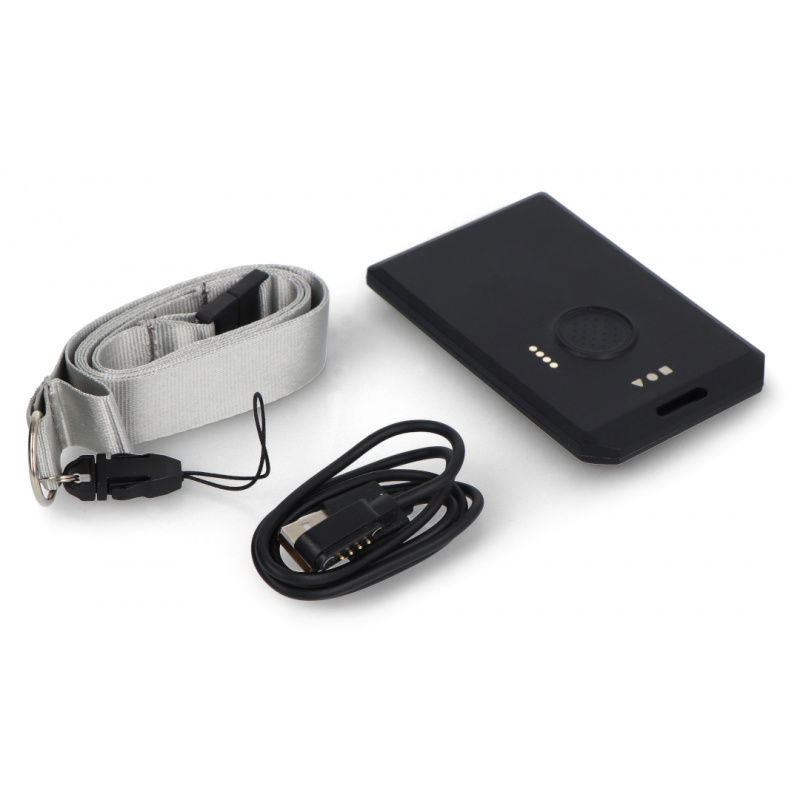

Contents of the set

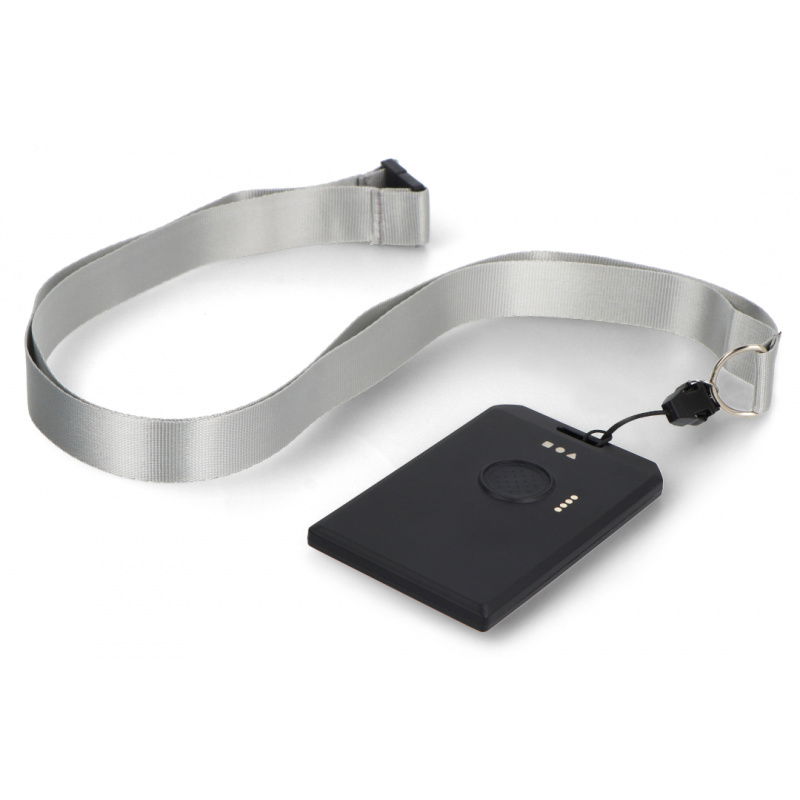

- 1x WisMesh Tag (in IP66 housing)
- 1x USB charging cable
- 1x Lanyard for hanging
WisMesh Tag works right out of the box - just pair it with the Meshtastic app and start communicating on your independent mesh network. Useful links |
