Product description: UV printer - xTool O1 Omni - Dual UV
The xTool O1 Omni Dual UV version is designed for creatives and small businesses needing a wide range of professional UV printing capabilities. Two Epson F1080 printheads work with CMYKWV and RW/FW/FR/FY channels, allowing the device to print in full color, use white for rigid and flexible substrates, varnish, and fluorescent colors . The Pixel-Scan system maps the object's location and supports design positioning with an accuracy of ±0.2 mm . The working area reaches 330 x 420 mm , and the maximum height of raised textures is 7 mm . The printer is compatible with xTool Studio on Windows and macOS , supports remote cleaning and control, and automatic mixing and circulation of white ink. The Dual UV version does not support direct DTG or DTF textile printing, but allows for UV DTF transfers with the use of an optional laminator.

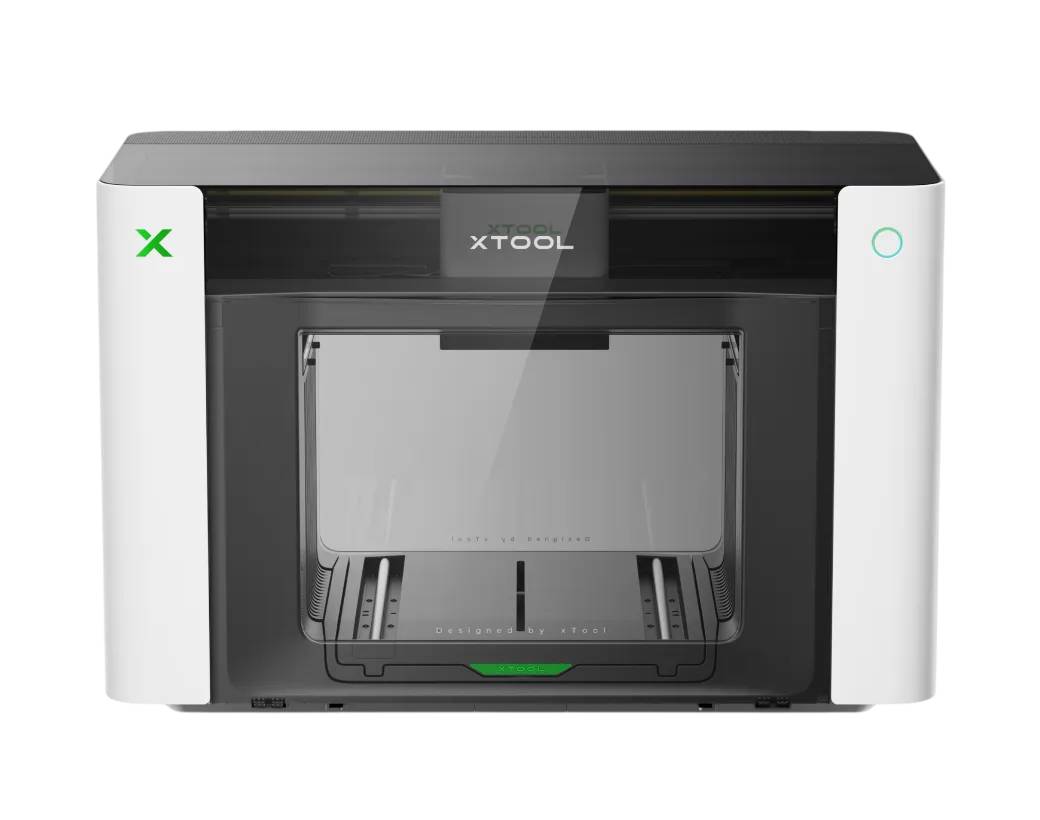

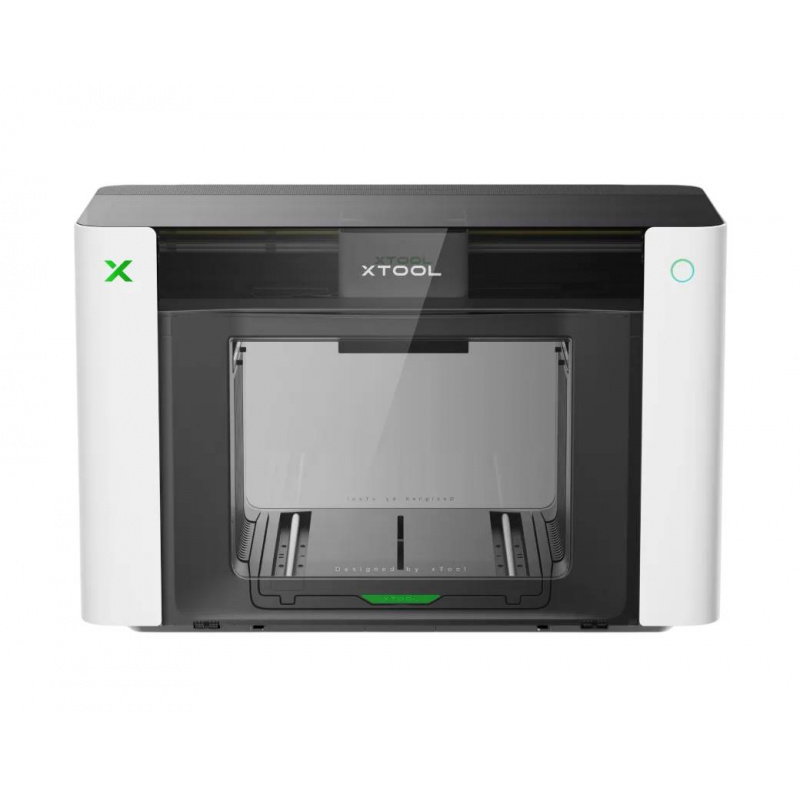

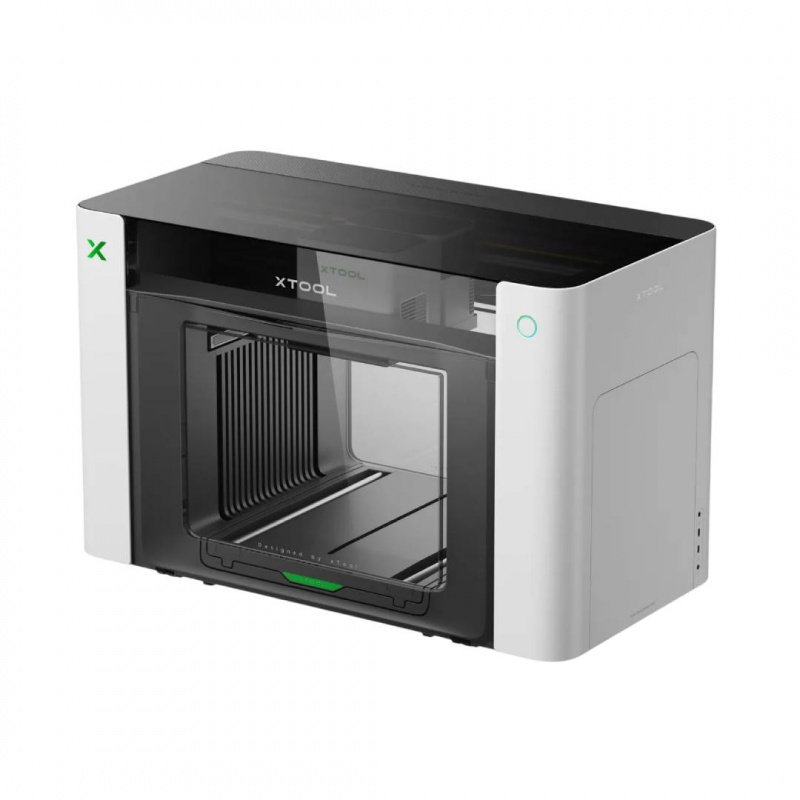

UV printer - xTool O1 Omni - Dual UV.

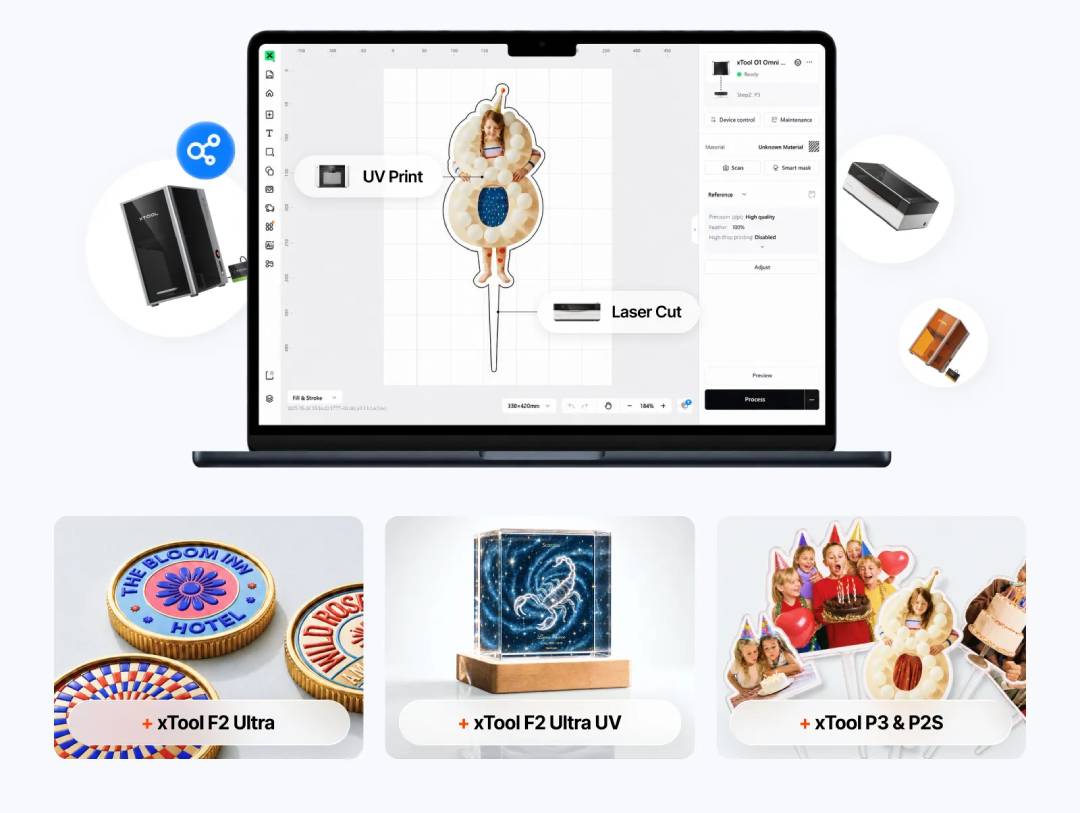

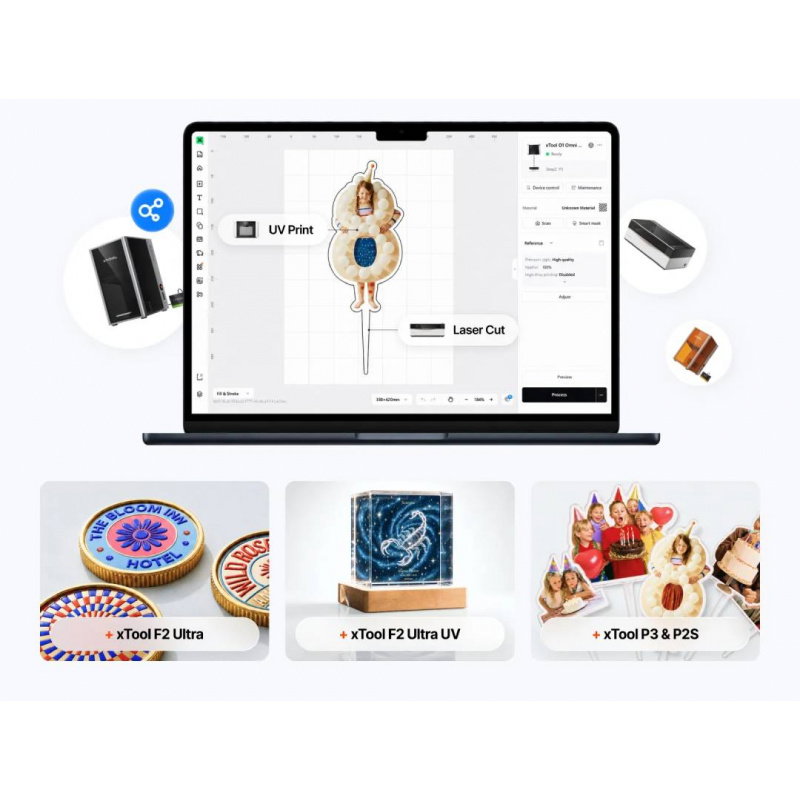

The ability to integrate with the xTool ecosystem further facilitates the combination of full-color printing with cutting and engraving.
Main features of the xTool O1 Omni Dual UV
- Two Epson F1080 printheads : enable advanced UV printing using standard and specialized ink channels
- Pixel-scan system : supports automatic surface recognition and accurate project positioning
- 3D effects : the ability to create convex structures, textures and decorative spatial elements up to 7 mm high
- Spot varnish : the ability to highlight selected parts of the design with shine and additional structure
- Lenticular effects : allow you to create prints that change appearance depending on the viewing angle
- Fluorescent printing : additional FR and FY channels enable the use of fluorescent red and yellow
- UV DTF : the printer can prepare UV DTF transfers and stickers when used with the optional xTool LM1 laminator
- Automatic maintenance : mixing and circulating white ink and protecting the printhead from drying out
- xTool Studio : project preparation, positioning and printing process management in one environment
- Library of over 2,000 textures : makes it easy to create eye-catching designs with noticeable structure
- Compatibility with xTool laser devices : the xTool Studio ecosystem allows you to combine printing with cutting and engraving on compatible devices
- Commercial-grade colors : G7-compliant color solutions support consistent color reproduction
- Certified UV ink : UV ink is GREENGUARD Gold certified
UV printing technology in xTool O1 Omni
UV printing technology involves depositing very fine drops of special ink directly onto the surface of an object. A UV lamp located near the printhead hardens the ink during printing . This allows subsequent layers to be built without long drying times. Two Epson F1080 Dual UV printheads enhance this process with additional white and fluorescent inks , allowing the device to create both classic prints and more advanced decorative effects. Ink can be applied in layers, allowing for textures and reliefs up to 7 mm high . Varnish can be used to highlight selected portions of the design and achieve glossy or matte surfaces . With separately available optional materials and accessories, it's also possible to create lamination effects and DTF UV transfers.
Optional accessories, such as the xTool OR1 rotary attachment or the xTool LM1 laminator, further expand the possibilities of printing on cylindrical objects and preparing DTF UV transfers.
The ink is applied directly to the surface of the object and hardened, allowing for durable, full-color prints to be made on finished products.
What materials can the xTool O1 Omni print on?
The Dual UV version is designed for both rigid and selected flexible materials . It can work with acrylic , wood , metal, glass, ceramics, plastics, paper, canvas, and leather , among others. For some smooth surfaces, such as glass, ceramics, metal, and acrylic, using a suitable primer can improve print adhesion . A special Flexible White (FW) channel allows for better print adaptation to materials such as leather. Cylindrical objects, such as mugs and thermoses, can be marked with the optional OR1 rotary module. Dual UV is not designed for direct-to-textile printing —for such applications, the UV + DT Fabric variant should be selected.
Precise positioning and professional color reproduction
The printer's vision system operates at a resolution of 1440 x 1200 dpi and supports print positioning with an accuracy of ±0.2 mm . The scanning module analyzes the surface of the placed object, allowing the design to be more precisely adjusted to its position and shape. This is particularly useful for personalizing finished products, where even the slightest misalignment can be visible. Graphics are reproduced with a print resolution of 720 x 1440 dpi and an extensive set of ink channels. In addition to standard CMYK colors, white, varnish, and fluorescent red and yellow are available, allowing for the creation of prints difficult to achieve with basic UV printers. Commercial-grade color solutions and compliance with the G7 standard help maintain color consistency between projects.

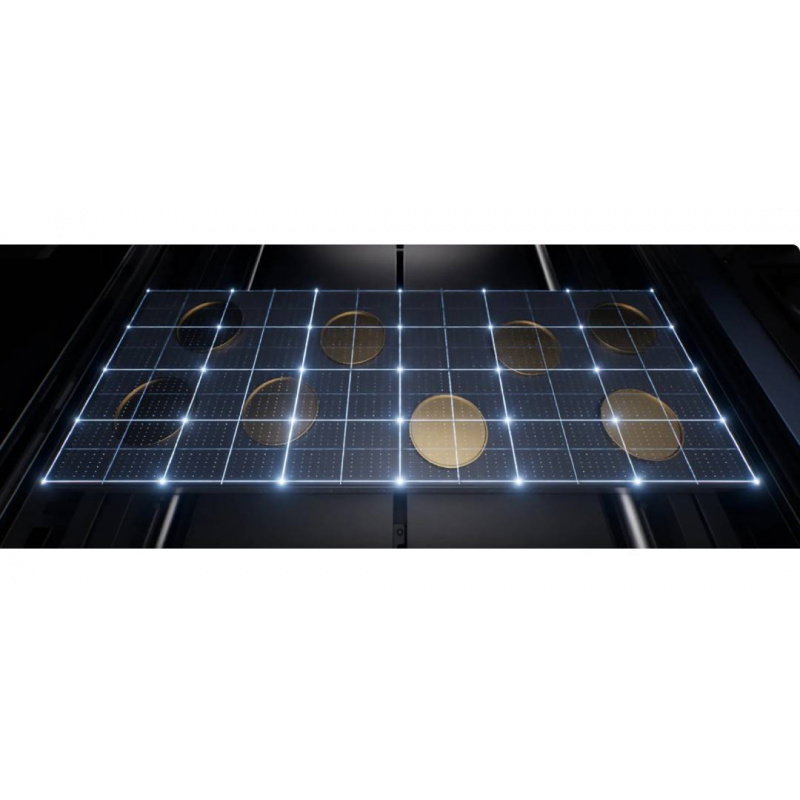

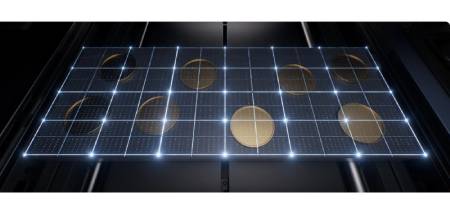

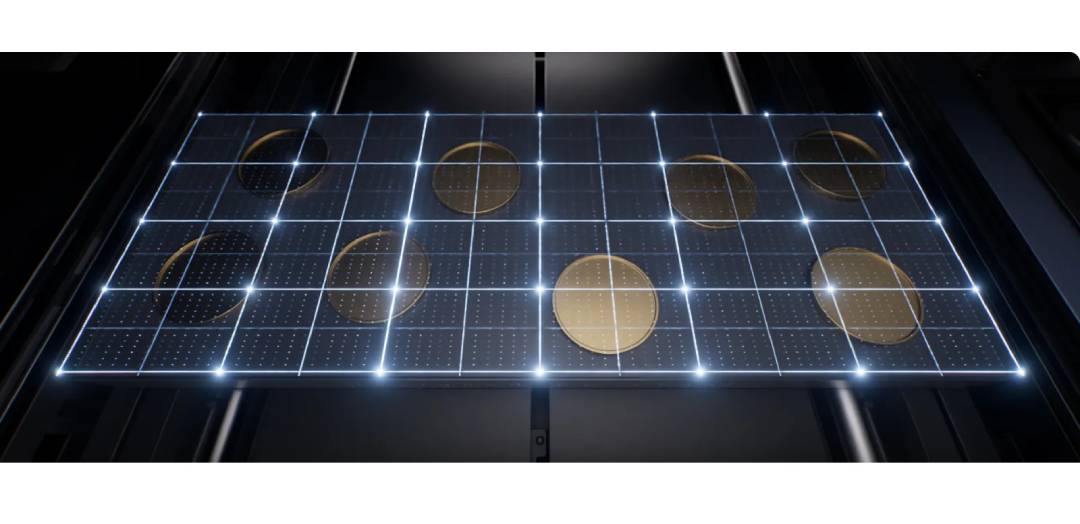

The Pixel-Scan system combines full-field laser scanning with CIS imaging to map the object's location without typical camera distortion.

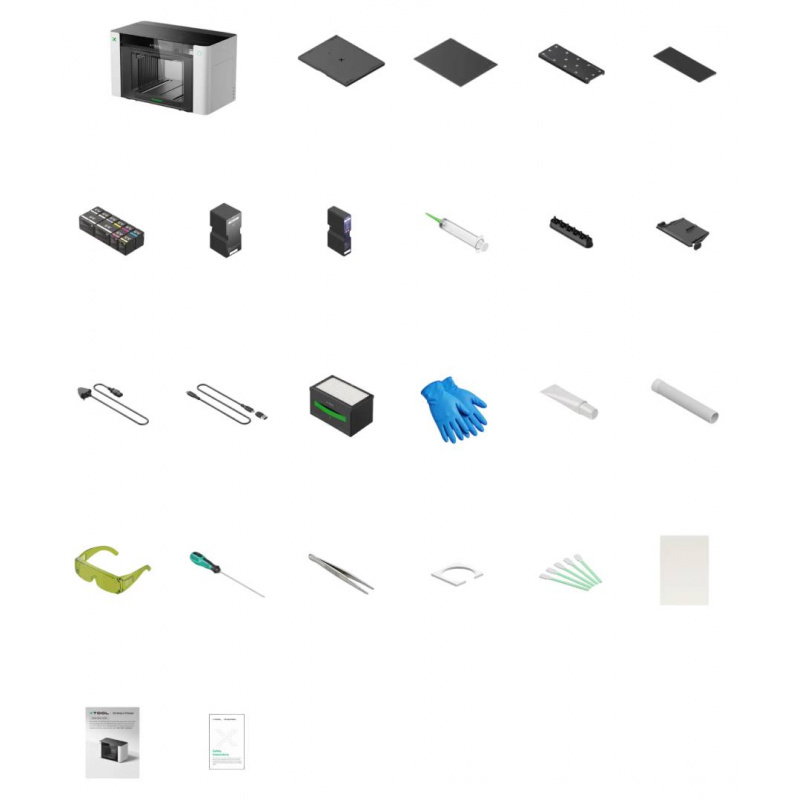

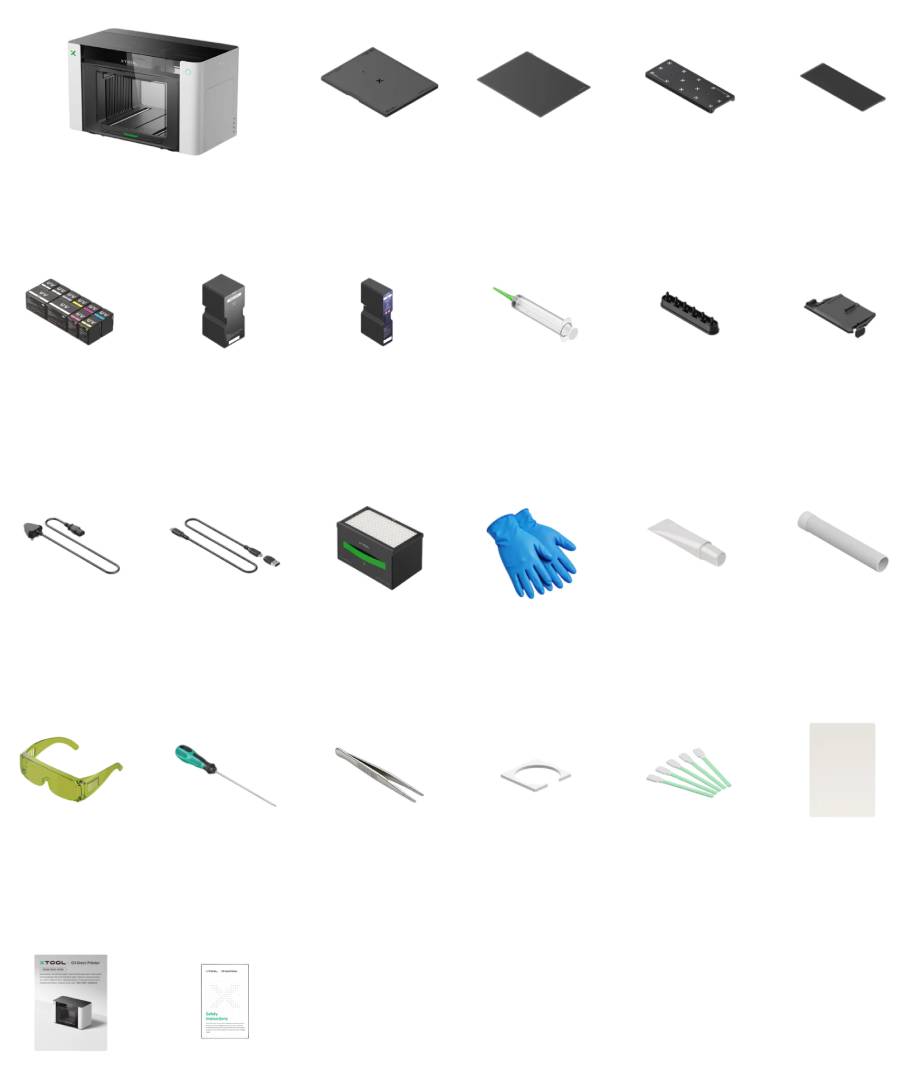

Elements included in the set.Contents of the set
- xTool O1 Omni Dual UV Printer
- Standard base plate
- Standard self-adhesive mat
- Mini base plate
- Mini self-adhesive mat
- UV ink cartridge set
- UV moisturizing fluid insert
- Waste ink cartridge
- Ink extractors - 18 pcs., including 4 spares
- Ink tube caps - 4 pcs.
- Spare ink scrapers - 2 pcs.
- Power cord
- USB cable
- Filter
- Nitrile gloves
- Lubricating oil
- Air exhaust pipe
- Goggles
- Screwdriver
- Tweezers
- Ink absorber foams - 4 pcs.
- Cleaning sticks
- Magnets - 3 pcs.
- Quick Start Guide
- Safety instructions
| xTool O1 Omni Technical Specifications and Comparison | |||
|---|---|---|---|
| Parameter | UV + DT Fabric Edition | Dual-Head UV Edition | Single UV Edition |
| Destiny | for users printing on both clothing and rigid materials | for users focusing on advanced UV printing and fluorescent effects | for users starting to work with the personalization of rigid materials |
| Working field | Standard print area: 330 x 122 mm Enlarged print area: 330 x 420 mm DTG work plate: 300 x 390 mm | Standard print area: 330 x 122 mm Enlarged print area: 330 x 420 mm | Standard print area: 330 x 122 mm Enlarged print area: 330 x 420 mm |
| Print head | 2 x Epson F1080 | 2 x Epson F1080 | 1 x Epson F1080 |
| Print resolution | 720 x 1440 dpi | 720 x 1440 dpi | 720 x 1440 dpi |
| Ink channels | UV: CMYKWVDT Textiles: CMYKWW V - 3-in-1 varnish: matte, glossy and foil effect | CMYKWV + RW/FW/FR/FY RW - white ink for rigid materials FW - flexible white ink FR - Fluorescent Red FY - fluorescent yellow V - 3-in-1 varnish: matte, glossy and foil effect | CMYKWV V - 3-in-1 varnish: matte, glossy and foil effect |
| Ink capacity | standard refill: 125 ml increased capacity white ink: 290 ml | standard refill: 125 ml increased capacity white ink: 290 ml | standard refill: 125 ml |
| Supported materials | rigid materials and textiles, including acrylic, wood, metal, cotton, polyester | rigid and flexible materials, including acrylic, leather, wood, canvas | basic rigid materials, including acrylic, wood, metal, glass, ceramics |
| Fluorescent color printing | NO | Yes | NO |
| Creating UV DTF stickers, transfers, and decals | yes - requires a laminator | yes - requires a laminator | yes - requires a laminator |
| Maximum height of raised print | 7 mm | 7 mm | 7 mm |
| Vision system resolution | 1440 x 1200 dpi | 1440 x 1200 dpi | 1440 x 1200 dpi |
| Positioning accuracy | ±0.2 mm | ±0.2 mm | ±0.2 mm |
| Security and certificates | reprotoxic-free ink, GREENGUARD Gold certified UV ink, DT Fabric ink | reprotoxic-free ink, GREENGUARD Gold certified UV ink | reprotoxic-free ink, GREENGUARD Gold certified UV ink |
| Automatic maintenance | automatic white ink mixing, automatic white ink circulation, automatic head protection against drying out | automatic white ink mixing, automatic white ink circulation, automatic head protection against drying out | automatic white ink mixing, automatic white ink circulation, automatic head protection against drying out |
| Supported operating systems | macOS, Windows | macOS, Windows | macOS, Windows |
| Remote management | remote cleaning and control via app | remote cleaning and control via app | remote cleaning and control via app |
| Main unit dimensions | 714 x 374 x 468.5 mm | 714 x 374 x 468.5 mm | 714 x 374 x 468.5 mm |
| Mass | 41.12 kg | 41.12 kg | 40.6 kg |
