Product description: UV printer - xTool O1 Omni - Single UV
The xTool O1 Omni Single UV is designed for precise UV printing on rigid objects and flat surfaces . A single Epson F1080 printhead uses CMYKWV ink, enabling the creation of full-color prints, white underprints, varnish, and textured and raised effects. The Pixel-Scan system maps the object's location and supports design positioning with an accuracy of ±0.2 mm . The working area reaches 330 x 420 mm , and the maximum structured print height is 7 mm . The printer works with xTool Studio on Windows and macOS , supports remote cleaning and control, and automatic mixing and circulation of white ink. The Single UV version does not support DTG, DTF on textiles, or fluorescent inks.

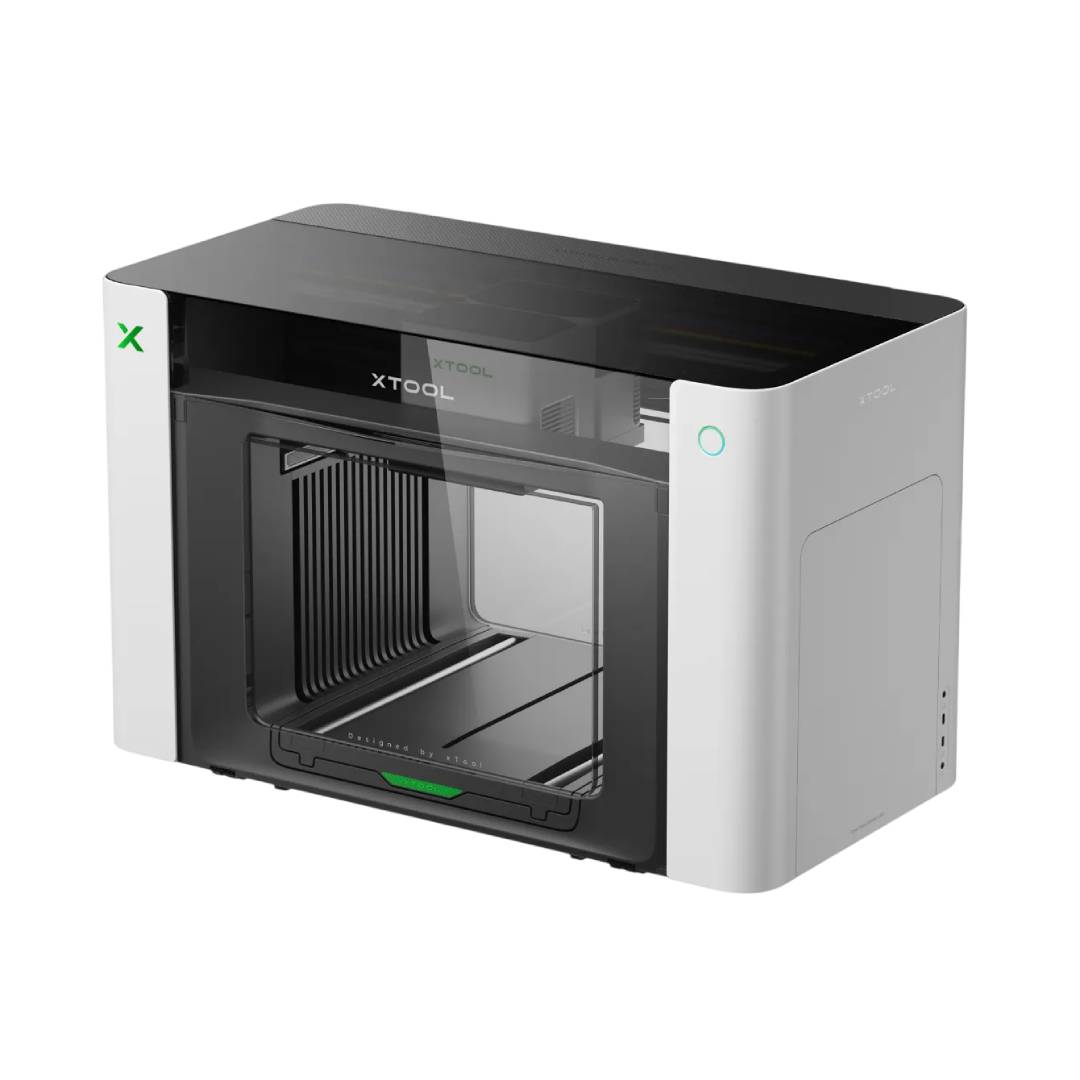

UV printer - xTool O1 Omni - Single UV.
The ability to integrate with the xTool ecosystem further facilitates the combination of full-color printing with cutting and engraving.
Main features of the xTool O1 Omni Single UV
- Printhead : single Epson F1080 designed for UV printing
- Print resolution : 720 x 1440 dpi ensuring accurate reproduction of graphics, inscriptions and fine details
- Pixel-Scan Vision System : full-area laser detection combined with CIS imaging
- 3D effects : possibility of making raised prints up to 7 mm high
- Spot varnish : the ability to highlight selected parts of the design with shine and additional structure
- Lenticular effects : the ability to create graphics that change appearance depending on the viewing angle using the appropriate material
- Foiling Effects : Gold, silver and holographic finishes can be achieved using appropriate materials and the optional xTool LM1 laminator
- DTF UV Transfers : Available with optional laminator and appropriate transfer materials
- Automatic maintenance : mixing and circulating white ink and protecting the printhead from drying out
- xTool Studio : project preparation, positioning and printing process management in one environment
- Texture Library : Over 2,000 built-in textures for creating decorative and embossed surfaces

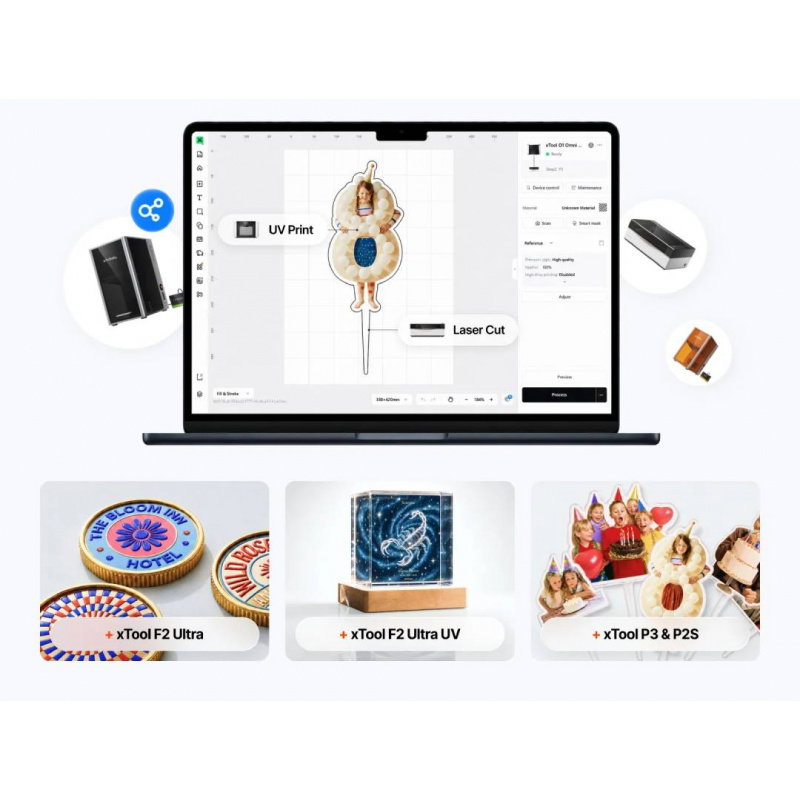

- Integration with the xTool ecosystem : possibility of combining printing with cutting and engraving on compatible laser devices
- Certified UV ink : UV ink is GREENGUARD Gold certified
UV printing technology in xTool O1 Omni Single UV
The xTool O1 Omni Single UV utilizes a single Epson F1080 printhead to apply successive layers of color ink, white, and varnish directly to the object's surface . It enables printing at a resolution of 720 x 1440 dpi . The ink is cured using a UV process , enabling the creation of durable, multi-color prints and multi-layer structures. The white ink channel can act as a base coat for color on dark and transparent surfaces, while the varnish provides gloss, additional texture, or a spot finish. The Single UV version also supports DTF UV transfers , but their full production requires the use of appropriate materials and an optional laminator, such as the xTool LM1. DTG and classic DTF technologies intended for garment printing are not supported by this version ; they are available in the UV + DT Fabric Edition. Fluorescent printing and a special white ink for more flexible surfaces are offered in the Dual-Head UV Edition.
Optional accessories, such as the xTool OR1 rotary attachment or the xTool LM1 laminator, further expand the possibilities of printing on cylindrical objects and preparing DTF UV transfers.
In UV mode, the ink is applied directly to the surface of a rigid object and cured, allowing for durable, full-color prints on finished products.
UV printing materials for xTool O1 Omni
The Single UV version is designed for personalizing rigid materials . The manufacturer recommends acrylic , wood , metal, glass, ceramics, paper, and selected plastics , making the printer suitable for decorations, signs, promotional items, and personalized consumer items. Material selection and surface preparation directly impact print adhesion and durability . For smooth surfaces such as acrylic, glass, ceramics, or metal, it is recommended to use a properly selected primer to improve print adhesion . Raw and porous wood, however, may require prior surface sealing . Plastic compatibility depends on the specific material type, so it's recommended to conduct a test on the target surface before producing a larger batch. The range of applications can be expanded with additional accessories. The optional xTool OR1 rotary attachment allows for personalizing compatible cylindrical objects, such as cups and containers. Furthermore, DTF UV transfers allow for transferring graphics to surfaces that are difficult to place directly in the printer's workspace.

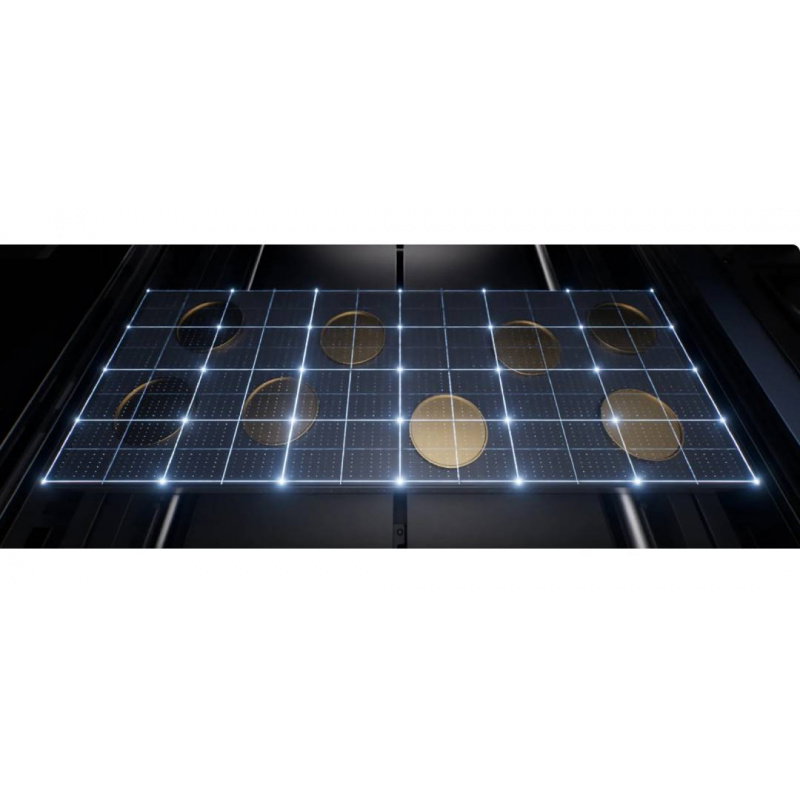

Pixel-Scan Vision System - precise print positioning
The Pixel-Scan Vision system combines laser detection of the entire workspace with CIS imaging. This solution reduces the typical perspective distortions associated with traditional camera viewing and allows for a more accurate representation of the actual size and position of the object . The vision system's resolution is 1440 x 1200 dpi , and the declared positioning accuracy is ±0.2 mm . In practice, you can place the object in the device, and the system scans its position and helps align the design without the need to manually align the graphics "by eye." This is particularly useful when personalizing irregularly shaped elements, producing short runs, and printing in a precisely defined location. This simplifies job preparation, even for those who have not previously used a professional UV printer.
The Pixel-Scan system combines full-field laser scanning with CIS imaging to map the object's location without typical camera distortion.

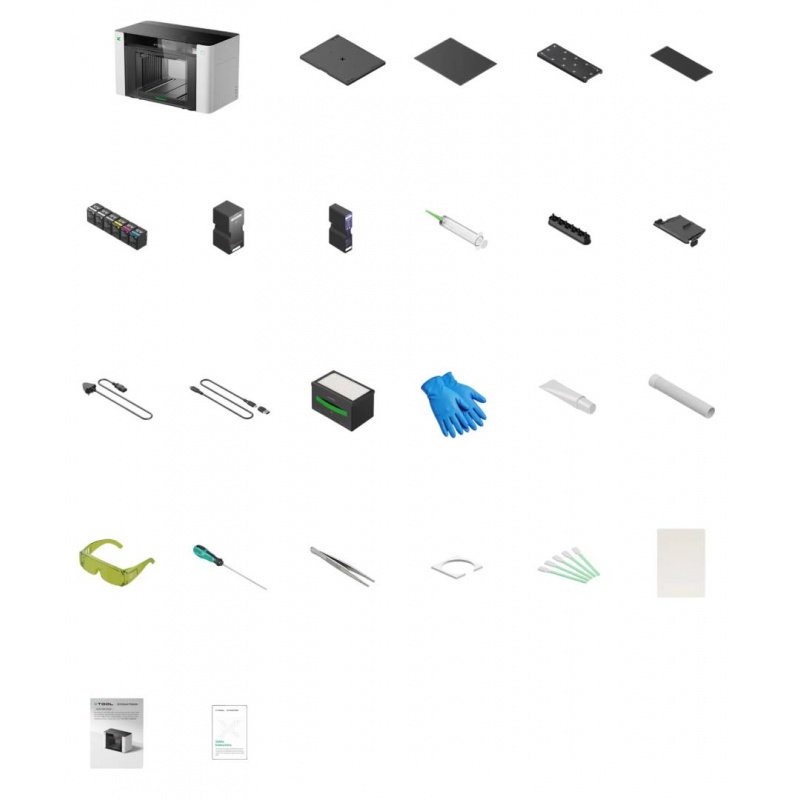

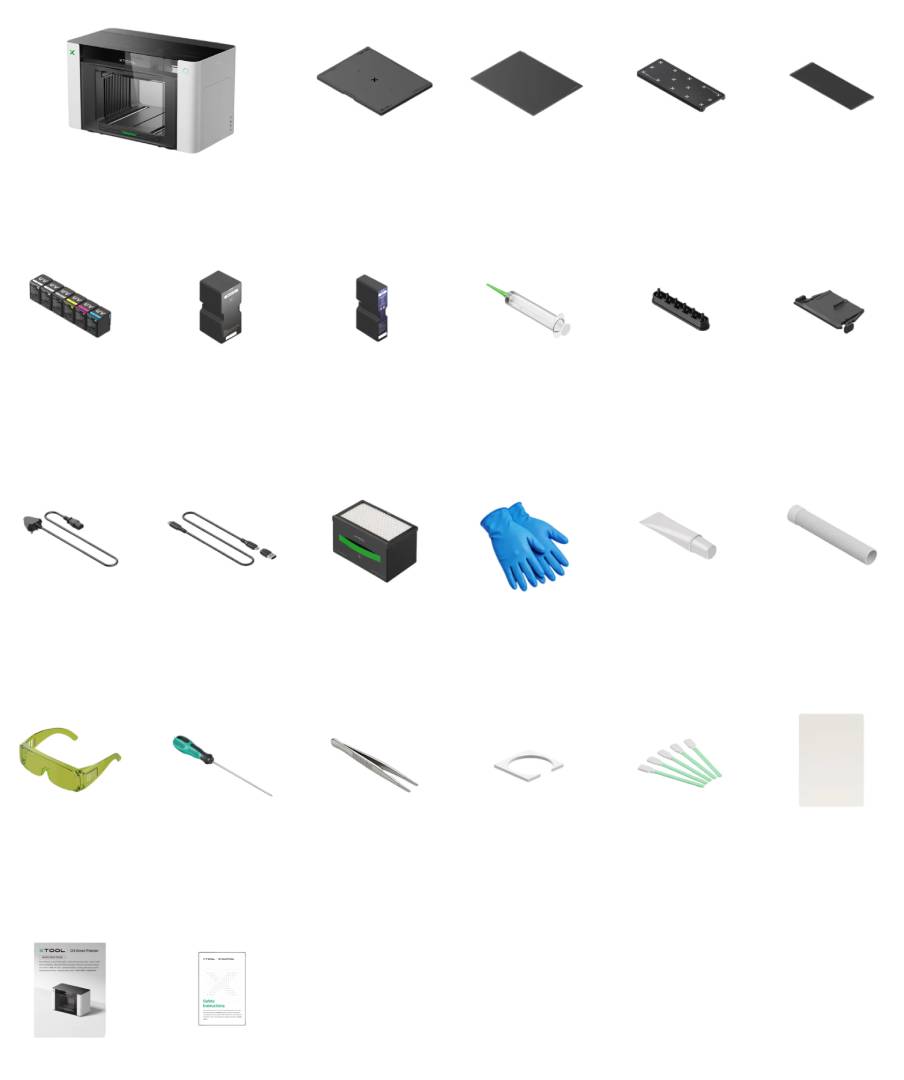

Elements included in the set.
Contents of the set
- xTool O1 Omni Printer Single UV
- Standard base plate
- Standard self-adhesive mat
- Mini base plate
- Mini self-adhesive mat
- UV Cyan ink cartridge - 125 ml
- UV Magenta Ink Cartridge - 125 ml
- UV Yellow ink cartridge - 125 ml
- UV Black ink cartridge - 125 ml
- White UV ink cartridge - 125 ml
- UV varnish cartridge - 125 ml
- UV moisturizing fluid refill - 260 ml
- Waste ink cartridge
- Ink extractors - 11 pcs., including 4 spares
- Ink tube caps - 2 pcs.
- Spare ink scrapers - 2 pcs.
- Power cord
- USB cable
- Filter
- Nitrile gloves
- Lubricating oil
- Air exhaust pipe
- Goggles
- Screwdriver
- Tweezers
- Ink absorber foams - 4 pcs.
- Cleaning stick
- Magnets - 3 pcs.
- Quick Start Guide
- Safety instructions
| xTool O1 Omni Technical Specifications and Comparison | |||
|---|---|---|---|
| Parameter | UV + DT Fabric Edition | Dual-Head UV Edition | Single UV Edition |
| Destiny | for users printing on both clothing and rigid materials | for users focusing on advanced UV printing and fluorescent effects | for users starting to work with the personalization of rigid materials |
| Working field | Standard print area: 330 x 122 mm Enlarged print area: 330 x 420 mm DTG work plate: 300 x 390 mm | Standard print area: 330 x 122 mm Enlarged print area: 330 x 420 mm | Standard print area: 330 x 122 mm Enlarged print area: 330 x 420 mm |
| Print head | 2 x Epson F1080 | 2 x Epson F1080 | 1 x Epson F1080 |
| Print resolution | 720 x 1440 dpi | 720 x 1440 dpi | 720 x 1440 dpi |
| Ink channels | UV: CMYKWVDT Textiles: CMYKWW V - 3-in-1 varnish: matte, glossy and foil effect | CMYKWV + RW/FW/FR/FY RW - white ink for rigid materials FW - flexible white ink FR - Fluorescent Red FY - fluorescent yellow V - 3-in-1 varnish: matte, glossy and foil effect | CMYKWV V - 3-in-1 varnish: matte, glossy and foil effect |
| Ink capacity | standard refill: 125 ml increased capacity white ink: 290 ml | standard refill: 125 ml increased capacity white ink: 290 ml | standard refill: 125 ml |
| Supported materials | rigid materials and textiles, including acrylic, wood, metal, cotton, polyester | rigid and flexible materials, including acrylic, leather, wood, canvas | basic rigid materials, including acrylic, wood, metal, glass, ceramics |
| Fluorescent color printing | NO | Yes | NO |
| Creating stickers, UV DTF transfers and decals | yes - requires a laminator | yes - requires a laminator | yes - requires a laminator |
| Maximum height of raised print | 7 mm | 7 mm | 7 mm |
| Vision system resolution | 1440 x 1200 dpi | 1440 x 1200 dpi | 1440 x 1200 dpi |
| Positioning accuracy | ±0.2 mm | ±0.2 mm | ±0.2 mm |
| Security and certificates | reprotoxic-free ink, GREENGUARD Gold certified UV ink, DT Fabric ink | reprotoxic-free ink, GREENGUARD Gold certified UV ink | reprotoxic-free ink, GREENGUARD Gold certified UV ink |
| Automatic maintenance | automatic white ink mixing, automatic white ink circulation, automatic head protection against drying out | automatic white ink mixing, automatic white ink circulation, automatic head protection against drying out | automatic white ink mixing, automatic white ink circulation, automatic head protection against drying out |
| Supported operating systems | macOS, Windows | macOS, Windows | macOS, Windows |
| Remote management | remote cleaning and control via app | remote cleaning and control via app | remote cleaning and control via app |
| Main unit dimensions | 714 x 374 x 468.5 mm | 714 x 374 x 468.5 mm | 714 x 374 x 468.5 mm |
| Mass | 41.12 kg | 41.12 kg | 40.6 kg |
