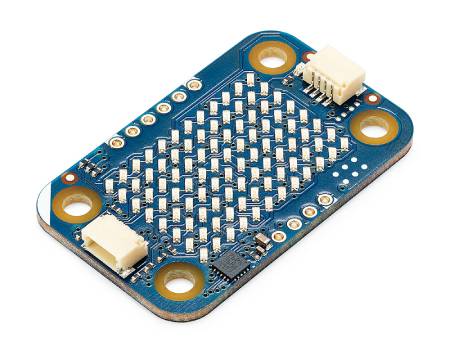

Arduino Modulino LED Matrix - programmable 8x12 LED matrix - Qwiic - ABX00152
The Modulino LED Matrix is a compact LED display module featuring an 8x12 matrix of 96 blue LEDs . It can display text, icons, animations, and simple graphics. Thanks to Qwiic connectors and I2C communication, the module can be quickly connected to Arduino boards and other compatible 3.3V devices.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Arduino Modulino Led Matrix - programmable LED matrix 8x12 - Qwiic - ABX00152
The Modulino LED Matrix ABX00152 is designed for quick integration with the Arduino ecosystem and Modulino modules. The display uses an 8x12 LED matrix — 96 individually controllable blue LEDs —that allows for the presentation of text, icons, animations, and simple graphics. The module offers functionality compatible with the LED matrix built into the Arduino UNO R4 WiFi board, making it easy to use pre-built examples and code. The display is controlled by an STM32C011F4U6TR microcontroller, which supports charlieplexing and I2C communication. Thanks to the ability to programmatically change the I2C address , multiple Modulino LED Matrix modules can be used in a single project .
Arduino Modulino Led Matrix - programmable LED matrix 8x12 - Qwiic - ABX00152.
Botland is an official distributor of the Arduino development platform in Poland. We offer a wide choice of boards, modules and accessories from this popular brand, along with tutorials and a knowledge base for users. All Arduino products presented here are original.

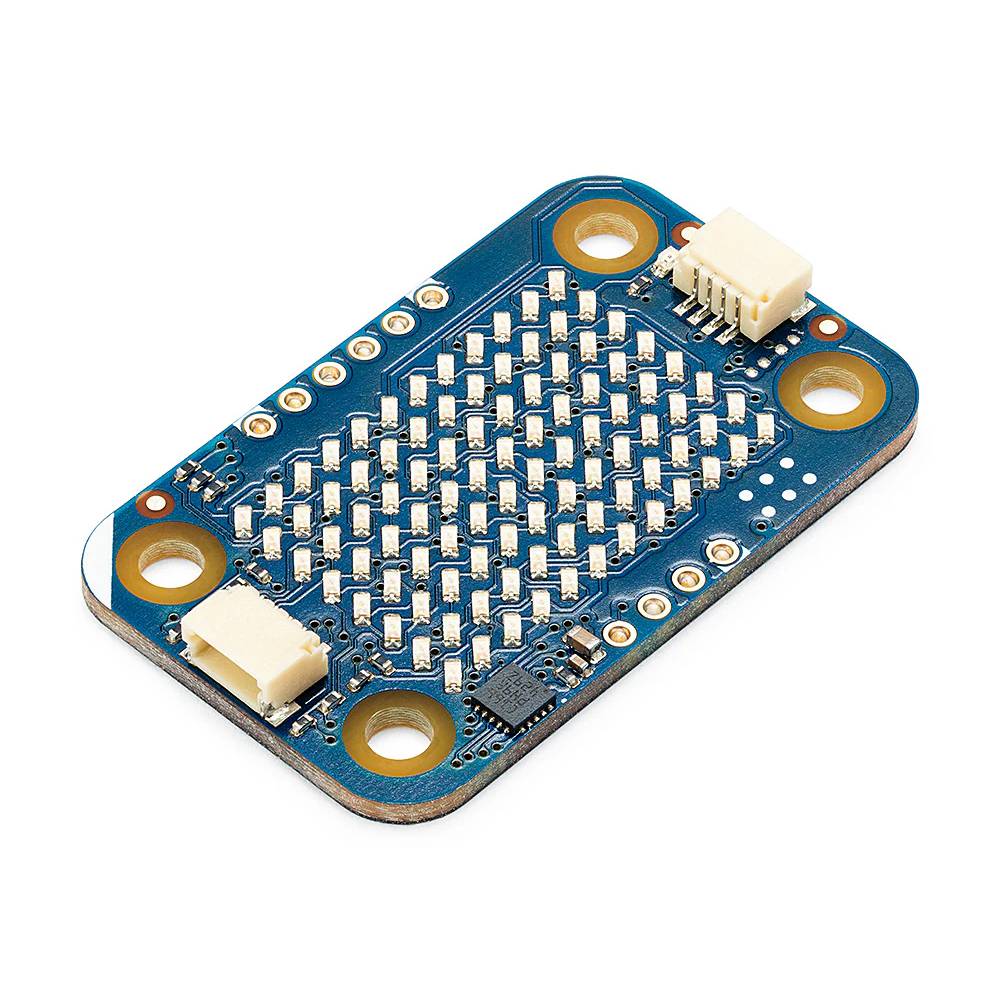

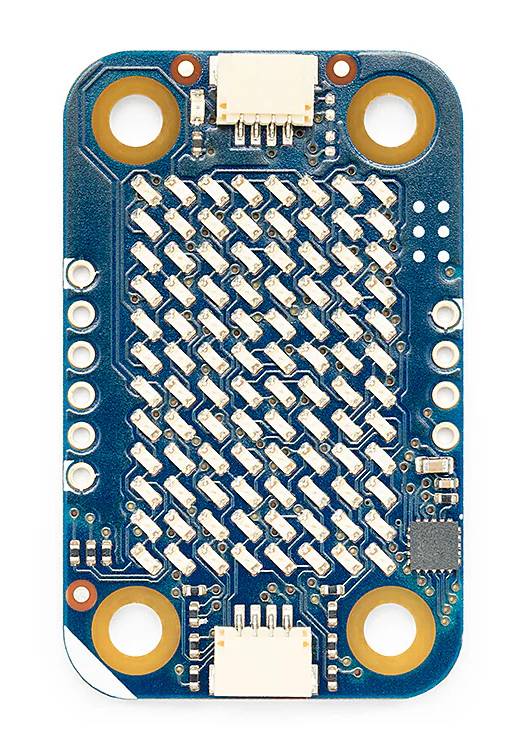

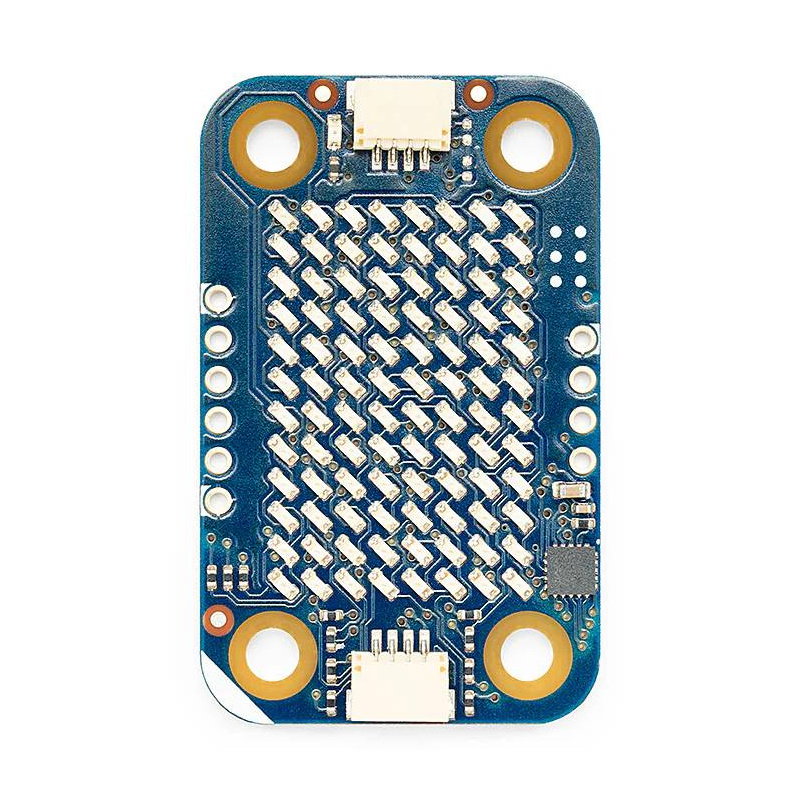

The display uses an 8x12 LED matrix (96 diodes).
Main features of the LED matrix
- 8x12 LED Matrix : 96 individually controllable blue LEDs
- Compatibility with Arduino UNO R4 WiFi : functionality compatible with the built-in LED matrix of this board
- I2C communication : fast data exchange via Qwiic connectors
- Programmable I2C address : possibility of connecting several modules to one bus
- Animation and graphics support : display text, icons, patterns, and visual effects
- Grayscale mode : Supports 16 brightness levels for more advanced animations
- Ready to use : the module is pre-assembled and comes with a Qwiic cable
- Integration with the Arduino ecosystem : interoperability with Arduino IDE, Arduino Cloud and MicroPython
Qwiic connectivity and module pinout
The Modulino LED Matrix uses Qwiic connectors , which allow you to quickly connect the module to compatible Arduino boards without complicated wiring. Communication is via the I2C bus, and the module operates at 3.3V . Daisy-chain technology allows you to connect multiple Modulino modules in a single system. The board also includes I2C bus pads: SDA , SCL , 3.3V , and GND . Additional SWD service pins are used for diagnostics and programming the STM32 microcontroller. The module is compatible with Arduino UNO R4 WiFi, Arduino UNO Q, Nano ESP32, Nano RP2040 Connect, Nano 33 BLE, Nano 33 BLE Sense, Nano 33 IoT, and Nano Matter, among others . For Arduino Nano boards, a convenient solution is to use the Arduino Nano Connector Carrier , which provides Qwiic connectors. The module can also work with other Qwiic devices, provided that the voltage is 3.3 V compatible. Programmatic change of the I2C address allows you to avoid address conflicts in more complex projects.

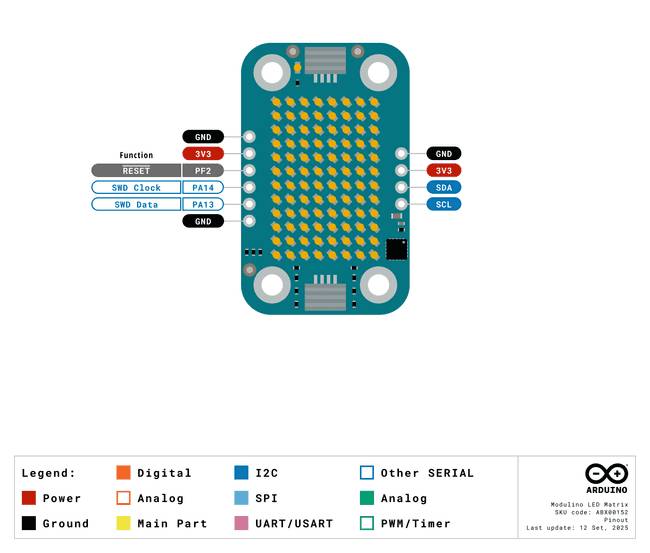

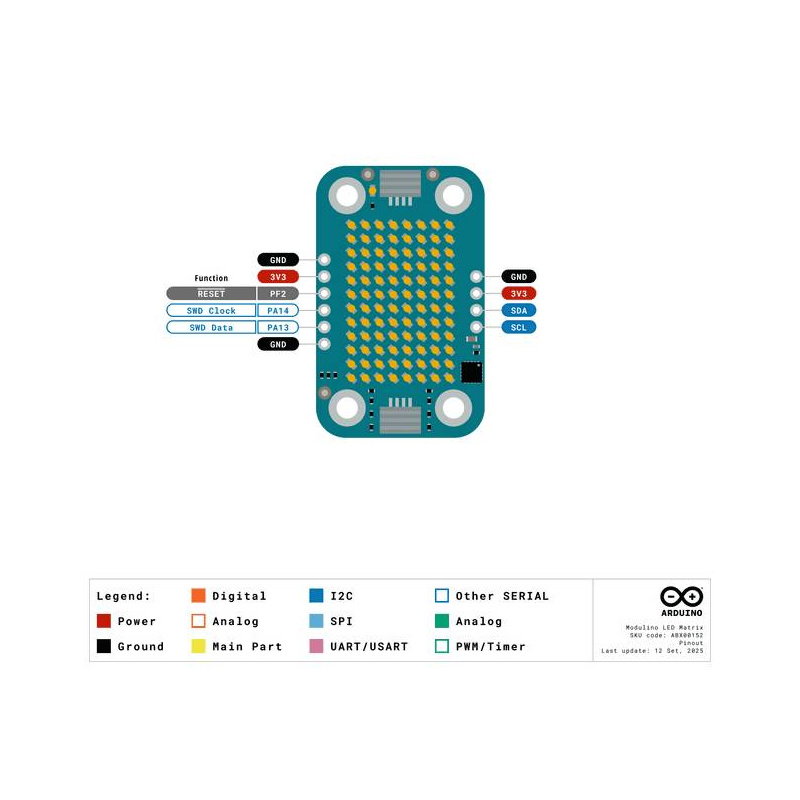

Pinout diagram.

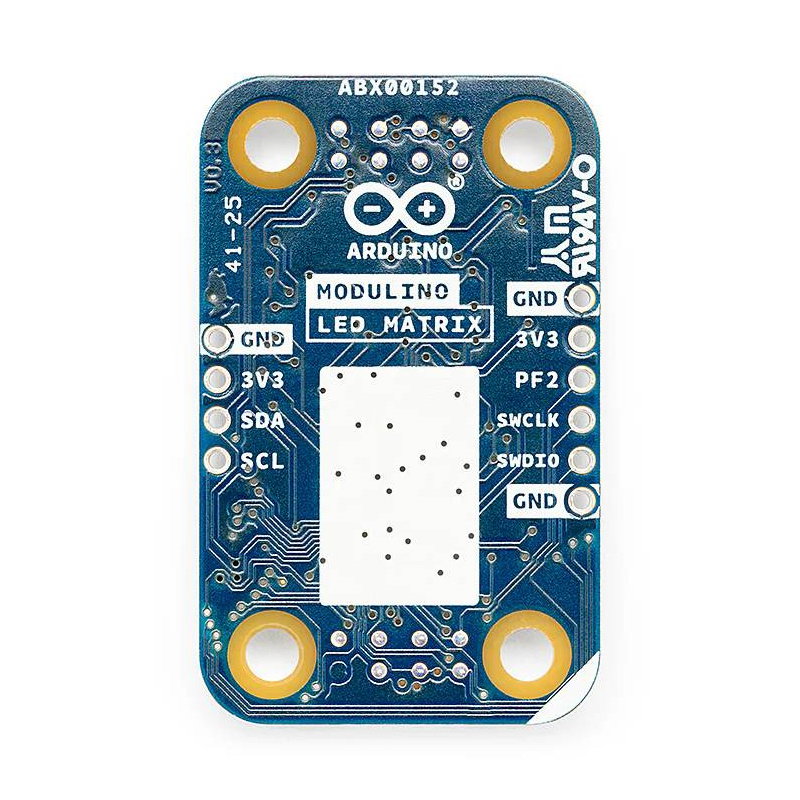

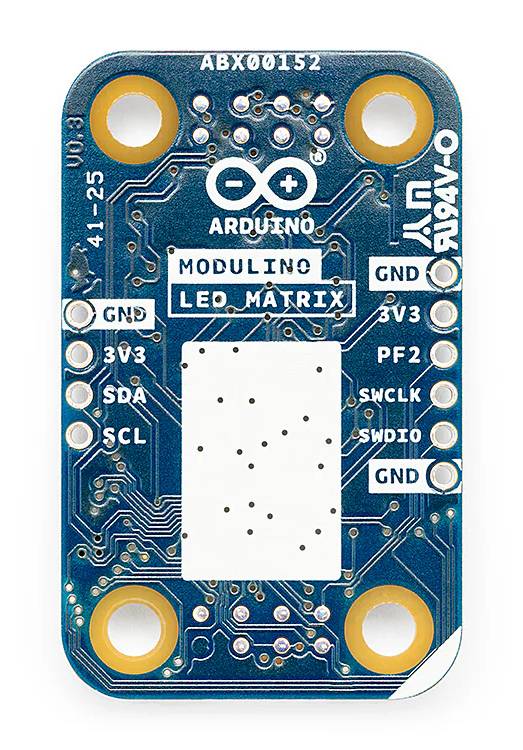

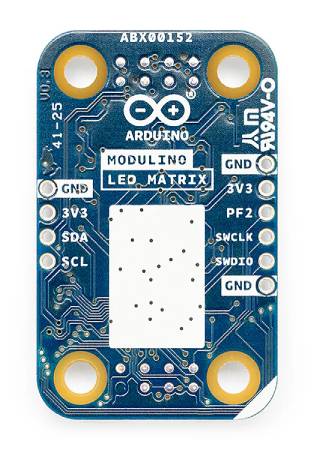

The board also has I2C bus solder pads.
Modulino Led Matrix Programming
The Modulino LED Matrix can be programmed in the Arduino IDE and using MicroPython . The manufacturer provides the Modulino library , which simplifies display operation and allows you to quickly create text, animations, icons, and custom graphics. It's a good solution for both beginners and users creating more complex IoT projects. The Arduino IDE provides functions for initializing the module, displaying individual frames, playing animation sequences, clearing the matrix, and setting operating modes. Integration with ArduinoGraphics allows you to draw lines, points, rectangles, and circles without having to manually control each LED. The module also supports grayscale mode with 16 brightness levels . In MicroPython, you can control individual pixels, draw shapes, display text, and create animations. Available methods allow you to set pixels, clear the screen, draw horizontal and vertical lines, rectangles, and ellipses, and load pre-made frames, among other things. This makes the module useful for learning programming, prototyping, and projects with interactive visual signaling.
Technical specifications of the LED matrix
- Display: 8x12 LED matrix
- Number of LEDs: 96
- LED color: blue
- Control type: charlieplexing
- Microcontroller: STM32C011F4U6TR
- Communication: I2C
- Connectors: 2x Qwiic
- Solder pads: SDA, SCL, 3.3 V, GND
- Default I2C address: 0x32
- Possibility to change I2C address: yes, programmatically
- Operating voltage: 3.3 V
- Maximum current consumption: up to 200 mA
- Supported environments: Arduino IDE, Arduino CLI, MicroPython
- Compatible boards: Arduino UNO R4 WiFi, Arduino UNO Q, Nano ESP32, Nano RP2040 Connect, Nano 33 BLE, Nano 33 BLE Sense, Nano 33 IoT, Nano Matter, Nano Connector Carrier
- Dimensions: 41 x 25.36 mm
- Weight: 4.4 g
Contents of the set
- Modulino LED Matrix
- 5 cm long Qwiic cable

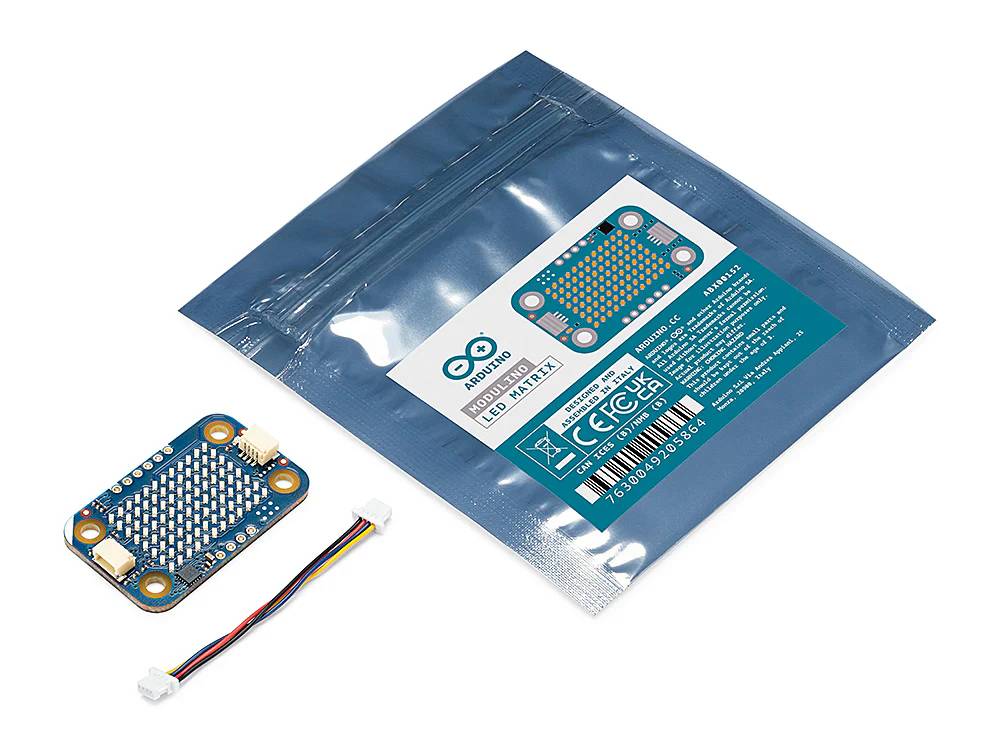

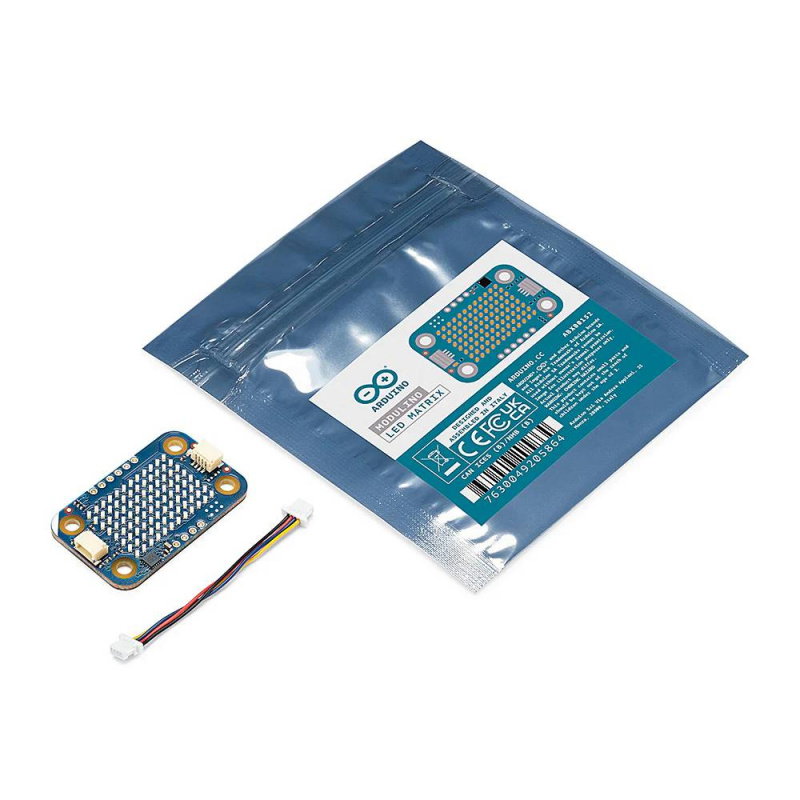

Elements included in the set.
