Arduino Modulino Distance - VL53L4CD ToF distance sensor - Qwiic - ABX00102
The Modulino Distance ABX00102 is a precision time-of-flight (ToF) distance sensor based on the VL53L4CD chip. It enables fast presence detection and accurate distance measurement at ranges up to several dozen centimeters. Thanks to I2C communication and a Qwiic connector, the module is ready for use in smart projects without the need for soldering.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of the Arduino development platform in Poland. We offer a wide choice of boards, modules and accessories from this popular brand, along with tutorials and a knowledge base for users. All Arduino products presented here are original.
Product description: Arduino Modulino Distance - ToF distance sensor VL53L4CD - Qwiic - ABX00102
The Modulino Distance is a compact proximity and distance sensor that utilizes time-of-flight (ToF) technology, providing highly accurate, real-time results. The module is designed for rapid integration with Arduino systems via the I2C bus and Qwiic connector . Thanks to the pre-built Modulino library and full compatibility with Arduino and MicroPython , you can immediately start developing motion detection systems, proximity user interfaces, or smart home automation solutions.
Arduino Modulino Distance - ToF distance sensor VL53L4CD - Qwiic - ABX00102.
The module provides easy connection to the Arduino Uno R4 WiFi or any board with a Qwiic interface.
Main features of the module
- VL53L4CD sensor : enables precise distance measurement using the ToF (time-of-flight) method
- Range and accuracy : accurate real-time measurement, ideal for proximity and motion detection
- I2C communication : default address 0x29, programmable
- Qwiic connector : quick and safe connection to Arduino boards
- Solder pins : alternative connection option via GND, 3.3 V, SDA, SCL pins
- Full compatibility : supported by Arduino IDE, Arduino Cloud and MicroPython
- Compact dimensions : only 41 x 25.36 mm and weight 4.1 g
- Ready to use : pre-assembled module, 5 cm Qwiic cable included
Simple connectivity and flexible pinouts
The Modulino Distance sensor uses an I2C bus and a default address of 0x29 , which can be changed via software. The Qwiic connector allows for soldering-free connection to the Uno R4 WiFi board or other Arduino Nano boards. Additionally, the module is equipped with four solder pins : GND, 3.3V, SDA, and SCL, enabling traditional wiring for custom projects or breadboard prototyping.

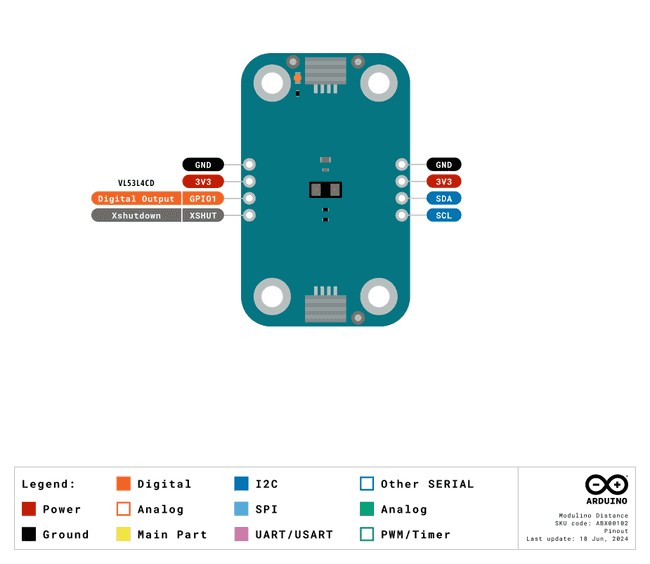

Pinout diagram.
Ready to program: Arduino and MicroPython
Thanks to the official Arduino Modulino library , getting started with this sensor is incredibly easy. Both the Arduino IDE and MicroPython environments provide users with access to ready-made sketches that allow for quick implementation of distance measurement functions. For convenience, cloud-based project templates ( Arduino Cloud Templates ) are also available, further reducing the implementation time of your solution.
Practical applications
Modulino Distance is ideal for applications in robotics, alarm systems, smart homes, user interfaces, and automation . Thanks to its reliable, real-time operation and high precision, it's ideal for applications requiring fast and repeatable detection of movement or distance changes.
Technical specifications of the module
- Sensor: VL53L4CDV0DH/1
- Measurement range: up to several dozen centimeters (mm accuracy)
- Interface: I2C (address 0x29, software variable)
- Connectors: Qwiic + GND, 3.3V, SDA, SCL pins
- Operating voltage: 3.3 V
- Compatibility: Arduino Uno R4 WiFi, Nano 33 BLE, Nano ESP32, Nano RP2040, Nano Matter and others
- Dimensions: 41 x 25.36 mm
- Weight: 4.1 g
Contents of the set
- Modulino Distance ABX00102
- Qwiic cable 5 cm

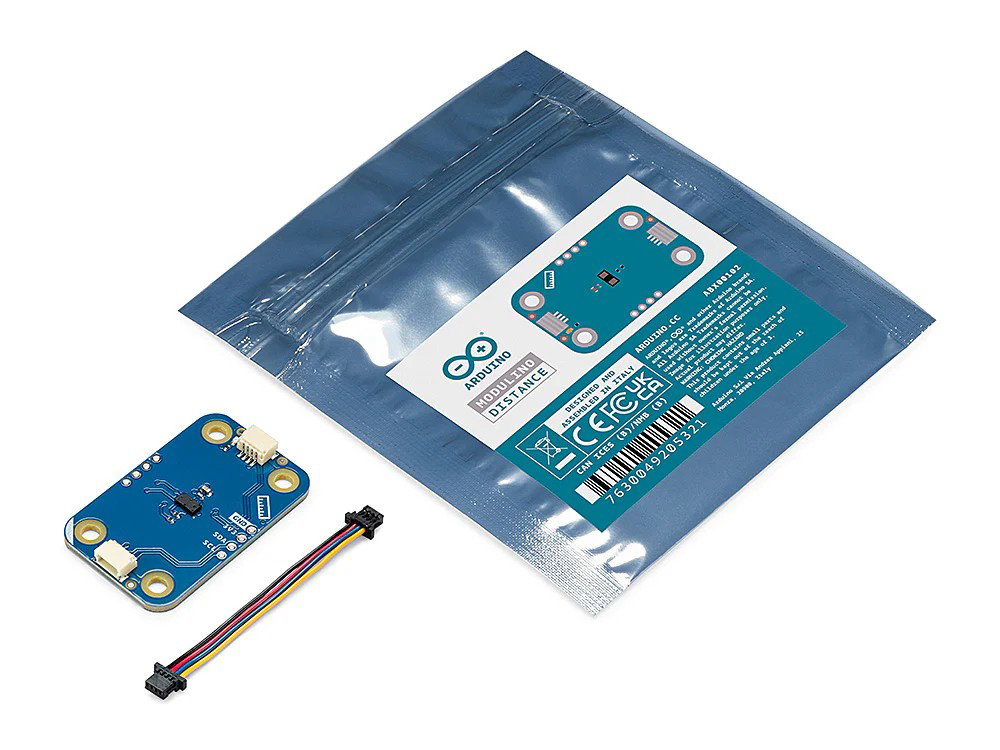

Elements included in the set.
Useful links
| Name | Value |
|---|---|
| Width | 9 cm |
| Height | 10 cm |
| Depth | 1 cm |
| Weight | 0.08 kg |
