Arduino Modulino Movement - 6-axis IMU - accelerometer and gyroscope - LSM6DSOXTR - Qwiic - ABX00101
The Modulino Movement ABX00101 is a compact motion sensor module with a gyroscope and accelerometer , enabling the measurement of acceleration and rotation in three axes . Thanks to its I2C interface and Qwiic connector, it's ideal for interactive projects, robotics, and motion detection applications.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of the Arduino development platform in Poland. We offer a wide choice of boards, modules and accessories from this popular brand, along with tutorials and a knowledge base for users. All Arduino products presented here are original.
Product description: Arduino Modulino Movement - 6-axis IMU - accelerometer and gyroscope - LSM6DSOXTR - Qwiic - ABX00101
Modulino Movement is an advanced sensor module integrated with the 6-axis LSM6DSOXTR sensor, enabling simultaneous measurement of linear acceleration and angular rotation . Thanks to the Qwiic standard and I2C communication, integration with Arduino boards—such as the Uno R4 WiFi—is lightning fast and seamless. It's an ideal choice for educational projects, wearable device prototypes, and motion-sensitive IoT solutions.
Arduino Modulino Movement - 6-axis IMU - accelerometer and gyroscope - LSM6DSOXTR - Qwiic - ABX00101.

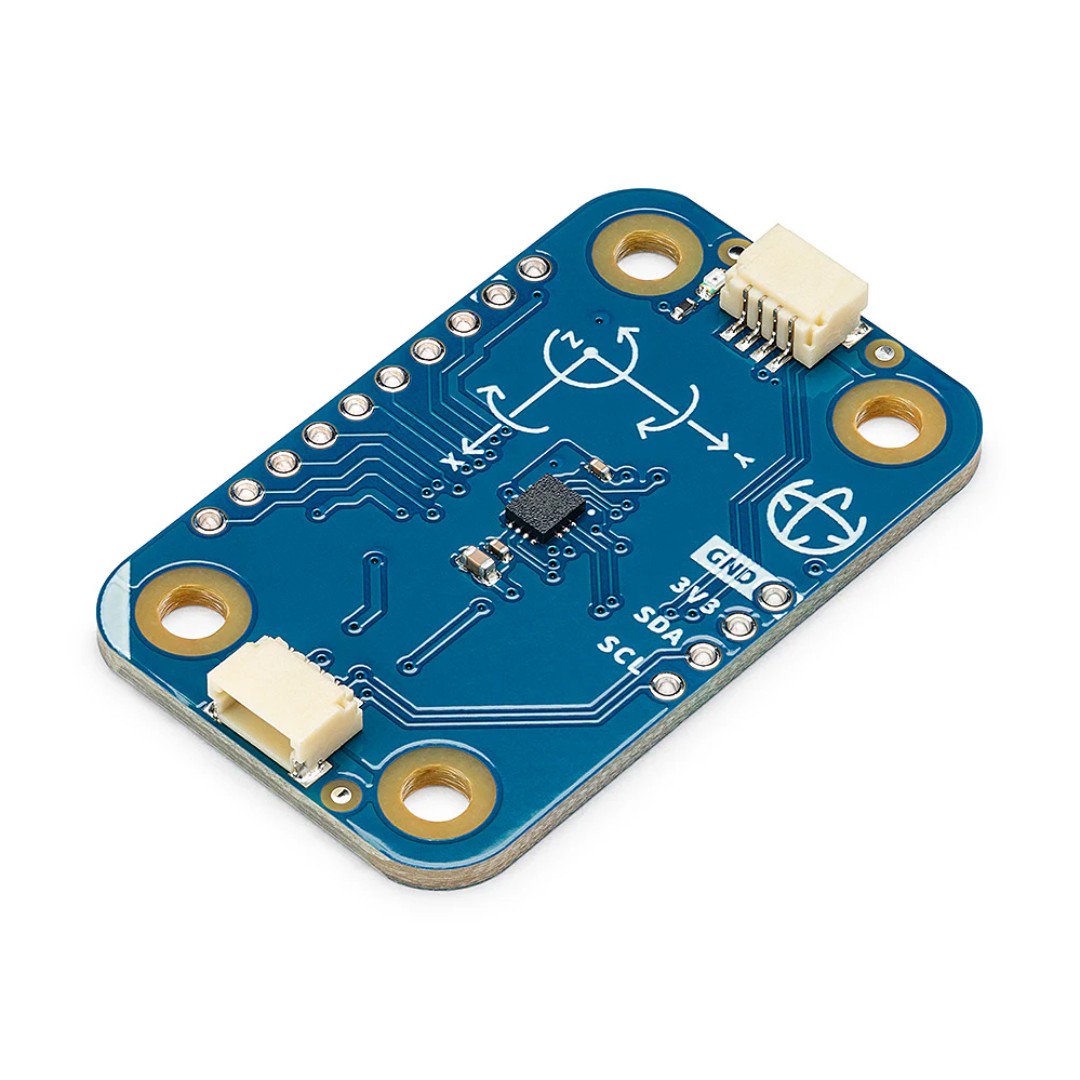

Modulino Movement is a modular sensor that measures acceleration and angular velocity.
Main features of the module
- LSM6DSOXTR sensor : measurement of acceleration and rotation in three axes
- I2C communication : default address 0x6A (can be changed to 0x6B)
- Qwiic connector : quick connection without soldering
- Solder pins : alternative to Qwiic - GND, 3.3V, SDA, SCL
- Compact design : 41 x 25.36 mm and only 3.9 g in weight
- Dedicated Modulino library : full integration with Arduino and MicroPython
- Fully assembled module : ready to use straight out of the box
Easy connection and universal communication
The module communicates via the I2C interface , using the default address 0x6A (can be changed to 0x6B). Thanks to the Qwiic standard , connection is quick and safe, without the need for soldering . Additionally, the module has GND, 3.3V, SDA, and SCL pins , which allow for alternative, classic connections for custom hardware solutions or prototyping.

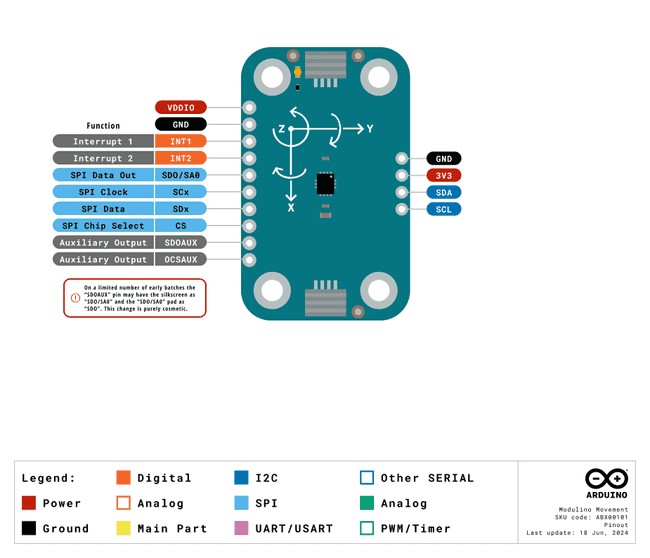

Pinout diagram.
Modulino has two Qwiic connectors and supports the I2C protocol, allowing you to easily connect and program multiple modules.
Fast programming and comprehensive compatibility
With support for Arduino IDE, Arduino CLI, Arduino Cloud and MicroPython , Modulino Movement is ready to run in any environment. The manufacturer provides a Modulino library with code examples and ready-made templates that significantly speed up implementation. Both beginners and professionals will appreciate the quick setup and extensive documentation resources.
Practical applications
Modulino Movement is suitable for robotics, motion detection systems, wearable devices, educational STEM projects , and anywhere where movement and spatial orientation analysis are essential. The module is ideal as a tip-over sensor, vibration detector, or gesture control system.
Technical specifications of the module
- Sensor: LSM6DSOXTR - 6-axis IMU (accelerometer + gyroscope)
- Support microcontroller: STM32C011F4
- Interface: I2C (Qwiic + GND, 3.3V, SDA, SCL pins)
- I2C address: 0x6A (or 0x6B)
- Power supply: 3.3V
- Compatibility: Uno R4 WiFi, Nano RP2040, Nano 33 BLE, Nano ESP32, Nano Matter
- Dimensions: 41 x 25.36 mm
- Weight: 3.9 g
Contents of the set
- Modulino Movement ABX00101
- Qwiic cable 5 cm

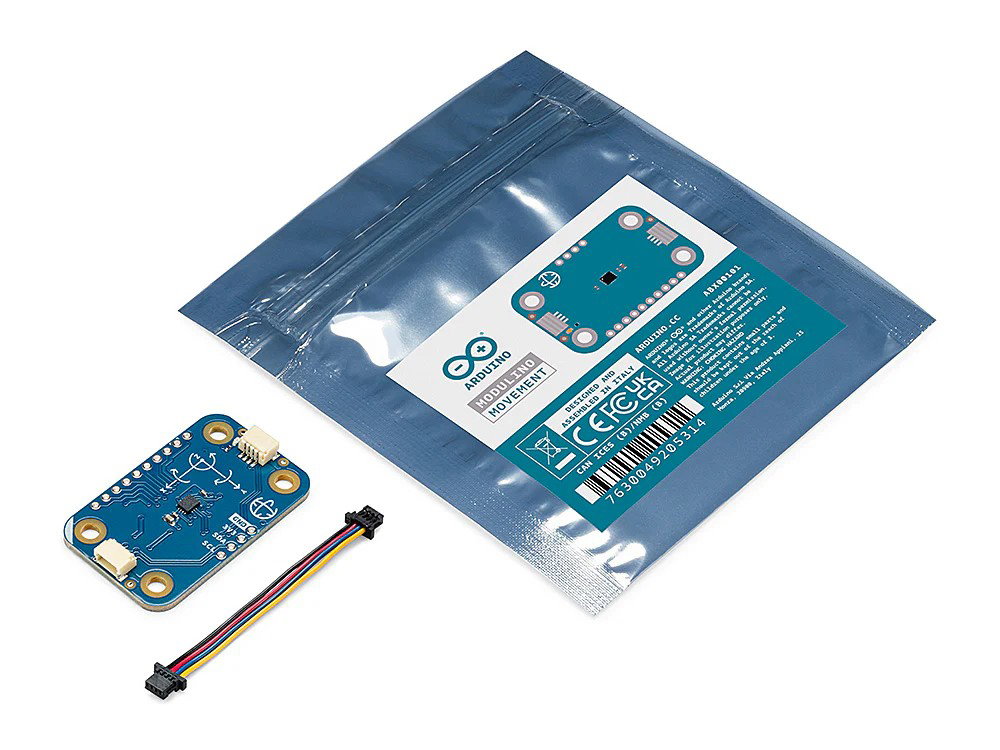

Elements included in the set.
Useful links
| Name | Value |
|---|---|
| Width | 8 cm |
| Height | 10 cm |
| Depth | 1 cm |
| Weight | 0.008 kg |
