Product description: W55RP20-EVB-PICO - board with RP2040 microcontroller and Ethernet - WIZnet
W55RP20-EVB-Pico is a development board based on the dual-core RP2040 microcontroller (ARM Cortex M0+ up to 133 MHz) and integrated W5500 Ethernet controller . With a built-in RJ45 port, support for TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols and 8 independent hardware TCP/IP sockets, the board provides a stable 10/100 Mbps network connection . It offers 22 GPIOs , including 4 ADC inputs, UART, I2C, SPI, PWM and USB Type-C interfaces for power supply and programming. Equipped with 2 MB Flash memory , it allows you to run code directly from external Quad-SPI memory. Built-in Power over Ethernet (PoE) and SWD debugging make it an ideal solution for IoT, automation and intelligent networking projects.

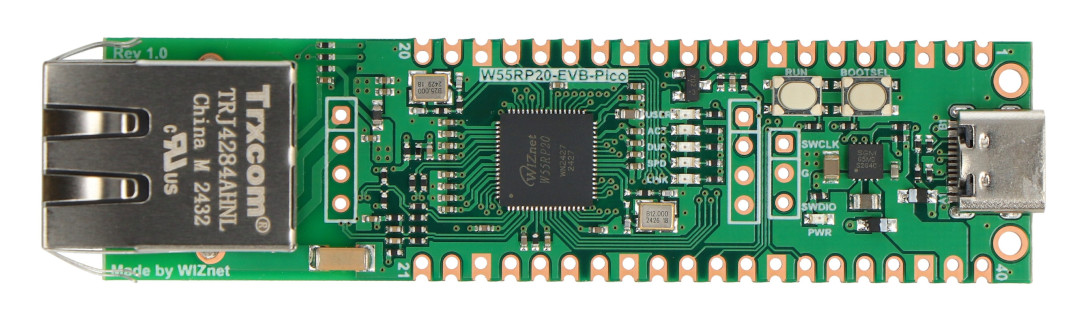

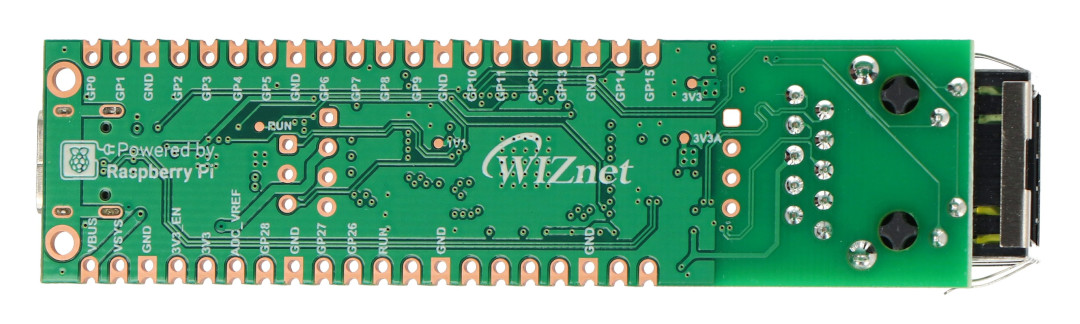

W55RP20-EVB-PICO - board with RP2040 microcontroller and Ethernet - WIZnet.

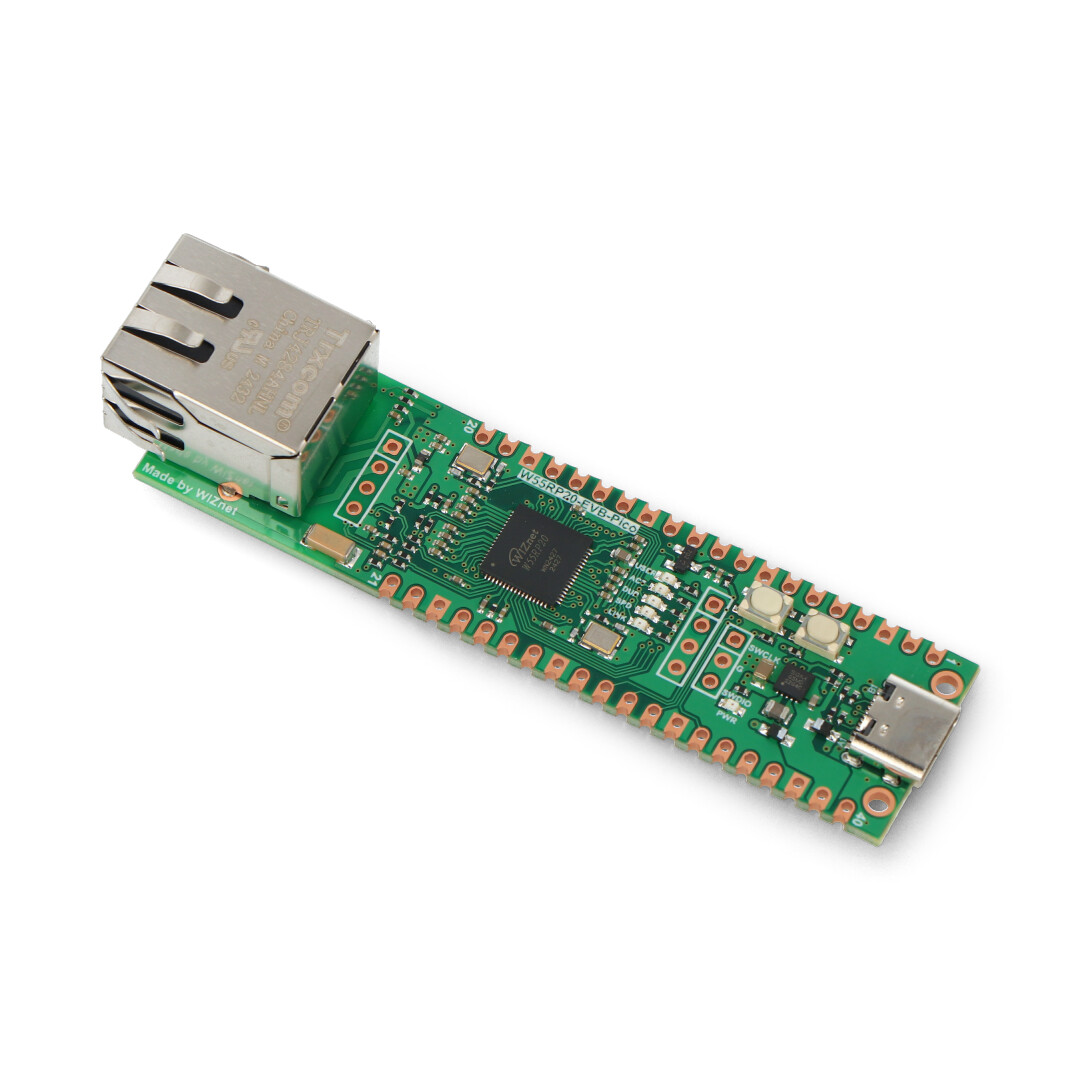

WIZnet board equipped with a Raspberry Pi RP2040 microcontroller and an Ethernet TCP/IP W5500 system.
Key Features of W55RP20-EVB-PICO
- Powerful system - RP2040 with two ARM Cortex M0+ cores clocked at up to 133 MHz
- Ethernet Connectivity - Integrated W5500 Controller Supporting TCP/IP, UDP, ICMP and Other Protocols
- Large number of GPIOs - 22 multi-function I/Os, including 4 ADC inputs
- Built-in memory - 2 MB Flash and the ability to run code from external Quad-SPI memory
- Power over Ethernet (PoE) support - ability to power devices via Ethernet
- Numerous interfaces - 2 x UART, 2 x I2C, 2 x SPI, 16 x PWM, 12-bit ADC
- USB Type-C - for power, programming and data transfer
- 8 independent TCP/IP hardware sockets - allows for simultaneous connection of multiple devices
- Support for AWS IoT Core - certification for IoT services in the Amazon cloud
Practical applications
- IoT Projects - Ideal for Internet-connected devices such as smart sensors and controllers
- Home automation - possibility of integration with control and monitoring systems
- Prototyping network devices - for building servers, communication bridges, IoT gateways
- Education and programming lessons - for people learning how to use microcontrollers and network systems
Supports wired internet protocols such as TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE.

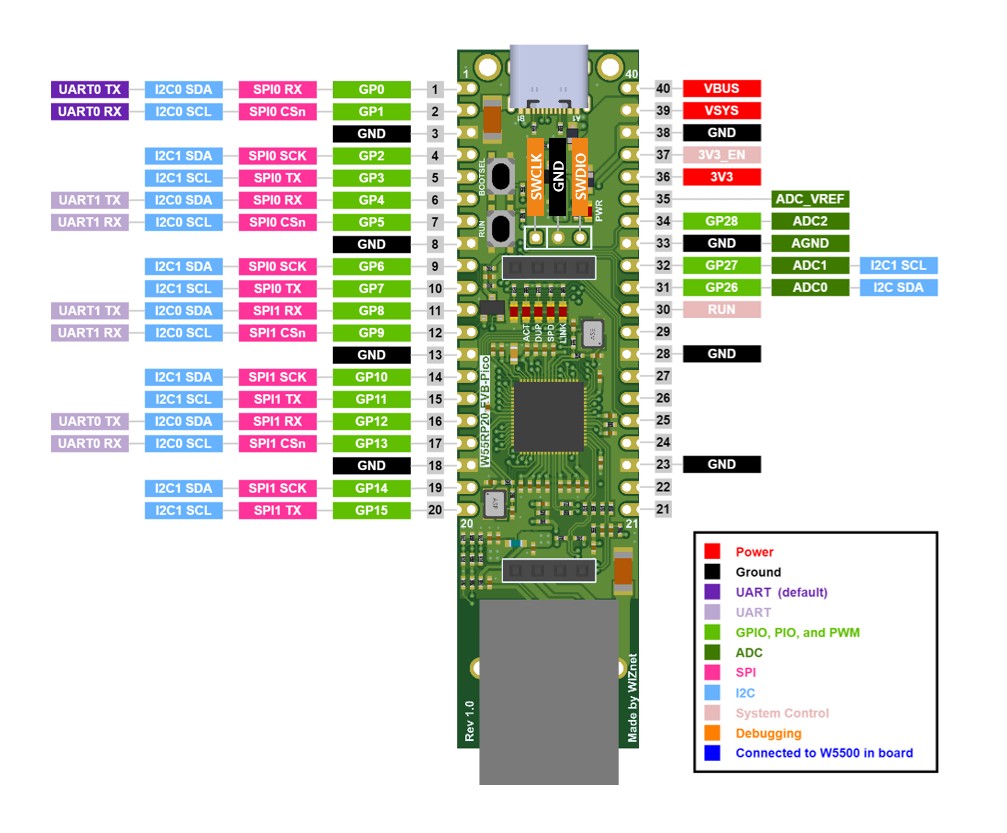

Module pinout diagram.
Technical Specifications W55RP20-EVB-PICO
- Microcontroller: W55RP20
- Flash Memory: 2MB Built-in Memory
- Processor: Dual-core Cortex M0+ clocked at up to 133 MHz
- RAM: 264 KB High-Performance SRAM
- External Memory: Quad-SPI Flash with eXecute In Place (XIP) support
- Bus Architecture: High-performance, full-crossover bus
- GPIO: 22 multi-function GPIO lines (4 can be used as ADC)
- IO Voltage: 1.8V to 3.3V (fixed 3.3V on Pico standard)
- ADC: 12bit, 500ksps
- Digital interfaces: 2x UART, 2x I2C, 2x SPI, 16x PWM channels, 1x Timer with 4 alarms, 1x RTC, 2x programmable IO blocks (PIO)
- Supported Internet Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Support for 8 independent hardware sockets (SOCKETs) simultaneously
- Internal Buffer Memory: 32 KB for TX/RX
- SPI interface: support high speed in SPI mode (MODE 0, 3)
- USB Port: USB Type-C for power, data transfer and Flash memory programming
- Debug: 3-pin ARM Serial Wire Debug (SWD) interface
- Ethernet module: built-in 10/100 Ethernet PHY
- Automatic negotiation support
- Full/Half Duplex
- Standard 10/100 Base-T
- Network Connector: Built-in RJ45 port with PoE support
- Voltage converter: built-in DC/DC (PWM/PFM)
- PoE power support: additional modules enable power over Ethernet
- Dimensions: 80 x 21 mm
