Dust / air quality sensor - PM2,5 PMS1003 - 5V UART

Index: PLA-14485 EAN: 5903351249065

Laser dust sensor that allows you to monitor air purity in real time. It measures PM2.5. The system is powered by 5 V,while the interface works with 3.3 V and communicates through the UART interface.

Dust / air quality sensor - PM2,5 PMS1003 - 5V UART
€17.80 tax excl.
The minimum purchase order quantity for the product is 10.
Waiting time: 6-8 weeks
Temporarily unavailable
PayPal payment
Manufacturer: OEM

Product description: Laser dust sensor - PM2.5 - PMS1003 - 5V UART.

A digital sensor used to measure the concentration of suspended dust particles in the air enables real-time monitoring of air purity. The measurement is carried out by pumping air through a fan. There, by means of a light beam, the laser captures suspended dust particles and pollutants from the air and then the light falls on the sensor and obtains the light scattering curve. The device measuresPM2.5. The systemis powered by5 V, whiletheinterfaceworks with3.3 V and communicates throughtheUART interface.

czujnik pyłu / czystości powietrza - PMS1003

Laser dust / air purity sensor - PM2,5 - PMS1003 - 5V UART.

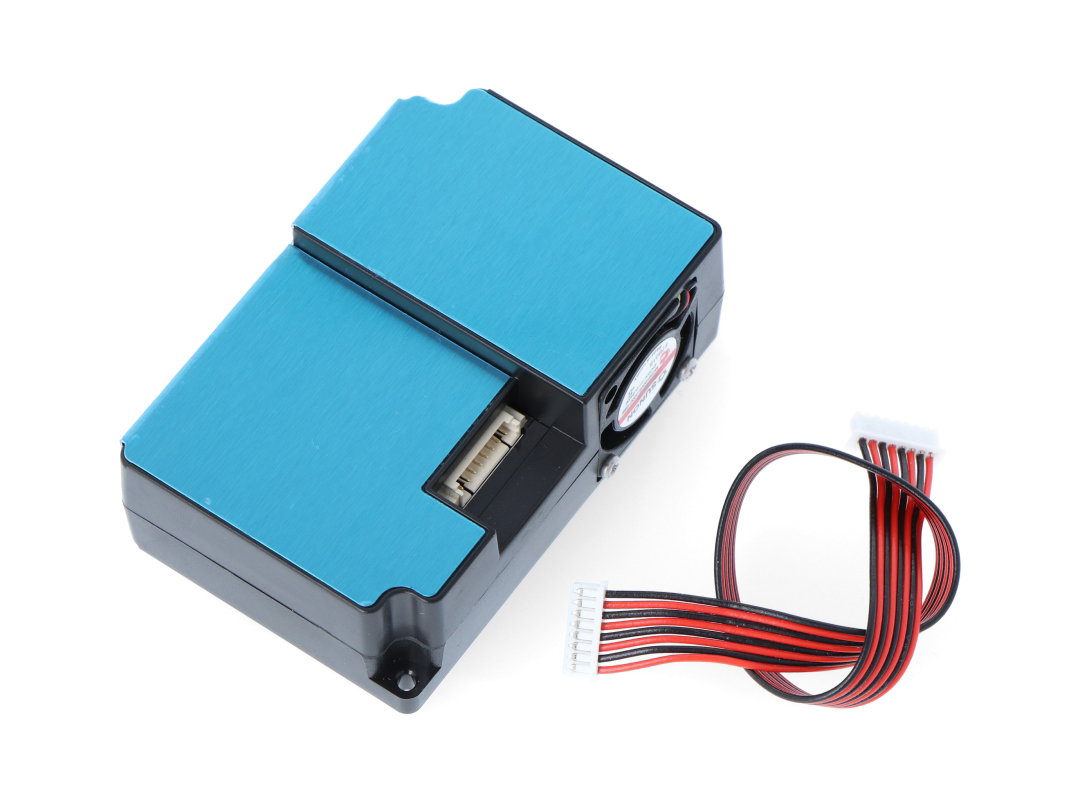

These sensors can be used indoors, e.g. in kitchens, as well as in air purifiers / air conditioning, environmental testing equipment or cigarette smoke detection.The system is powered by 5 V, while theinterfaceworks with 3.3 V andcommunicatesthroughtheUARTinterface. Includedis a160 mm longeight-pinfemale to femalecable. Sensor can be connected e.g. to Arduino.

Laserowy czujnik pyłu / czystości powietrza PMS1003

Laser dust / air purity sensor - PM2,5 - PMS1003 - 5V UART.

Connection .

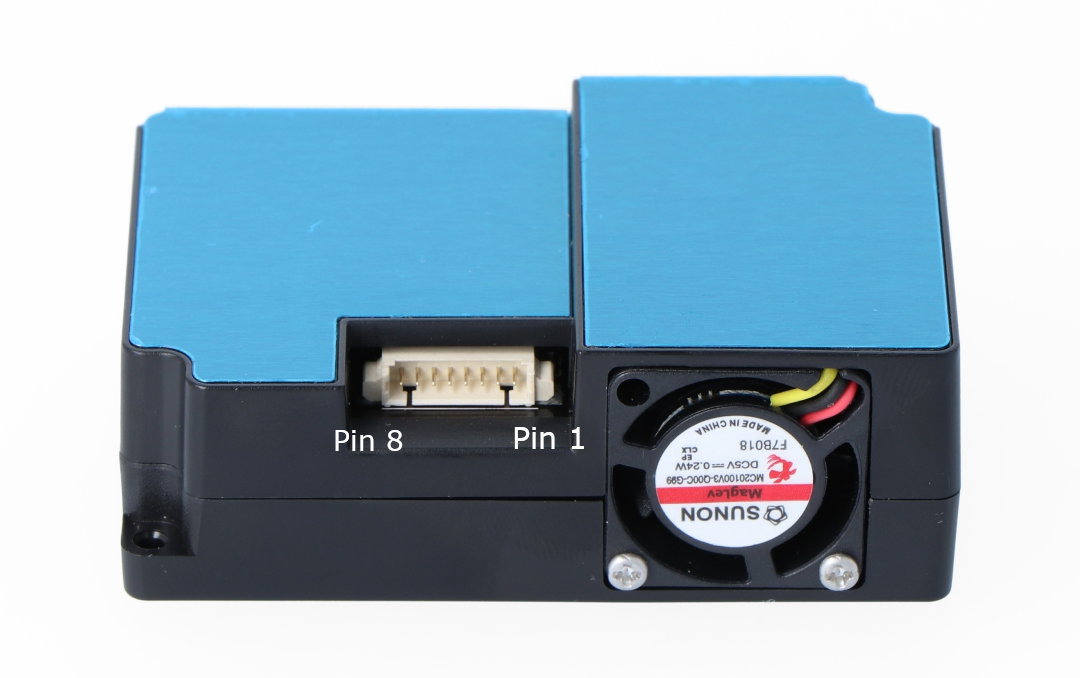

The sensor has 8 outputs and their description can be found in the table.

Pin Description
Pin 1 VCC - 5 V supply.
Pin 2 The weight of the device.
Pin 3 Pin SET
Pin 4 RXD - UART receiver Works with a voltage of 3.3 V.
Pin 5 TXD - UART transmitter. Works with a voltage of 3.3 V.
Pin 6 Reset. Works at 3.3 volts.
Pin 7

Not connected

Pin 8

Not connected

The device works with a voltage of 3.3 V, in order to connect it with a device working with a higher voltage we recommendusing a voltage converter.

Digital dust sensor specifications

  • Operating temperature: -10°C to 60°C
  • Working humidity range: 0% to 99%
  • Power supply voltage: 5,0 V
  • The tension of work: 3,3 V
  • Sensor response time: ≤ 10 s
  • The sensor measures the PM2.5 air ratio
  • Built-in fan that takes air samples
  • It has 8 outputs
  • Maximum operating current: 120 µA
  • Measurement range:
    • 0.3 μm to 1.0 μm
    • 1.0 μm to 2.5 μm
    • 2.5 μm to 10 μm
  • Counting capacity:
    • 50% for 0.3 μm
    • 98% for ≥ 0.5 μm
  • Maximum range (PM2.5): ≥1000 μg/m³
  • Effective range (PM2.5): 0 μg/m³ to 500 μg/m³
  • Standard volume: 0.1 L
  • Dimensions: 65 mm x 42 mm x 23 mm


  • Sensor PMS1003
  • Cable

Voltage to 3.3 V
Voltage from 5.0 V
Package width 7 cm
Package height 10 cm
Package depth 2.4 cm
Package weight 0.057 kg



Question: What type of cable and socket is attached: JST-XH, JST-SH ?
Answer: A JST-SH cable is included in the kit.
