Description

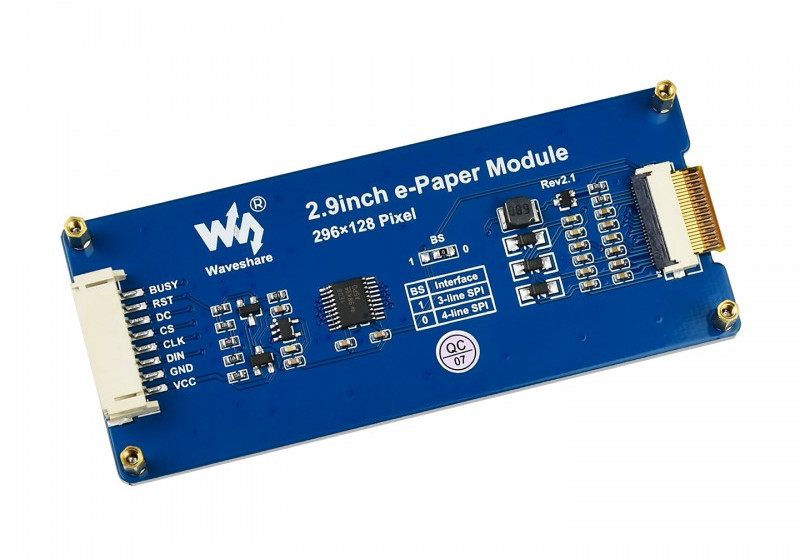

Module with 2.9" e-paper display with a resolution of 296 x 128 px. Communicates via the SPI interface, e.g. with ArduinoorRaspberry Pi. Thanks to the e-papertechnology the device does not tire the eyes like the traditional screens do. This kind of display can be used for reading e-books and e-journals.
The module has 8-pin connector with raster 2.54 mm.
The set also includes a compatible cable with female connectors.
|
The product is compatible with Adruino and Raspberry The manufacturer provides auser's guidefor Arduino and Raspberry Pi. |
Inputs
The device has an 8-pin connector.
| Pin | Description |
|---|---|
| VCC | Supply voltage: 3.3 V |
| GND | The grounf of the system. |
| DIN | Pin MOSI of SPI interface. |
| CLK | Clock pin of SPI. |
| CS | Chip select activated at low state. |
| DC |
Selection data / command. High state - data Low state - command |
| RST | External reset activated at low state. |
| BUSY | Output status "busy", activated at low state. |
Specification
- The module is compatible with Arduino and Raspberry
- Supply voltage: 3.3 V
- Power (screen refresh): 26,4 MW
- Interface: SPI
- External dimensions: 89,5 x 38 mm
- The size of the display: of 66.89 mm x 29,05
- Pixel: 0,138 0,138 mm x
- Resolution: 296 x 128 px
- Viewing angle: 170 °
