E-paper E-Ink 1.54'' V2.1 200x200px - display module SPI - Waveshare 12955

Index: WSR-09098 EAN: 5904422312497

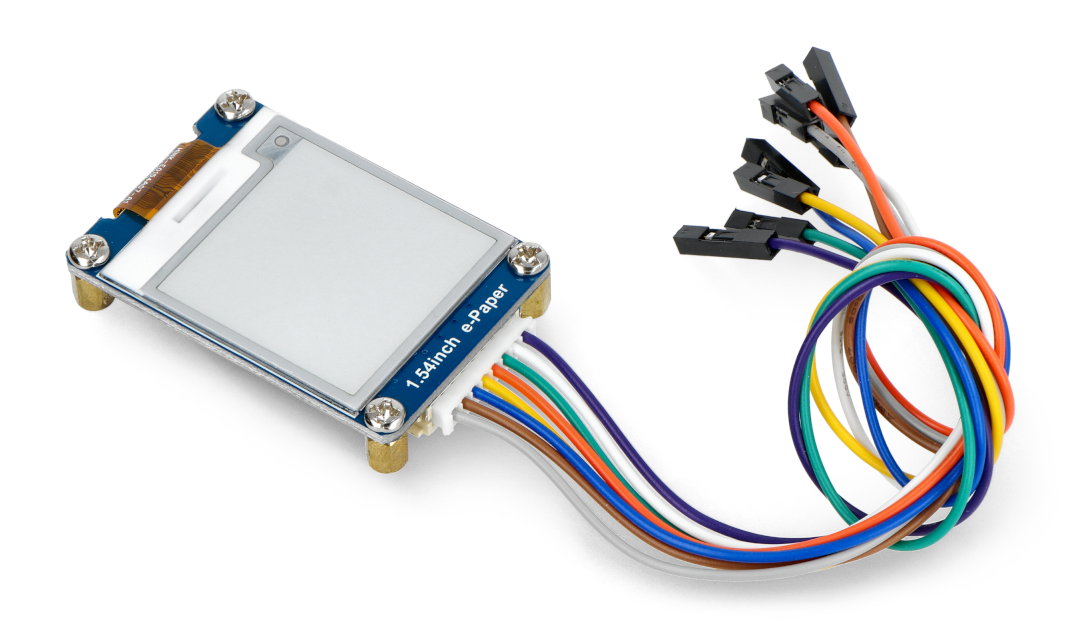

Module with e-paper 1.54 " display with resolution of 200 x 200 px. It communicates via the SPI interface e.g. with Arduino or Raspberry Pi.

E-paper E-Ink 1.54'' V2.1 200x200px - display module SPI - Waveshare 12955
€13.90
€11.30 tax excl.
Delivery 50 pcs scheduled for 2024-11-15
Waiting for delivery
PayPal payment
Manufacturer: Waveshare
Compatibility: Arduino Raspberry Pi

Description

Module with e-paper 1.54 " display with resolution of 200 x 200 px. It communicates via the SPI interface e.g. with Arduino or Raspberry Pi. Thanks to the technology of e-paper, device is easy on the eyes, not like the traditional screens. This kind of displays can be used for reading e-books and e-journals.

The module has 8-pin connector, 2.54 mmpitch.

The set also includes a compatible cable with female tips.



The product is compatible with Adruino and Raspberry

The manufacturer provides auser's guidefor Arduino and Raspberry Pi.

To connect the system to the module operating with a voltage of 5 V, for example,the Arduino, you must usea voltage converter.

Leads

The device has an 8-pin connector.

Pin Description
VCC Supply voltage: 3.3 V / 5 V
GND The ground of the system.
DIN MOSI pin of the SPI interface.
CLK Clock pin of SPI interface.
CS Chip select is activated by the low state.
DC

Selection of data / command.

High state - data

Low state - commands

RST External reset is activated by low state.
BUSY Output of the "busy" status, activated by the low state.



Specification

  • V2.1
  • The module is compatible with Arduino and Raspberry
  • Supply voltage: 3.3 V / 5 V
  • Power of supply: 26,4 MW
  • Interface: SPI
  • Chip: SSD1681
  • External dimensions: 48 x 33 mm
  • Display dimensions: 27,6 x 27,6 mm
  • Pixel: 0,138 0,138 mm x
  • Resolution: 200 x 200 px
  • Viewing angle: 170 °



Screen - type e-paper
Screen - diagonal 1,54''
Screen - interface GPIO
Screen - touch no
Screen - resolution 200x200px
Test 3
Package width 5 cm
Package height 7 cm
Package depth 2.3 cm
Package weight 0.023 kg
