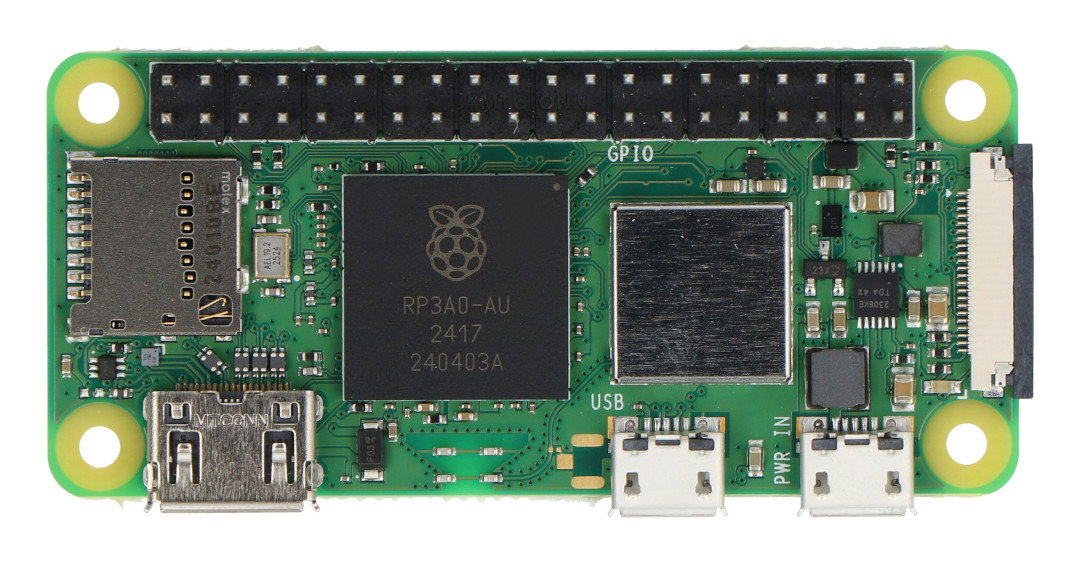

Product description: Raspberry Pi Zero 2 WH 512 MB RAM - WiFi + BT 4.2 - with connectors
The Raspberry Pi Zero 2 WH is equipped with a quad-core Broadcom BCM2710A1 processor clocked at 1 GHz, which can also be found in the Raspberry Pi 3B model. The board has 512 MB of RAM and a VideoCore IV graphics chip. The module offers wireless WiFi and Bluetooth 4.2 connectivity, a miniHDMI port, a microUSB OTG socket, a 40-pin GPIO, a microSD card slot, and four mounting holes.

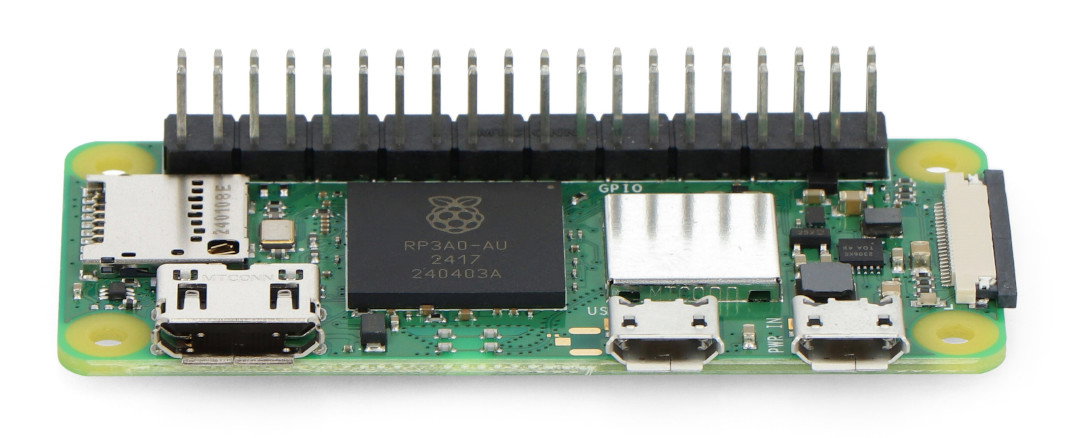

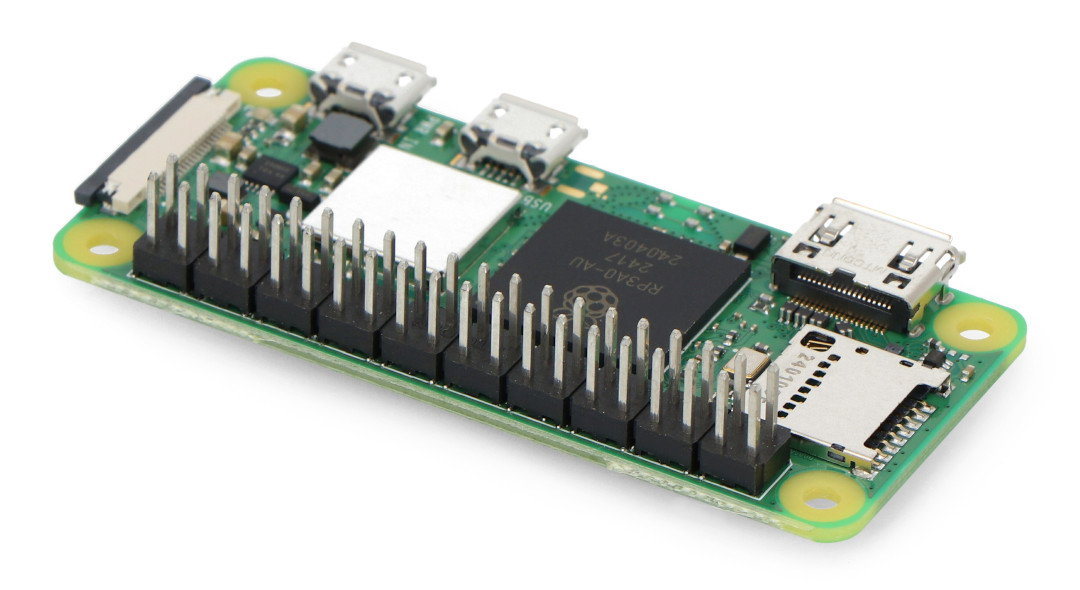

This version has soldered male connectors - 2.54 mm pitch.
Raspberry Pi Zero 2 WH 512 MB RAM - WiFi + BT 4.2 - with connectors.
Raspberry Pi Zero is one of the smallest minicomputers available on the market.
Key Features of the Raspberry Pi Zero 2
- Quad-core ARM Cortex-A53 processor clocked at 1 GHz (Broadcom BCM2710A1)
- 512MB LPDDR2 RAM
- Built-in wireless WiFi 802.11 b/g/n and Bluetooth 4.2 BLE module
- MiniHDMI connector for connecting a screen
- MicroUSB OTG port for connecting external devices
- 40-pin GPIO connector for supporting various peripherals (I2C, SPI, UART)
- MicroSD card slot for storing operating system and data
- CSI connector for camera connection
- Compact dimensions: 65 x 30 mm
Ready for immediate action
The Raspberry Pi Zero 2 WH version, thanks to factory-soldered pins, allows you to immediately start using the 40-pin GPIO connector without the need for soldering yourself , which saves time and makes work easier, especially for people with no experience with a soldering iron . This version makes the minicomputer ready to connect various modules, sensors or controllers right out of the box. This is an ideal solution for people who want to quickly start DIY projects or prototypes.
The Raspberry Pi Zero 2 minicomputer is powered via a microUSB socket.
This version has soldered male GPIO connectors.Differences from the previous version
The most important change that distinguishes the Raspberry Pi Zero 2 W from the Raspberry Pi Zero W is significantly higher performance , thanks to the use of the Raspberry Pi RP3A0 processor with a quad-core Broadcom BCM2710A1 ARM Cortex-A53, known from the Raspberry Pi 3B. The wireless communication module has also been improved , introducing Bluetooth version 4.2. However, increased performance is associated with higher energy demand - the new version requires a 5 V / 2.5 A power supply , which is a greater load compared to its predecessor.
| Basic information | |||
|---|---|---|---|
 |  | ||
| Model | Raspberry Pi Zero W | Raspberry Pi Zero 2 W | |
| Technical specification | |||
| System | Broadcom BCM2835 | Broadcom BCM2710A1 | |
| Processor | ARM11 Single Core | ARM Cortex-A53 Quad-Core | |
| Operating systems | Linux Raspberry Pi OS | ||
| Clocking | 1.0GHz | 1.0 GHz (overclockable to 1.2 GHz) | |
| RAM memory | 512MB RAM DDR2 @ 400MHz PoP | 512MB DDR2 wire bond | |
| Memory | microSD card | ||
| GPIO socket | 40-pin connector (2x20 pin) 2.54 mm pitch for self-soldering | ||
| Power supply | 5V/1.2A via microUSB | 5V/2.5A via microUSB | |
| Tile dimensions | 65x30x5mm | ||
| Interfaces | |||
| USB interface | microUSB OTG | ||
| Network interface | - | ||
| Wi-Fi interface | 802.11 b/g/n 150Mbps | ||
| Bluetooth | Low Energy, BLE 4.1 | Low Energy, BLE 4.2 | |
| Camera | CSI nest | ||
| Touchscreen display | - | ||
| Video | miniHDMI H.264 1080p30 OpenGLES 1.1, 2.0 | ||
| Communication | UART, SPI, I2C, GPIO | ||
