Product description: BleBox SwitchBox DIN - 230 V WiFi relay - Android / iOS application
The module allows you to control home devices with a power of up to 3.6 kW via WiFi, using an application for mobile devices. The controller is designed to be mounted on a DIN rail in a distribution box, therefore the installation requires the assistance of an electrician. It is most often used in industrial automation and Smart Home solutions. Thanks to SwitchBox DIN, you can control machines, home appliances or lighting . It also collects information about the energy consumption of controlled devices. You can create 1 or 2 wired central buttons or, with the actionBox module, wireless buttons that send a signal to the controller via WiFi. The module is powered by 230 V.
You can download the free wBox application on both Andriod and iOS devices. It is also possible to operate the controller via a Windows application.

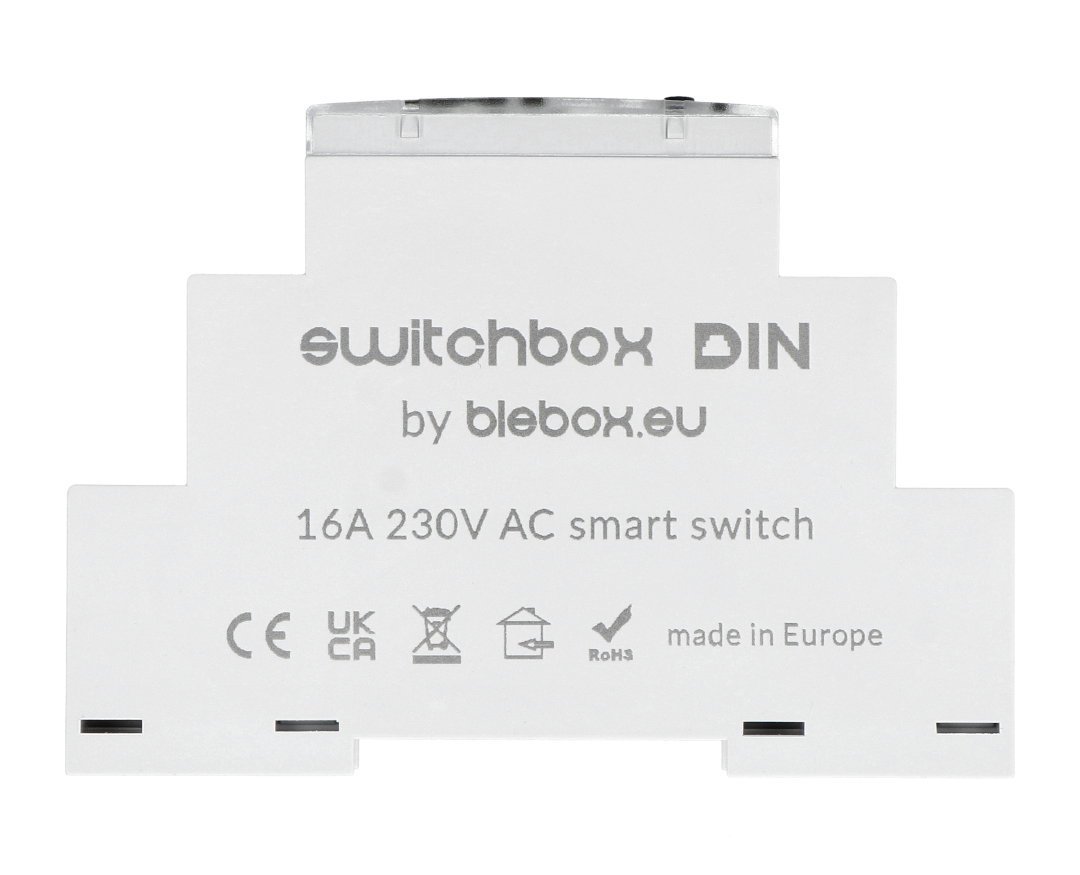

BleBox SwitchBox DIN - 230 V WiFi relay - Android / iOS application.

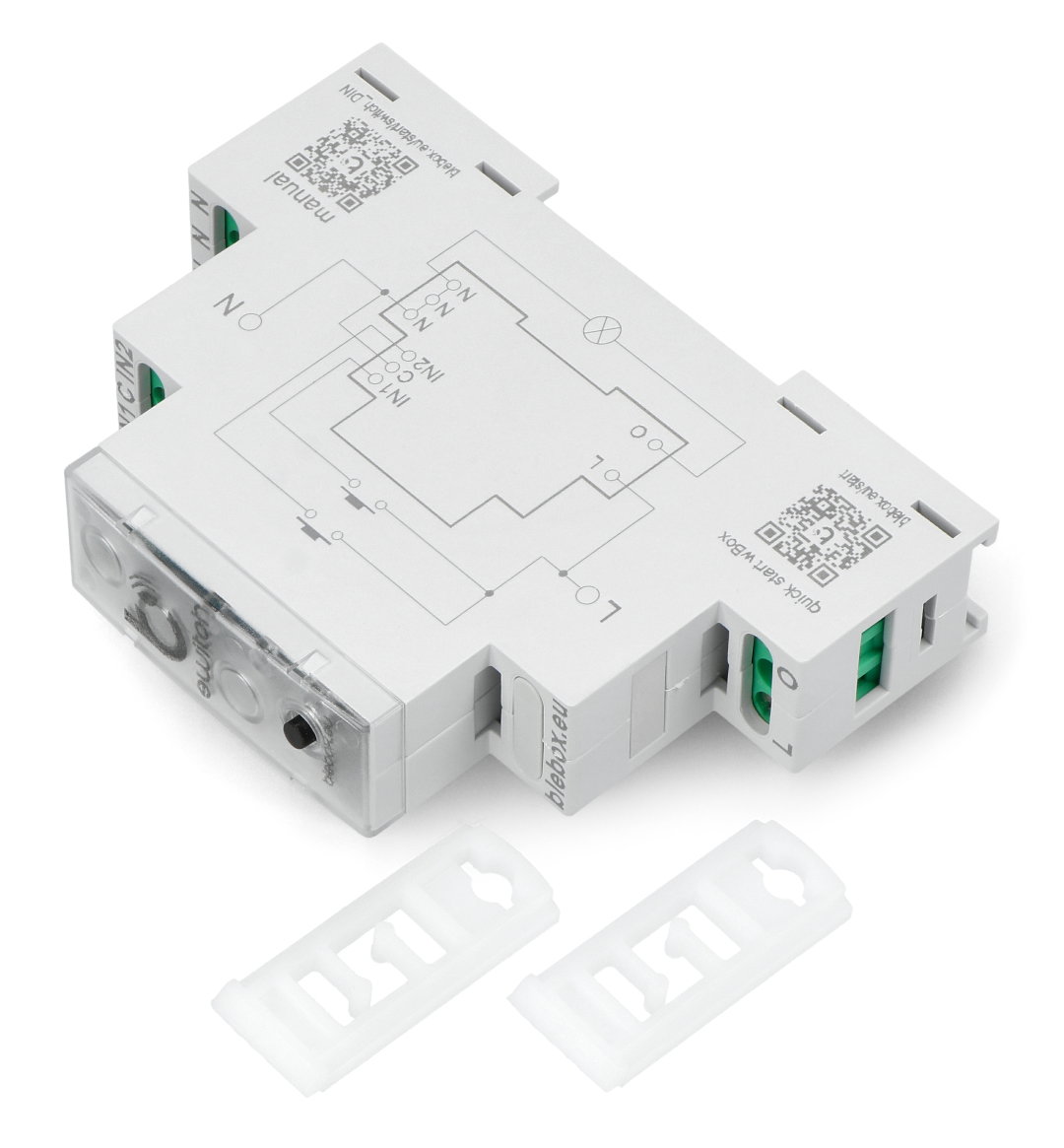

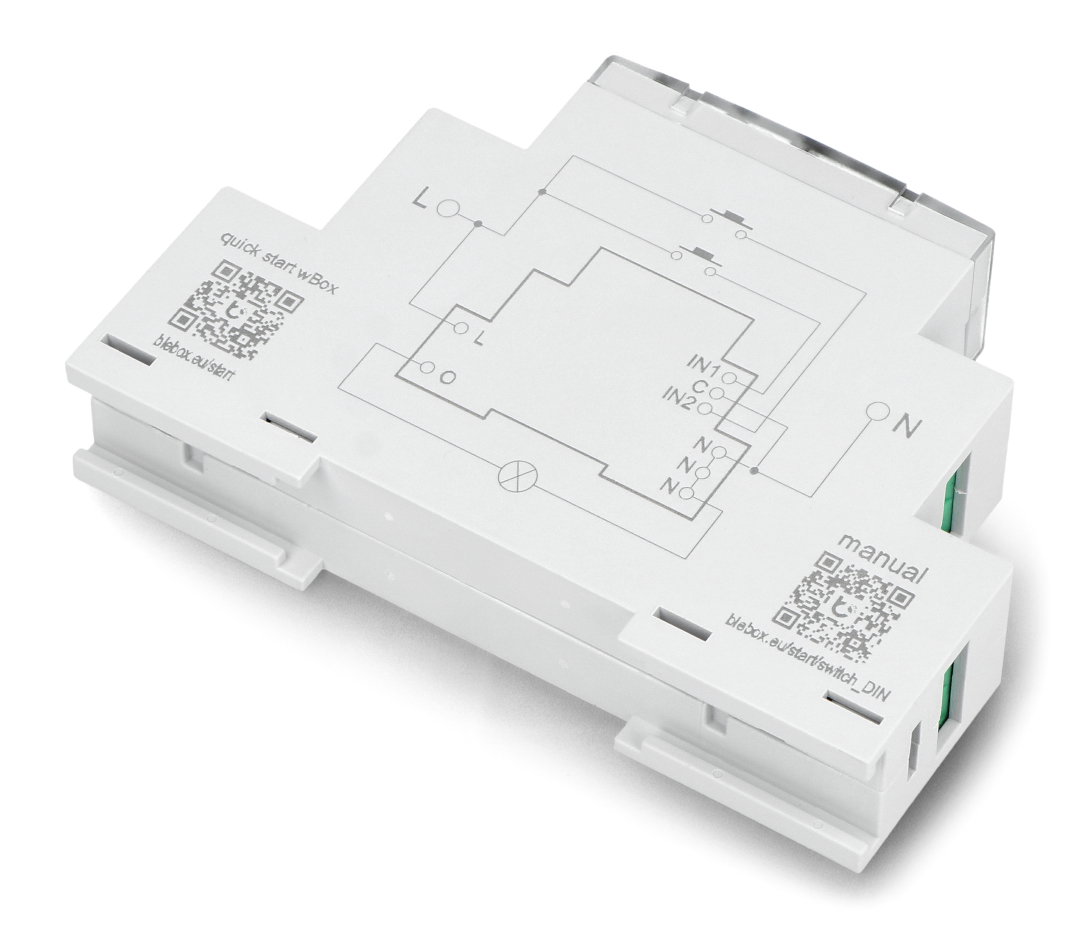

The device is designed to be mounted on a 35 mm DIN rail.Main features of the SwitchBox DIN module
- Remote control of 3.6kW circuits
- DIN rail mounting
- Measurement of energy consumption by controlled devices
- Individual device work schedule
- Astronomical clock function
- Possibility to create 1 or 2 wired central buttons or, with the actionBox module, wireless buttons
- Compatible with voice assistants such as Google Home or Alexa
- Possibility of pairing with uRemote and sRemote remote controls and with the inBox button module
- Automation in combination with other BleBox sensors:
- windSensor
- airSensor
- rainSensor
- tempSensor
SwitchBox DIN technical specification
- Mounting: on a 35 mm DIN rail
- Supply voltage: 230V AC
- Power Consumption: < 1W
- Number of outputs: 1
- Maximum current: 16A
- Maximum power:
- AC1 (resistive, power factor: 0.95): 16 A @ 230 V AC = 3680 W
- AC3 (IEC60947-4-1): ~0.15kW @ 240VAC
- Measuring range: 0W to 3680W
- Number of inputs: 2
- Input voltage range: from 12 V to 230 V AC / DC
- Supported buttons: monostable, bistable
- Signaling on the housing: colored backlight
- Transmission standard: µWiFi, compatible with WiFi, 802.11g
- Transmission frequency: 2.4 GHz
- Transmission type: two-way, encrypted
- API: open
- Degree of protection: IP20
- Housing: ABS, acrylic
- Operating temperature: -20°C to 50°C
- Dimensions: 98.8 x 17.5 x 64.5mm
The controller uses the existing WiFi network, you do not need any additional control panel.
