BleBox ProxiSwitch V2 - proximity switch 12-24V

Index: BOX-13725 EAN: 5900168580237

Complete module allows you to turn the device on and off by touch or by gesture. It works with voltage from 12V to 24V and current efficiency up to 5A. It has reverse-polarity-protection. The device is calibrated automatically, you just need to correctly connect the power supply and the controlled device. The product can operate in 4 modes: bistable, bistable with state memory, monostable NO and monostable NC.

BleBox ProxiSwitch V2 - proximity switch 12-24V
€15.90
€12.93 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: BleBox

Description

Complete module allows you toturn the device on and off by touch or by gesture. It works with voltage from12V to 24V and current efficiency up to 5A. It has reverse-polarity-protection. The deviceis calibrated automatically, you just need to correctly connect the power supply and the controlled device. The module hasscrew terminal block connectors for connecting wires. There are self-adhesive stripsat the back of the device for mounting of the module. ProxiSwitch can operate in 4 modes: bistable (switches the state after each touch or close-up of the hand), bistable with memory (switches the state after each close-up or touch, remembers its state after a power failure), monostable NO (switches on the output when it detects a hand close-up or touch The maximum pulse time is approx. 5 seconds), monostable NC (turns off the output when it detects a hand approach or touch. The maximum pulse duration is approx. 5 seconds).

BleBox ProxiSwitch - dotykowy włącznik 12-24V

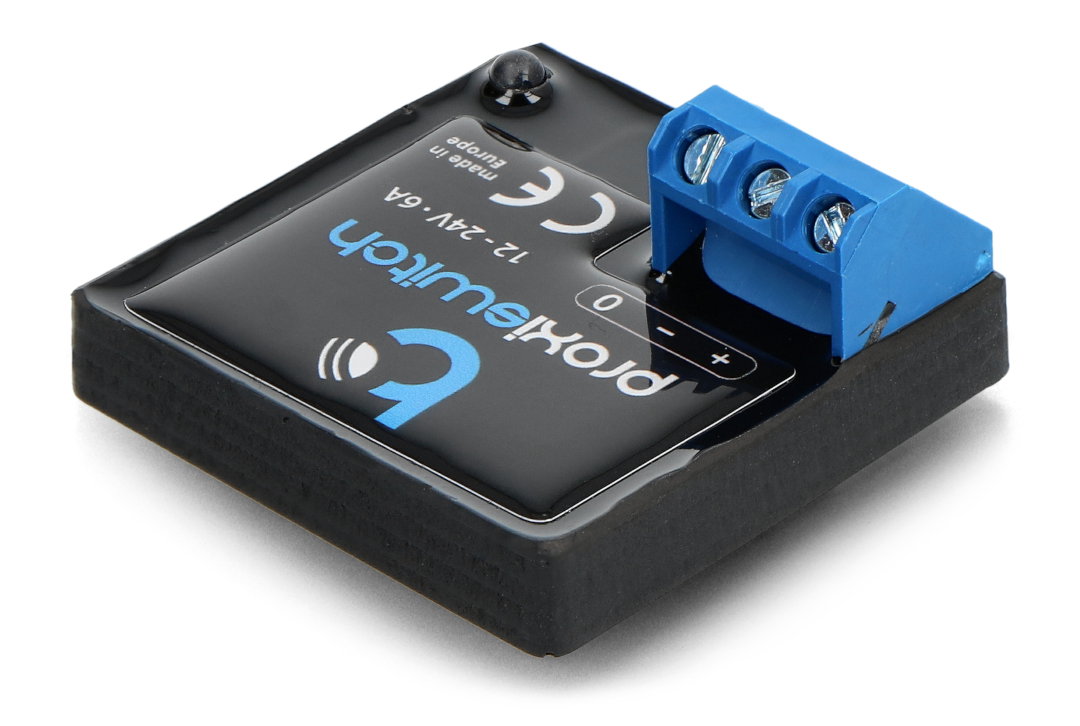

The device hasscrew terminal block connectorsfor connecting wiresThere are self-adhesive strips at the back of the device for mounting of the module.

Connection

The module has three inputs in the form of screw terminal block connectors, to which you can connect the wires using a screwdriver:

  • +supply voltage, shared with a controlled device
  • - - the mass of the system.
  • On- control output to connect with the managed device

Connection diagrams can be found here.

BleBox ProxiSwitch - dotykowy włącznik 12-24V

After power-up, for a short time do not place your hands, any body parts, or any conductive objects, as this can affect the calibration process.

Warning!

Make sure that the power supply and controlled device meet the electrical and environmental requirements and that you have enough knowledge to install the unit yourself.

Installation

The module should be attached to the insulating surface, e.g. under wood, under the kitchen countertop. Before gluing you need to dry the driver and clean its surface. After removing the film with the adhesive tape, press and hold the module in the chosen spot. Please note that the device detects an approaching handonly from the side with the adhesive tape.

When combined with low voltage BleBox devices, e.g. SwitchBoxDC,ShutterBoxDC, the module can support the controlling of wireless devices.

BleBox ProxiSwitch - dotykowy włącznik 12-24V

There are self-adhesive strips at the back of the device for mounting of the module.

Specification

  • Supply voltage: 12 to 24V
  • Maximum current: up to 5A
  • Maximum power: 120W
  • Working temperature: from -20°C to 50°C
  • Protection: reverse-polarity, ESD
  • Sensor: proximity sensor, capacitive sensor
  • Degree of protection: IP20
  • Calibration: automatic
  • Method of installation: under insulating surface
  • Self-adhesive strips on the reverse side for attaching the module
  • Dimensions: 38 x 38 x 19mm

UC - Microcontroller BleBox
Smart Home Button
Package width 4.5 cm
Package height 2 cm
Package depth 5.5 cm
Package weight 0.02 kg
